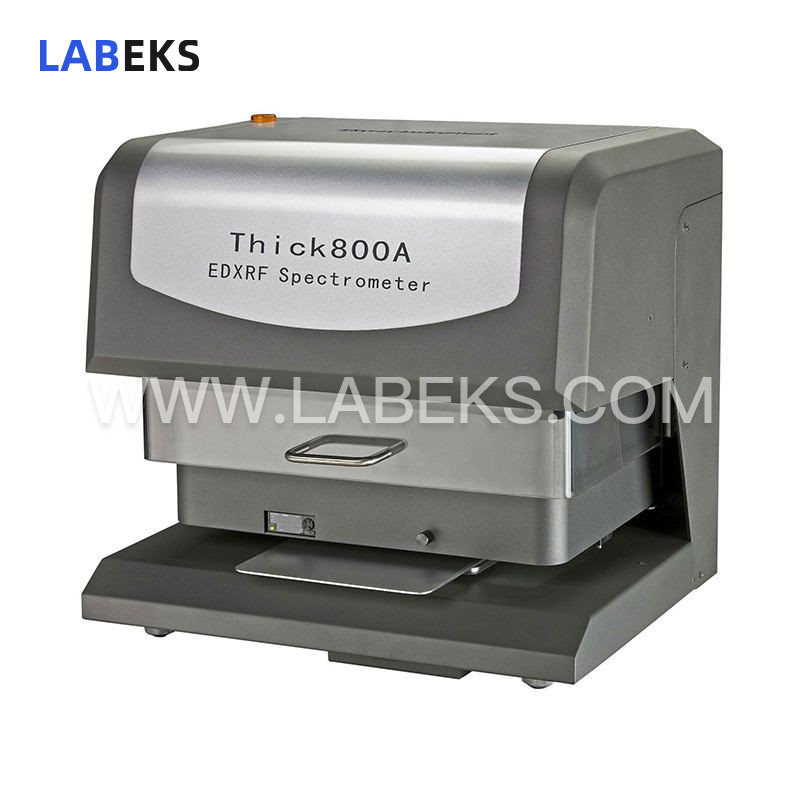

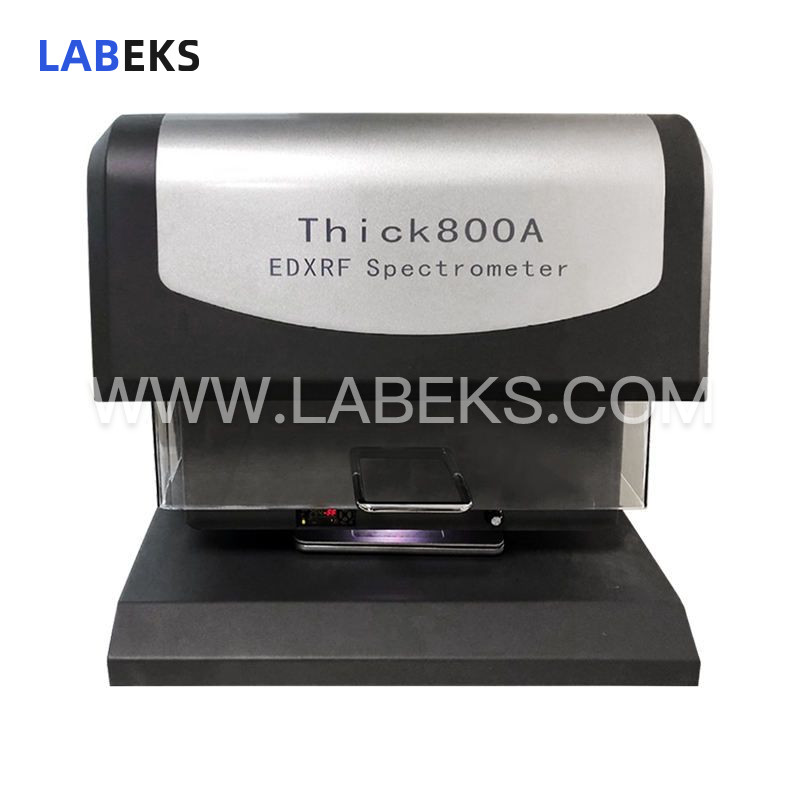

XRF Plating Thickness Measurement Machine: Non-Destructive Testing for Electroplating & Jewelry
Boasting full-auto software operation, multi-point testing, software-driven instrument control, and a movable platform, the Thick800A XRF Plating Thickness Measurement Machine is a high-performance tool widely used in electroplating industries for precise thickness analysis.
- modelThick800A
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Engineered specifically for plating thickness measurement, this instrument delivers rapid, non-destructive analysis of plating elements and their concentrations. It is primarily utilized in precious metals and jewelry manufacturing sectors, banks, jewelry retailers, inspection agencies, and electroplating industries.
Application
Measurement of plating thickness on metal substrates, analysis of plating solution and coating compositions.
Quantitative analysis of gold, platinum, silver, other precious metals, and various jewelry items.
Primary end-users include enterprises in precious metals and jewelry manufacturing, banks, jewelry retailers, inspection agencies, and electroplating sectors.
features
1. Superior Safety: Features exceptional radiation shielding, with the test interface protected by a high-sensitivity sensor for reliable user protection.
2. High-Resolution Detector: Enhances analytical accuracy to ensure precise and consistent measurement results.
3. Micro Collimator (0.1×1.0): Supports micro-point testing to further improve testing precision for small target areas.
4. High-Precision Movable Platform: Offers a repeat positioning accuracy of less than 0.005mm, enabling exact localization of test points.
5. Height Laser: Automatically adjusts positioning for irregularly shaped samples while safeguarding the upper and lower platform components.
6. Auto Spot Alignment: Precisely locates the testing spot to guarantee perfect alignment with the target measurement area.
7. Mouse-Controlled Arbitrary Measurement: Allows users to manipulate the movable platform via mouse, with the ability to select test points through simple clicks.
8. Top Lighting System: Meets testing requirements for samples of varying thicknesses and irregular shapes.
specifications
Model | Thick800A |
|---|---|
Detection range for plating | 25 elements such as Cr \Fe l Ni \Cu \Zn \Au \Ag \Pt \ Pd |
Plating layers | 5 layers |
Stability | 0.005~0.01μm |
RSD | 0.1% |
Excellent repeatability | 0.1% |
Lon-time working stability | 0.1% |
Ambient temperature | 15℃-15℃ |
Models | Arbitrary optional analysis and identification models; Independent matrix effect correction models; Multi-variable non-linear regression procedure; |
Power supply | AC 220V+5V |
