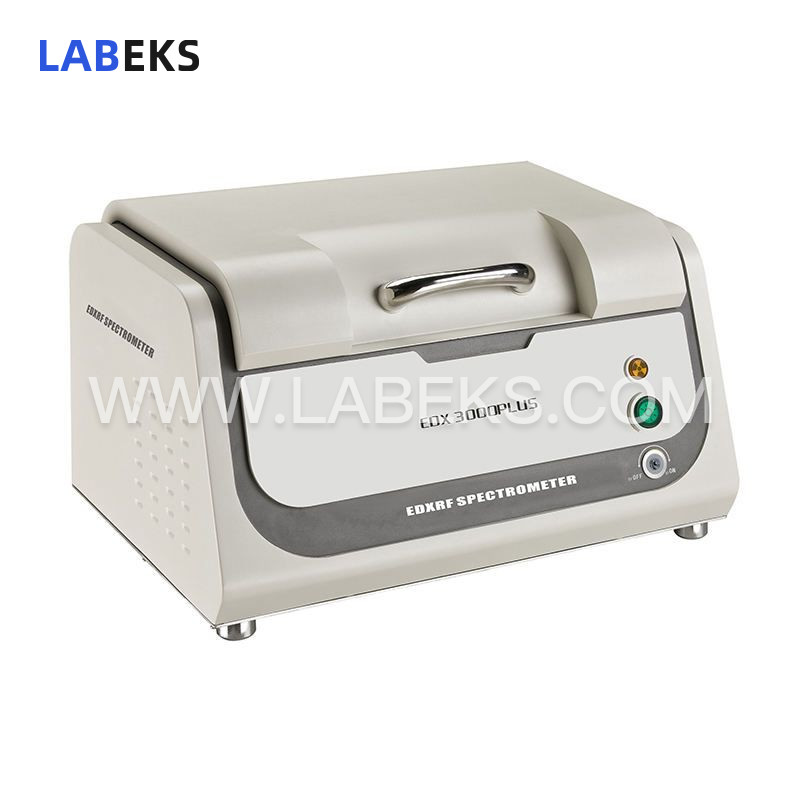

XRF Fluorescence Precious Metal Spectrometer: High-Resolution Testing for Jewelry Precious Metals
Delivering precise content testing of gold, silver, platinum, palladium, copper, zinc and nickel in gold, platinum and jewelry items, the EDX3000 PLUS XRF precious metal spectrometer is equipped with a 25m㎡ beryllium window detector. All its test results fully meet the requirements of international standard GB/T 18043-2000.
- modelEDX3000 PLUS
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The EDX3000 PLUS is distinguished by its exceptional high precision, high resolution, and integrated HD camera. Its one-touch intelligent operation streamlines precious metal testing procedures, enhancing operational efficiency and ease of use.
Application Areas
Content analysis of gold, platinum, silver and other precious metals across a variety of ornaments. Precious metals herein primarily include gold, silver, and platinum group metals (ruthenium, rhodium, palladium, osmium, iridium, platinum).
features
1. Equipped with a 25m㎡ beryllium window detector, the instrument significantly boosts the sample’s X-ray fluorescence reception capability. Integrating digital multi-channel analysis technology, it elevates both analysis speed and integral processing performance. Boasting a counting rate of 80,000, it delivers 5 to 10 times higher efficiency than standard 6m㎡ Si-PIN detectors, while improving measurement precision by 2 to 4 times.
2. Fitted with a top-tier silicon drift detector (SDD) featuring a resolution of 139±5eV—an improvement over the 160±5eV resolution of conventional Si-PIN detectors—the spectrometer enables more accurate testing of iridium and gold content in platinum samples.
3. Offering clearer, high-definition imagery to achieve precise sample positioning during testing.
4. Fully utilizing the fundamental parameters method, the instrument supports one-touch curve matching for simplified, hassle-free analytical setup.
specifications
Model | EDX3000 Plus |
|---|---|
Analytical Content | ppm to 99.99% |
Measurable range | S to U |
Long-term working stability | 0.05% (content≥96%) |
Ambient temperature | 15°Cto30°C |
Power input | AC 220V±5V (equipped with purified stabilized voltage powersupply is recommended) |
Energy resolution | 139±5ev |
Sample chamber dimension | 439mmx300mmx50mm |
Instrument dimension | 550mmx410mmx320mm |
Weight | 45kg |
