X-Ray Spectrometer: Simultaneous Analysis of 10 Elements from Na to U
Engineered to meet quality control and inspection demands in the cement industry, the WDX-200 X-Ray Spectrometer supports simultaneous analysis of any 10 elements from Na to U per user application requirements.
- modelWDX-200
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

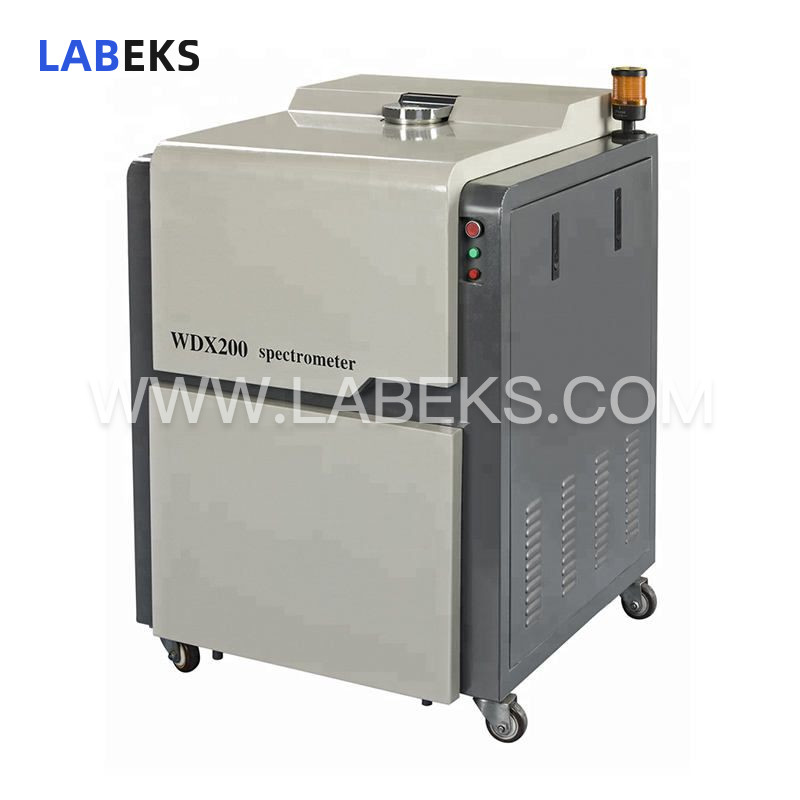

The WDX-200 compact multichannel X-ray fluorescence spectrometer is equipped with 10 configurable fixed optical channels, enabling simultaneous analysis of 10 elements. Users may select any 10 elements ranging from Na to U based on their specific application needs. This versatile instrument is widely utilized across cement, iron and steel, powder metallurgy, coal, petroleum, kaolin, glass, refractory, and environmental protection sectors, making it an optimal quality control solution for large and medium-sized enterprises.
Application Fields
Building Materials (cement, glass, ceramics)
Metallurgy (steel, non-ferrous metals)
Petroleum (trace elements S, Pb, etc.)
Chemical Engineering
Geology and Mining
Commodity Inspection
Quality Inspection
Human Body Trace Elements Inspection
features
1. When compared to high-power sequential-scan spectrometers, the WDX-200 maintains sufficient analytical precision while operating at lower power and within equivalent measurement durations. This design not only delivers exceptional cost-effectiveness but also reduces goniometer wear, extends X-ray tube lifespan, minimizes high-voltage power supply malfunctions, and lowers overall instrument maintenance costs.
2. Rapid, non-destructive analytical testing for powder and bulk sample types
3. A high-speed multi-channel MCA enables real-time measurement of each element’s peak, supporting efficient instrument debugging and fault diagnosis while also boosting overall device stability.
specifications
Model | WDX-200 |
|---|---|
Temperature control accuracy of constant temperaturechamber | setting value±0.1℃ |
Measurable elements | 10 arbitrary elements from Na to U |
Analysis algorithms | empirical coefficient algorithm and theoreticala-coefficient algorithm |
AC220V power supply | 1KVAAC purified stabilized voltage power supply |
High voltage supply | 200W(50KV4mA) |
12-hour stability of tube voltage&tube current | less than 0.05 % |
Vacuum pump | biphase~220v, 2 liters |
Industrial computer | industrial 104 computer |
Analysis accuracy | °n-1(24 hours, percent content)≤0.05 % |
Measurement time of single sample | (including time for changing samples and vacuumpumping)≤3-5 minutes |
X-ray tube | 400W thin Be end window X-ray tube made by Variancompany, Rh anode (Pd anode optional) |
Detector | gas proportional detector + sealedproportional detector, 10 path 1024 channel independent pulse height analyzer |
Vacuum system | independent vacuum pump station, easy maintenance |
The highest vacuum degree | lower than 5 Pa |
Gas flow system | High Sophisticated Gas Density Stabilizer with pressurestability up to ±0.003 KPa |
Analysis software | equipped with software for two quantitative analysisalgorithms: empirical coefficient algorithm and theoretical a-coefficientalgorithm. With innovative technology of full spectrum analysis, everyspectrum line can be timely traced and corrected, which greatly improves therepeatability and stability of quantitative analysis and also serves asintuitive evidence of instrument status diagnosis. Complete measures forself-diagnosis are supplied. In-built RS-232 serial communication protocol,TCP / lP protocol (S/ C based on Socket) and OPC protocol (OPC server) alloffer ways to share data with DCS or Qcs system. |
