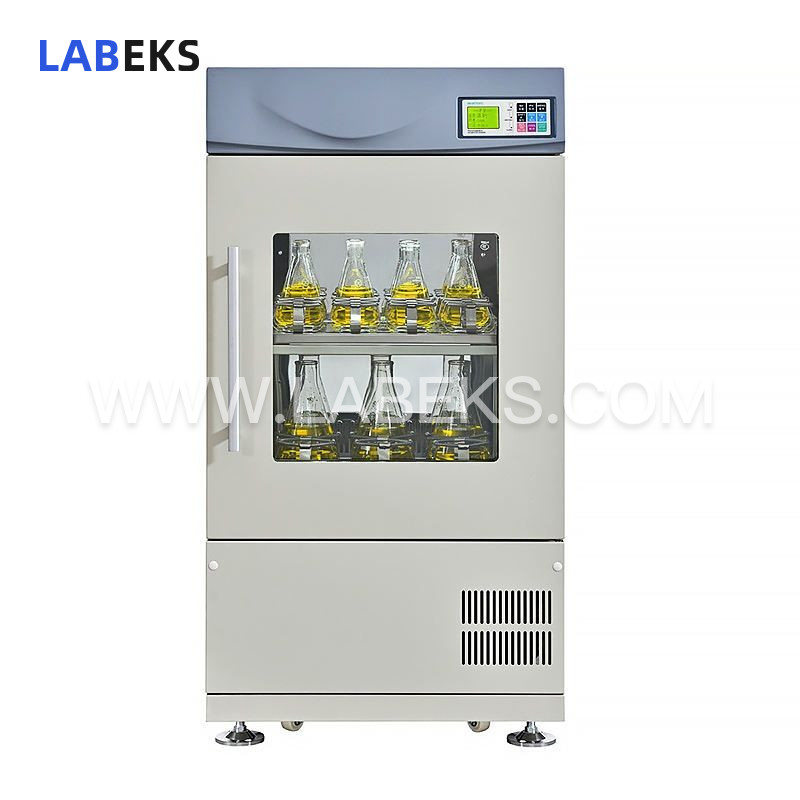

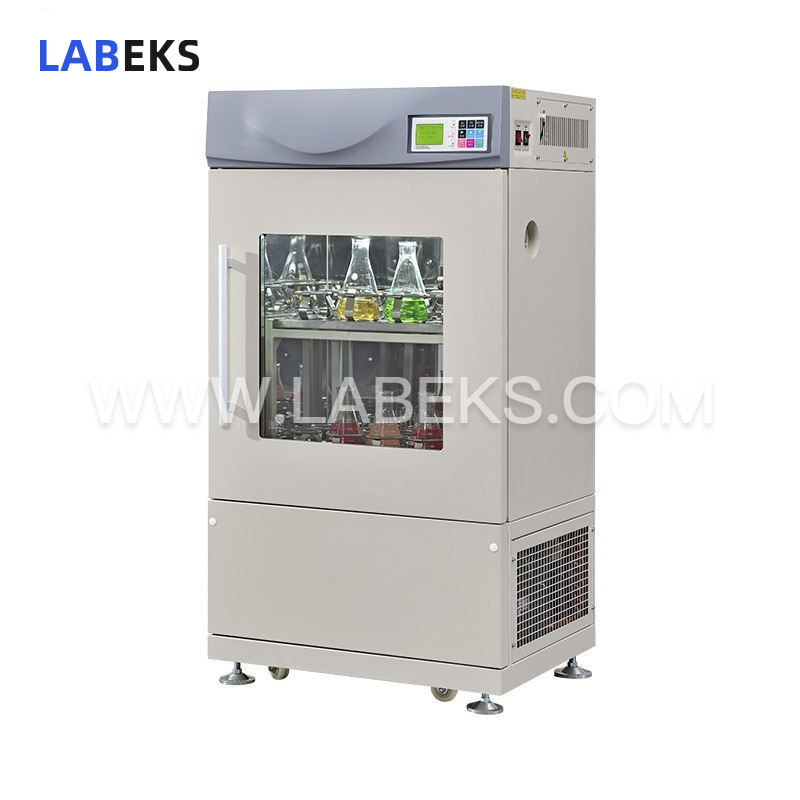

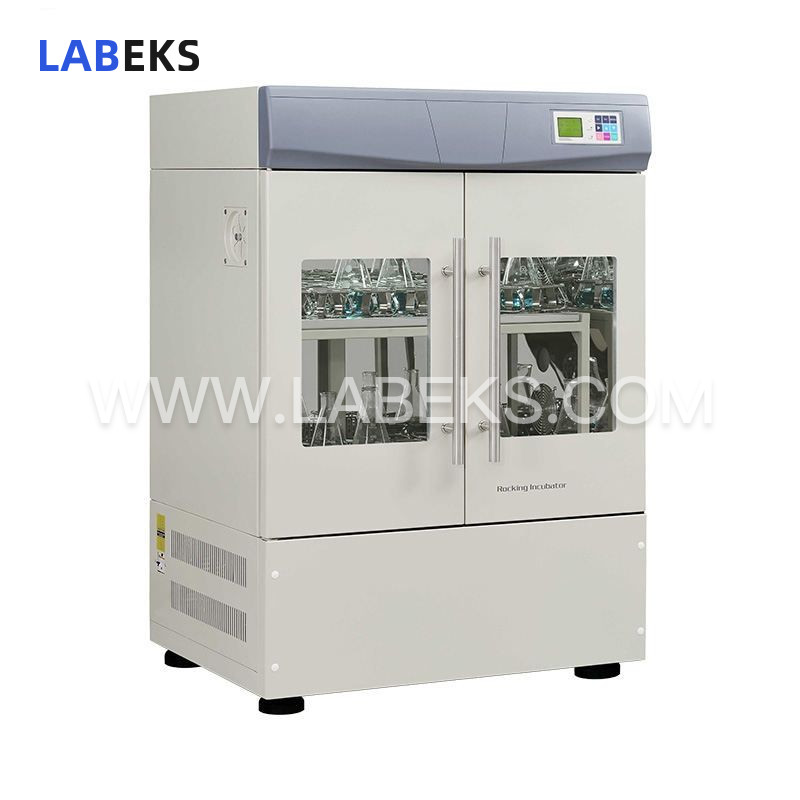

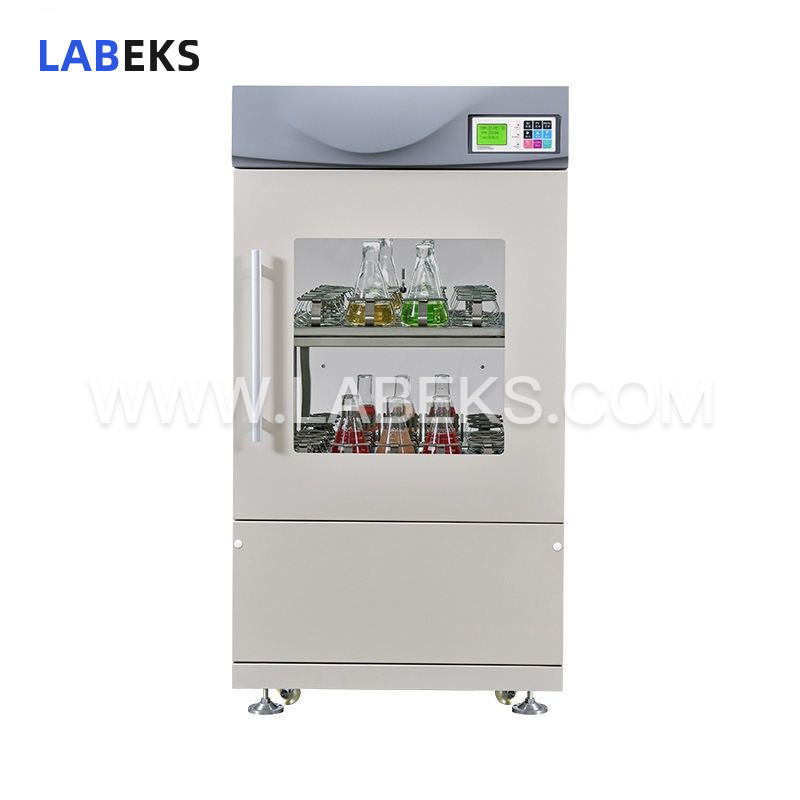

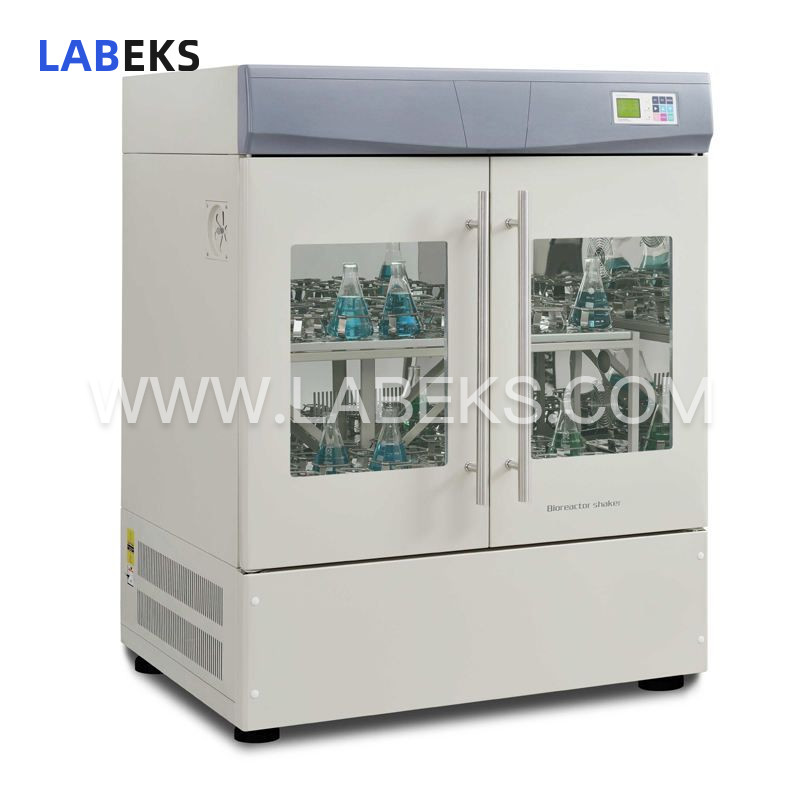

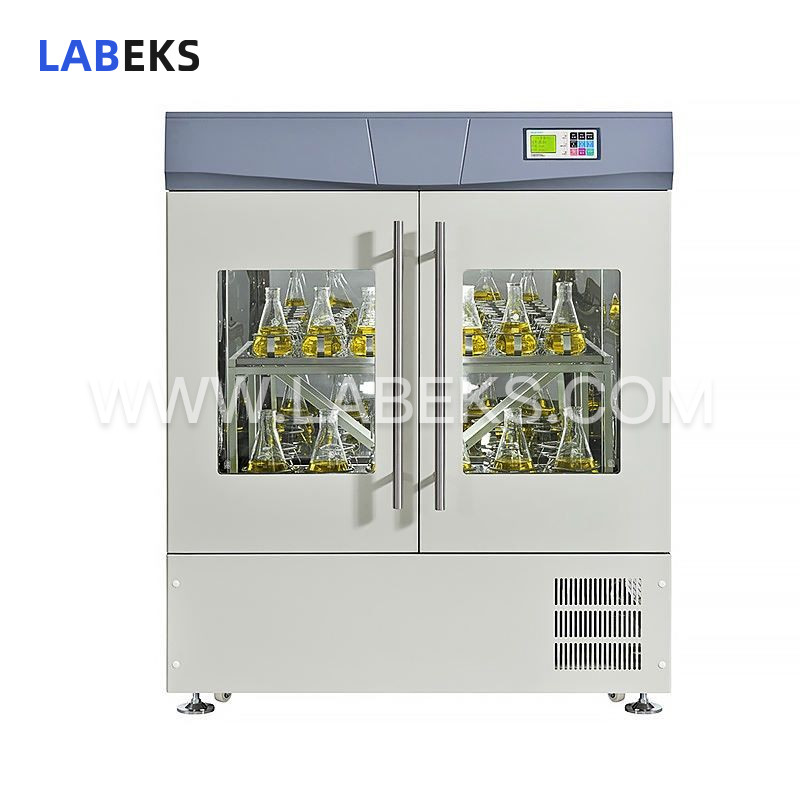

Vertical Two-Door Refrigerated Incubator Shaker with 50-300 rpm Range and Low-Noise Performance
Ideal for precise mixing, blending, and agitation of substances in tubes or flasks, the refrigerated incubator shaker is a critical laboratory instrument widely used across chemistry and biology fields, featuring an oscillating board to securely hold flasks, beakers, and test tubes.
- modelLH-2102/LH-2112
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Equipped with a stainless-steel universal clamp, digital display temperature control, stepless speed regulation, and excellent thermal cycling capabilities, this multi-functional biochemical device serves as an indispensable laboratory instrument for precision culture preparation. It is widely employed in scientific research, education, and production sectors including plant science, biology, microbiology, genetics, virology, environmental protection, and medicine.
features
Leakage current and overcurrent protection systems safeguard operator safety.
Over-temperature and over-speed audible-visual alarm emergency control system protects sample integrity.
Integrates proprietary single-axis drive balance mechanism (Patent No. ZL 2015 2 0624431.5), which minimizes energy consumption and operational noise.
High-efficiency drive and refrigeration control systems deliver ultra-low energy consumption.
Boasts a broad oscillation frequency range of 50-300 rpm to accommodate diverse experimental needs.
Offers both ambient and low-temperature operation ranges to suit diverse experimental needs.
Features an intelligent microprocessor controller with environment scanning capabilities and audible-visual alarm functions.
Large backlit LCD screen provides dual display of both set parameters and real-time measured parameters.
Parameter memory function eliminates repetitive, cumbersome setup operations.
Supports timing settings of up to 500 hours, paired with an audible-visual alarm upon completion.
AC induction long-life motor features wide speed adjustment, constant torque, stable speed operation, brushless design, and is completely maintenance-free.
Over-temperature audible-visual alarm system automatically cuts off power in scenarios of motor overheating, temperature control failure, or abnormal over-temperature events.
Power-off recovery function enables the device to automatically resume operation per the original programmed settings once external power is restored after an unexpected outage.
Controlled acceleration logic ensures the shaker starts slowly and accelerates smoothly, safeguarding the integrity of experimental samples.
Front-door access design offers greater operational flexibility compared to top-hinged door shakers.
Streamlined, aesthetically designed enclosure features an electrostatic-sprayed casing and a large tempered glass window.
Transparent viewing window paired with built-in lighting allows for convenient, real-time sample observation at any time.
Models 2102C, 2102, 2112B, and F are equipped with a safe, CFC-free refrigeration system compliant with international environmental standards.
Adapts to the growing demand for high-volume sample processing in modern laboratories and large-scale production in bioengineering applications.
Enables simultaneous real-time monitoring of temperature, oscillation speed, and operating time.
Vertical double-layer configuration offers a compact footprint while delivering enhanced bottle capacity and dual operational efficiency.
Application range
Cell cultivation
Solubility assays
Extraction procedures
Diagnostic assays
Sample homogenization
Bacterial suspension formulation
Dyeing and bleaching processes
Elution procedures
Hybridization assays
specifications
Model | LH-2102 | LH-2112B | LH-2112D | LH-2112F | |
|---|---|---|---|---|---|
Controlmethod | P.I.D(Microcomputerenvironment scanning micro processing chip) | ||||
Displaymethod | LCD (Largescreen LCD dual display) | ||||
Cyclic mode | Forcedconvection | ||||
Oscillationmode | Rotary oscillation | Reciprocating | |||
Drive mode | Single-axisbalancing device (Chinese patent) | ||||
Environmentalrequirements | Temperature25 ° C, humidity 20% -90% | ||||
Openingmethod | Double door | ||||
Temperaturecontrol range | 4-60℃ | ||||
Temperatureaccuracy | ±0.1℃ | ||||
Temperatureuniformity | ±1℃ | ||||
Performance | FrequencyRange | 30-300rpm | |||
Rotationaccuracy | ±1rpm | ||||
Pendulumamplitude | Φ25mm | Φ35mm | Φ50mm | Φ35mm | |
securityfunction | Upper andlower temperature deviation alarm; upper- and lower-line speed deviationalarm, independent over-temperature protector; open door stop protection;leakage protection, chiller overload protection. | ||||
Accessoryfunction | Speedstorage, call recovery, parameter memory, temperature speed correction, clockdisplay, room temperature / measured temperature double display. | ||||
Programmingfunction | Repeat,step, eight-segment curve programming settings. | ||||
Therefrigerant | CFC-Free(134A) fluorine-free safety refrigeration system | ||||
Cooler | 200W | ||||
Heater | 500W | 800W | |||
Timing range | 0-999.59h/Sustainable | ||||
Standardsizes | Rocker size | 734*464(mm) | 920*520mm | ||
Number ofrocking plates | Two | ||||
Grossweight | 235kg | 356kg | 456kg | 356kg | |
Innercavity size | 950*740*1400H(mm) | 1200*850*1550H(mm) | |||
Dimensions | 850*520*760H(mm) | 1100*700*830H(mm) | |||
power | 1200W | 1340W | |||
powersupply | AC 200-240V50-60HZ | ||||
Material | Motor | 250Winverter motor | |||
Innercavity material | Highquality imported stainless steel mirror panel | ||||
box Materia | Highquality and high strength castings, channel steel, angle steel, cold rolledsteel plate | ||||
The LH-1102C/2102C is a single-door, two-layer, small-capacity type.
The LH-1102/2102 is a double-door, double-layer, high-capacity type that is especially suitable for pilot production.
LH-1112B/2112B is a double-door double-layer extra-large capacity type, which is especially suitable for large-scale constant temperature oscillation operation in the manufacturing industry.
The LH-1112D/2112D is a double door double layer with an amplitude of 50mm.
The LH-1112F/2112F is a double-door double-deck reciprocating extra-large capacity type.
