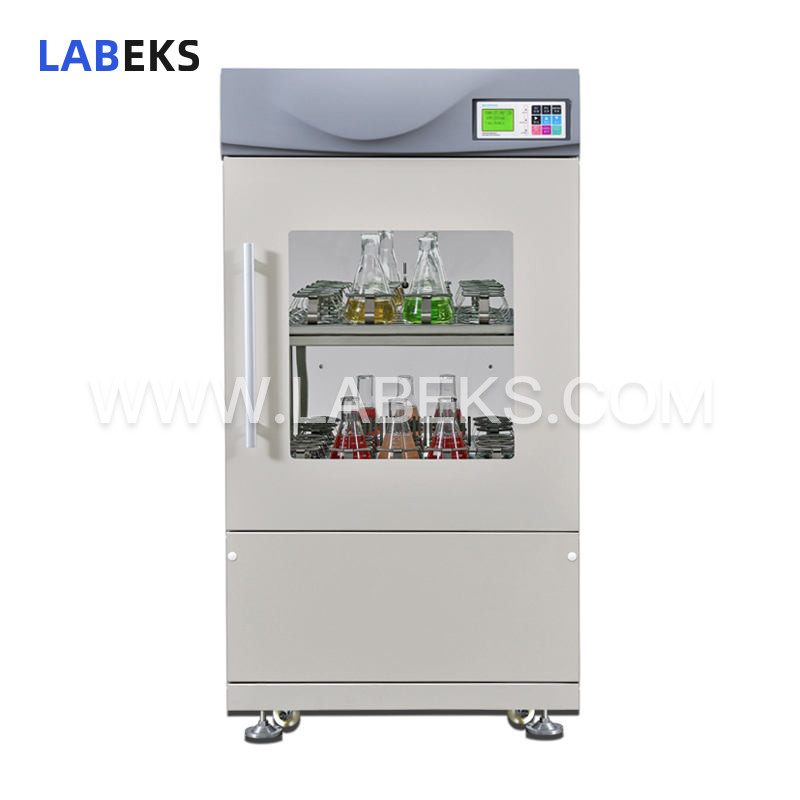

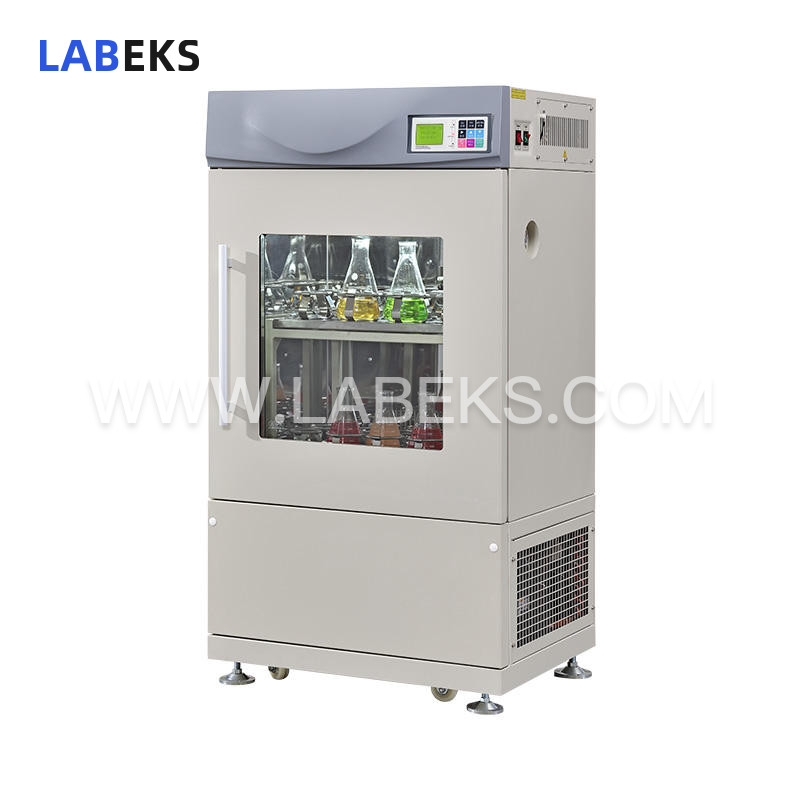

Vertical Laboratory Shaker with 30-300 rpm Range for Cell Culture
Offered in models LH-1102C and LH-2102C, this vertical laboratory shaker features a single-door, dual-tier structure with compact capacity, delivering reliable performance for precision sample processing in research and industrial settings.
- modelLH-1102C/LH-2102C
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This constant temperature vertical laboratory shaker is equipped with a stainless-steel universal clamp, digital temperature control, stepless speed adjustment, and efficient thermal circulation capabilities. As a versatile biochemical instrument, it is an essential piece of laboratory equipment for precision culture preparation in scientific research, education, and production sectors, including botany, biology, microbiology, genetics, virology, environmental science, and medicine.
features
Integrates a patented single-axis drive balance mechanism (Patent No.: ZL 2015 2 0624431.5), which minimizes energy consumption and operational noise.
Brushless AC induction motor delivers long service life, wide speed adjustment range, constant torque, stable speed output, and maintenance-free operation.
Audio-visual over-temperature alarm system automatically cuts power in the event of motor overheating or temperature anomalies to protect both the instrument and samples.
Power-off recovery feature enables the shaker to automatically resume operation per pre-set programs once power is restored after an unexpected outage.
Controlled acceleration circuitry ensures slow, smooth startup to safeguard experimental samples from damage.
Leakage current and overcurrent protection systems safeguard operator safety during operation.
Audio-visual alarm and emergency control system for over-temperature and over-speed conditions ensures sample integrity.
Boasts a broad oscillation frequency range spanning 50-300 rpm to accommodate diverse experimental needs.
Offers both ambient and low-temperature operational ranges to suit diverse experimental conditions.
Equipped with an intelligent microprocessor controller featuring environmental scanning functionality and audio-visual alarm systems.
Large backlit LCD screen provides dual display of set parameters and real-time measured values.
Enables real-time simultaneous monitoring of temperature, oscillation speed, and elapsed time.
Parameter memory function eliminates repetitive setup tasks for streamlined operation.
Supports timing settings up to 500 hours, with audio-visual alerts upon cycle completion.
High-efficiency drive and refrigeration control systems ensure ultra-low energy consumption for cost-effective operation.
Models LH-2102C, 2102, 2112B, and F feature a safe, CFC-free refrigeration system compliant with global environmental standards.
Vertical dual-tier construction offers a compact footprint paired with ample bottle-holding capacity and enhanced operational efficiency.
Front-opening door design offers greater operational flexibility compared to top-hinged door shakers.
Streamlined, modern enclosure with electrostatic spray coating and a large tempered glass window for an elegant, durable design.
Transparent viewing window with built-in lighting allows for convenient real-time observation of samples.
Designed to meet the growing demands of high-throughput sample processing in modern laboratories and large-scale bioengineering production.
Application range
Cell cultivation
Solubility analysis
Extraction procedures
Diagnostic assays
Sample homogenization
Bacterial suspension formulation
Dyeing and bleaching processes
Elution procedures
Hybridization assays
specifications
Productnumber | LH-1102C | LH-2102C | |
|---|---|---|---|
control method | P.I.D(Microcomputerenvironment scanning micro processing chip) | ||
Display method | LCD (Large screen LCD dualdisplay) | ||
Cyclic mode | Forced convection | ||
Oscillation mode | Rotary oscillation | ||
Drive mode | Single-axis balancing device(Chinese patent) | ||
Environmental requirements | Temperature 25 ° C, humidity20% -90% | ||
Opening method | Single door | ||
Temperature control range | Room temperature +5℃-60℃ | 4-60℃ | |
Temperature accuracy | ±0.1℃ | ||
Temperature uniformity | ±1℃ | ||
Performance | Frequency Range | 30-300rpm | |
Rotation accuracy | ±1rpm | ||
Pendulum amplitude | Φ25mm | ||
security function | Upper and lower temperaturedeviation alarm; upper- and lower-line speed deviation alarm, independentover-temperature protector; open door stop protection; leakage protection,chiller overload protection. | ||
Accessory function | Speed storage, callrecovery, parameter memory, temperature speed correction, clock display, roomtemperature / measured temperature double display. | ||
Programming function | Repeat, step, eight-segmentcurve programming settings. | ||
The refrigerant | – | CFC-Free (134A)fluorine-free safety refrigeration system | |
Cooler | – | 200W | |
Heater | 500W | ||
Timing range | 0-999.59h/ Sustainable | ||
Standard sizes | Rocker size | 500*350(mm) | |
Number of rocking plates | Two | ||
Gross weight | 150kg | 165kg | |
Inner cavity size | 600*440*650H (mm) | ||
Dimensions | 700*600*1250H(mm) | ||
power | 600W | 830W | |
power supply | AC 200-240V 50-60HZ | ||
Materia | Motor | 120W inverter motor | |
Inner cavity material | High quality importedstainless steel mirror panel | ||
box Materia | High qualitychannel steel,angle steel, cold rolled steel plate | ||
