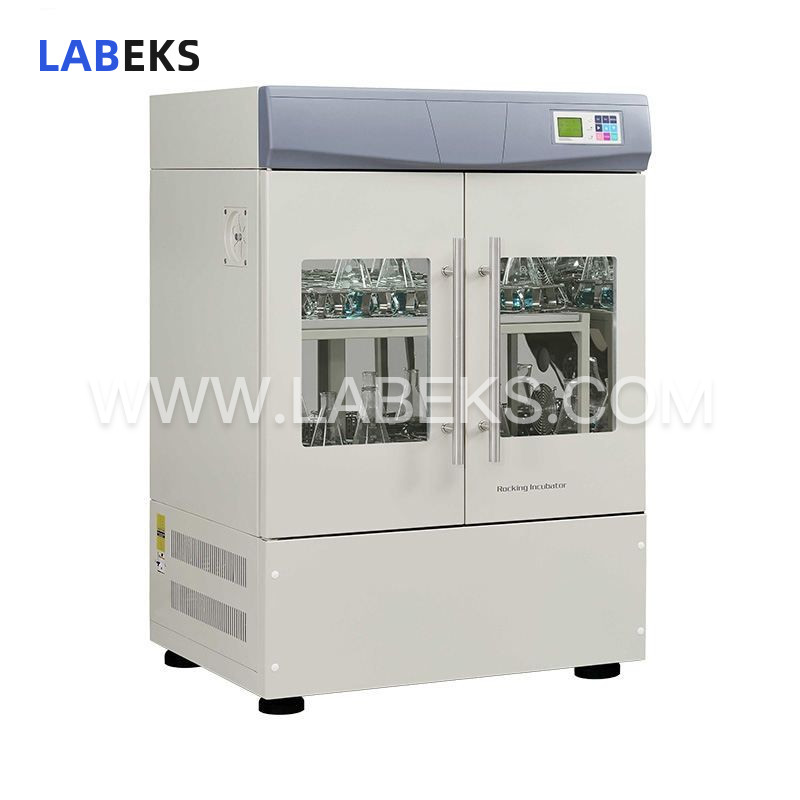

Vertical Incubator Shaker: 50-300 rpm Speed Range & Patented Drive System
Ideal for chemistry and biology laboratories, the incubator shaker offers precise temperature control and reliable mixing, blending, and agitation of substances in tubes, flasks, or beakers to support critical experimental workflows.
- modelLH-1102/LH-1112
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This constant temperature incubator shaker is equipped with a stainless-steel universal clamp, digital display temperature control, stepless speed regulation, and excellent thermal circulation capabilities. As a versatile biochemical instrument, it is indispensable laboratory equipment for precision culture preparation in scientific research, education, and production sectors including botany, biology, microbiology, genetics, virology, environmental protection, and medicine.
features
1. The patented single-axis drive balance mechanism (Patent No.: ZL 2015 2 0624431.5) ensures minimal energy consumption and low operational noise.
2. AC induction long-life motor design with wide speed regulation, constant torque, constant speed, no carbon brushes, and maintenance-free operation.
3. Oscillation frequency spans a wide range of 50-300 rpm.

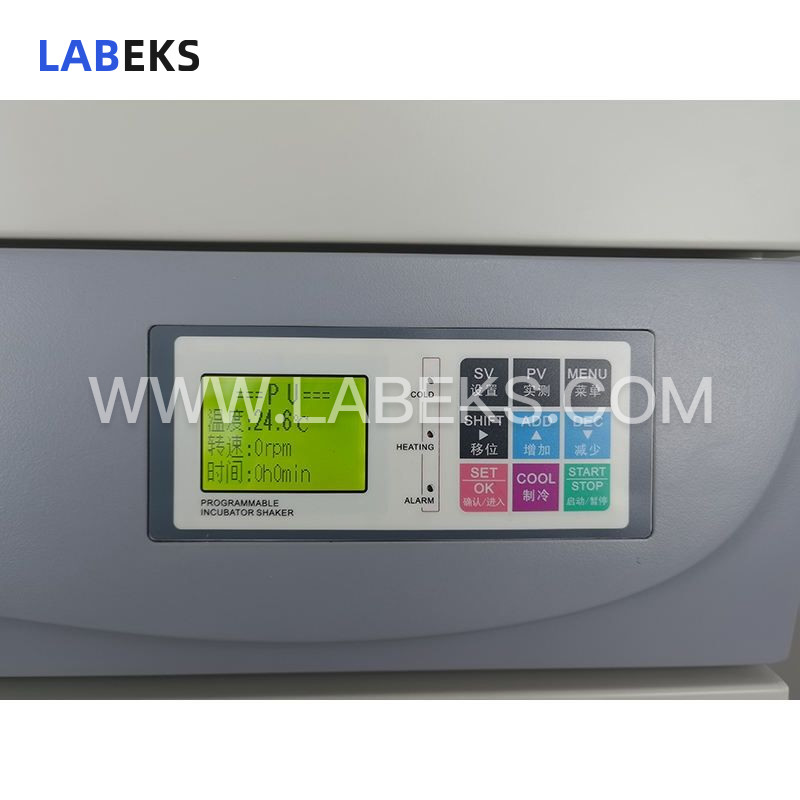

4. Large-screen backlit LCD display provides simultaneous viewing of set parameters and real-time measured parameters.
5. Over-temperature audible and visual alarm function: the instrument automatically cuts off corresponding power supplies in case of motor overheating, temperature out of control, or abnormal over-temperature conditions.
6. Power-off recovery function: after sudden external power failure and subsequent restoration, the device automatically resumes operation according to the original programmed settings.
7. Acceleration control circuitry ensures the shaker starts slowly and accelerates smoothly, protecting experimental samples from harm.
8. Timing can be set up to 500 hours, with an audible and visual alarm to signal completion.
9. Transparent viewing window paired with built-in lighting allows for convenient sample observation at any time.
10. Simultaneous real-time display of temperature, oscillation speed, and timing data.
11. Operating parameter memory function eliminates the need for repeated, cumbersome setup operations.
12. Models 2102C/2102/2112B/F integrate a safe, fluorine-free refrigeration system that meets international environmental requirements.
13. Efficient drive and refrigeration control deliver ultra-low energy consumption.
14. Front door opening design provides greater operational flexibility compared to top-hinged door shakers.
15. Streamlined luxury machine design with an aesthetically refined concept, electrostatic spray-coated cabinet, and large-screen tempered glass window.
16. Available in both ambient temperature and low-temperature operating ranges.
17. Caters to the growing demands of sample processing in modern laboratories and mass production in contemporary bioengineering.
18. Intelligent microprocessor controller with environmental scanning and audible-visual alarm capabilities.
Application Range
Cell culture
Solubility testing
Extraction experiments
Diagnostic assays
Sample mixing
Bacterial suspension preparation
Dyeing and bleaching
Elution procedures
Hybridization experiments
Security
Leakage current and overcurrent protection systems ensure operator safety.
Over-temperature, over-speed audible and visual alarm emergency control system safeguards sample safety
specifications
Model | LH-1102 | LH-1112B | LH-1112D | LH-1112F | |
|---|---|---|---|---|---|
Controlmethod | P.I.D(Microcomputerenvironment scanning micro processing chip) | ||||
Displaymethod | LCD (Largescreen LCD dual display) | ||||
Cyclic mode | Forcedconvection | ||||
Oscillationmode | Rotaryoscillation | Reciprocating | |||
Drive mode | Single-axisbalancing device (Chinese patent) | ||||
Environmentalrequirements | Temperature25 ° C, humidity 20% -90% | ||||
Openingmethod | Double door | ||||
Temperaturecontrol range | Roomtemperature +5℃-60℃ | ||||
Temperatureaccuracy | ±0.1℃ | ||||
Temperatureuniformity | ±1℃ | ||||
Performance | FrequencyRange | 30-300rpm | |||
Rotationaccuracy | ±1rpm | ||||
Pendulumamplitude | Φ25mm | Φ35mm | Φ50mm | Φ35mm | |
securityfunction | Upper andlower temperature deviation alarm; upper- and lower-line speed deviationalarm, independent over-temperature protector; open door stop protection;leakage protection, chiller overload protection. | ||||
Accessoryfunction | Speedstorage, call recovery, parameter memory, temperature speed correction, clockdisplay, room temperature / measured temperature double display. | ||||
Programmingfunction | Repeat,step, eight-segment curve programming settings. | ||||
Heater | 500W | 800W | |||
Timingrange | 0-999.59h/Sustainable | ||||
Standardsizes | Rocker size | 734*464(mm) | 920*520mm | ||
Number ofrocking plates | Two | ||||
Grossweight | 200kg | 325kg | 425kg | 325kg | |
Innercavity size | 950*740*1400H(mm) | 1200*850*1550mm | |||
Dimensions | 850*520*760H(mm) | 1100*700*830mm | |||
power | 930W | 1100W | |||
powersupply | AC 200-240V50-60HZ | ||||
Material | Motor | 250Winverter motor | |||
Innercavity material | Highquality imported stainless steel mirror panel | ||||
box Materia | Highquality and high strength castings, channel steel, angle steel, cold rolledsteel plate | ||||
The LH-1102C/2102C is a single-door, two-layer, small-capacity type.
The LH-1102/2102 is a double-door, double-layer, high-capacity type that is especially suitable for pilot production.
LH-1112B/2112B is a double-door double-layer extra-large capacity type, which is especially suitable for large-scale constant temperature oscillation operation in the manufacturing industry.
The LH-1112D/2112D is a double door double layer with an amplitude of 50mm.
The LH-1112F/2112F is a double-door double-deck reciprocating extra-large capacity type.
