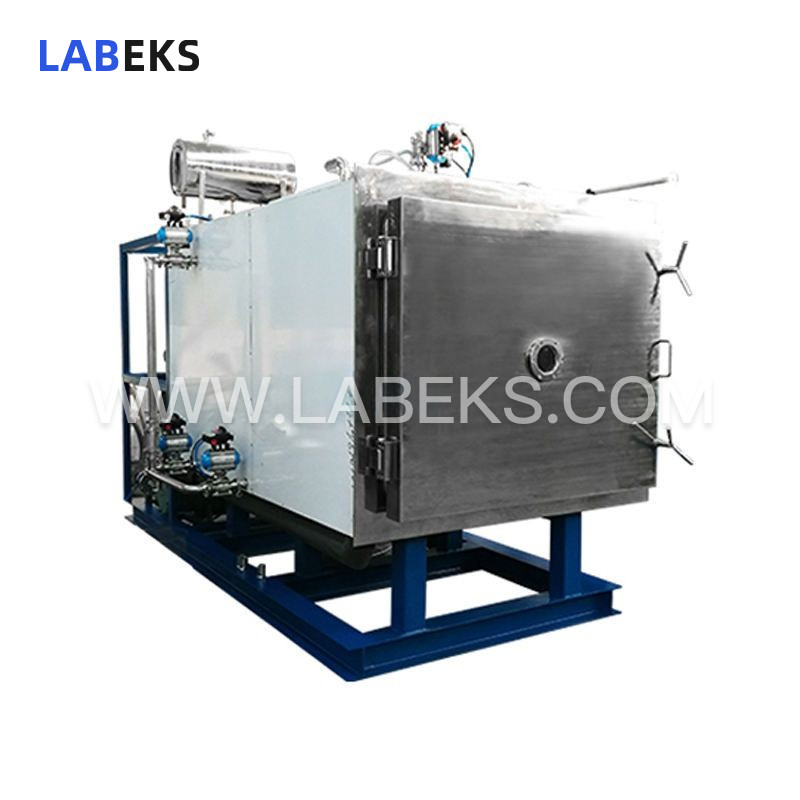

Vacuum Freeze Dryer with 15㎡ Drying Area for Pharmaceutical & Food Applications
Designed to enable long-term material preservation while retaining chemical and biological properties upon rehydration, the LABEKS GZL-15 vacuum freeze dryer is ideal for processing high-end raw materials, Chinese herbal medicine, biological samples, wild vegetables, dehydrated vegetables, food, fruits, chemicals and pharmaceutical intermediates.
- modelGZL-15
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This vacuum freeze dryer is widely utilized across medicine, pharmacy, biological research, chemical manufacturing and food production. Post freeze-drying, products can be stored long-term with ease; when rehydrated, they revert to their original state while maintaining inherent chemical and biological characteristics.
features
1. Equipped with an industrial-grade embedded touchscreen paired with the specialized SH-HPSC-IV modular controller, the system delivers exceptional stability, reliability and high control precision.
2. Our professionally engineered LYO-CONTROL system supports storage of multiple process recipes, allowing real-time process adjustments during drying to enhance process optimization efficiency.
3. Offers flexible manual and automatic control modes: manual mode supports process development, while automatic mode streamlines large-scale production runs.
4. Configurable user access levels and password protection enable decentralized, secure operational management.
5. An optional high-performance LYO-MEGA host computer control system is available, capable of recording and storing operational data, curves and alarm logs for up to 10 years to boost product traceability. It also simplifies observation, operation and fault diagnosis.

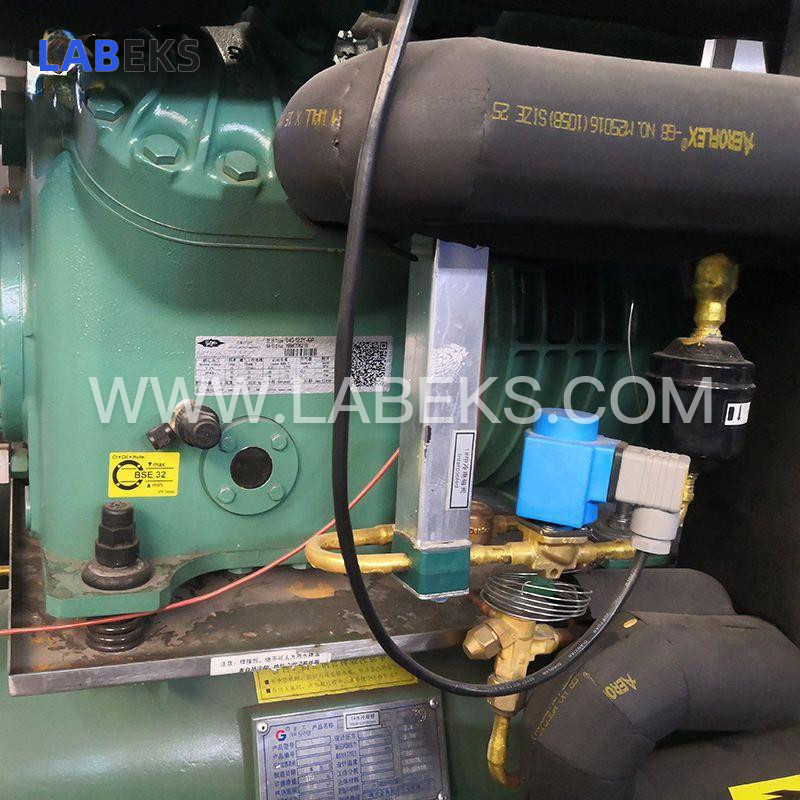

6. Utilizes a high-efficiency mixed refrigerant medium with a low freezing point and high boiling point, ensuring superior heat exchange efficiency.
7. An optimized drying curve control algorithm regulates product heating rate and vacuum levels throughout the drying phase.
8. Features a professional gas diversion design and control technology, delivering robust water-capturing capability and high drying efficiency.
9. Vacuum levels are dynamically adjusted during drying to prevent foaming and splattering of special materials, further enhancing drying efficiency.

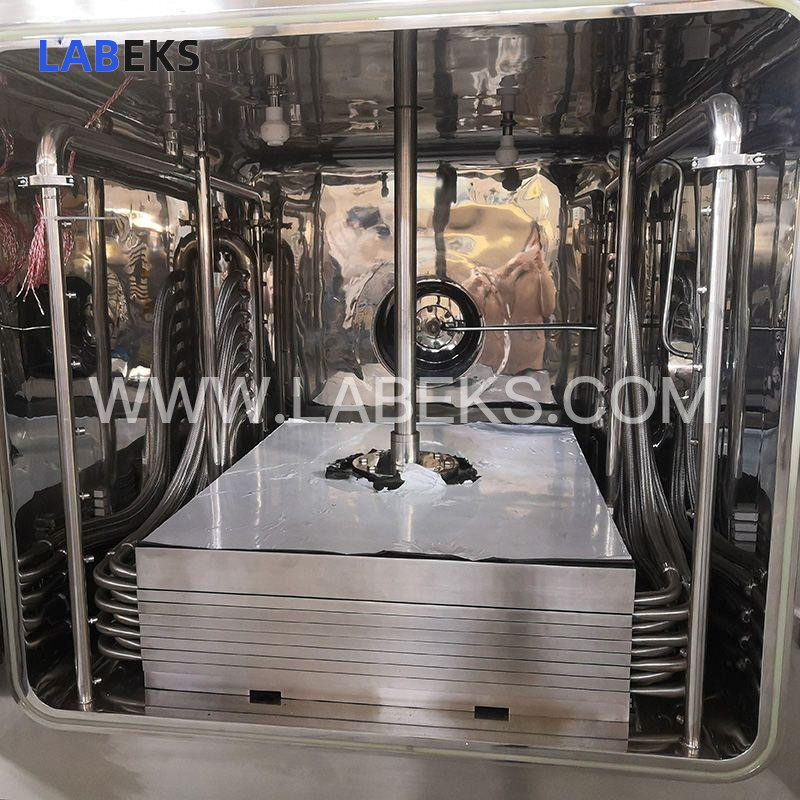

10. Crafted using specialized manufacturing techniques, the shelf exhibits excellent pressure resistance, high flatness and uniform temperature distribution.
11. Custom non-standard configurations are available to meet specific user requirements.
specifications
Model | GZL-15 |
|---|---|
Drying area (㎡) | 15 |
Input capacity (10mm thickness) (L) | 150 |
Shelf number (Layers) | 10+1 |
Shelf size (mm) | 1520*990 |
Shelf space (mm) | 80 |
Temperature range (°C) | -50~+80 |
Water vapor condensation (Kg/D) | ≥300 |
Cold trap temperature (°C) | ≤-75 |
Cooling mode | Water cooling |
Defrost mode | Water immersion |
Vacuum (Pa) | ≤5 |
Power (KW) | 75 |
Size (L*W*H) (mm) | 6200*2300*3600 |
Weight (kg) | 8000 |
