Ultrasonic Thickness Gauge with Real-Time Color A/B Scanning for Corrosion Monitoring
Designed for nondestructive testing across manufacturing, metal processing, chemical, and commodity inspection sectors, this ultrasonic thickness gauge precisely measures thicknesses of metals, high-temperature pipelines, plates, plastics, glass, and more, while monitoring corrosion-induced thinning of production pipelines and pressure vessels.
- modelLM-5/LM-5D/LM-5DL
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

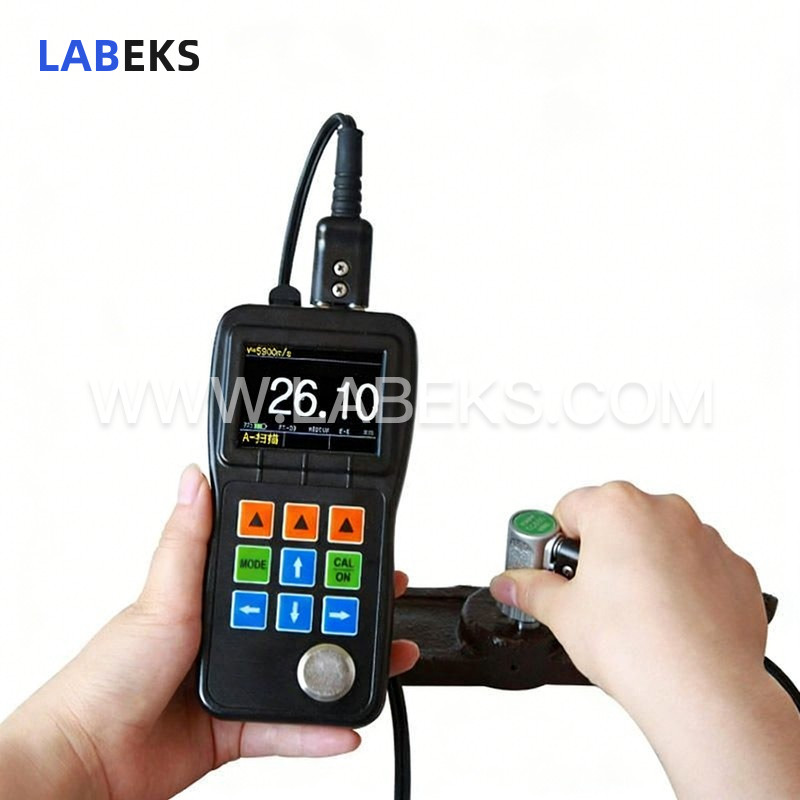

The LM-5 series ultrasonic thickness gauge utilizes ultrasonic measurement principles, emitting sound waves from one side of a workpiece to conduct real-time digital thickness measurements without requiring workpiece disassembly. As an ultra-compact measuring instrument, it delivers fast, non-destructive, and highly accurate results. Equipped with A and B scanning functionalities, its echo display enables users to better oversee measurement processes, expanding measurable thickness ranges, enhancing result precision, and mitigating material-related measurement errors.
It finds wide application across manufacturing, metal processing, aerospace, railway transportation, chemical, and commodity inspection sectors. Beyond precise thickness measurement of various plates and components, the gauge supports continuous monitoring of production pipelines and pressure vessels, tracking their corrosion-induced thinning over service life. It is an essential instrument for the nondestructive testing (NDT) industry.
features

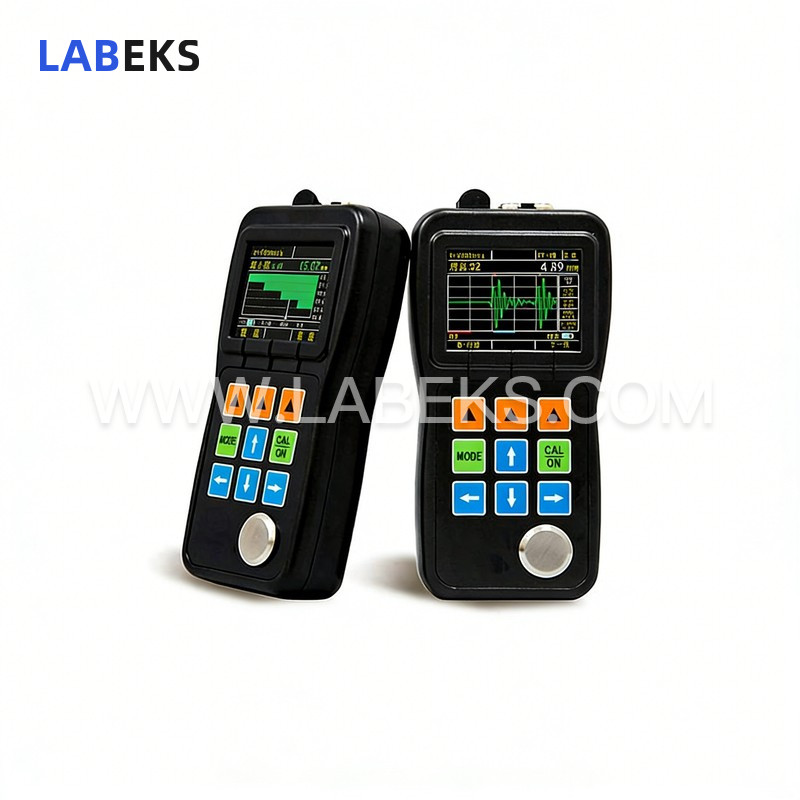

1. Real-Time Color A-Scan and Time-Based B-Scan

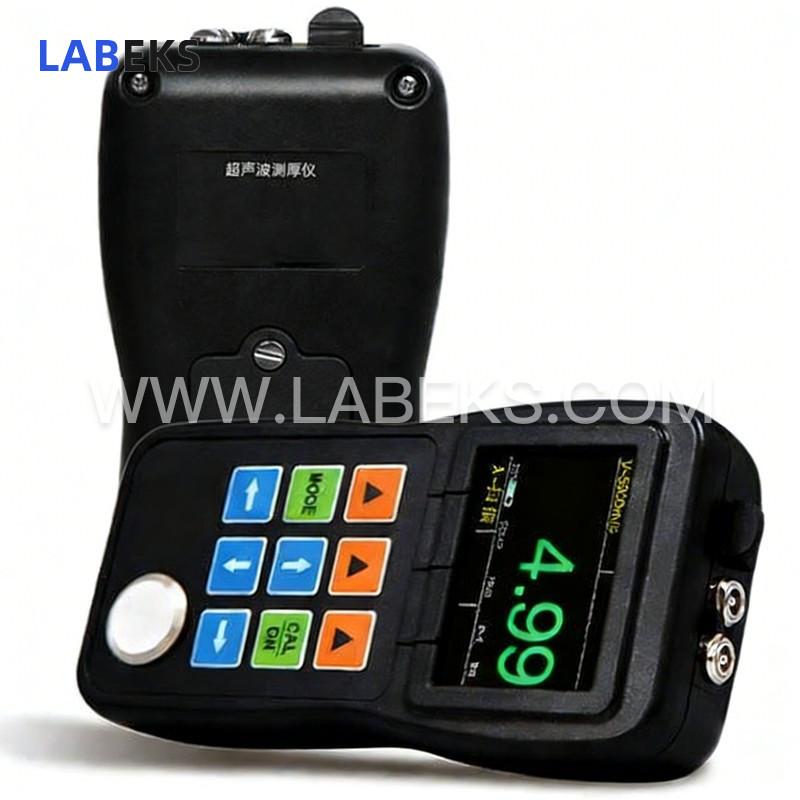

2. Color OLED Display Screen
3. Adjustable Gain, Blanking, and Gate Settings Based on Measured Waveforms
4. Multiple Waveform Display Modes: RF+, RF-, HALF+, HALF-, Full Wave
5. Storage Functionality (LM-5DL Only): Stores 400 files, 100,000 thickness values, and 1000 A/B scanning waveforms, with support for mixed waveform and thickness value storage in the same file
specifications

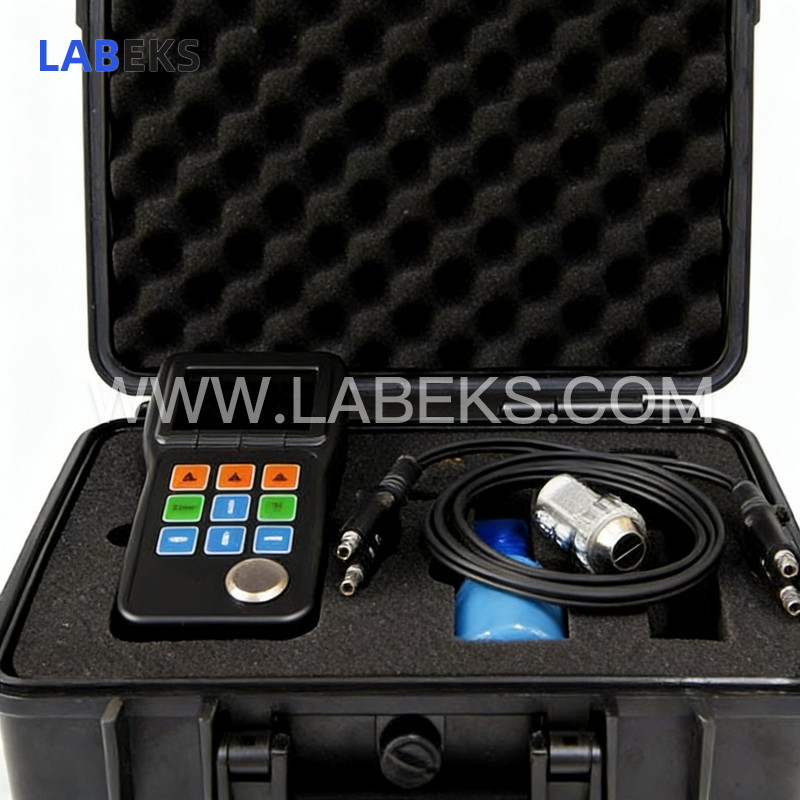

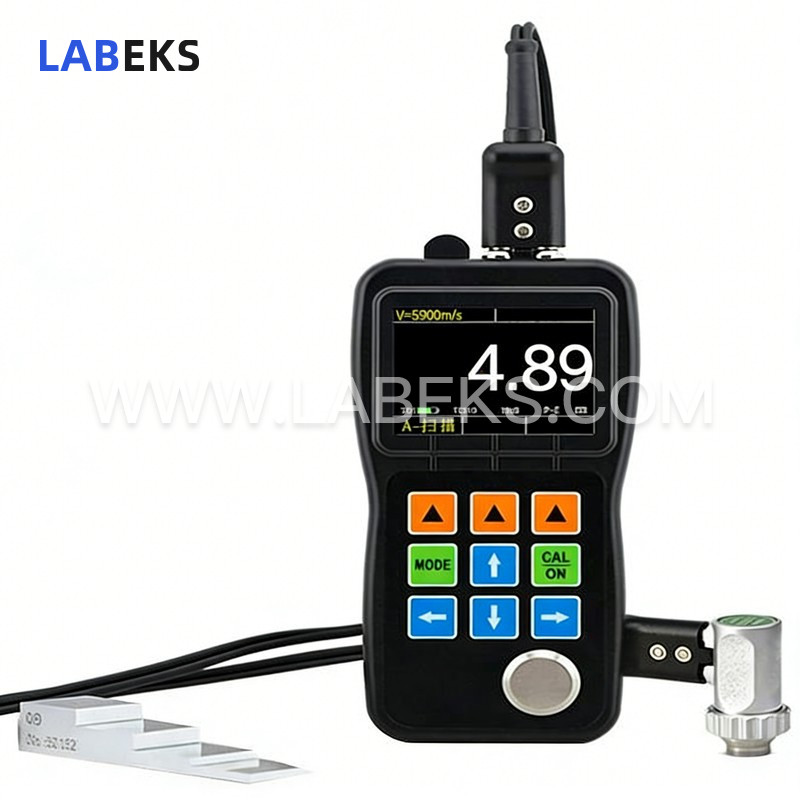

Model | LM-5 | LM-5D | LM-5DL |
|---|---|---|---|
Measuring range | 0.65-508 mm (0.025 – 20.00inches) depends on the probe used, the material to be tested, and the surfacecondition. | ||
Penetration coating function | NO | YES | |
Working principle | Ultrasonic Pulse/Echo Method and Echo/Echo Using DualCrystal Probe | ||
Standard mode range | 0.6 to 508 mm (0.025 to 20.00 inches) depends on theprobe used, the material to be tested, and the surface condition. | ||
Coating mode range | 3-80mm depends on the probe, material, surface conditionand temperature used. | ||
Storage | NO | store 400 files, 100,000thickness values and 1000 A and B scanning waveforms. | |
Measurement resolution | 0.01 or 0.1mm (0.001 or 0.01in) | ||
Unit | Millimeters or inches | ||
Display | 2.4QVGA (320×240) color OLEDscreen with contrast ratio of 10000:1 | ||
Gain | Real-time adjustable | ||
Repeatability | ±0.05mm | ||
Calibration mode | One-point calibration, two-pointcalibration | ||
Measurement error | 0.05 mm (below 25 mm) ;±0.2% H (below 100mm);(0.5% h+0.01) (more than 100 mm) Note: h is the thickness of the measuredobject | ||
The measurement update rate | 4HZ, 8HZ and 16HZ per second areoptional. | ||
The sound speed range of thematerial | 500-9999m/s，0.0179-0.3937in/us | ||
Alarm function | The maximum/minimum alarm, alarmdynamically change the thickness reading color | ||
Display mode | Thickness value mode,minimum/maximum capture mode, difference/reduction rate mode | ||
V path correction | Automatic A-range correction tocompensate nonlinearity of bimorph probe | ||
Language | Chinese, English, Japanese,German and French are available | ||
Power supply | two AA batteries | ||
Operating time | Two AA batteries for more than35 hours | ||
Automatically shut down | Optional 5, 10, 20 minutes afterno operation automatically shut down, or only manually shut down | ||
Working temperature | -10℃~+50℃, with specialrequirements up to -20℃ | ||
Size | 153*76*37mm | ||
Weight | 280g (including battery) | ||
Standard configuration | Thickness gauge host, standardprobe, instrument box, two alkaline batteries, coupling agent, operationmanual, certificate of approval and packing list | ||
Optional accessories | Rubber jacket; A variety ofselectable probes; Step test block for calibration; Coupling agent and hightemperature coupling agent | ||
Configuration list | |
|---|---|
Mainframe | 1 |
Coupling agent | 1 |
Probe | 1 |
Battery | 2 |
Packing document | 1 |
Instrument seal box | 1 |
Data line | 1(only LM-4DL) |
Communication software | 1(only LM-4DL) |
Note: If send it by air, notincluding batteries, it’s an empty bottle for Coupling agent. | |
