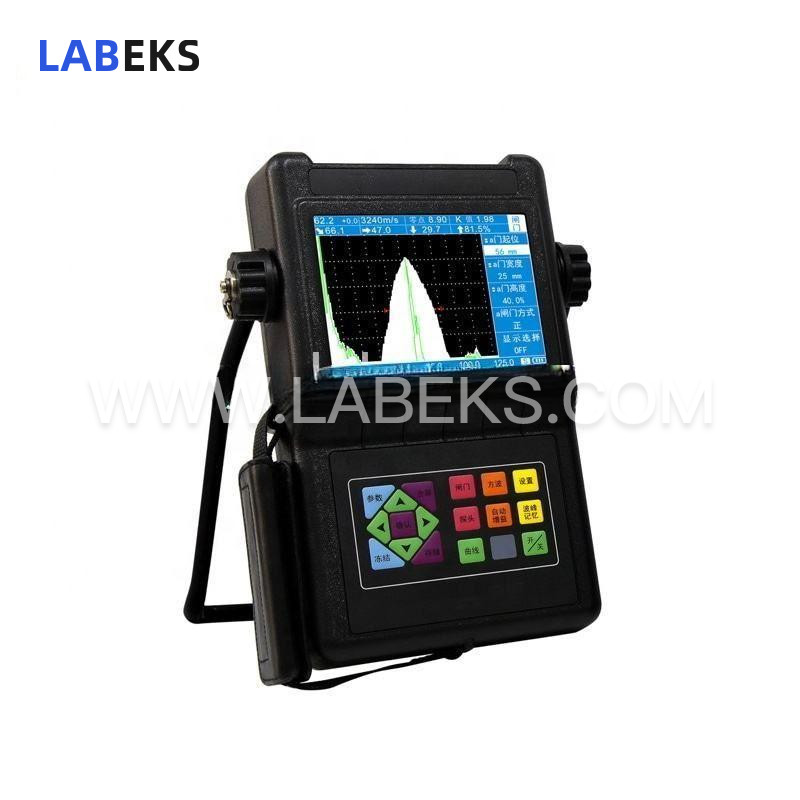

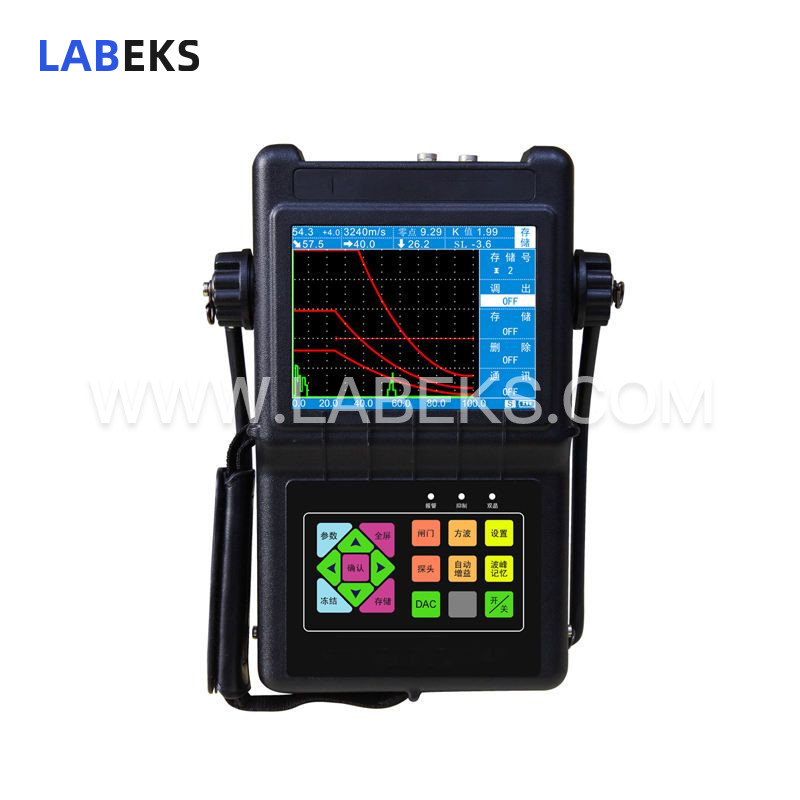

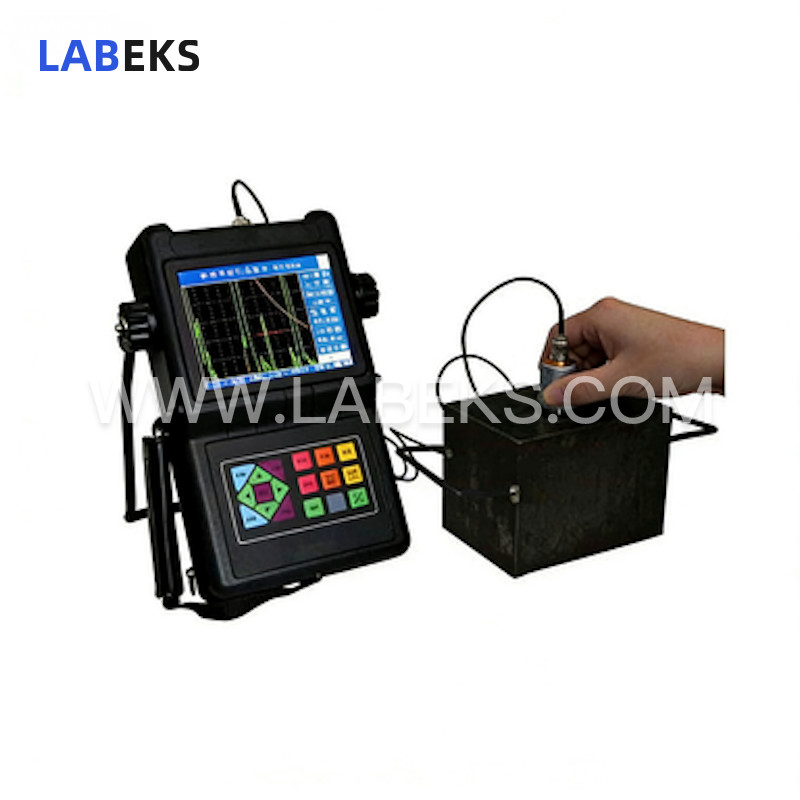

Ultrasonic Flaw Detector for Weld Inspection with 1000 Dataset Storage Capacity

1. Defect Location: Provides real-time display of key metrics including sound path (S), horizontal distance (X), depth (Y), and wave height (H).

2. Defect Quantification: Shows dB difference and SL quantification values in real time for accurate defect assessment.

3. Automatic Gain Function: Automatically adjusts gain levels to reach the preset amplitude height.

4. Waveform Alarm Function: Triggers alerts for both incoming and missing waves.

5. High-Capacity Storage: Supports storage of up to 1000 datasets, encompassing waveforms, curves, parameters and more (equivalent to 1000 traditional channels).

6. Echo-Echo Thickness Measurement: Eliminates the need for zero calibration, enabling direct measurement of the substrate’s net thickness through surface coatings.

7. Peak Memory Feature: Real-time envelope display shows the defect’s highest waveform and records its maximum value, facilitating precise defect location, rapid scanning, and defect identification via envelope waveforms.

8. Full-Screen Display: Expands the echo display area to cover the entire screen, delivering optimal visual clarity during operations.

9. Display Freeze Function: Captures waveform and acoustic range data at any moment; post-freeze, users can adjust gates to measure echo parameters.

10. DAC & AVG Curve Function: Curves automatically adjust in response to changes in gain, sound path, and displacement.

11. Distance Compensation: Real-time compensation of flaw detection echoes using a time-varying gain method to prevent overlooking small defects.

12. Center Value Calculation: Automatically converts defect echo height into the corresponding equivalent defect size.

13. Variable Transmit Pulse Generator: Features continuously adjustable pulse voltage (50 to 400 V) and pulse width (25 to 1000 μs).

14. Impedance Matching: Offers four adjustable gear options at 33Ω, 50Ω, 100Ω, and 500Ω.

15. Reception Filter: Supports adjustable frequency ranges of 1–4 MHz and 0.5–15 MHz.

16. Multi-Step Adjustable Repetition Frequency: Eliminates reverberation (phantom) signals during inspections of large workpieces.

17. Digital Suppression: Adjustable from 0% to 80% in 1% increments, with no impact on linearity or gain.

18. Solid Waveform Display: Enhances waveform visual contrast to ensure no defects are missed during rapid scanning.

19. Measurement Point Selection: Allows users to select between echo peak value or front edge within the gate.

20. Real-Time Clock: Automatically records the date and time for all stored waveforms.

21. Multilingual Support: Offers both Chinese and English operating interfaces.

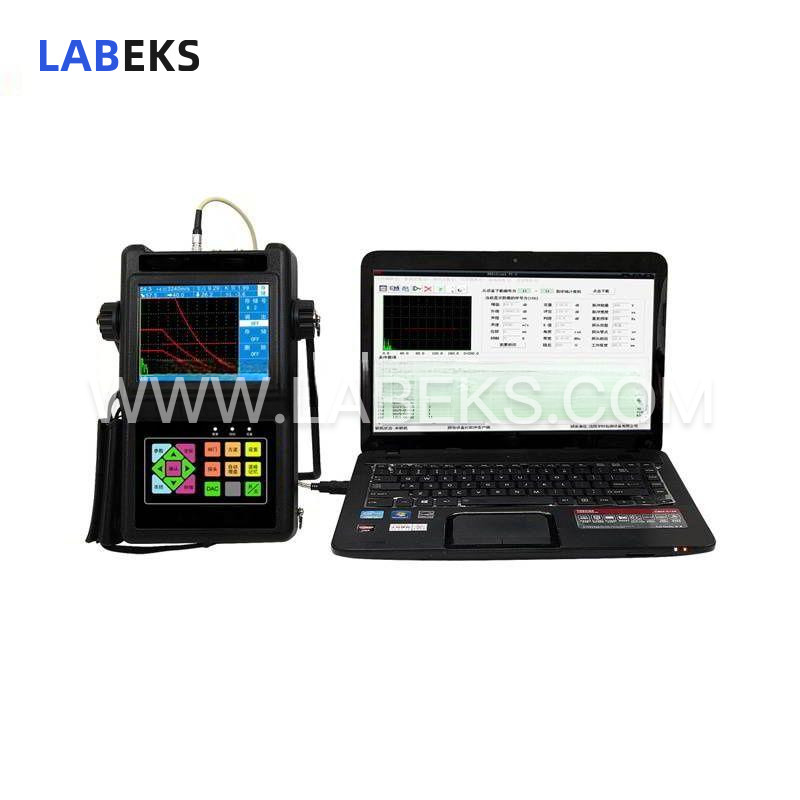

22. Data Communication: Connects to computers via RS232 interface to transmit waveforms and data, enabling centralized defect data management, flaw detection report generation, and printout functionality on the computer.

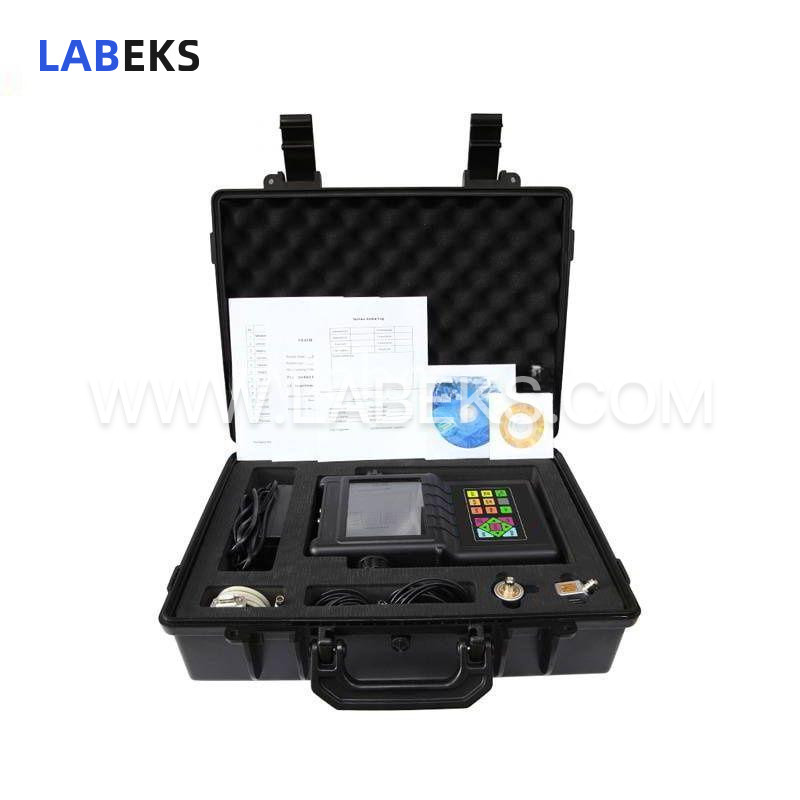

Standard Delivery of LUT2800 Ultrasonic Flaw Detector
