Ultrapure Water Purifier with 18.2MΩ.cm Output for HPLC & GC Lab Experiments

Engineered to provide reliable, high-grade purification, the ultrapure water purifier satisfies the strict water requirements of physical-chemical testing, biochemical analysis, blood assays, microanalysis, specialized cleaning, and HPLC, IC, GC analytical experiments.

  • model
    LAB-WP Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

The LAB-WP Series ultrapure water purifier is ideal for a wide range of applications, including physical and chemical testing, biochemical analysis, blood assays, microanalysis, specialized cleaning, and HPLC, IC, GC analytical experiments.

features

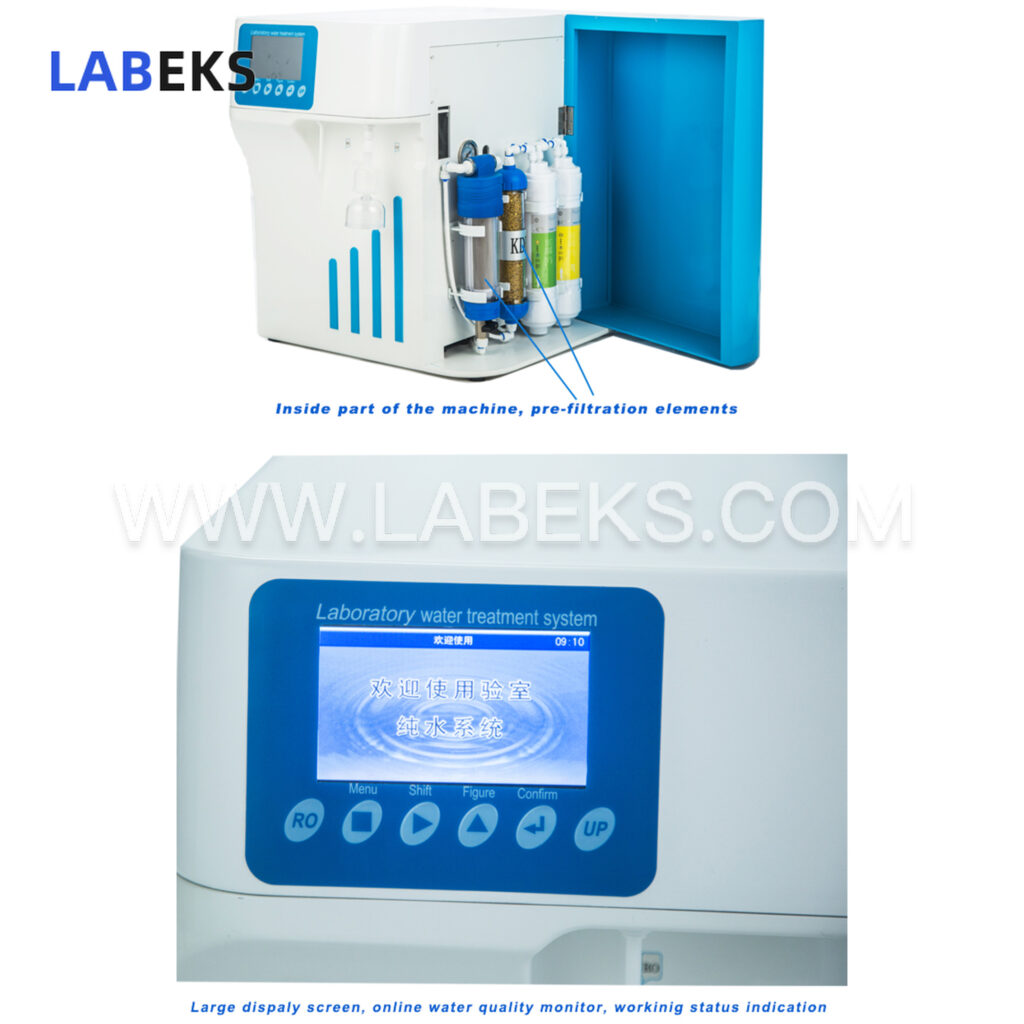

1.Triple water quality monitoring system displays RO conductivity, UP resistivity, temperature, raw water TDS, inlet pressure, and real-time equipment operating status

2.Large-format color touch LCD screen offers an intuitive, intelligent human-machine operation interface

3.Powered by low-voltage 24VDC, the unit complies with safety regulations, is suitable for humid environments, and eliminates personal injury risks

4.Comprehensive protection functions include water shortage protection, high-pressure full-water protection, and fault alarm systems

5.Dual password protection: user-specific password access and factory-mode initial password safeguards

6.Full management capabilities for RO water production, ultrapure water generation, system water intake, circulation, and disinfection processes

7.Programmable timing standby and automatic shutdown functions; all outputs stop automatically when the preset shutdown time is reached

8.Complete tracking features include historical alarm logs, historical water intake records, and consumable lifecycle management

9.Equipped with analog pressure and liquid level sensors to directly display inlet pressure and water tank storage capacity

10.Integrated USB Host interface supports data export of historical alarm records and water intake logs

11.RS232 communication interface enables connection to micro printers or monitoring software

12.Ultra-low radiation design incorporates advanced electromagnetic compatibility technology

13.Innovative built-in transparent pressure tank features a unique replaceable inner water storage bag with nano antibacterial technology

14.Front-end 316L stainless steel precision mesh filter with manual blowdown functionality

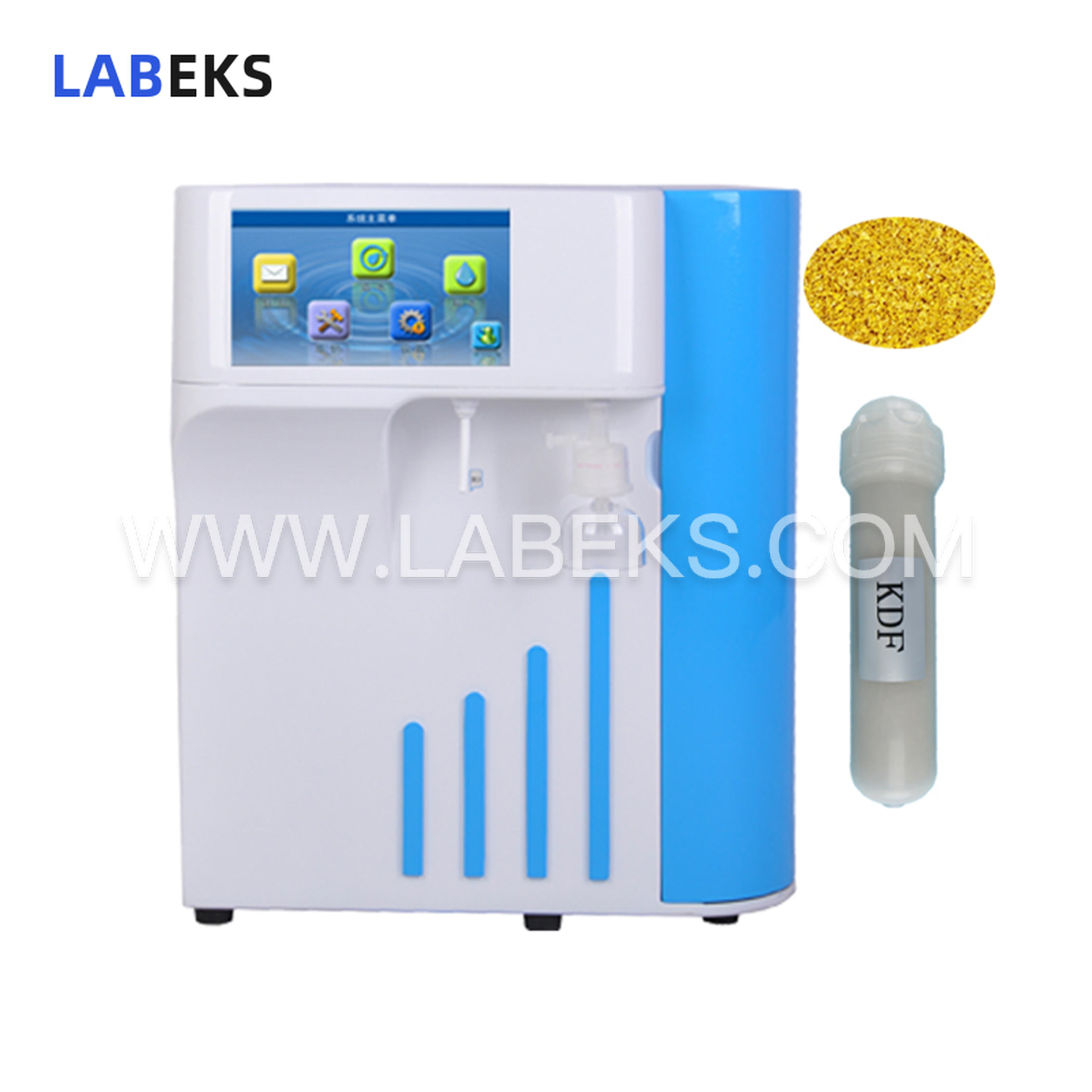

15.USA-sourced KDF media device removes chlorine, heavy metals, and inhibits bacterial growth in the pre-purification stage, effectively protecting downstream purification components

specifications

Model

Standard;Eliminating endotoxin; Low TOC; Synthesizing

LAB-WP-10

LAB-WP-F10

LAB-WP-V10

LAB-WP-VF10

LAB-WP-20

LAB-WP-F20

LAB-WP-V20

LAB-WP-VF20

LAB-WP-30

LAB-WP-F30

LAB-WP-V30

LAB-WP-VF30

Process

PRE+ KDF+ PP+AC+ RO+ UP+ TF

PRE+ KDF+ PP+AC+ RO+ UP+ UF+ TF

PRE+ KDF+ PP+AC+ RO+ UP+ UV+ TF

PRE+ KDF+ PP+AC+ RO+ UP+ UV+ UF+ TF

Output(25℃)

10L/H, 20L/H,30L/H

Flow rate

Up to 2liters/minute(with pressure tank)

Pure wateroutlet

2: reverseosmosls water, ultra-pure water

Ultra pure waterquality

Resistivity(25℃)

18.2MΩ.cm

TOC

<10ppb

<10ppb

<3ppb

<3ppb

Bacteria

<0.1cfu/ml

Particle(>0.22μm)

<1/ml

Endotoxin

N/A

<0.001Eu/ml

N/A

<0.001Eu/ml

RO water quality

Ion rejectionrate

95%-99%(new ROmembrane)

Particles andbacteria rejection rate

>99%

Feed waterrequirements

Tap water,temperature: 5-45℃, pressure:0.15-0.4Mpa

Dimension andweight

L*W*H:47*45*55cm/Weight: about 30KG

Electrical requirements

AC110-240V,50/60Hz

Power

48-240W

Standardconfiguration

Machine(including1 set of purification column)+terminal filter+ accessories package
