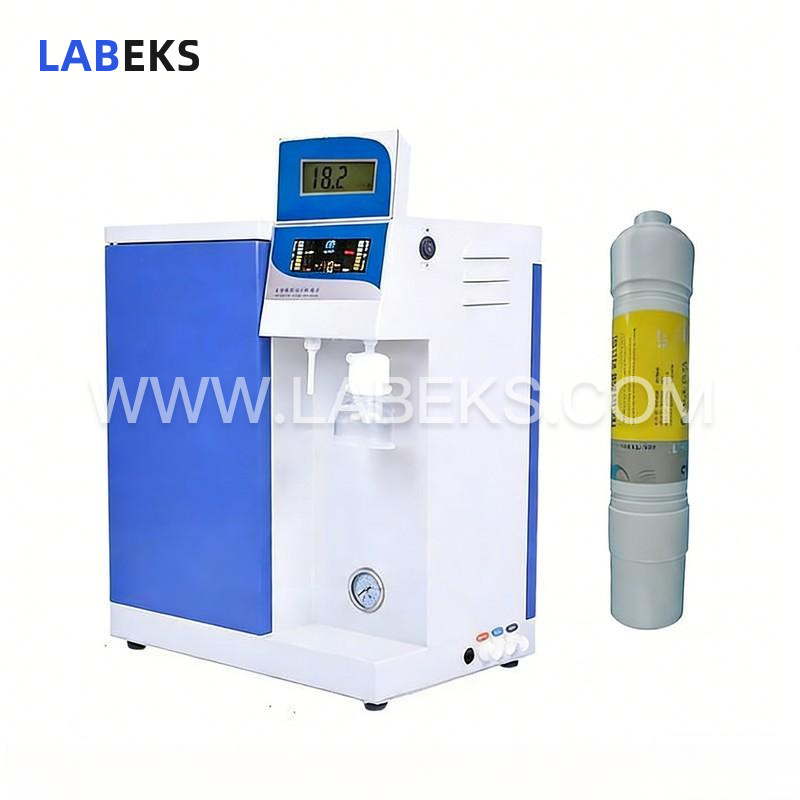

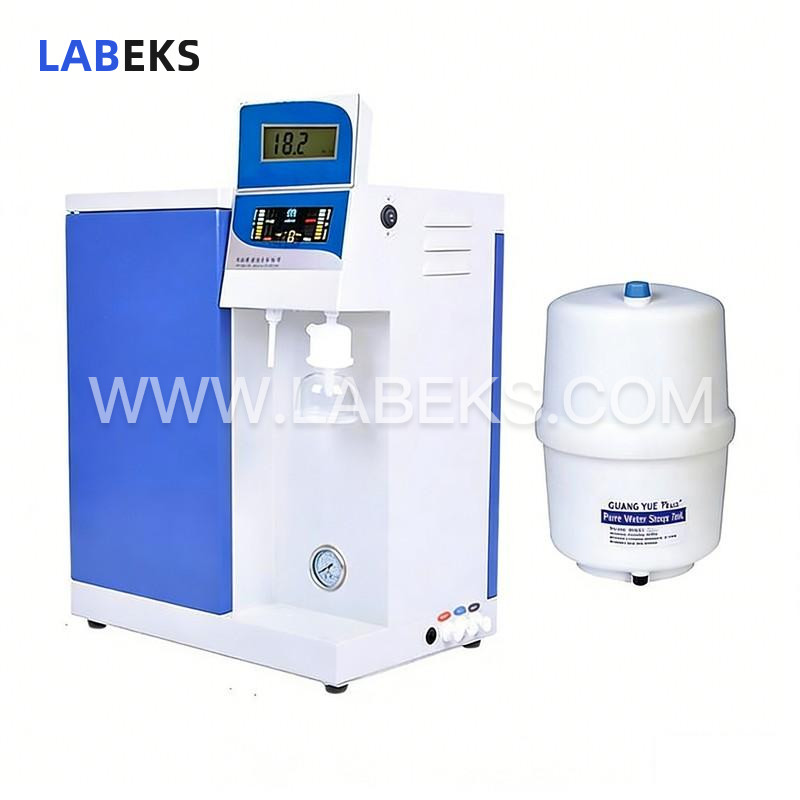

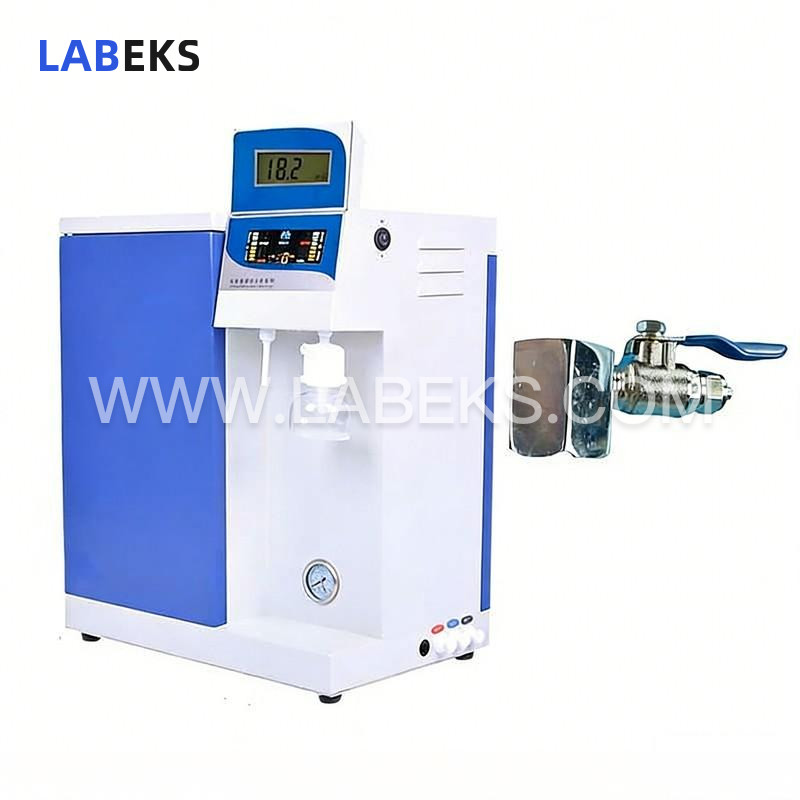

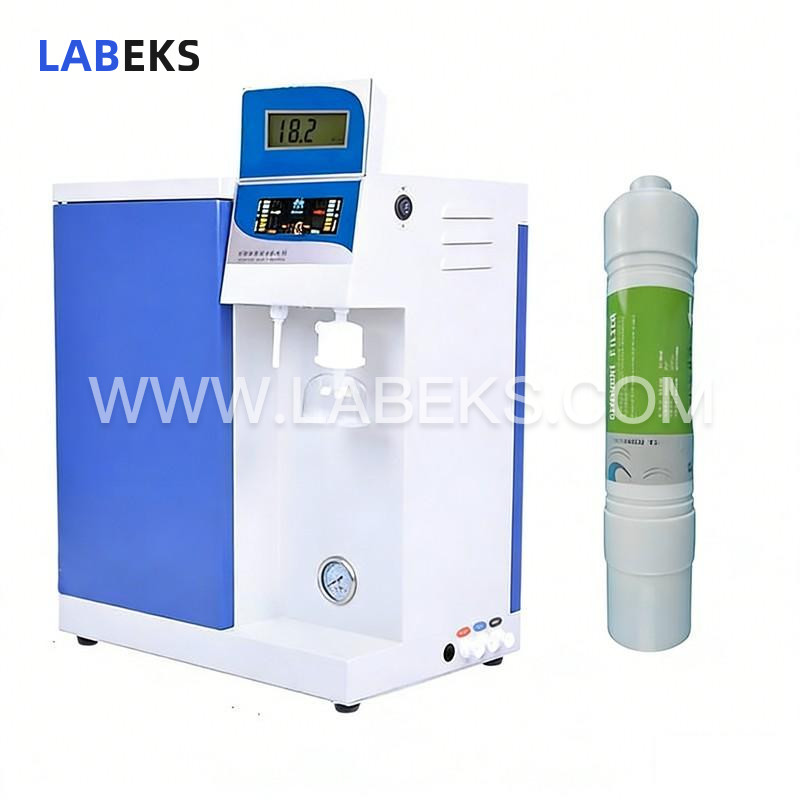

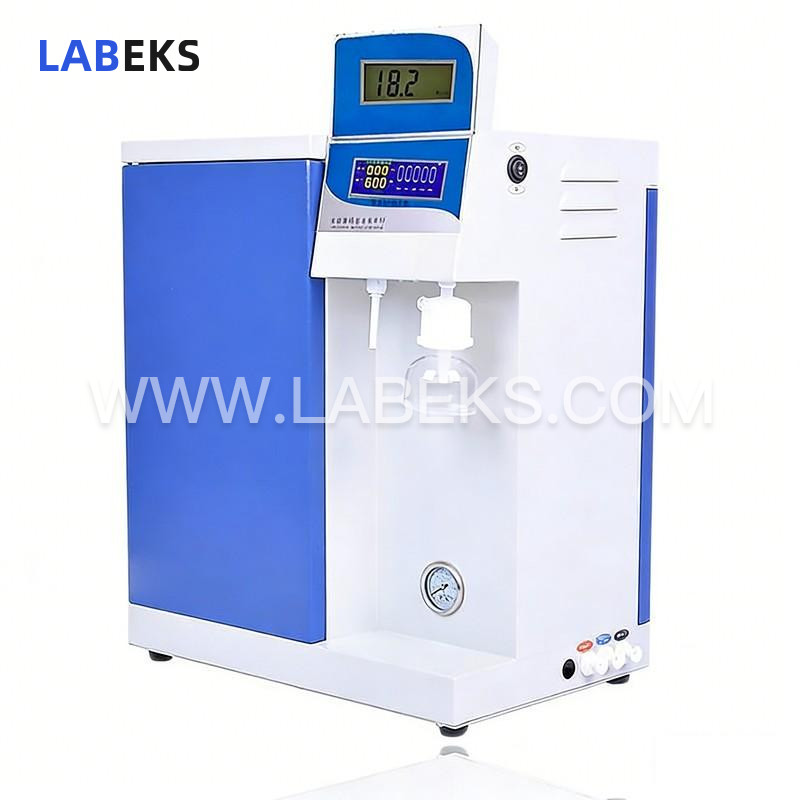

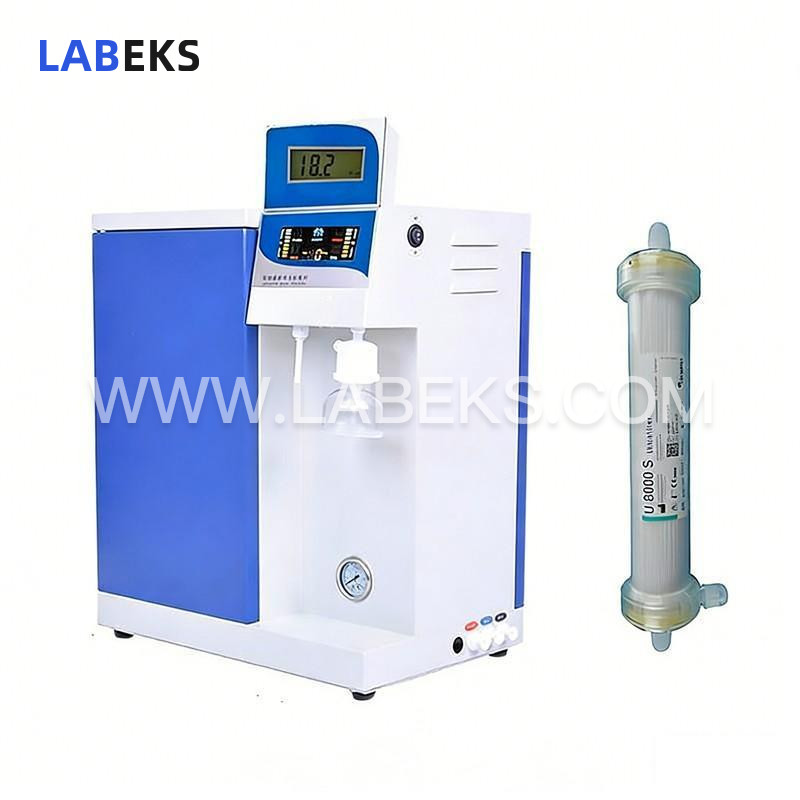

Ultra Pure Water Filter System with 18.2MΩ.cm Resistivity for HPLC & Lab Testing
Featuring a multi-stage purification process, UV sterilization and ultrafiltration technology, the ultra pure water filter system delivers water ideal for physicochemical testing, biochemical analysis, blood exams, microanalysis, and HPLC/IC/GC analytical experiments.
- modelLD-WFUP Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Equipped with a multi-step purification workflow, ultraviolet sterilization and ultrafiltration technology, this system produces high-purity water suited for a diverse set of applications including physicochemical testing, biochemical analysis, blood examinations, microanalysis, sample washing, and analytical experiments such as HPLC, IC, and GC.
features
1. Integrated real-time online water quality monitoring system for continuous purity tracking.
2. Dual electric water outlets provide two water grades (reverse osmosis and ultra-pure water) for on-demand use.
3. Complete separation of electrical components and water pathways prevents circuit malfunctions caused by moisture or leakage.
4. All pipelines hold NSF certification, with support for water quality and output capacity upgrades.
5. Automated RO membrane anti-scaling flushing program, plus automatic shutoff during tap water outage, automatic storage tank refill, and auto-stop when the tank is full.
6. Korean quick-insert filter cartridges enable hassle-free replacement and maintenance.
7. Adapted to meet national water quality standards, with a cabinet finished using plastic spraying technology.
8. All filter elements in the system are fabricated via injection molding with built-in chassis integration.
9. Includes a portable TDS pen for on-the-spot testing of TDS content, conductivity, and water temperature.
10. Front and rear door design allows tool-free, quick and easy filter element replacement.
specifications
Model | Standard;Eliminating endotoxin; Low TOC; Synthesizing | |||
|---|---|---|---|---|
LD-WFUP-10 | LD-WFUP-F10 | LD-WFUP-V10 | LD-WFUP-VF10 | |
LD-WFUP-20 | LD-WFUP-F20 | LD-WFUP-V20 | LD-WFUP-VF20 | |
LD-WFUP-30 | LD-WFUP-F30 | LD-WFUP-V30 | LD-WFUP-VF30 | |
Process | PP+ AC+ AC+ RO+UP+ TF | PP+ AC+ AC+ RO+UP+ UF+ TF | PP+ AC+ AC+ RO+UP+ UV+ TF | PP+AC+AC+RO+UP+UV+UF+TF |
Output(25℃） | 10L/H, 20L/H,30L/H | |||
Flow rate | Up to 2liters/minute(with pressure tank) | |||
Pure wateroutlet | 2: reverseosmosls water, ultra-pure water | |||
Ultra pure waterquality | ||||
Resistivity(25℃） | 18.2MΩ.cm | |||
TOC | <10ppb | <10ppb | <3ppb | <3ppb |
Bacteria | <0.1cfu/ml | |||
Particle(>0.22μm） | <1/ml | |||
Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
RO water quality | ||||
Ion rejectionrate | 95%-99%(new RO membrane) | |||
Particles andbacteria rejection rate | >99% | |||
Feed waterrequirements | Tap water,temperature: 5-45℃, pressure:0.15-0.4Mpa | |||
Dimension andweight | L*W*H:41*27*50cm/Weight: about 23KG | |||
Electricalrequirements | AC110-240V,50/60Hz | |||
Power | 48-72W | |||
Standardconfiguration | Machine(including1 set of cartridge)+12 liter pressure tank | |||
