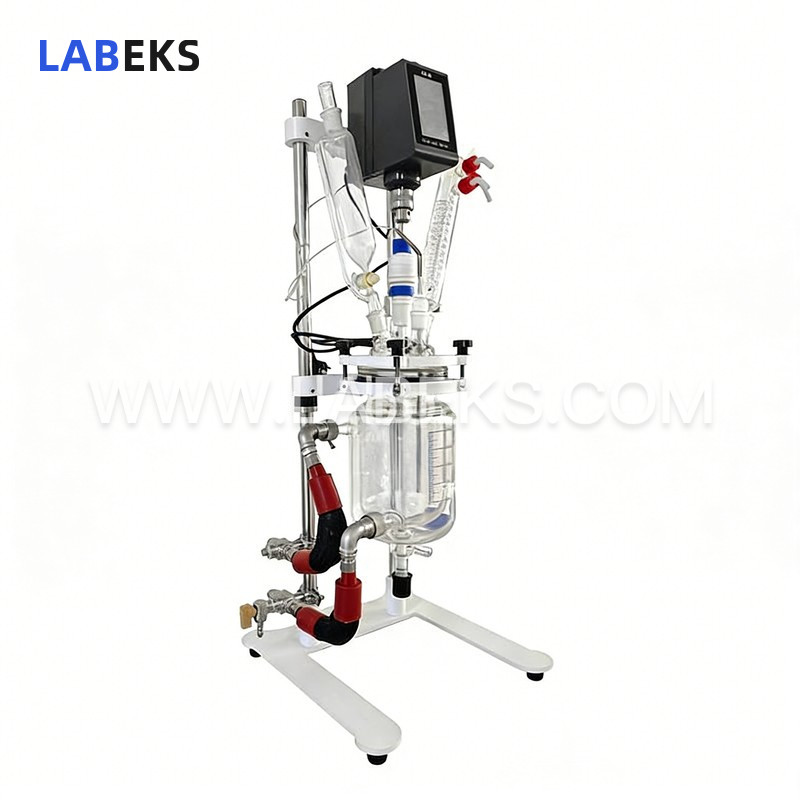

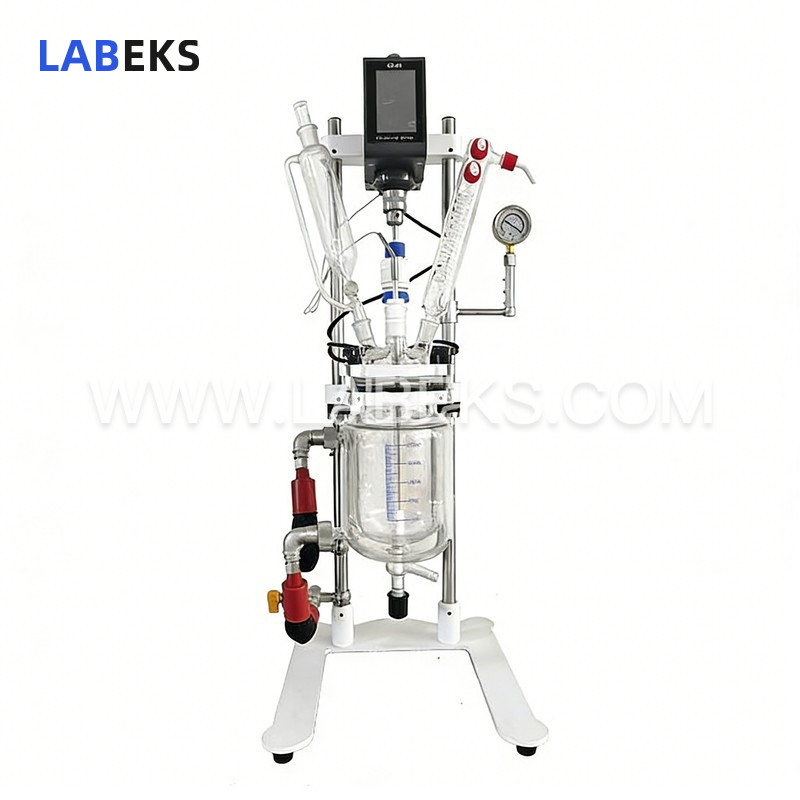

Touch Screen Jacketed Glass Reactor for Laboratory Chemical Reactions
Equipped with intuitive touch screen control, the jacketed glass reactor is ideal for desktop chemical reactions in laboratories or fume hood operations, with customizable lifting height and reactor body dimensions.
- modelLGR-1LN/LGR-3LN/LGR-5LN
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Integrated with an electric constant-speed stirring system, along with condensation and dripping assemblies, the reactor’s kettle body interlayer requires external heating or refrigeration circulation equipment. During material stirring, circulating hot solutions or cooling liquids are pumped through the interlayer to maintain precise constant-temperature heating or cooling of kettle contents. For heating reactions, connecting a vacuum device enhances evaporation efficiency. Solvent vapor is condensed into liquid via the glass condensation coil (requires a connected cooling device), and can either flow back into the kettle or be recovered via the valve beneath the head through a reflux elbow. Post-reaction, materials are discharged through the kettle’s bottom side outlet.
To function as a complete operational system, this reactor series must be paired with vacuum devices, high-temperature or low-temperature circulation units, and compatible auxiliary equipment.
features
1. All material-wetted components are constructed from high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene, offering exceptional chemical stability and non-reactivity with process materials.
2. Electronic stepless speed adjustment enables precise speed fine-tuning via knob control, with real-time digital speed display.
3. Features a crescent-shaped stirring paddle with 304 stainless steel + PTFE blades; the stirring rod consists of a 304 stainless steel core encased in a PTFE tube.
4. The stirring system is fitted with double bearings and double skeleton oil seals for enhanced durability and operational stability.
5. Glass + PTFE discharge valve enables side discharge with no residual liquid accumulation.
6. A vacuum pressure gauge provides real-time vacuum level monitoring via clear pointer display.
7. The base frame is constructed from aluminum alloy + stainless steel for robust, corrosion-resistant support.
8. Equipped with fuse protection and overload safeguards to ensure operational safety.
specifications
Model | LGR-1LN | LGR-3LN | LGR-5LN | |
|---|---|---|---|---|
Kettle Body Capacity | 1Linner diameter 120mm outer diameter 150mm inner length 160mm | 3Linner diameter 180mm outer diameter 230mm inner length 240mm | 5L inner diameter 180mm outerdiameter 230mm inner length 270mm | |
Mezzanine Capacity | About 200ml | About 600ml | About 800ml | |
Voltage Frequency | 220V/50Hz | |||
Stirring Motor Power | 60W | |||
Stirring Speed | 50-1500rpm | |||
Speed Display | Large Color Screen Display | |||
Time Display | ||||
Torque Display | ||||
Temperature Display | ||||
Timing Range | 0-99h59min | |||
Kettle Body Temperature Range | -80℃~ +250℃ | |||
Temperature Measurement Accuracy | ±1℃ | |||
Vacuum Degree | 0.098Mpa | |||
Cauldron Lid Φ150mm Five Ports | Stirring Port | Φ50mm Flange Port | ||
Condensation Port | 24# Standard Mouth | 29# Standard Mouth | ||
Constant Pressure Funnel Mouth | 24# Standard Mouth | 29# Standard Mouth | ||
Pressure Reducing Port | 19# Standard Mouth | 24# Standard Mouth | ||
Thermometer Port | 19# Standard Mouth | 24# Standard Mouth | ||
Impeller | 10×450H(Mm) Leaf Span 80mm | Φ10×600H(Mm) Leaf Span 90mm | ||
Condenser | Φ40mm×350H(Mm) Upper 24# StandardPort And Lower 29# Standard Plug | Φ60mm×450H(Mm) Upper 24# StandardPort And Lower 29# Standard Plug | ||
Constant Pressure Funnel | 250ml, Upper 24# Standard PortWith Glass Stopper, Lower 24# Standard Stopper | 500ml, Upper 24# Standard PortWith Glass Stopper, Lower 24# Standard Stopper | ||
Pressure Reducing Valve | 19# Standard Plug Valve, AirRelease Nozzle (Pagoda Joint) Outer Diameter 10mm | 24# Standard Plug Valve, AirRelease Nozzle (Pagoda Joint) Outer Diameter 10mm | ||
Thermometer Port | 19# Standard Plug TemperatureMeasuring Probe | 24# Standard Plug TemperatureMeasuring Probe | ||
Mezzanine Entrance And ExitCirculation Port | Φ25 flange port matching flange plate,transfer pagoda joint outer diameter 14mm | |||
Discharge Port | The Thread Mouth Is Equipped Witha Ptfe Discharge Valve, An Inclined Discharge Nozzle (Pagoda Joint) Φ12mm,And a Height Of 150mm From The Ground. | |||
Vacuum Suction Head | 24# Glass Air Extraction Head,Nozzle (Pagoda Joint) Outer Diameter 10mm | |||
Condensation Coil Inlet And OutletCirculation Nozzle | Pagoda Connector Outer Diameter10mm | |||
MachineSize(L*W*H) | 450×450×1050mm | |||
Net Weight | 18.5kg | |||
