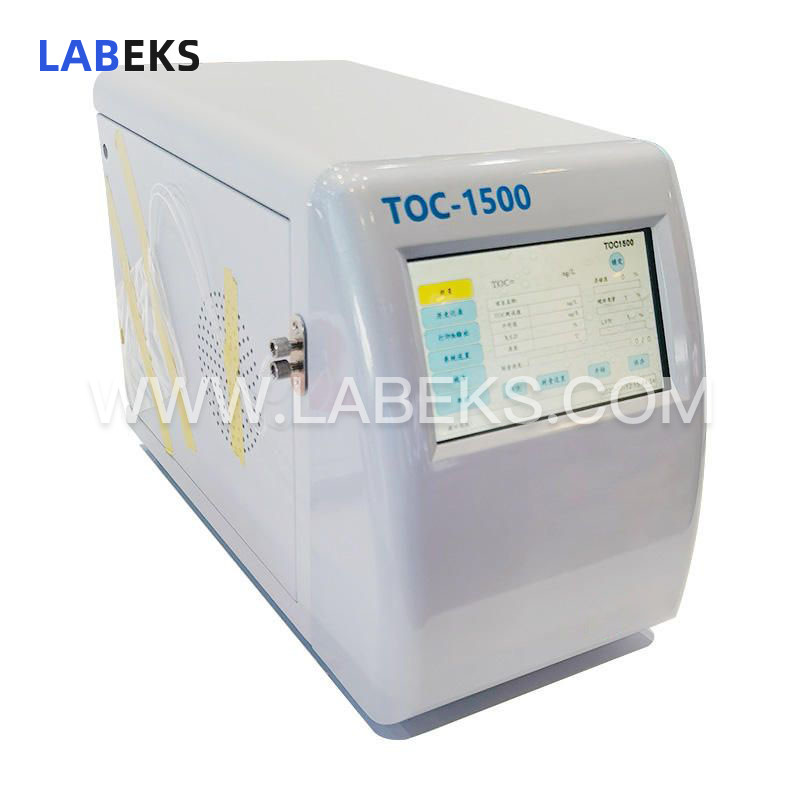

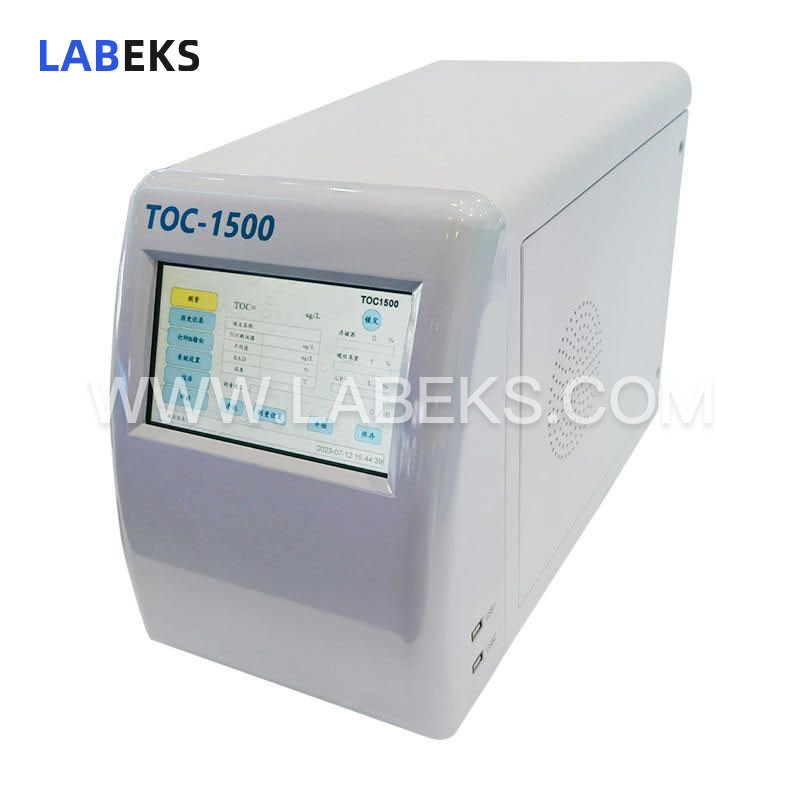

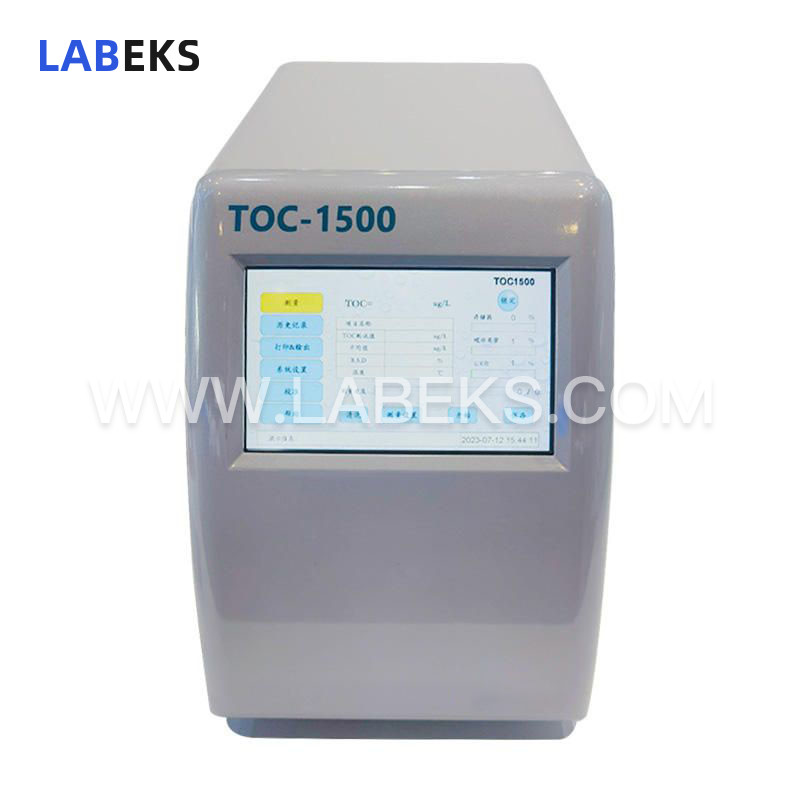

TOC-1500 Total Organic Carbon Analyzer: 3-Minute Analysis for Pharmaceutical Water Testing
Employing dual-wavelength UV oxidation and conductivity detection technology, the Total Organic Carbon Analyzer features a compact size, lightweight build and intuitive operation. It is ideal for testing pharmaceutical water, electronic-grade industrial water, pure water and other water matrices; the TOC-1700 model supports real-time online monitoring of pharmaceutical water production systems, semiconductor ultrapure water preparation, wafer processing and power plant deionized water preparation workflows.
- modelTOC-1500
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Total Organic Carbon (TOC) quantifies the total organic matter in water by measuring carbon content, with results reported as the mass concentration of carbon (C) in mg/L. As carbon is a universal component and foundational element of all organic substances, a higher water TOC value directly correlates to greater organic matter content. Thus, TOC serves as a reliable indicator for assessing organic contamination in water quality.
features
1. In compliance with FDA-21 CFR Part11 requirements and USP, EP, JP and ChP standards.
2. Utilizes UV lamp-based UV oxidation, eliminating the need for acid, gas or catalyst addition to significantly reduce experimental and maintenance costs.
3. Enables rapid testing, with each analysis completed in less than 3 minutes.
4. Boasts 8GB large-capacity storage, with no restrictions on data volume or retention time.
5. All historical test records can be conveniently traced by searching the test date.
6. Data can be retrieved and saved directly to a USB device.
7. Equipped with a Bluetooth printer for quick, hassle-free data printing.
8. Features automatic sample introduction with one-button setup, eliminating sample contamination risks and posing no harm to operators or the environment.
9. Comes with a 7-inch touchscreen and intuitive smart UI, simplifying operation and test data reading.
10. Supports seamless switching between online and offline modes (note: TOC-1700 is designed for online operation).
11. The TOC-1700 model operates in online mode to deliver real-time continuous monitoring.
12. An ideal solution for measuring and monitoring microelectronics-grade water, purified water, water for injection and similar water types.
13. Modular design enables quick installation and straightforward maintenance.
14. Integrated conductivity detector for precise TOC concentration quantification.
15. An auto-sampler is available as an optional accessory to meet diverse experimental requirements.
specifications
Model | TOC-1500 |
|---|---|
DetectionMode | Offline Detection |
DetectionRange | 0.001-1.5mg/1 |
DetectionLimit | 1ppb |
MaxTolerance | ±5% |
AnalysisTime | 3min |
ResponseTime | Within10min |
SampleTemperature | 1-95°C |
EnvironmentTemperature | 10-40°Cwithtemperaturechange±5°C/d |
SampleFlowSpeed | 3ml/min |
RelativeHumidity | ≤85% |
Drifting | ±5% |
RepeatabilityTolerance | ≤3% |
RatedPower | 100W |
Frequency | 50/60Hz |
Dimension | 440*220*300mm |
PowerSupply | AC220V,50/60HzorAC110V,50/50Hz |
why choose us
Premium Quality with CE & ISO
We conduct 100% performance testing on every unit, ensuring its stable operation and superior performance in your application.
24/7 Expert Technical Support
Our senior engineers are on standby 24/7, ready to provide expert solutions at any time to minimize your operational downtime.
20+ Years R&D & Production
Our deep technical expertise is your solid guarantee for professional and reliable OEM/ODM services.
Trusted in 80+ Countries
Industry leaders and research institutions in over 80 countries and regions rely on our equipment for stable operation.
True Manufacturer, Factory-Direct Price
Bypass the middlemen to get our factory pricing and speak directly with our core engineers.
Rapid & Reliable Delivery
Our extensive in-stock inventory provides a solid guarantee for rapid and reliable global delivery.
