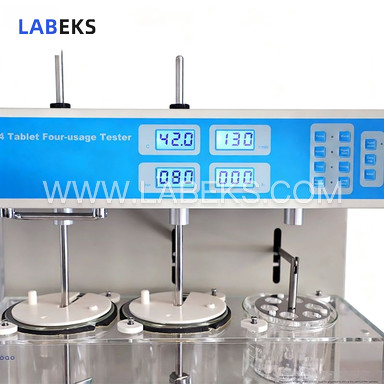

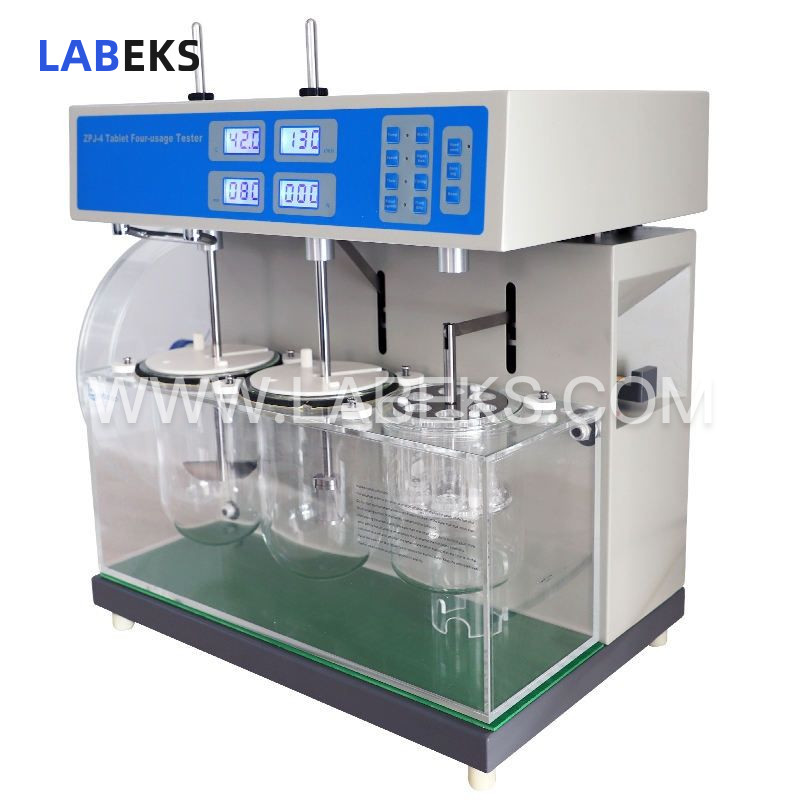

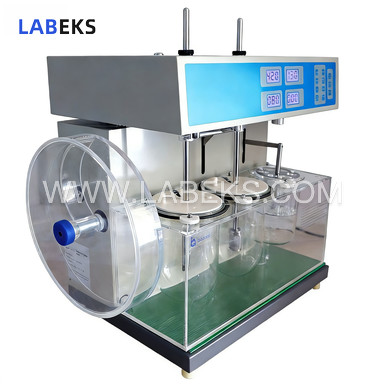

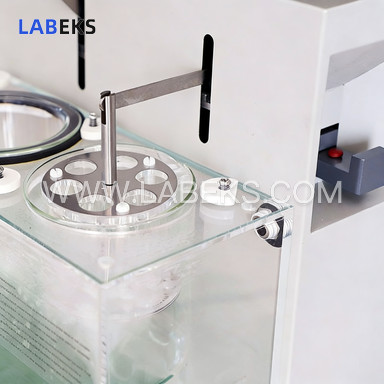

Tablet Dissolution, Disintegration, Friability & Hardness Tester with Auto-Control for Pharma Labs
Designed for pharmaceutical and research laboratories, this integrated tablet dissolution, disintegration, friability & hardness tester enables precise, multi-parameter analysis in one unit, streamlining quality control workflows.
- modelZPJ-4
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This all-in-one tester integrates four core functions: analyzing pharmaceutical tablet dissolution, disintegration, friability/abrasion, and hardness.
Compliant with the following standards:
National Standard (Chinese Pharmacopoeia) / 2015
Industry Standard (Dissolution Tester)
Industry Standard (Disintegration Tester)
Industry Standard (Tablet Friability Tester)
Industry Standard (Tablet Hardness Tester)
features
1. Intellectualized operation with auto-control, auto-testing, auto-diagnosis, and auto-alarm capabilities for reliable performance.
2. Offers auto-display, auto-storage, auto-reset, and auto-retest functions to simplify testing procedures.
3. Allows real-time parameter presets at any time, with alternating display of preset values and actual operating data.
4. Equipped with a high-accuracy pressure sensor for tablet hardness testing, with results displayed in Newtons.
5. Ensures high precision in rotational speed measurement and friability count calculations.
6. Provides high-accuracy automatic temperature control to maintain stable testing environments.
7. Uses a magnetic pump to circulate water flow, ensuring uniform system heating and consistent bath liquid temperature.
8. Features three linearly arranged vessels and poles, with a smooth, manually operatable flip-top head assembly.
9. Supports synchronous operation of two disintegration tests, with auto-stop functionality activated at preset timing points.
10. Includes auto-stop functionality triggered by preset timing intervals for all applicable tests.
11. Enables continuous tablet hardness testing with manual loading and compression of samples.
specifications
Model | ZPJ-4 |
|---|---|
Temperaturerange | (20～45)℃±0.3℃ |
Speed range | (20～200)rpm±2rpm |
Automatic timerange | (1～900)min±0.5min |
Stations ofdissolution | 3 |
Paddle radialrun-out | ±0.5mm |
Basket radialrun-out | ±1.0mm |
basketassemblies | 2 |
Nacelle back andforth frequency | (30～32 )/ min |
Nacelle back andforth range | (55±2)mm |
Drum | 1 |
Drum’s size | radius:Φ286mm depth: 39mm |
Hardness range | (2～200)N |
Probe processionrange | (3～20)mm |
Power | 220V/ 50Hz/ 600Wor 110V/ 60Hz/ 600W |
Dimension | 520×380×480mm |
