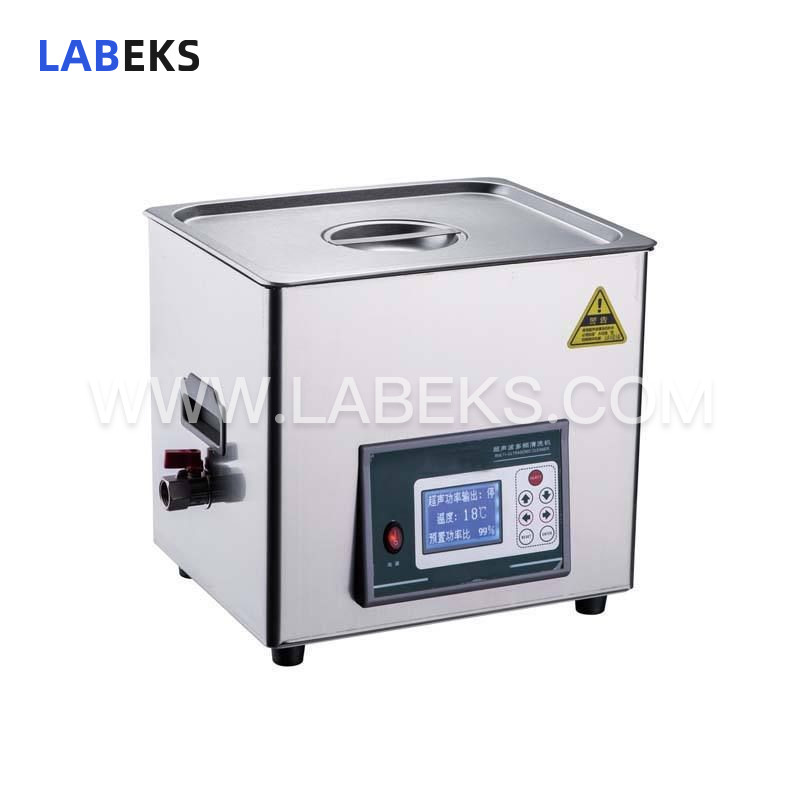

Sweep Frequency High Power Ultrasonic Cleaning Machine with Adjustable Power & Multi-Frequency Modes

Engineered to meet stringent user demands for precise control over ultrasonic power, frequency and timing, this ultrasonic cleaning machine delivers versatile performance for cleaning, dispersion extraction and nano preparation.

  • model
    LUC-DTY Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

Beyond basic cleaning, this unit supports chemical reaction, degassing, defoaming, emulsification and mixing—breaking the limitations of single-frequency ultrasonic cleaners. By switching between 25KHz, 33KHz, 40KHz and 59KHz, it executes a full cleaning cycle from rough wash to rinsing in one system, thoroughly removing both fine and stubborn contaminants from various substrates while eliminating cleaning dead spots.

features

1. Selectable frequency conversion across 25KHz, 33KHz, 40KHz and 59KHz

2. Adjustable ultrasonic power ranging from 40% to 99%

3. Microcomputer-based memory for storing custom operating parameters

4. Power-off memory retains all configured working parameters

5. Independent 1-99min timing for each frequency’s ultrasonic operation

6. Total working time adjustable from 1 to 999 minutes

7. Temperature adjustment range from room temperature up to 80℃

8. Backlit LCD screen for clear parameter visibility

9. Real-time display of the cleaning tank’s actual temperature

10. Countdown display for remaining working time

11. Inner/outer housing and sound-dampening cover constructed from high-quality stainless steel

12. Integrated SCM software for precise system operation control

specifications

Model

LUC-300DTY

LUC-400DTY

LUC-500DTY

LUC-600DTY

LUC-1000DTY

LUC-1200DTY

Size of inner groove (mm)L/W/H

300*240*150

300*240*200

500*300*150

500*300*200

600*300*300

600*400*300

Capacity（L）

10

15

22.5

30

54

72

Frequency (KHz)

25/33/40/59

Power (W)

360

480

600

840

1000

1200

Heating power (W)

800

1000

3000

4000

5000

Temperature adjustable(℃)

Room temperature -80℃

Timeadjustable (min)

1-999

Wire frame

YES

Soundreducing cover

YES

Drainage

YES
