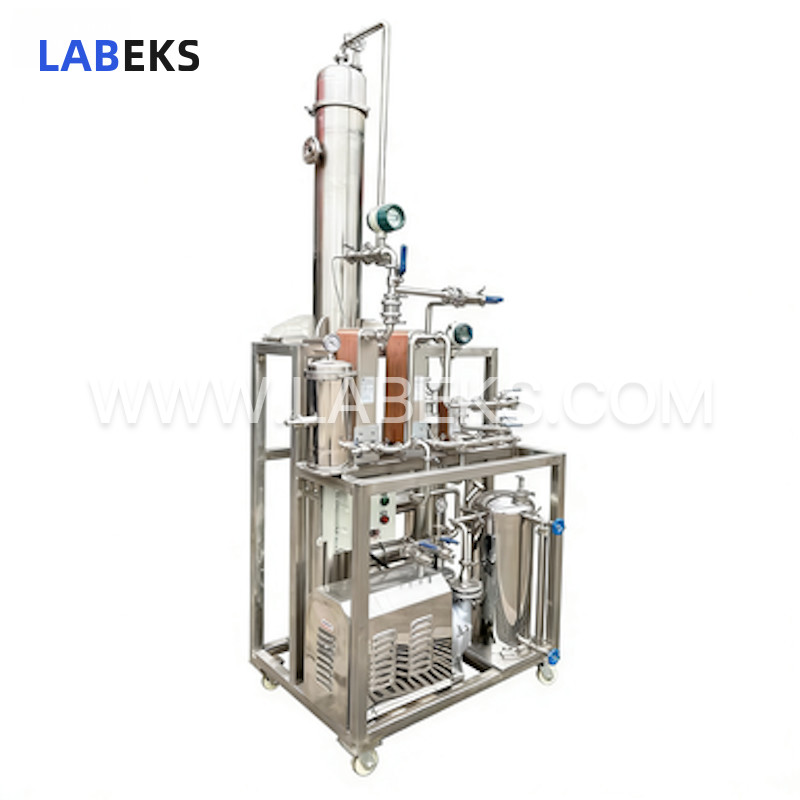

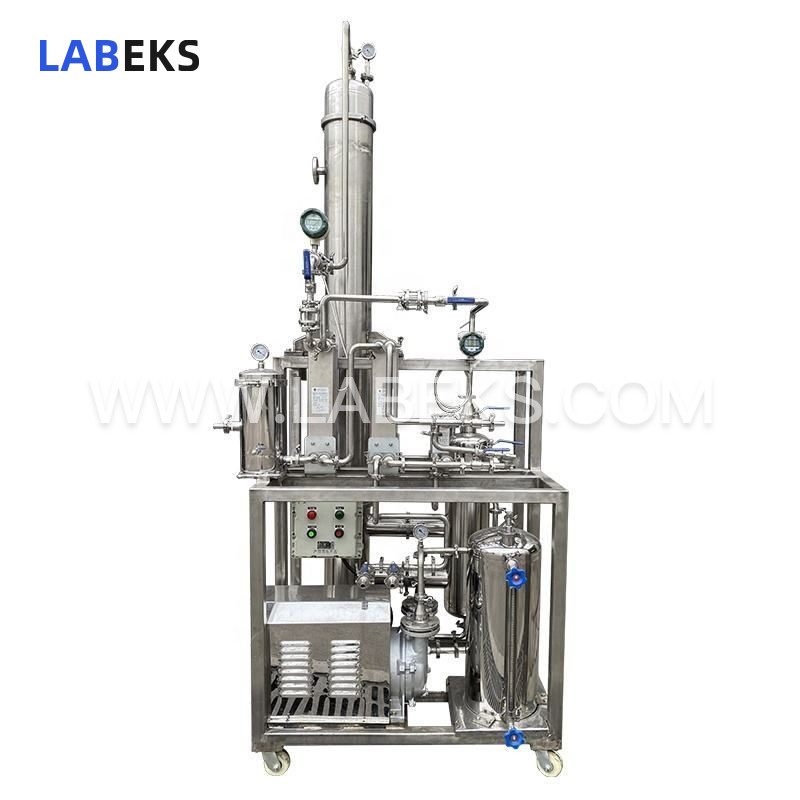

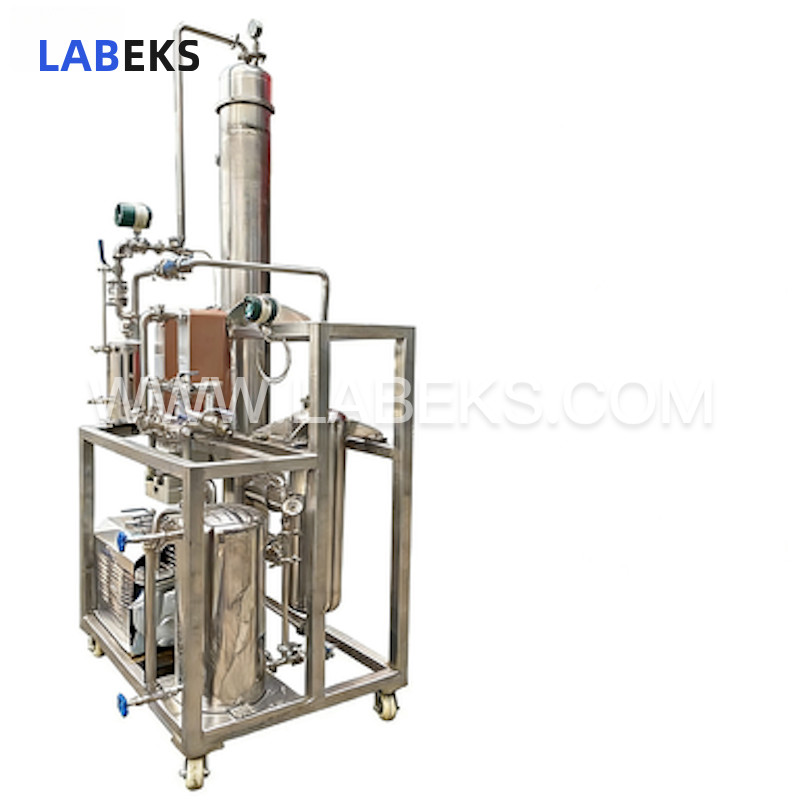

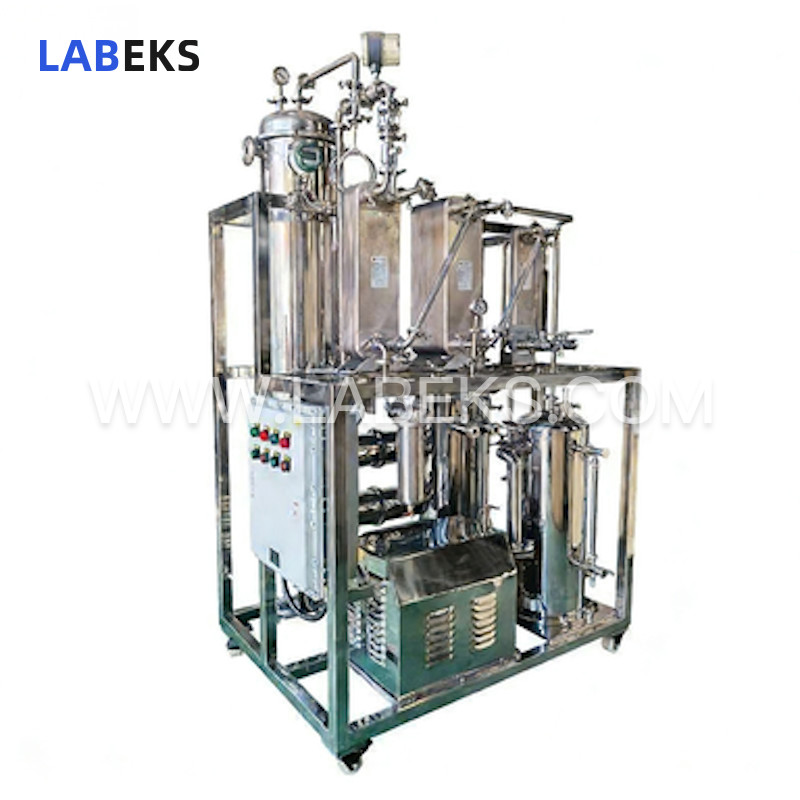

Stainless Steel Vacuum Falling Film Evaporator with 95% Solvent Recovery & 100L/h Ethanol Throughput
Crafted from S304/S316 sanitary stainless steel, this Vacuum Falling Film Evaporator offers ethanol throughput ranging from 100L/h to 500L/h and over 95% single-pass solvent recovery efficiency. Its all-pneumatic system supports continuous material feeding and discharge, while an integrated control panel with a diagram enables automatic vacuum regulation.
- modelFFE-100
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The FFE-100 Falling Film Evaporator is an industrial-grade unit engineered to concentrate heat-sensitive solutions and recover solvents including ethanol, hexane, and heptane. As indicated by its name, the fluid forms a thin film along vertical tube walls and flows downward under gravity. This equipment is specifically optimized for processing low-viscosity products with minimal fouling tendency.
Evaporation takes place within vertical tubes housed in a shell-and-tube heat exchanger, which is topped with a proprietary liquid distribution device. Meticulously designed, this distributor ensures efficient, uniform liquid allocation to every tube, allowing the product to flow continuously as a falling film driven by gravity.
Our complete solvent recovery system includes not only the falling film evaporator itself but also a circulation heater (with optional steam generator), water cooling tower, circulation chiller, vacuum pump, and all necessary auxiliary components.
features
1. Short residence time for safeguarding heat-sensitive components.
2. 90% – 95% single-pass solvent recovery efficiency.
3. Durable S304/S316 sanitary stainless steel construction.
4. Continuous material feeding and discharge enabled by optional liquid transfer pumps.
5. Real-time monitoring of vacuum level, temperature, and feed speed.
6. Turnkey system with supporting chiller, heater, steam generator (optional), vacuum pumps, and related accessories.
7. Compact footprint paired with high capacity: 100L/h (ethanol).
8. Optional upgrades to meet Engineering Peer Review, GMP and UL standards.
9. Compatible with multiple solvents (e.g., ethanol, hexane, heptane) – factory adjustment required.
10. Dual-stage plate heat exchangers compatible with water cooling towers to reduce equipment and power costs.
specifications
Model | Description | Size(mm) | Weight(kg) | |||
|---|---|---|---|---|---|---|
FFE-100 | Evaporation capacity | 100L/H | 760*680*2000 | 400 | ||
Working power | Heating Power | 24 KW | ||||
Cooling Power | 6.3 KW | |||||
Pump Power | 4 KW | |||||
Connectors(Quick Connectors) | Inlet Joint | 25 Φ | 50.5 Clamp | |||
Solvent Outlet | 25 Φ | 50.5 Clamp | ||||
Product Outlet | 25 Φ | 50.5 Clamp | ||||
Vacuum Outlet | 25 Φ | 50.5 Clamp | ||||
Chiller Inlet | DN40 Outer wire | |||||
Chiller Outlet | DN40 Outer wire | |||||
Heater Inlet | DN25 Flange | |||||
Heater Outlet | DN25 Flange | |||||
