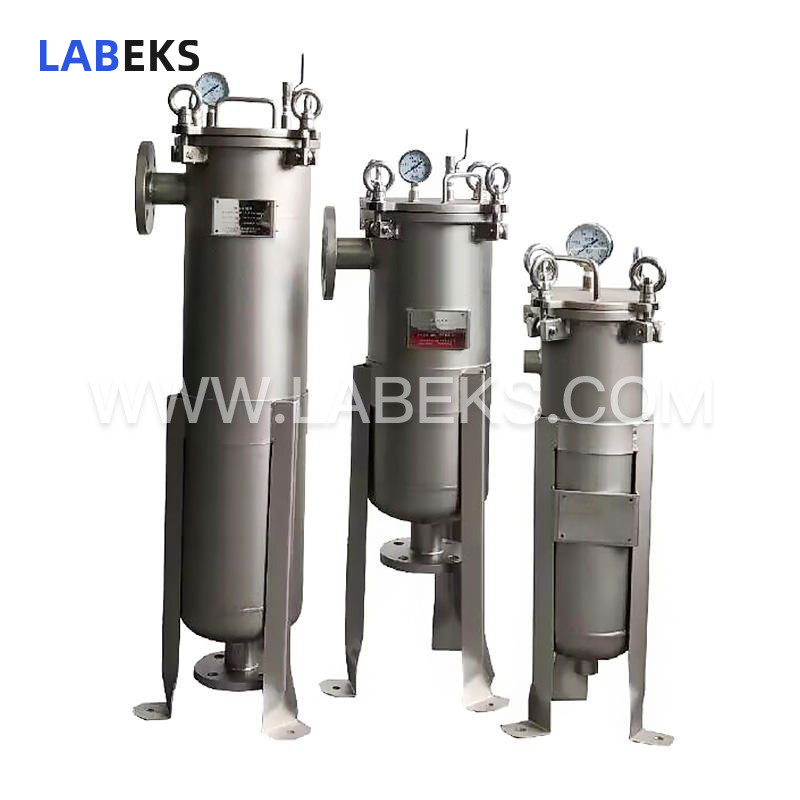

Stainless Steel Single Bag Filter Housing with Food-Grade Polish & High-Flow Capacity

Engineered per strict quality standards with high-purity stainless steel (aligned with steel pressure vessel specifications), the single bag filter housing delivers superior sealing, corrosion resistance, precision craftsmanship, and safe, reliable performance.

  • model
    LBF-C Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

Featuring a top-entry bag filtration design, this single bag filter housing can be constructed from high-quality stainless steel (SS304, SS316L) or carbon steel. Manufactured via stringent processes and precision-machined components, it offers a matte or polished surface finish, excellent sealing properties, and strong corrosion resistance. An optional filter trolley is available for convenient mobility.

features

1. Boasts a food-grade polished surface, enabling easier cleaning and sanitization;

2. Supports dual-module assembly to meet high-volume flow filtration requirements;

3. Integrated thermal insulation jacket design maintains or boosts liquid temperatures to prevent solidification, fulfilling production line thermal needs;

specifications

Model

LBF-C1

LBF-C2

LBF-C4

Filterarea

0.25m²

0.55m²

0.16m

Maximumflow

20m³/h

40m³/h

12m3/h

Volume

18L

32L

4.5L

Equipmentmaterial

SS304,SS316L, carbon steel

Importand export diameter

DN50flange

25flange or internal thread

Designpressure

1.0MPa、1.6MPa

Sealmaterial

Siliconerubber, EPDM rubber, fluorine rubber, PTFE-coated fluorine rubber, etc.

why choose us

  • Premium Quality with CE & ISO

    We conduct 100% performance testing on every unit, ensuring its stable operation and superior performance in your application.

  • 24/7 Expert Technical Support

    Our senior engineers are on standby 24/7, ready to provide expert solutions at any time to minimize your operational downtime.

  • 20+ Years R&D & Production

    Our deep technical expertise is your solid guarantee for professional and reliable OEM/ODM services.

  • Trusted in 80+ Countries

    Industry leaders and research institutions in over 80 countries and regions rely on our equipment for stable operation.

  • True Manufacturer, Factory-Direct Price

    Bypass the middlemen to get our factory pricing and speak directly with our core engineers.

  • Rapid & Reliable Delivery

    Our extensive in-stock inventory provides a solid guarantee for rapid and reliable global delivery.
