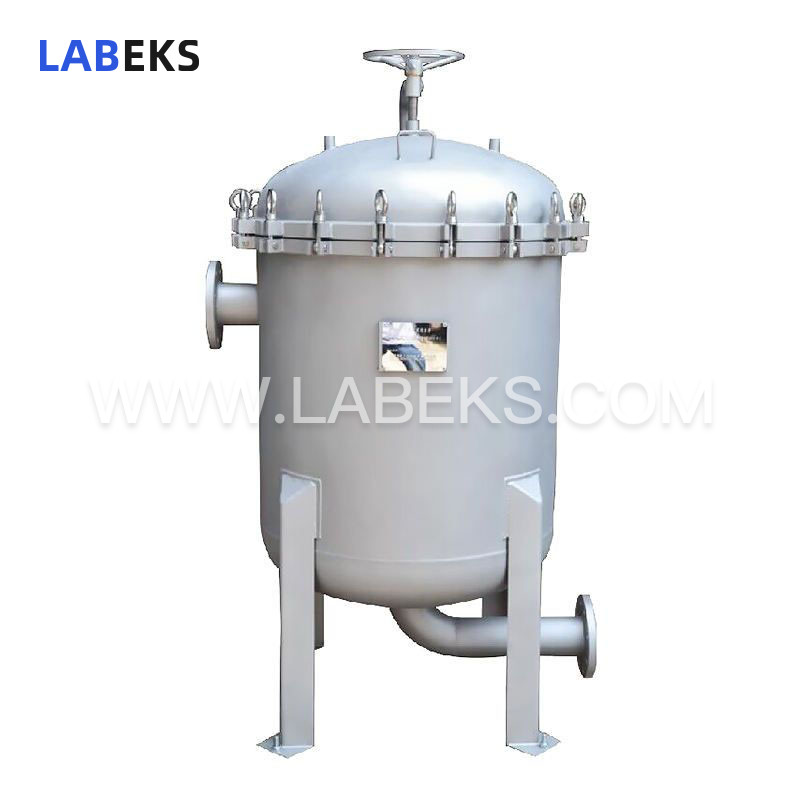

Single Stainless Steel Multi-Bag Filter Housing for High-Flow Filtration with Quick Bag Change

Perfect for high-flow liquid filtration and long-cycle filter bag replacement scenarios, the single stainless steel multi-bag filter housing offers full specs from 2 to 24 bags, 2″-18″ inlet/outlet diameters, 80-960m³/h max flow, and a quick-opening design for effortless filter bag changes.

  • model
    LBF-M Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

The LABEKS single multi-bag filter housing is an advanced liquid filtration equipment. Inside the unit, a metal mesh basket provides stable support for filter bags: liquid flows in through the inlet, passes through the filter bag for purification, and exits via the outlet, with impurities trapped within the bag. The system can be reused immediately after replacing the filter bag.

Designed in accordance with steel pressure vessel standards, this housing is fabricated from high-purity stainless steel and manufactured under strict quality control protocols. It boasts excellent sealing performance, superior corrosion resistance, precise workmanship, and reliable operational safety.

features

1. Optimized for filtering high-flow liquids or materials with high solid content;

2. Equipped with an efficient, reliable filter bag compression device to eliminate side leakage;

3. Eyebolt locking mechanism ensures safe and straightforward operation;

4. Optional jacket design maintains or boosts liquid temperatures to prevent solidification, meeting production line temperature requirements;

5. Modular configuration allows parallel or series connection of two or more filters, enabling high flow rates and non-stop operation during filter bag replacement.

specifications

Model

LBF-M2

LBF-M3

LBF-M4

LBF-M5

LBF-M6

LBF-M8

LBF-M10

LBF-M12

LBF-M16

Number of filter bags

2

3

4

5

6

8

10

12

16

Filter area

1.0m²

1.5m²

2.0m²

2.5m²

3.0m

4.0m

5.0m²

6.0m

8.0m

Maximum flow

80m³/h

120m³/h

160m³/h

200m³/h

240m³/h

320m³/h

400m³/h

480m3/h

640m³/h

Equipment material

DN50-400 flange

Import and export diameter

SS304, SS316L, 2205, carbon steel, internalspray anti-corrosion

Design pressure

0.6MPa, 1.0MPa, 1.6MPa

Seal material

Silicone rubber, EPDM rubber, fluorinerubber, PTFE-coated fluorine rubber, etc.
