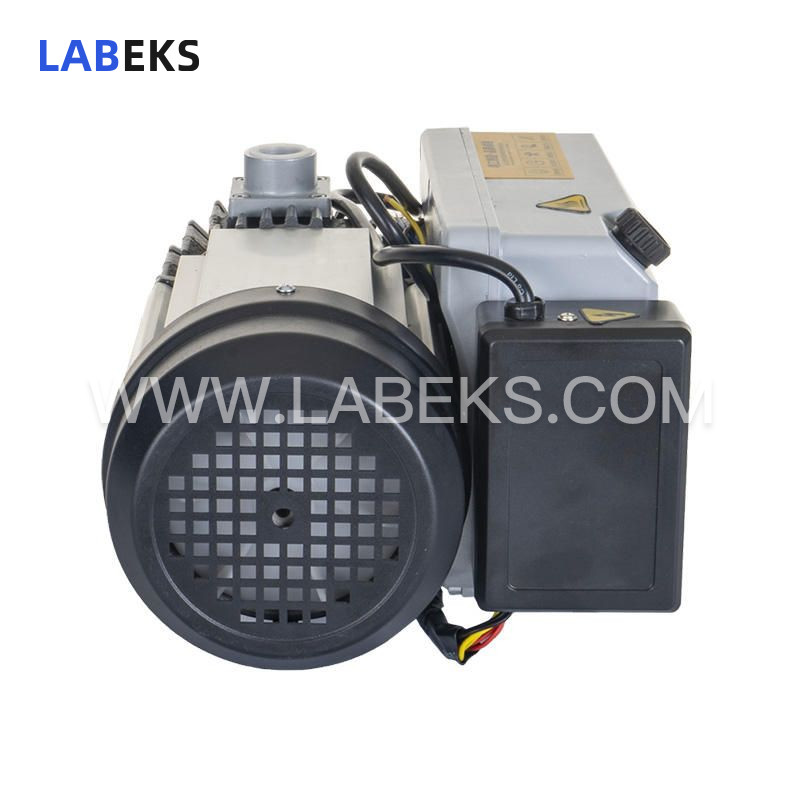

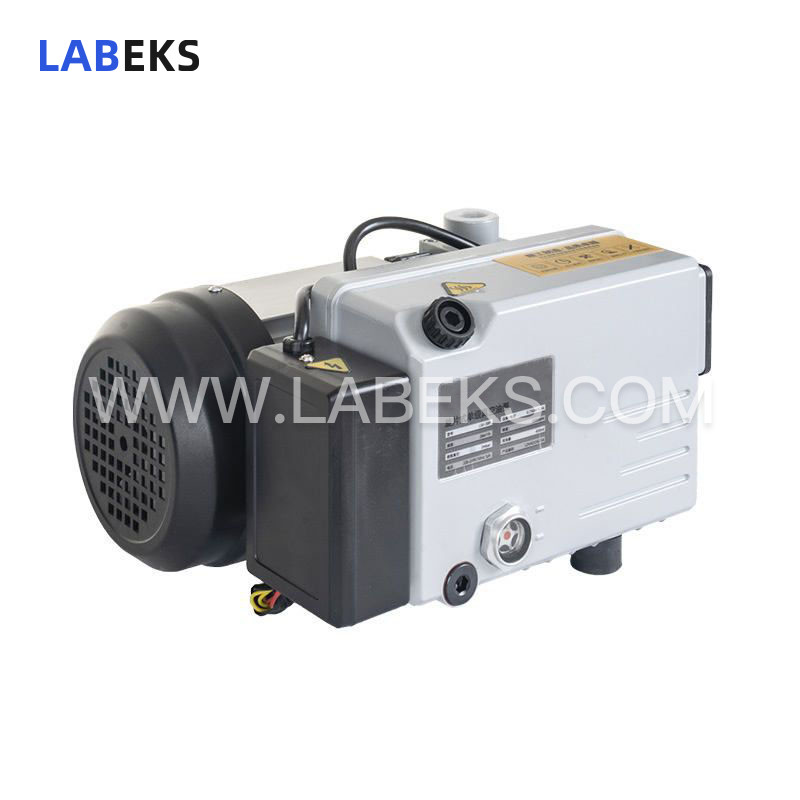

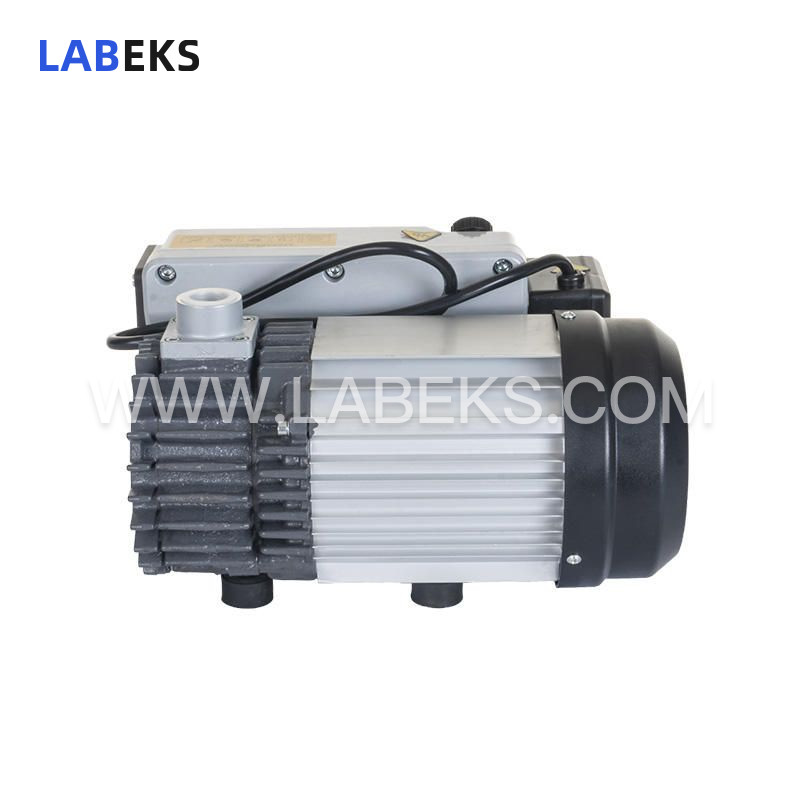

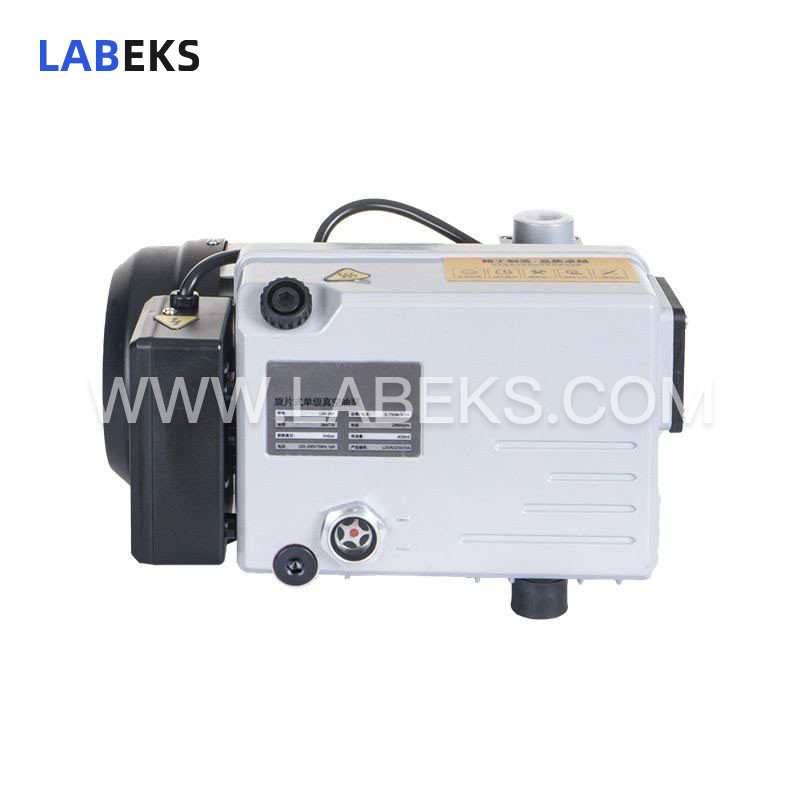

Single Stage Rotary Vane Vacuum Pump for Long-Term Continuous Operations with 0.1 mbar Extreme Vacuum
Ideal for scenarios requiring low vacuum levels, low flow rates, and long-term continuous operation, this rotary vane vacuum pump features a simple structure that eases manufacturing, maintenance, and operation, with regular oil replacement and waste disposal needed during use.
- modelLSV Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LSV series single stage rotary vane vacuum pumps adopt an integral cylinder structure, boasting a compact profile. With an integrated pump and motor design, they are lighter and more space-saving, meeting the dimensional requirements of diverse applications.
Application
Analytical applications (mass spectrometry, electron microscopy)
Vacuum coating processes (surface protection, decorative coatings, displays, screens)
Vacuum metallurgy (vacuum brazing, vacuum sintering, vacuum alloying, furnace fabrication)
Leak detection systems (vacuum equipment, automotive fuel tanks, airbag housings, packaging)
Lighting industry (lamp manufacturing)
Drying processes (vacuum drying, transformer drying)
Food packaging (vacuum packaging machines, vacuum pre-sealing)
Backing pump applications (for Roots pumps, vacuum system maintenance)
features
1. High-efficiency oil mist filter: The built-in premium oil mist filter effectively captures oil mist, preventing environmental contamination and maintaining a clean working environment.
2. Anti-oil return structure: Eliminates oil backflow in unexpected situations, avoiding equipment contamination caused by such incidents.
3. Fluorine rubber seals: Boosts corrosion resistance and resolves oil leakage issues.
4. Open gas ballast system: Enables prolonged continuous operation while effectively mitigating oil emulsification in the vacuum pump.
specifications
Model | LSV-20 | LSV-20P | LSV-40 | LSV-63 | LSV-100 | LSV-200 | LSV-300 |
|---|---|---|---|---|---|---|---|
Rated flow rate | 20m³/h 50Hz | 40m³/h 50Hz | 63m³/h 50Hz | 100m³/h 50Hz | 200m³/h 50Hz | 300m³/h 50Hz | |
24m³/h 60Hz | 48m³/h 60Hz | 76m³/h 60Hz | 120m³/h 60Hz | 240m³/h 60Hz | 360m³/h 60Hz | ||
Extreme vacuum | 1 mbar | 0.5 mbar | 0.1 mbar | ||||
Interface | G3/4″G1/2″ | G1-1/4″ | G2″ | ||||
Voltage | 220-240v 50Hz | 200-240/345-415v 50Hz | 220-240/380-415v 50Hz | ||||
220-240Vh 60Hz | 220-275/380-480v 60Hz | 220-280/380-440v 60Hz | |||||
Motor power | 0.75/0.9 KW | 1.5 KW | 2.2 KW | 3.0 KW | 5.5 KW | 7.5 KW | |
Electric current | 5.5/2.3A | 5.0/2.9A | 8.5/4.9A | 11.8/6.8A | 9.0/5.2A | 16.7/9.6A | |
6/4A | 5.4/3.1A | 9.2/5.3A | 13.0/7.5A | 9.4/5.2A | 17.3/11.0A | ||
Rotational speed | 3000/3600 r/min | 1440/1720 r/min | 1140/1720 r/min | 1405/1720 r/min | 1455/1720 r/min | ||
Noise | 68/70dB | 63dB | 64dB | 65dB | 69dB | 72dB | |
Oil quantity | 0.5L | 1.5L | 2L | 2L | 6.0L | 8.0L | |
Weight | 18.5 kg | 43 kg | 56 kg | 70 kg | 149 kg | 193 kg | |
