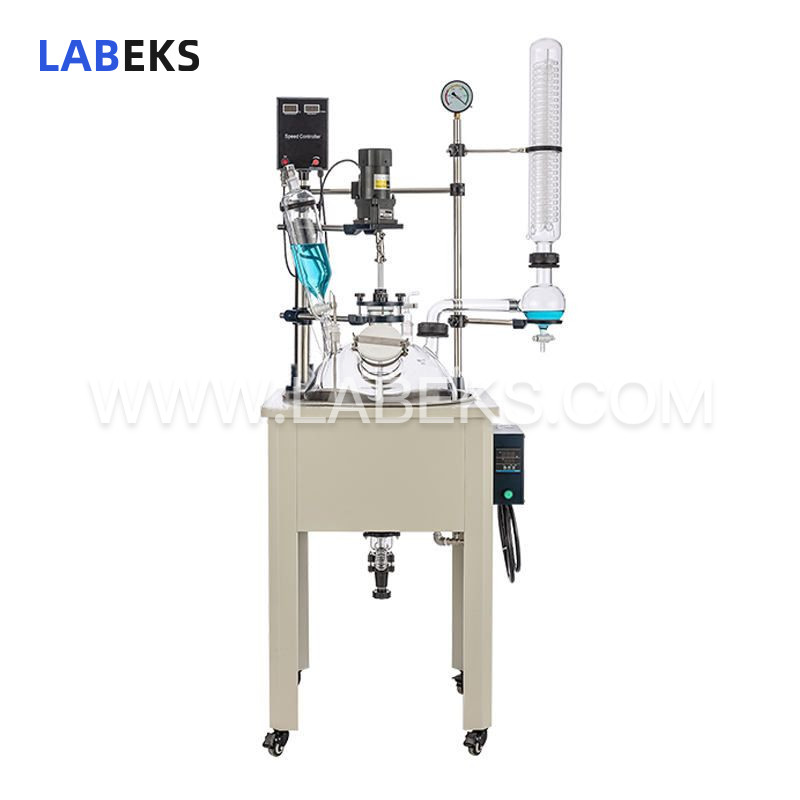

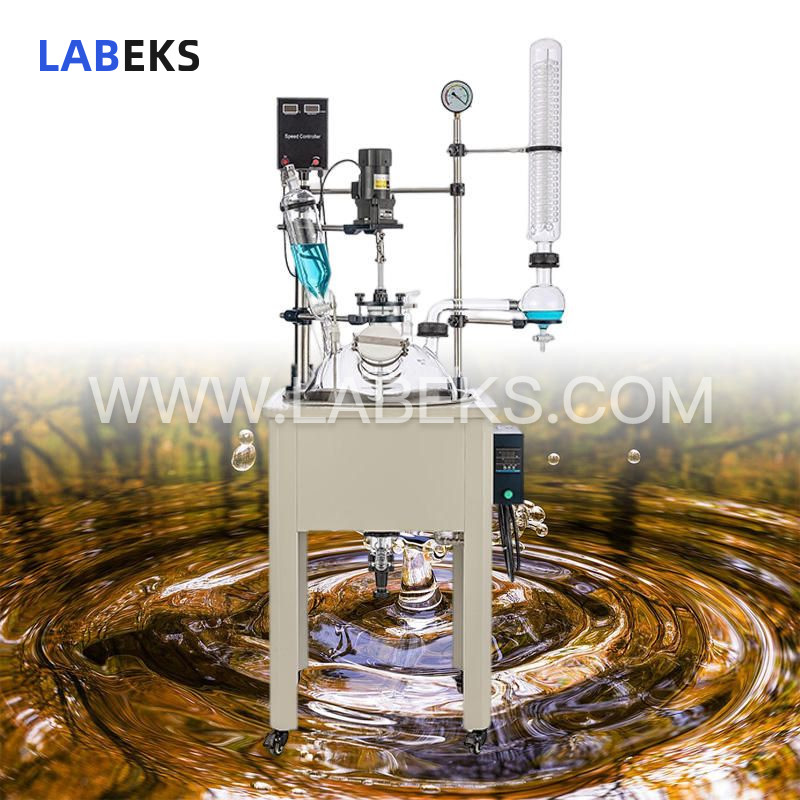

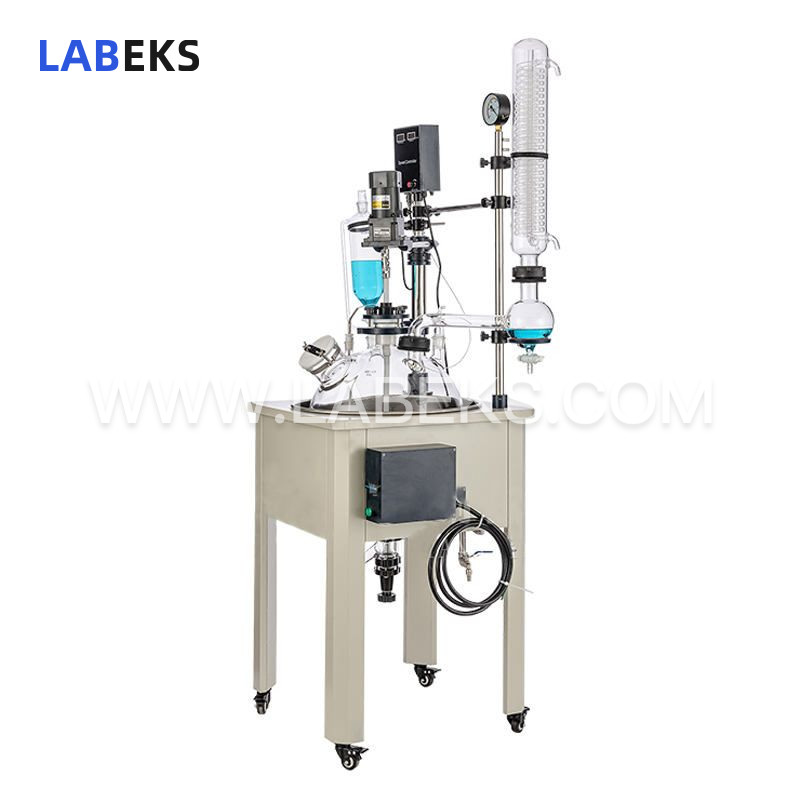

Single Layer Glass Reactor with Precision Temp Control for Chemical & Biopharmaceutical Reactions
Enabling reliable constant-temperature biochemical and synthesis reactions, the single layer glass reactor integrates vacuum operation, distillation, reflux, stirring, oil/water heating, and heating mantle within a fully closed system, supporting critical lab and production applications.
- modelLGR-20F
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

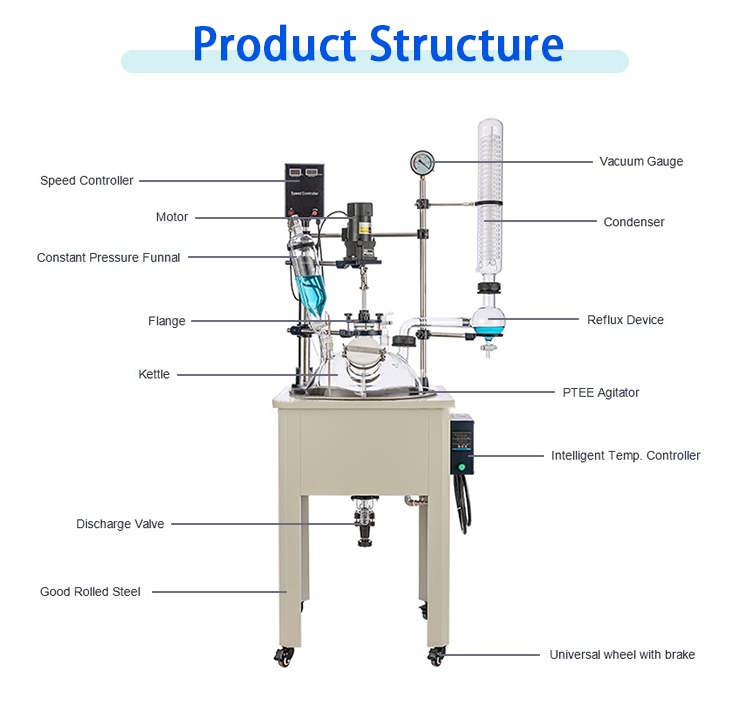

The single layer glass reactor holds stirrable reaction solvents and is heated via computer-controlled oil bath or electric heating system. Operating under either atmospheric or vacuum conditions, it enables precise control over reaction solvent reflux and distillation. This makes it the ideal apparatus for modern synthetic chemistry, biopharmaceuticals, and new material development, suitable for both preparative experiments and full-scale production.
features
Equipped with a computer-controlled thermostatic oil bath featuring intelligent PID regulation, ensuring accurate and user-friendly temperature control.
Boasts PTFE (ceramic) mechanical seal with proprietary technology, achieving superior vacuum levels compared to similar market offerings.
Frequency-controlled AC induction motor with digital constant-speed display: brushless, spark-free operation ensures safe, stable, and continuous performance.
All contact components are crafted from GG3.3 high borosilicate glass, offering excellent chemical and physical stability. Its large-vessel design enables easy manual cleaning.

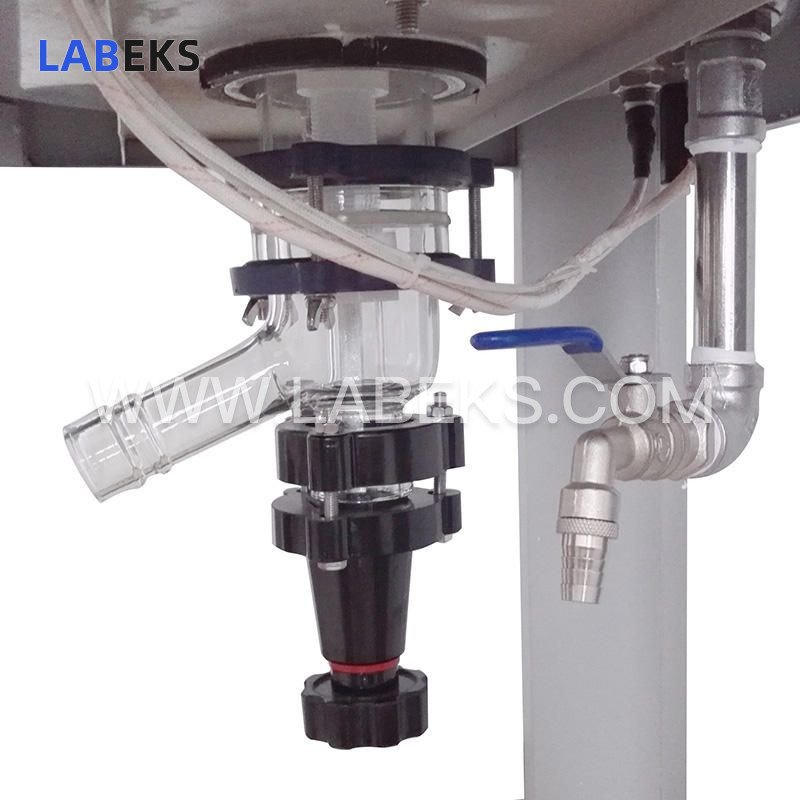

Dead-corner-free PTFE bottom valve allows smooth, complete discharge of both solid and liquid materials.
Robust all-stainless steel frame (including tee and four-way valve connectors) ensures a compact, stable structure with no shaking during stirring operations.
Brake-equipped casters enable convenient and secure mobility of the unit.
Ergonomic, scientifically engineered integral structure combines sleek aesthetics with intuitive, user-friendly operation.
Explosion-proof configurations are available for hazardous environments.
Customization options include additional cooling coils and explosion-proof components upon user request.
specifications
Model | LGR-20F | |
|---|---|---|
Kettle volume | 20L spherical | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 90W，1/3 | |
Heating power | 5KW | |
Stirring speed | 0-450rpm/min | |
Bath temperaturerange | room temperatureto 180℃ | |
Temperatureaccuracy | ±1℃ | |

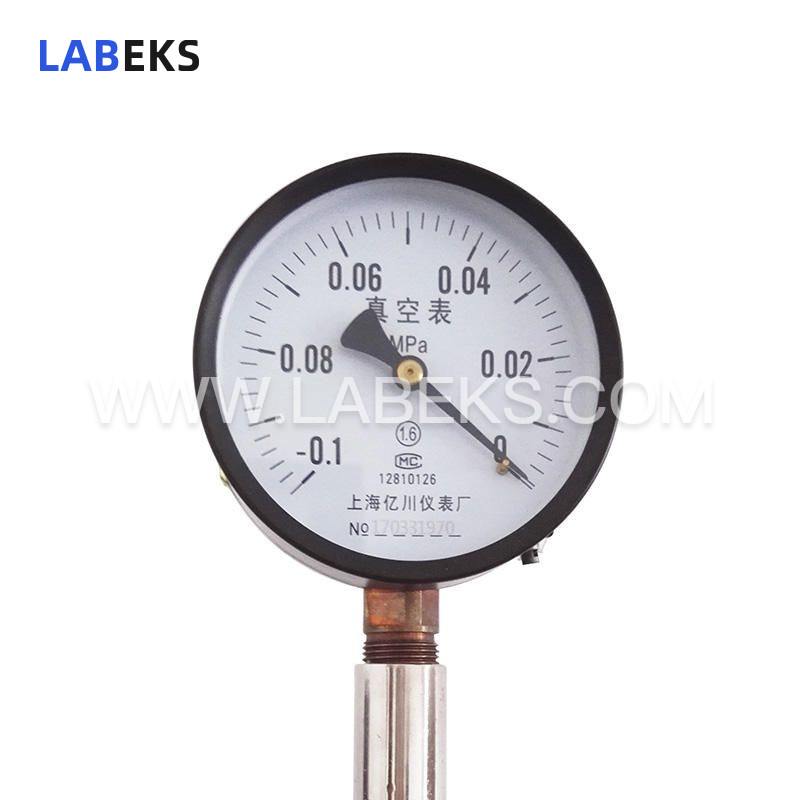

Vacuum degree | 0.098Mpa | |
Kettle size | Φ355mm | |

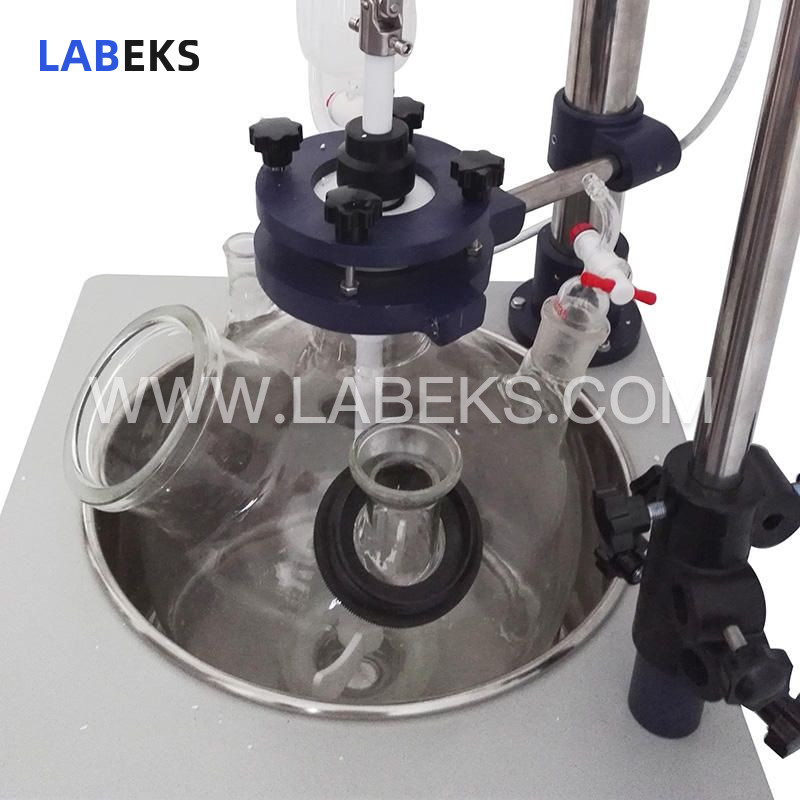

6 ports on cap | Stirring port | Φ80mm flangeport |
Condenser refluxport | 50#ball millport | |
Constantpressure funnel port | 34# standardport | |
Relief port | 34# standardport | |
Temperaturemeasuring port | Φ45 flange port | |
Solid feedingport | Φ125mmflange port matched with PTFE cover | |
Stirringpaddle | Φ17*650H(mm),leafing 190mm | |
Condenser size | Φ100*600H(mm)，down with Φ60 flange port | |
Condenser area | 0.4㎡ | |
Reflux elbow | upper with Φ60flange port，left with 50# ball mill plug | |
Constantpressure funnel | 1L，upper with 29# standard port match with glass plug，down with 34# standard plug | |
Relief valve | 34# standardplug valve, vent nozzle (pagoda connector), outer diameter 12mm | |
Baiting valve | Φ80 flange port，Φ33mm baiting port，inclineddischarging port (pagoda connector)Φ34mm,from the floor 350mm | |
Vacuum suctionnozzle | padogaconnector,outer diameter 12mm | |
In and outcirculation nozzle of condenser coil | padogaconnector,outer diameter 15mm | |
Pot braverydimension | Φ450*260H(mm) | |
Overalldimension (W*L*H) | 810*540*1960mm | |
Net weight | 48kg | |
Packingdimension | 1200*740*920mm,0.82m³ | |
Packing weight | 93kg | |
