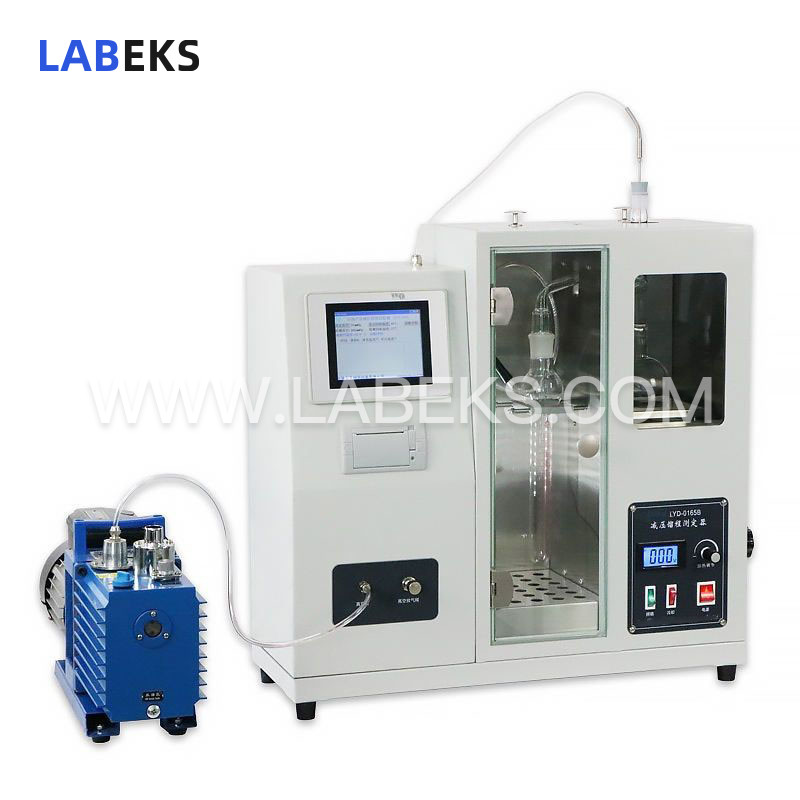

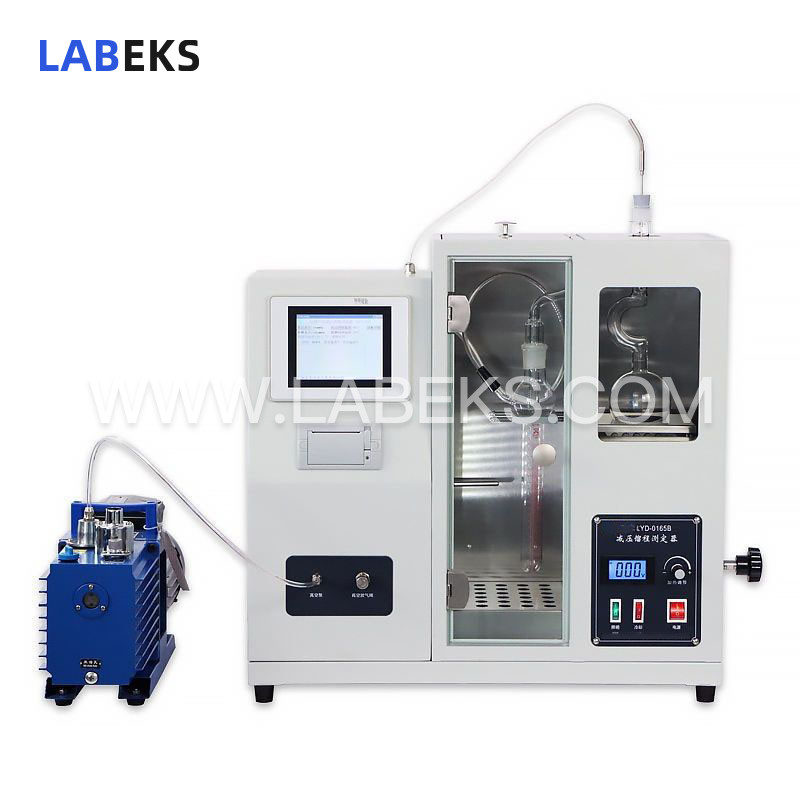

Semi-automatic Vacuum Distillation Tester: Intuitive LCD Touchscreen & Automatic Vacuum Control

Featuring MCU-based temperature regulation, built-in data storage, and printing capabilities, this vacuum distillation tester automates all processes except manual distillate reading, delivering precise, compliant results for high-boiling petroleum products.

  • model
    LYD-0165B
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

This instrument is engineered and manufactured in strict compliance with the industrial standard SH/T 0165-92: Standard Test Method for Distillation Characteristics of High-Boiling-Range Petroleum Products via Vacuum Process. It is specifically designed to determine the distillation properties of wax oils, lubricating oils, and other high-boiling-point petroleum products.

features

1. Integrated LCD touchscreen technology enables intuitive input, adjustment, display, and regulation of all operating parameters.

2. Single-chip microcomputer technology is utilized to provide automatic, precise vacuum pressure control.

3. High-accuracy temperature sensors automatically detect steam temperature, eliminating the need for manual visual observation.

4. A built-in micro-printer supports secure storage and on-demand printing of test results.

specifications

Model

LYD-0165B

Powersupply

AC(220±10%)V,50Hz

Heatingfurnace of distillation flask

(0～1300)W,adjustable

Heatingpower of receiver

350W，automaticallycontrolled

Temperaturecontrol point of receiver

Ambientto 99℃±3℃，adjustable

Settingrange of vacuum residual pressure

(2～99)mmHg±0.1mmHg

Measurementrange of vacuum residual pressure

(2～150)mmHg±0.1mmHg, automatic pressure maintenance

Volumeof buffer vessel

1000ml

Illuminationlight in the air bath

Energysaving lamp

Workingcondition

（0~200）mmHg

Illuminationlight in the air bath

Energysaving lamp

Workingcondition

Ambienttemp.：(5～35)℃RH：<85％

Dimension：

600mm×230mm×605mm
