Reciprocating Benchtop Incubating Shaker: 30-400/600 rpm Range for Cell Cultivation
Ideal for mixing, blending, and agitating substances in tubes or flasks, the incubating shaker is an essential laboratory instrument supporting chemistry, biology and related scientific workflows.
- modelLH-100F/LH-200F
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

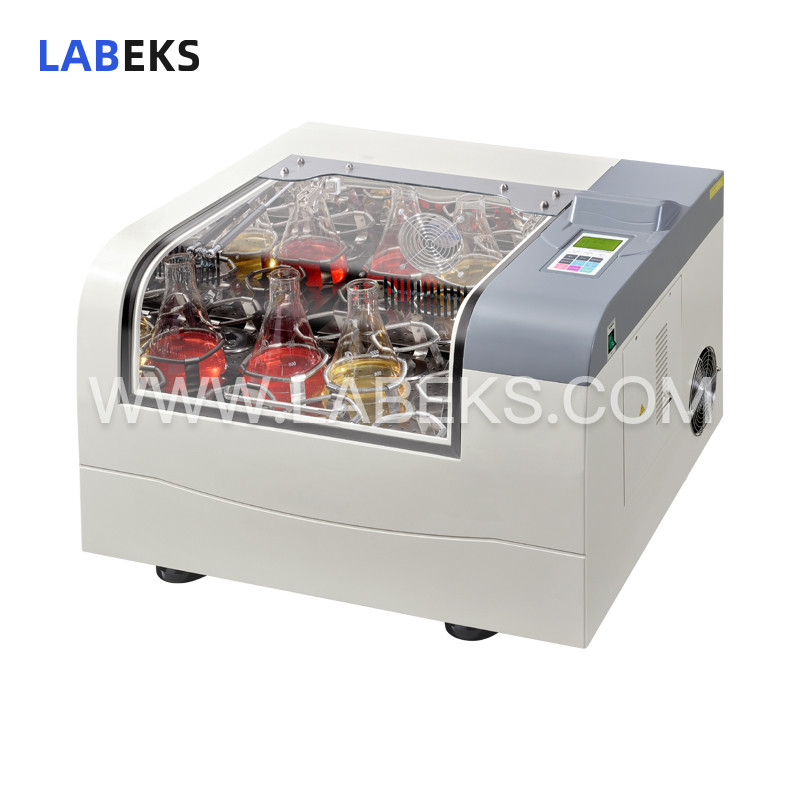

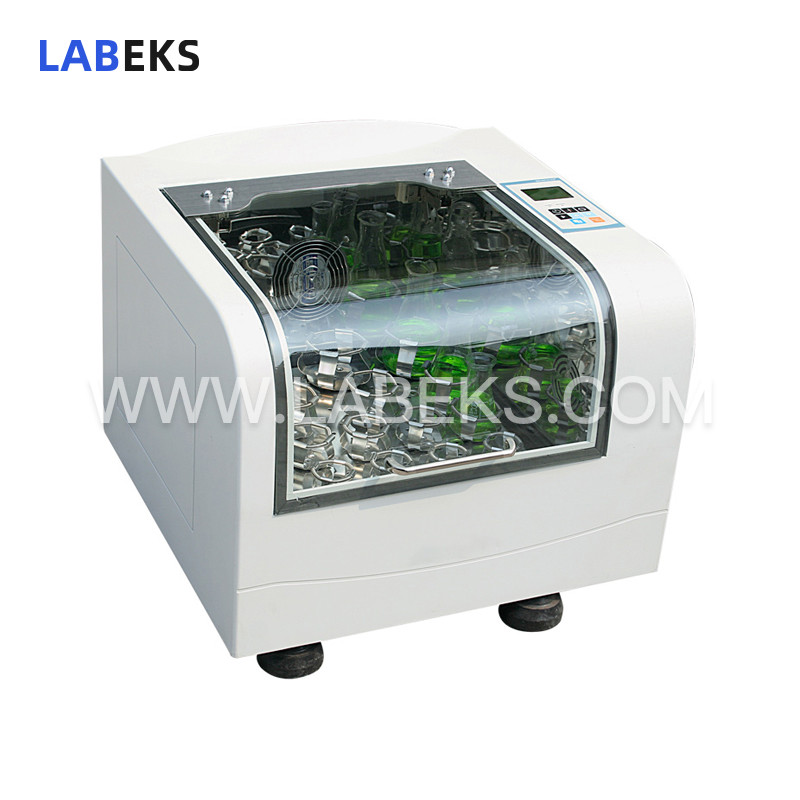

This constant-temperature incubating shaker is equipped with a stainless steel universal clamp, digital display temperature control, stepless speed adjustment, and excellent thermal circulation performance. As a versatile biochemical instrument, it serves as indispensable laboratory equipment for precision culture preparation in plant science, biology, microbiology, genetics, virology, environmental protection, medicine, and other scientific research, education, and production sectors.
features
1. Featuring a patented single-axis balance drive mechanism (Patent No. ZL 2015 2 0624431.5), this shaker ensures ultra-low energy consumption and operational noise.
2. Incorporates a maintenance-free AC induction motor with long service life, offering wide speed adjustment, constant torque, and stable speed output without carbon brushes.
3. Boasts a broad oscillation frequency range of 30-400/600 rpm to accommodate diverse experimental requirements.

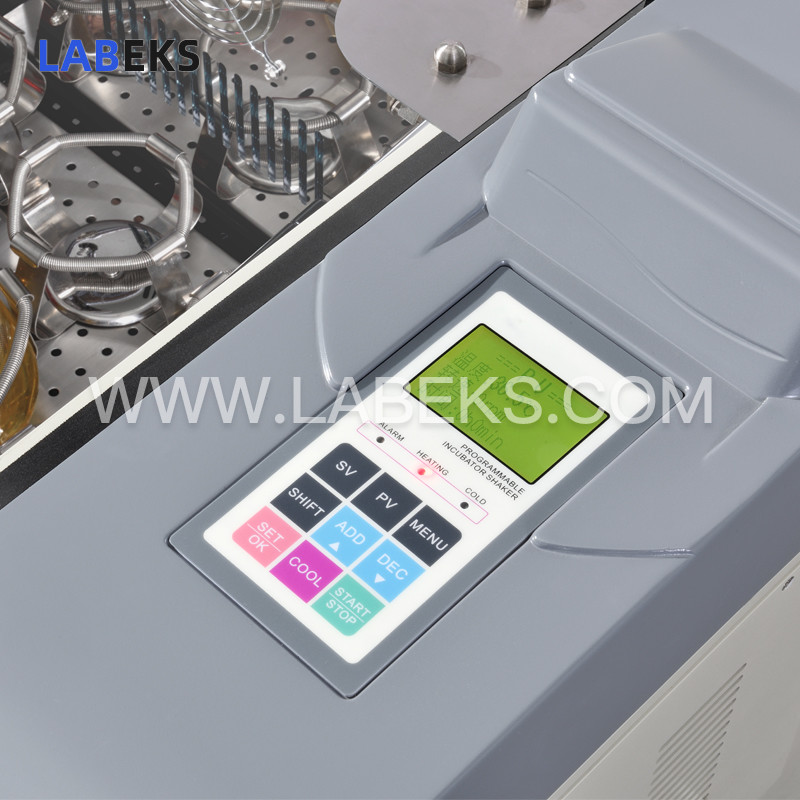

4. Large-format backlit LCD screen provides simultaneous dual display of set parameters and real-time measured values.
5. Equipped with an intelligent microprocessor controller featuring environment scanning and audio-visual alarm capabilities.
6. Offers over-temperature audio-visual alarm function; the instrument automatically cuts off power in case of motor overheating, temperature out-of-control or abnormal over-temperature conditions.
7. With power failure recovery function, the device automatically resumes operation per the original set program after external power is restored.
8. Integrated acceleration control ensures the shaker starts slowly and accelerates smoothly, safeguarding the safety of experimental samples.
9. Includes a program parameter memory function to eliminate repetitive, cumbersome operations.
10. Adopts a safe, fluorine-free refrigeration system that complies with international environmental standards.

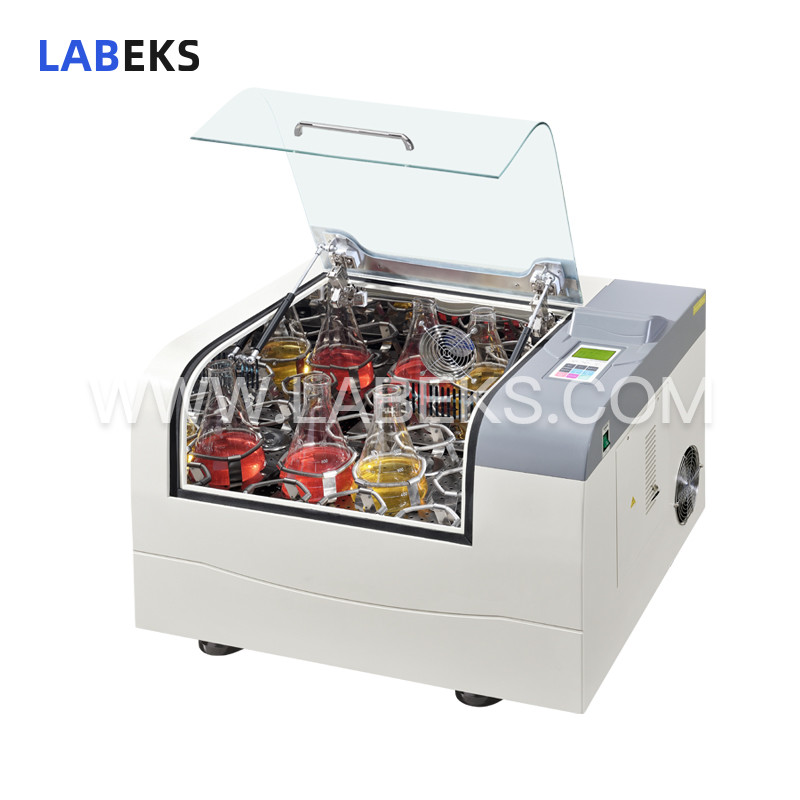

11. Utilizes elastic cylinder supports to ensure smooth opening and closing of the cover.
12. Boasts a streamlined luxury design with an auspicious concept, featuring an ABS special engineering plastic casing and a large-screen tempered hot-bent glass window.
Application Scope
Cell Cultivation
Sample Extraction Assays
Sample Mixing
Dyeing & Bleaching Processes
Hybridization Experiments
Solubility Testing
Plasmid Purification
Bacterial Suspension Preparation
Elution Procedures
Protein-Related Research
specifications
Model | LH-100F | LH-200F | |
|---|---|---|---|
Control method | P.I.D(Microcomputerenvironment scanning micro processing chip) | ||
Display method | LCD (Large screen LCD dualdisplay) | ||
Cyclic mode | Forced convection | ||
Oscillation mode | Reciprocating | ||
Drive mode | Single-axis balancing device(Chinese patent) | ||
Environmental requirements | Temperature 25 ° C, humidity20% -90% | ||
Temperature control range | Room temperature +5℃-60℃ | 4-60℃ | |
Temperature accuracy | ±0.1℃ | ||
Temperature uniformity | ±1℃ | ||
Performance | Frequency Range | 30-300rpm | |
Rotation accuracy | ±1rpm | ||
Pendulum amplitude | Φ25mm | ||
Security function | Upper and lower temperaturedeviation alarm; upper- and lower-line speed deviation alarm, independent over-temperatureprotector; open door stop protection; leakage protection, chiller overloadprotection. | ||
Accessory function | Speed storage, callrecovery, parameter memory, temperature speed correction, clock display, roomtemperature / measured temperature double display. | ||
Programming function | Repeat, step, eight-segmentcurve programming settings. | ||
The refrigerant | – | CFC-Free (134A)fluorine-free safety refrigeration system | |
Cooler | – | 118W | |
Heater | 150W | 400W | |
Timing range | 0-999.59h/ Sustainable | ||
Standard sizes | Rocker size | 400*370(mm) | 420*400(mm) |
Number of rocking plates | one | ||
Gross weight | 72kg | 100kg | |
Net weight | 94kg | 132kg | |
Inner cavity size | 410*450*300(mm) | 460*500*350(mm) | |
Dimensions | 610*610*510(mm) | 700*740*560(mm) | |
Package dimensions | 740*710*530(mm) | 805*900*760(mm) | |
Opening height | 920(mm) | 990(mm) | |
Power | 490W | 580W | |
Materia | Motor | 60W inverter motor | |
Inner cavity material | High quality importedstainless steel mirror panel | ||
Outer box Materia | ABS special engineeringplastic case | ||
