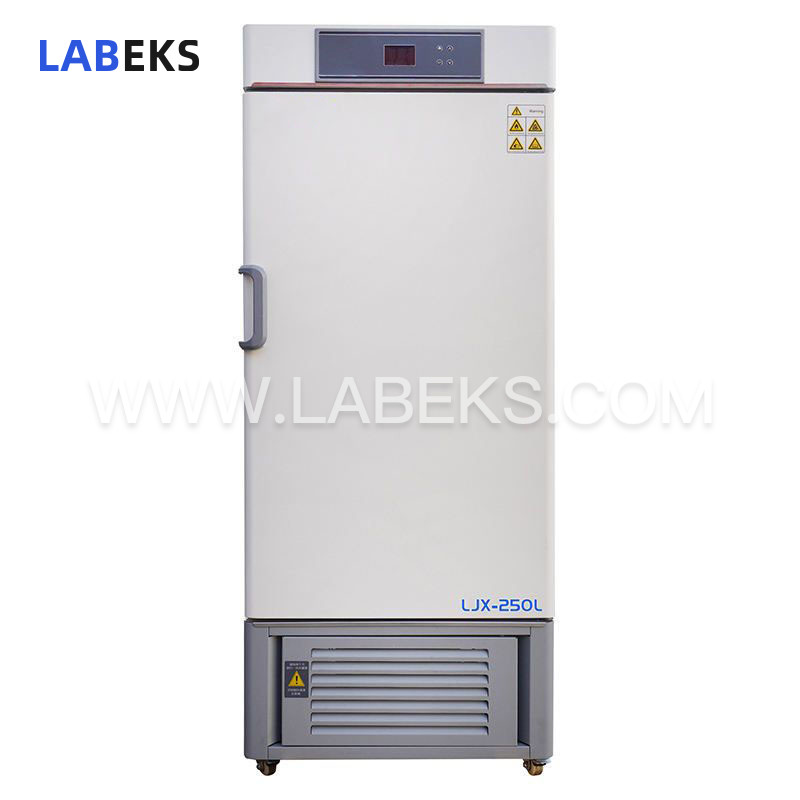

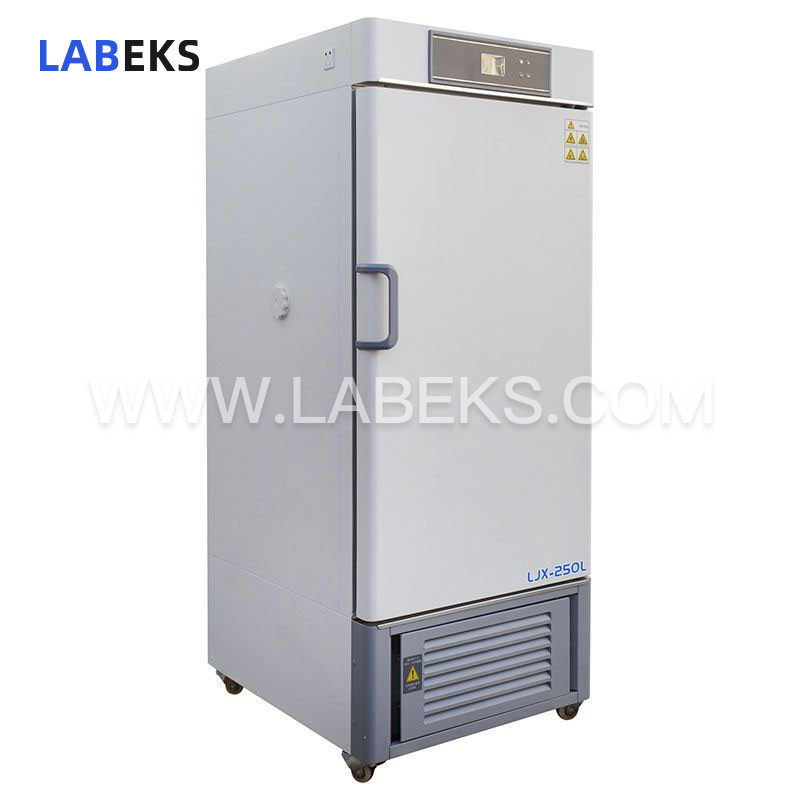

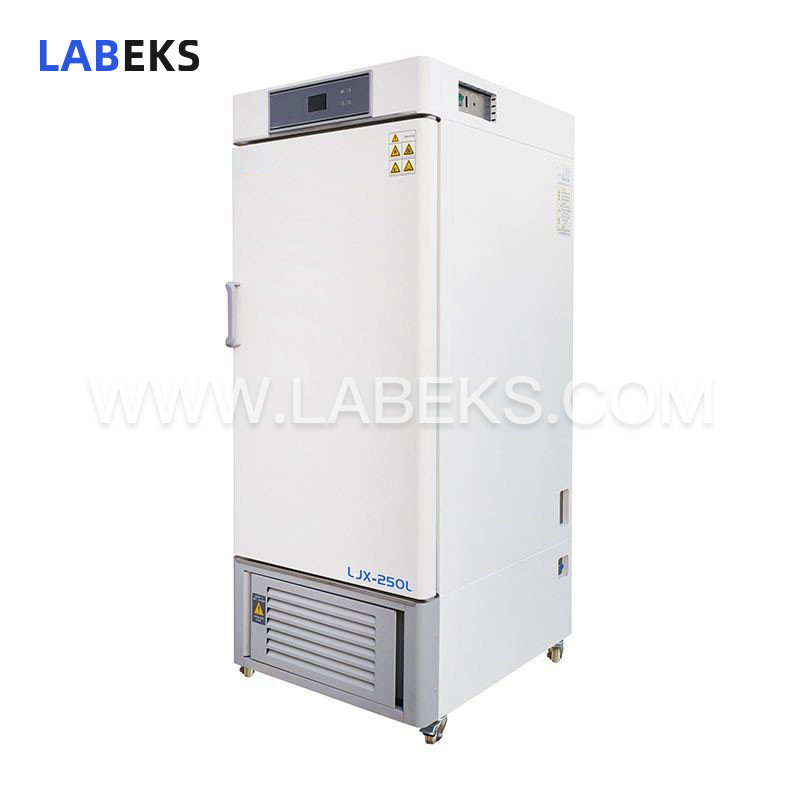

Precision Mold Incubator with 30-Segment Program Controller for Microbial Culture
Designed for water body analysis, bacterial, mold and microbial culture, preservation, plant cultivation, and breeding experiments, this mold incubator acts as a specialized thermostat delivering stable, precise environmental control for reliable lab outcomes.
- modelLJX Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Applicable to scientific research institutions, universities, and production sectors including environmental protection, health and epidemic prevention, drug regulation, animal husbandry, and aquaculture, this precision mold incubator functions as a dedicated thermostat optimized for water body analysis, BOD determination, bacterial, mold and microbial culture, preservation, plant cultivation, and breeding experiments.
features

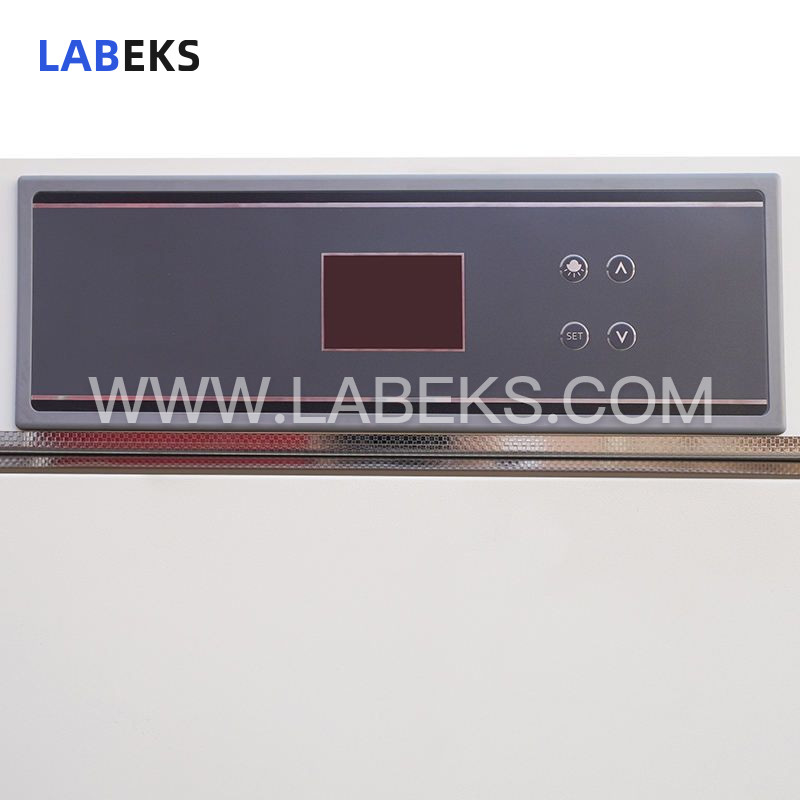

1. LCD 30-segment program control, supporting repeated step and step-wise operation
2. Full-screen LCD multi-data display with power failure memory and power failure compensation capabilities
3. Centrifugal turbine forced air supply ensures superior temperature uniformity across the chamber
4. User-friendly operation with options for constant value operation, timed operation, and automatic stop
5. Special function keys enable direct temperature setting; auxiliary menu provides over-rise alarm, deviation correction, and menu locking functions
6. Comprehensive protection systems: power-off protection, parameter memory and recall, compressor overload protection
7. Loop self-diagnosis, sensor fault alarm, and upper/lower limit over-temperature alarm mechanisms
8. Intelligent defrosting maintains consistent, optimal operating conditions
9. Integrated timing monitoring for precise experimental scheduling
10. Equipped with an over-rise preventer for enhanced operational safety
specifications
Model | LJX-70B/ LJX-70BX | LJX-150B/ LJX-150BX | LJX-250B/ LJX-250BX | |
|---|---|---|---|---|
Mode | Forcedconvection | |||
Performance | Temperature controlrange | Nohumidification: 0-65℃ Withhumidification: 10-65℃ | ||
Temperatureresolution | 0.1℃ | |||
Constant temperature fluctuation | Hightemperature：±0.5℃ Low temperature：±1℃ | |||
Temperatureuniformity | ±1℃ | |||
Humiditycontrol range | 60%-90%RH | |||
Humidityfluctuation | ±5%-8%RH | |||
Constitute | Interiordecoration | Mirrorstainless steel | ||
Exteriordecoration | Cold rolledsteel sheet, surface coating | |||
Thermalinsulation material | polyurethane | |||
Heater | Stainlesssteel heating pipe | |||
Rated power | 0.7kw | 1.0kw | 1.4kw | |
compressor | Air cooledhermetic compressor | |||
Cryogen | R134A | |||
Humiditycontrol mode | Type B:manual; type BX: automatic | |||
Defrostingstructure | Type B:manual; type BX: automatic | |||
Lead hole | One withinner diameter of 52mm | |||
Controlled externalpower supply | External one | |||
Ultravioletsterilization | YES | |||
Controller | Temperaturecontrol mode | Type B:Single Segment LCD PID; type BX: 30 Segment LCD program | ||
Temperaturesetting mode | Touch thebutton to set | |||
Temperature representation | Measuringtemperature display: LCD upper display; setting temperature display: LCDlower display | |||
Timer | 0-9999 (withtiming waiting function) | |||
Operationfunction | Type B:fixed value operation, timing operation, automatic stop | |||
BX type:program running | ||||
Program mode | Type B:optional; type BX: standard | |||
Additionalfunctions | Type B:deviation correction, menu key locking, power failure compensation, powerfailure memory | |||
Type BX:there are also over rising preventer, cumulative timing, loop self diagnosisand intelligent defrosting | ||||
Sensor | Pt100 | |||
Safetydevice | Type B: overrise alarm and overload protection; type BX:with over rise preventer and loop self diagnosis | |||
Specifications | Internaldimensions (mm) | 420*350*500 | 500*400*750 | 500*500*950 |
Dimensions(mm) | 570*560*1073 | 640*620*1260 | 640*710*1463 | |
Outerpackage size | 720*720*1120 | 790*770*1380 | 800*870*1580 | |
Internalvolume | 70L | 150L | 250L | |
Diaphragmbearing | 15kg | |||
Number ofdiaphragm layers | 5 | 9 | 12 | |
Diaphragm spacing | 60mm | |||
Rated current | AC220V/2.3A | AC220V/3.6A | AC220V/5.5A | |
Net / gross weight | 65/83 | 86/106 | 100/127 | |
Accessories | Partition | 2 | ||
Partition frame | 4 | |||
Configuration can be increased | Diaphragm, RS485 interface, printer,recorder, external communication, remote control, wireless SMS alarm, U diskdata storage | |||
