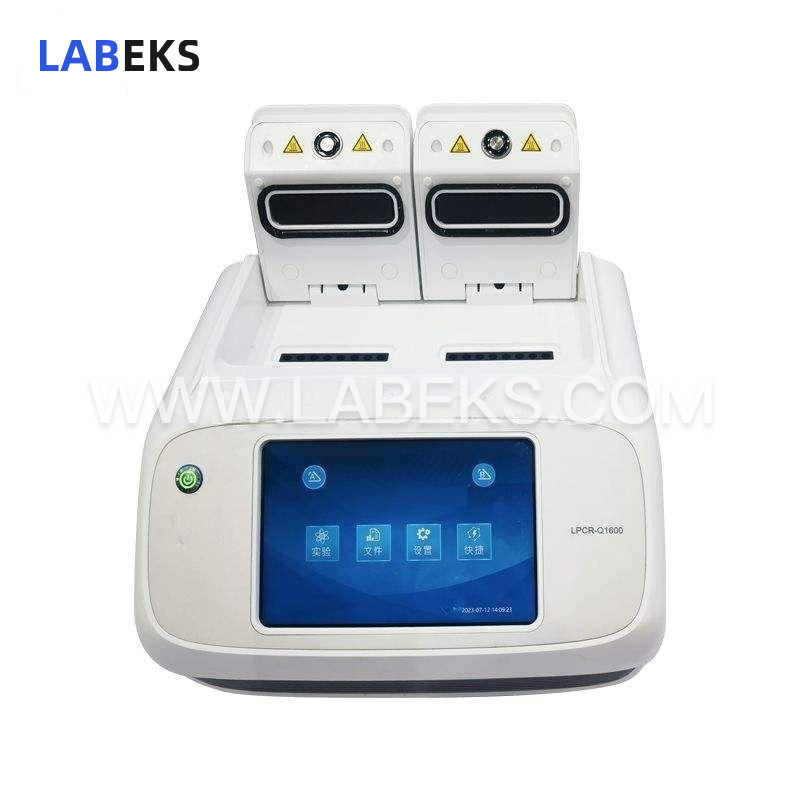

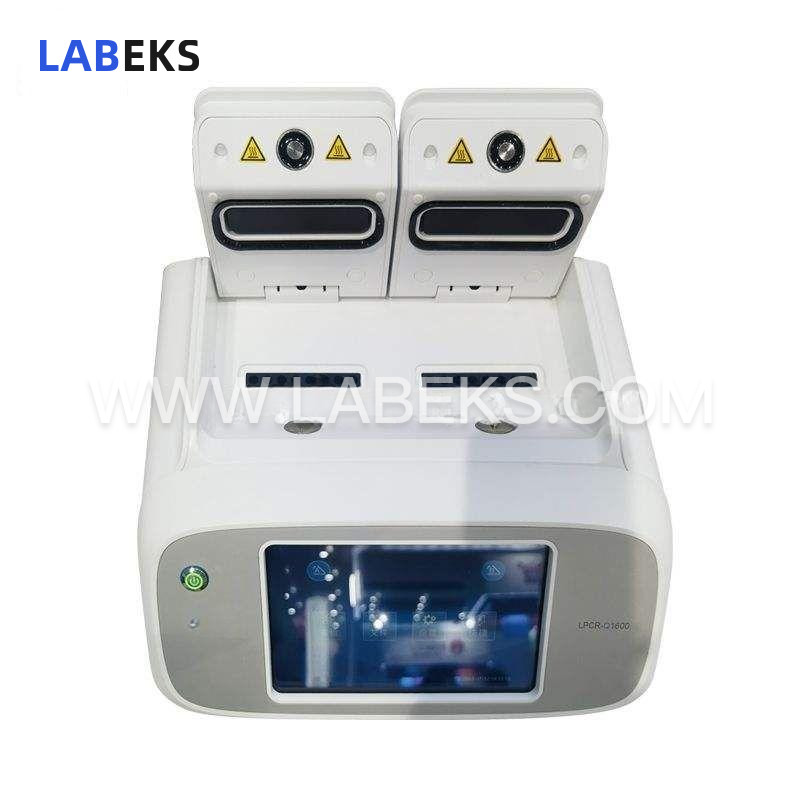

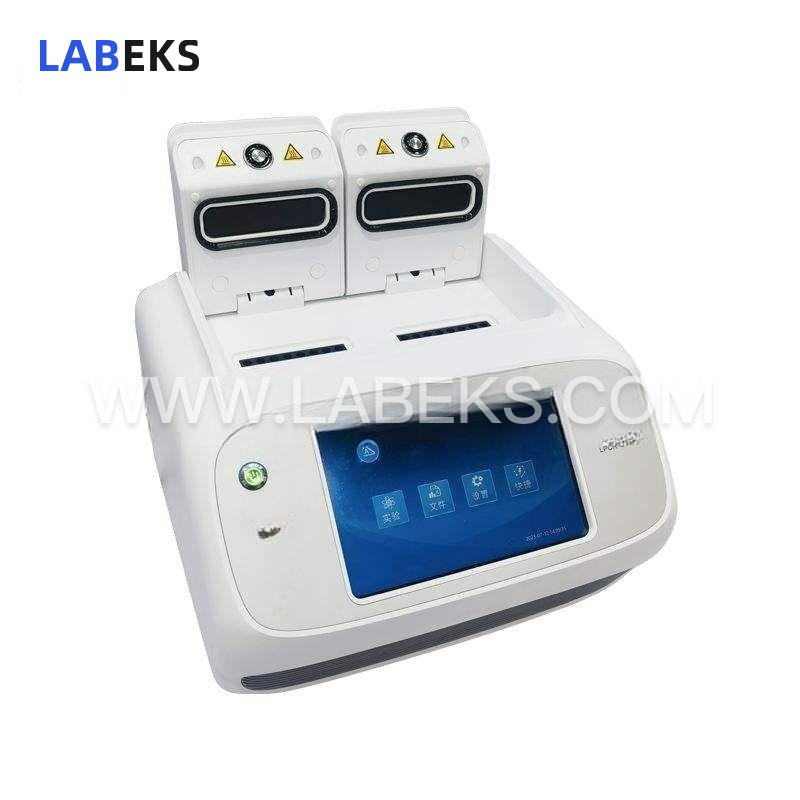

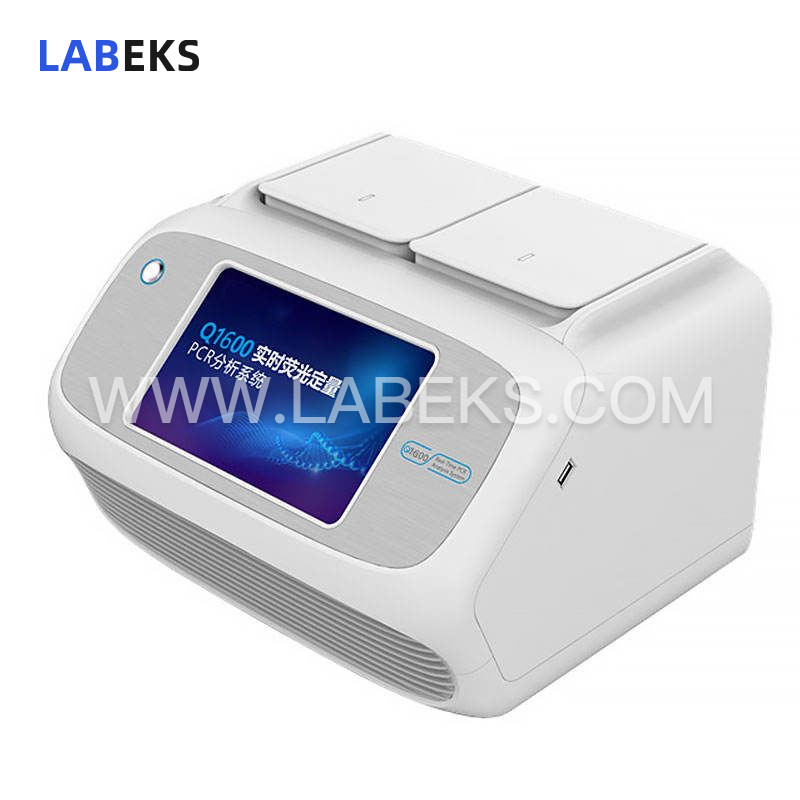

Portable 16-Hole Real-Time PCR Machine for Field & Laboratory Testing

1). Dual-channel dual-module configuration supports flexible experimental collocation and independent operation of 2 distinct protocols;

2). Employing side-scanning technology with a short detection distance for stable fluorescence signal acquisition;

3). Shared collection optical path enhances experimental repeatability;

4). Dark-box reaction chamber eliminates background interference to ensure accurate results;

5). Advanced software analysis capabilities include quantitative analysis, melting curve analysis, genotyping, and more;

6). 7-inch capacitive touchscreen paired with Windows 10 operating system offers intuitive, user-friendly operation;

7). Built-in 20G Flash memory can store up to 40,000 sets of experimental data;

8). Optional printer allows direct printing of experimental results without connecting to an external computer;

9). Compact size and lightweight construction facilitate easy transportation and deployment;

10). Utilizes an LED light source for energy efficiency, long service life, and maintenance-free operation;

11). Unique suction-type electromagnetic lock cover technology prevents accidental hot lid opening, avoiding experimental failure;

12). Front-panel soft shutdown button safeguards against file or data loss from abrupt hard shutdowns;

13). Constant current control circuit delivers smooth power output, extending Peltier module lifespan and improving temperature control accuracy;

14). Integrated protection functions (over-current, over-temperature, power-failure data self-recovery) ensure safe and reliable experimental operation;

15). Front and rear air duct design enables side-by-side placement to conserve valuable laboratory space;

16). Supports lithium battery power supply, making it ideal for rapid on-site testing and field inspections;
