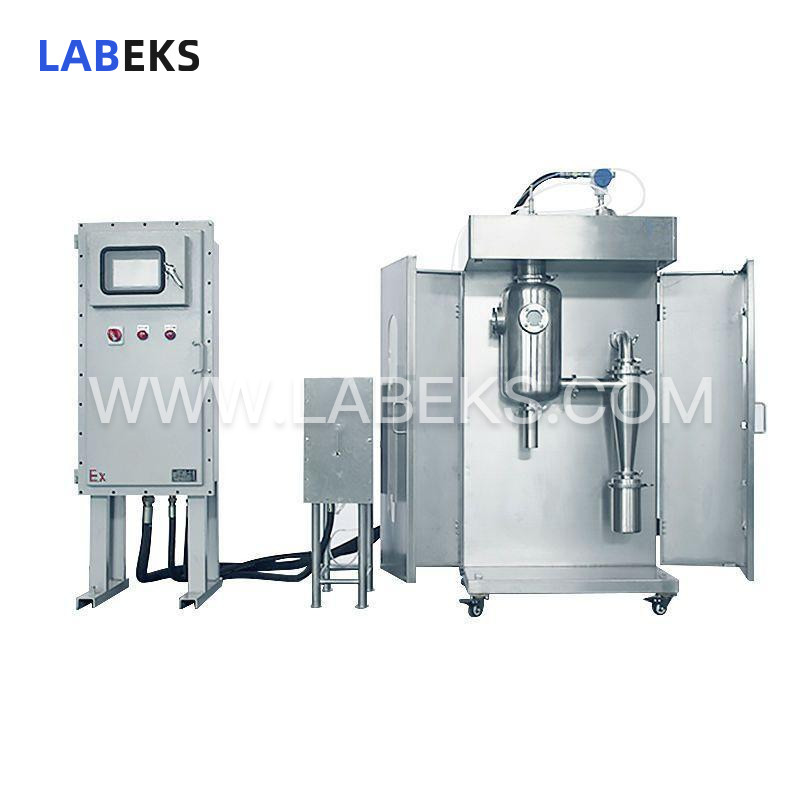

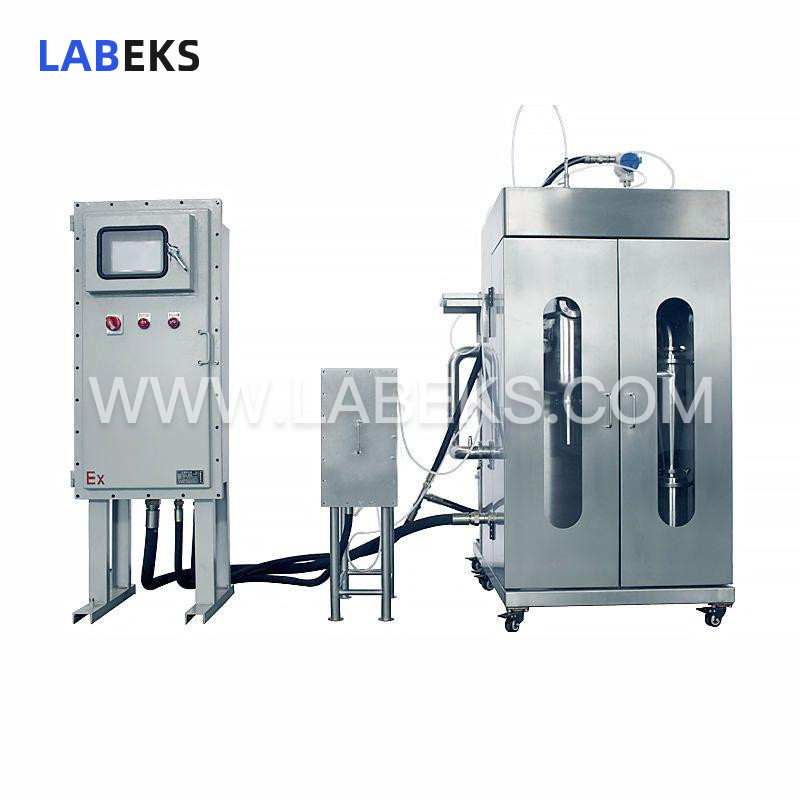

Pharmaceutical Explosion-Proof Small Closed Spray Dryer with Organic Solvent Recovery & 1-8μm Powder Output
Designed for processing organic solvents with low flash points, mild toxicity, or flammable properties, this explosion-proof closed spray dryer uses circulated nitrogen instead of air for spray drying, enabling recovery of both target products and solvents in pharmaceutical settings.
- modelLBL-D1Z
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This compact explosion-proof closed spray dryer is engineered specifically for pharmaceutical applications and processing organic solvents. It utilizes a circulating nitrogen inert gas medium in place of conventional air for spray drying operations. Beyond retrieving the target dried product, the system also enables the recovery of organic solvents. This closed-loop spray drying system is purpose-built for organic solvents that exhibit low flash points, mild toxicity, or flammable and explosive properties.
features
Equipped with the innovative (ES-VER2018-1A) atomization system, which employs a mechanical hard-contact structure without any gaskets, ensuring zero leakage. Unlike standard electric centrifugal nozzles—where superheated corrosive steam can contact nozzle wires for extended periods under positive pressure, leading to wire corrosion, insulation degradation, and short-circuiting—this system eliminates such risks.
Prevents oxidation, mitigates operational hazards, and enhances end-product quality;
Produces ultra-fine powder with a particle size range of 1-8 μm, making it suitable for battery material manufacturing;
Comprises a material design system, heating system, atomization system, spray drying system, inert gas circulation system, product recovery system, and condensation system;
specifications
Model | LBL-D1Z |
|---|---|
Ethanol evaporation | 0.8Kg/h |
Minimum feed amount | 50ml |
Atomization structure | Atomization system |
Electronic control system | Special for closed loop atomization system |
Inlet air temperature (Celsius) | 140 |
Drying chamber diameter (mm) | ￠300 |
Drying tower height (mm) | ￠600 |
Explosion-proof disk diameter (mm) | 65 |
heater capacity | 2Kw |
Induced fan [power (kw), air volume (m³/h)] | [1.5, 250] |
Compressor [power (kw), air volume (L / min)] | [0.58, 108] |
Chiller | 50-60Hz (built-in cryogenic cooling circulationpump) |
Electronic control main accessories standard(including PLC, analog module, touch screen) (optional) | Wecon control module (standard) |
Selection criteria for electric control auxiliaryaccessories (including contactors, etc.) (optional) | Chint (Standard) |
Parts in contact with the material (optional) | SUS304 (standard) |
Exhaust gas reuse, saving energy by more than 30%(optional) | Not assembled (standard) |
Atomizing nozzle (optional, diamond coating or not) | SUS304 (standard) |
Equipment Warranty | 1 year (standard, a certain maintenance fee will becharged for the above) |
Electricity (installed capacity) | 4Kw |
Pulse bag filter | PTFE coating material,2pcs |
Dimensions (mm) (L×W×H) Reference | 1400×1000×1600 |
Installation weight (reference) | 200Kg |
Power supply | 380V/-3￠(Related voltages can be customized according todifferent national standards) |
Notes | 1:Ethanol evaporation is based on the inlet air temperature of 140°C; 2: If youneed equipment with larger evaporation capacity, please inquire online orcall our company |
