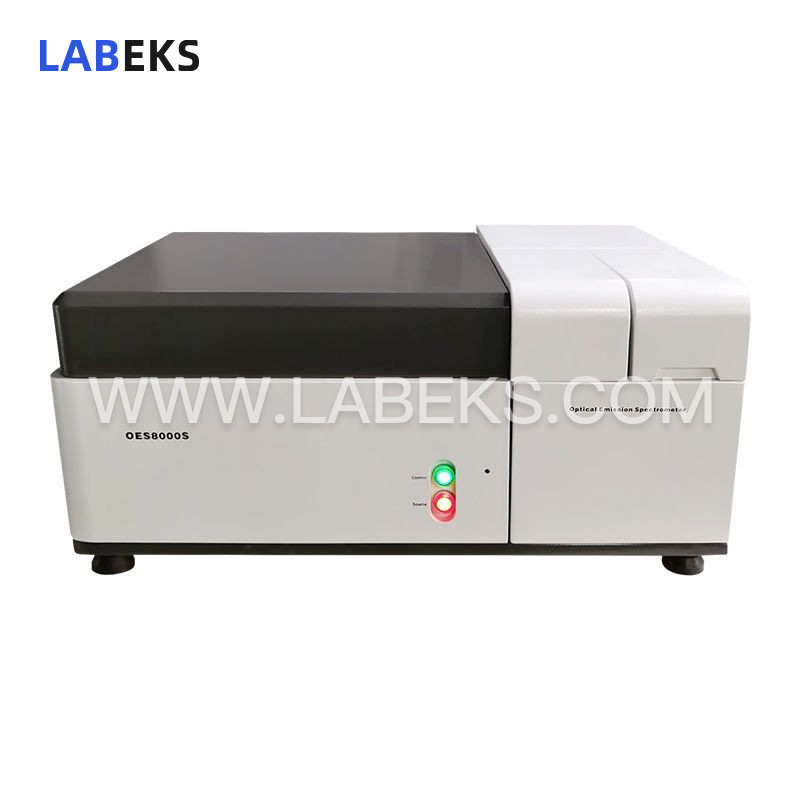

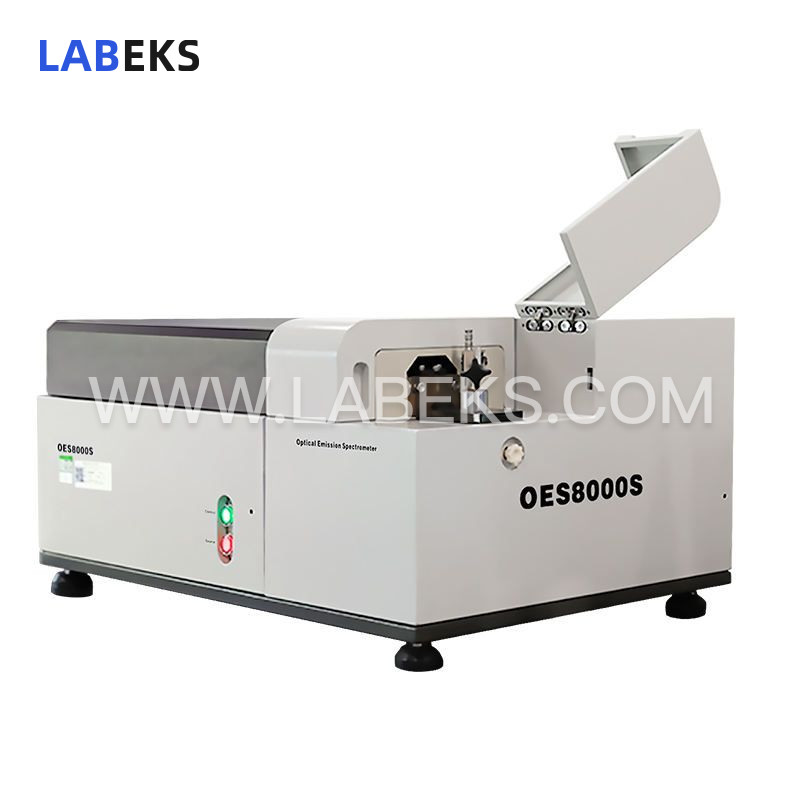

Optical Emission Spectroscopy Metal Analyzer for Fast Elemental Testing of Steel & Non-Ferrous Metals

The OES8000s direct reading spectrometer employs CMOS detector full-spectrum testing technology, enabling measurement of all spectral lines within the specified wavelength range. Configuration and expansion of test matrices, channels, and analysis programs are highly convenient. Its compact footprint simplifies both routine maintenance and laboratory placement. As a universal instrument for elemental testing of steel and non-ferrous metal materials, the OES8000s supports a range of matrices including Fe matrix, Cu matrix, Al matrix, Ti matrix, Pb matrix, Mg matrix, Co matrix, etc., making it an optimal solution for metal elemental analysis.

Technical Advantages

1. Comprehensive Testing for Various Metals and Elements

Based on CCD detector spectral testing technology, the analyzer can measure spectral lines of elements across diverse metals, facilitating multi-matrix and multi-element testing.

Configuration and supplementation of test matrices, channels, and analysis programs are extremely convenient, allowing for on-site expansion of testing capabilities after delivery.

2. Core Components from International Suppliers

Spectral dispersive element: grating manufactured by Germany’s Zeiss or France’s JY, ensuring high spectral resolution

Spectral detector: CMOS detector supplied by Japan’s Hamamatsu, ensuring sensitive spectral line detection with low noise

3. Constant Temperature Optical Chamber System

The optical chamber is equipped with a feedback heating device and insulating layer within its constant temperature cavity, maintaining a stable constant temperature.

This suppresses optical path drift caused by minor dimensional changes in mechanical components due to temperature fluctuations. Except for special maintenance, recalibration is generally not required during routine upkeep.

Additionally, the detector operates in a constant temperature environment, helping to stabilize its photoelectric conversion performance.

4. Rapid Simultaneous Analysis of Elements in Steel and Non-Ferrous Materials

After placing a pretreated sample on the stage, the OES8000s can deliver test results in as little as 40 seconds.

Per customer requirements, it can test the content of common elements in nearly all steel and non-ferrous materials.

5. Professional Testing Programs

With extensive experience in testing technical services, LABEKS Instruments provides mature testing solutions for users analyzing steel and non-ferrous metal materials.

Testing plans utilize analysis programs categorized by material element content, meeting diverse common testing needs of users.

Analysis programs are calibrated by the factory using international and domestic standard samples, with fitting and calibration performed via professional instrument software.

Users only need to use a small number of factory-provided standardized samples to complete routine maintenance, eliminating the need to purchase large quantities of standard samples for analytical procedures.
