Mycotoxin Tester for Rapid Multi-Mycotoxin Detection in Grains & Feeds

Designed to deliver fast, precise results, the mycotoxin tester accurately detects AFB1, ZEN, DON, FB1, OTA, T-2 toxins and more, serving grain depots, processing plants, third-party labs and regulatory authorities worldwide.

  • model
    LZD-1006
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

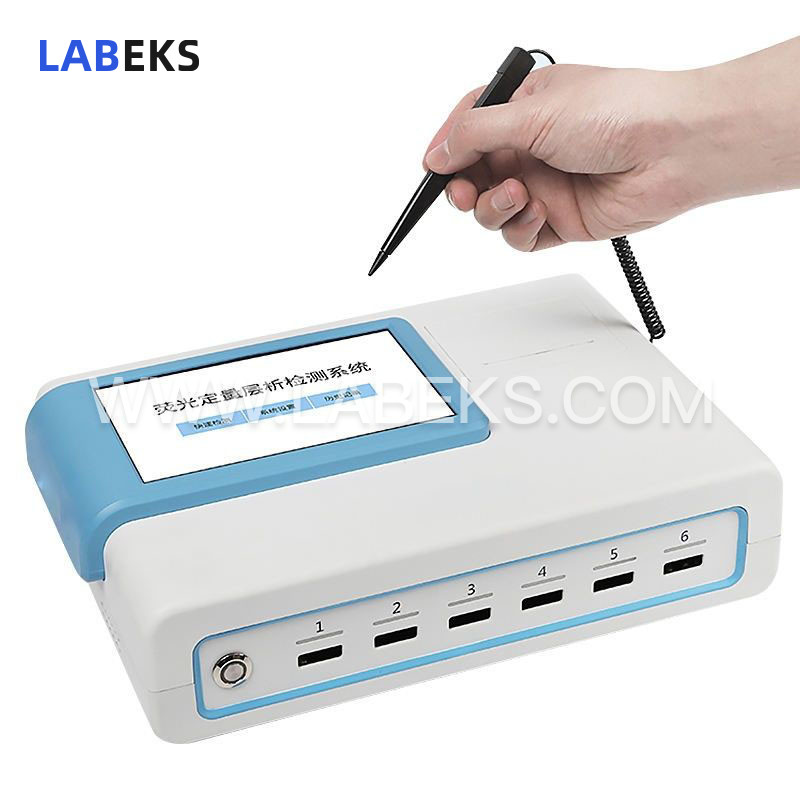

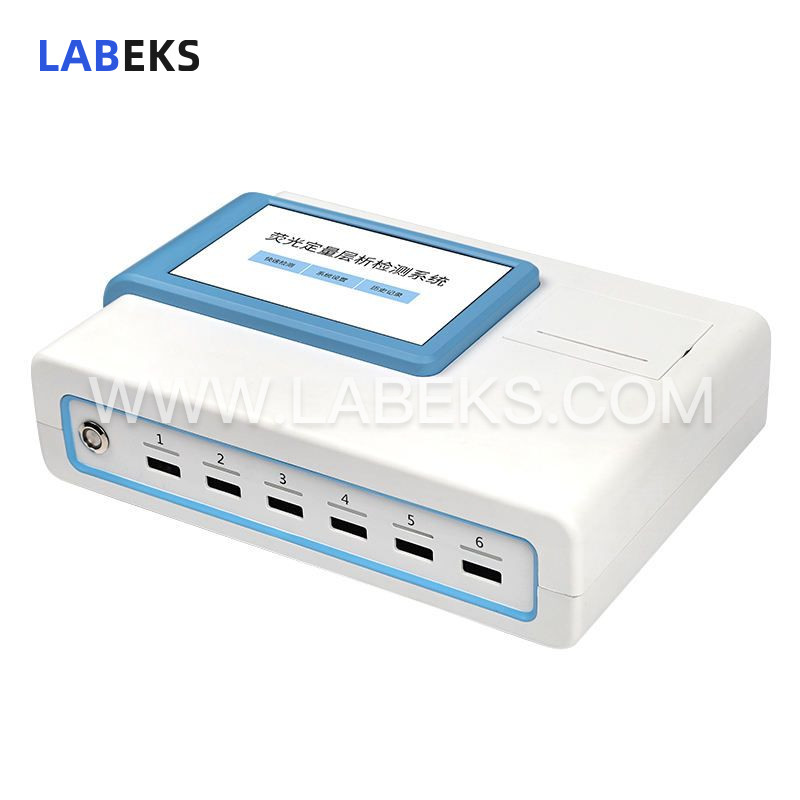

The LZD-1006 Mycotoxin Rapid Detector leverages fluorescence quantitative rapid detection technology to measure mycotoxin levels in grains, edible oils, feeds, dairy products, and their corresponding derivatives. Valid test samples include staple grains (rice, corn, wheat, barley, sorghum, etc.) and their processed goods, feedstock and finished feeds, edible oils, as well as milk and dairy products. Boasting simplified sample pretreatment, the entire testing workflow is completed in just 12 minutes. This instrument is ideal for local grain depots, grain production facilities, feed mills, livestock breeding operations, flour mills, food processing plants, third-party testing laboratories, and government regulatory bodies at all levels.

features

1. Utilizes fluorescence quantitative immunochromatography as its core detection principle

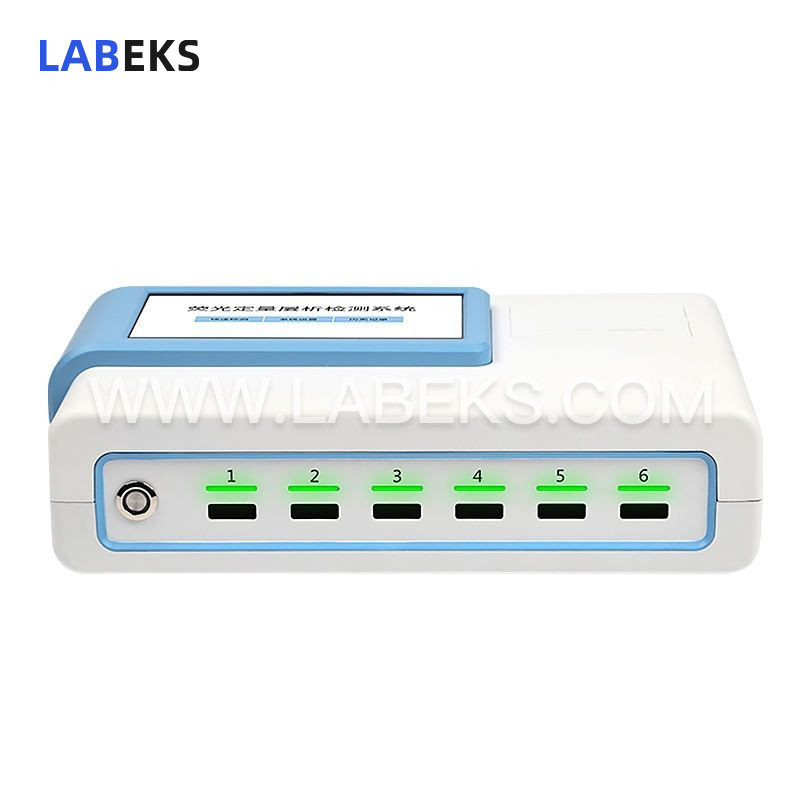

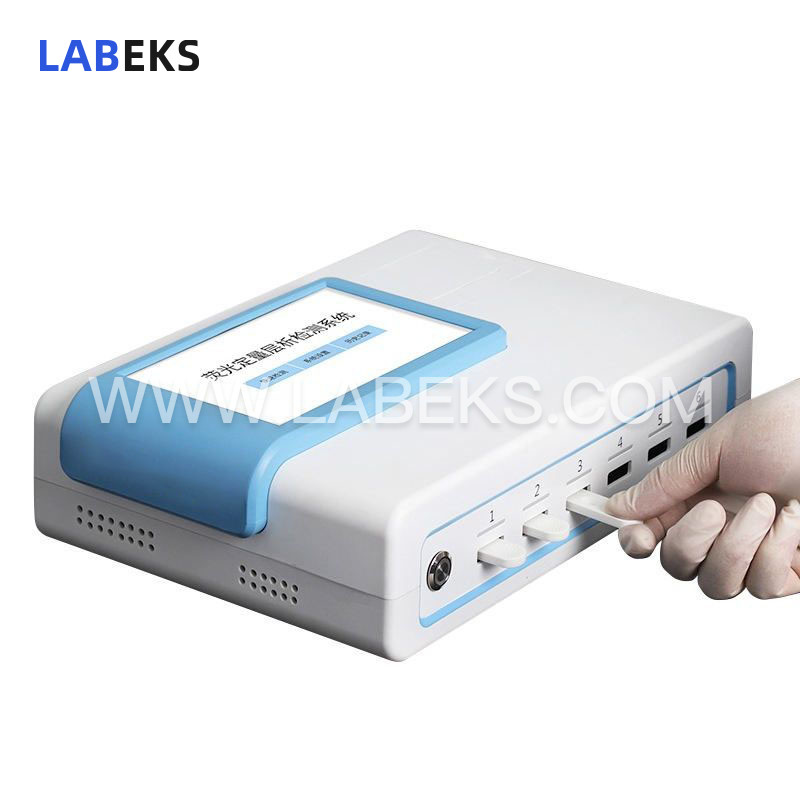

2. Features a 6-channel configuration with 6 independent detection units, enabling simultaneous testing of single or multiple mycotoxin targets without cross-interference for enhanced detection efficiency

3. All-in-one design integrates incubation and detection capabilities, allowing immediate testing post-incubation without additional transfer steps

4. Runs on an Android operating system, supporting online firmware upgrades and WIFI network connectivity

5. Equipped with a 7-inch high-definition full-Chinese LCD touchscreen for intuitive, user-friendly operation

6. Includes an automatic QR code recognition system that directly identifies test items, procedures, and other relevant operational information

7. Built-in thermal printer enables real-time printing of test results on-site

8. Offers robust data management capabilities, including storage of no less than 10,000 test records, data query, batch processing, and result printing

9. Equipped with ≥2 USB ports for copying test results and raw data, plus a WIFI module to enable wireless data upload to designated platforms

10. Reaches its optimal working temperature (37°C) within minutes; its closed-system design eliminates interference from external factors like light and heat, operating reliably at ambient temperatures of 0-30°C

11. Delivers exceptional repeatability with CV ≤1%

12. Ensures consistent performance across batches with inter-batch variation ≤3%

13. Maintains a relative deviation ≤10%

14. Compact footprint with dimensions measuring 310x210x93mm

specifications

Item

Quantitative range

Reagent Specifications

Applicable sample type

Aflatoxin B1

AFB1

2-30ug/kg(cereals)

48T/box

Corn, wheat, wheat bran, soybeanmeal, peanut meal, rice bran meal, corn gluten meal, corn germ meal, puffedcorn, DDGS and sprayed corn husk and finished feed

5-80ug/kg(feed)

Zearalenone

ZEN

25-400ug/kg(cereals)

48T/box

50-1000ug/kg(feed)

DON

200-3000ug/kg(cereals)

48T/box

200-8000ug/kg(feed)

FumarotoxinFB1

100-6000ug/kg

48T/box

Corn, wheat, wheat bran, soybeanmeal, peanut meal, corn germ meal, puffed corn, DDGS, sprayed corn husk,concentrate and calf pellets and finished feed

Ochratoxin A

OTA

2-20ug/kg(cereals)

48T/box

Corn, wheat, wheat bran, soybeanmeal, peanut meal, corn germ meal, puffed corn, DDGS, sprayed corn husk andfinished feed

50-500ug/ka(feed)

T-2 toxin

50-800ug/kg

48T/box

Corn, wheat, rice, wheat bran,soybean meal, peanut meal, corn germ meal, DDGS, sprayed corn husk and puffedcorn and finished feed
