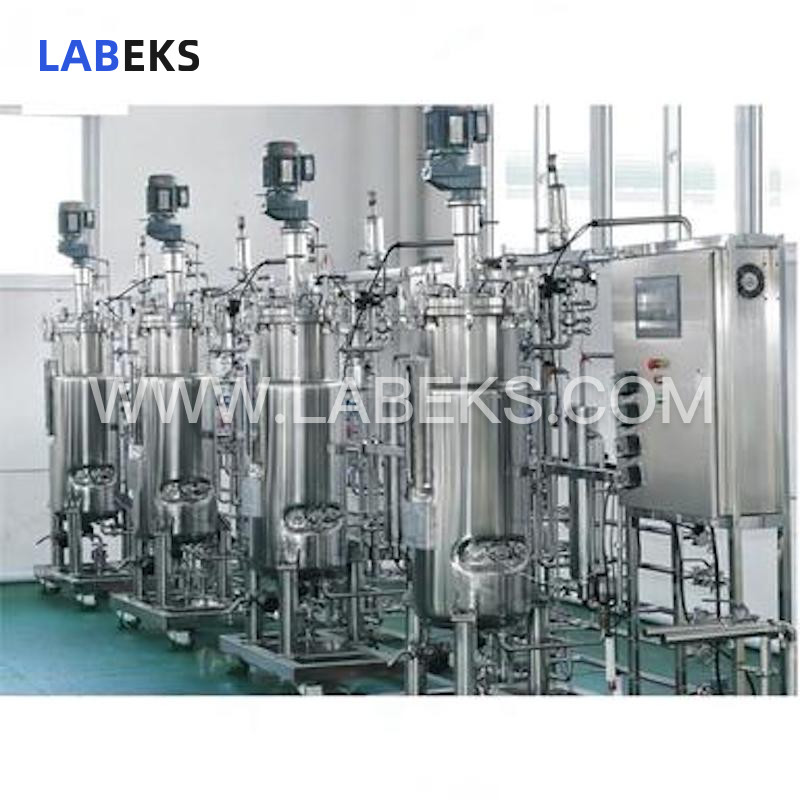

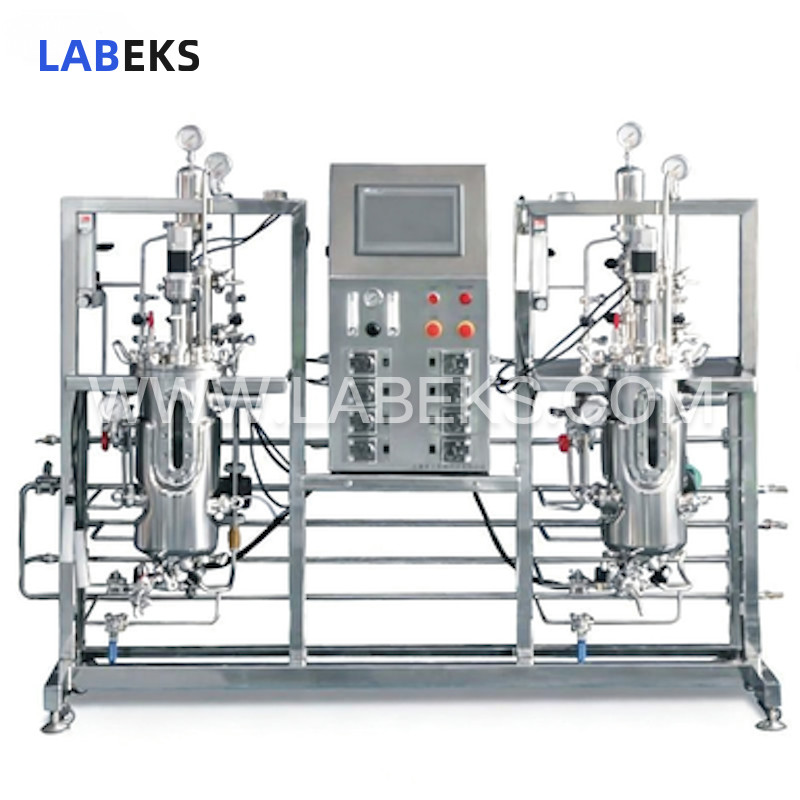

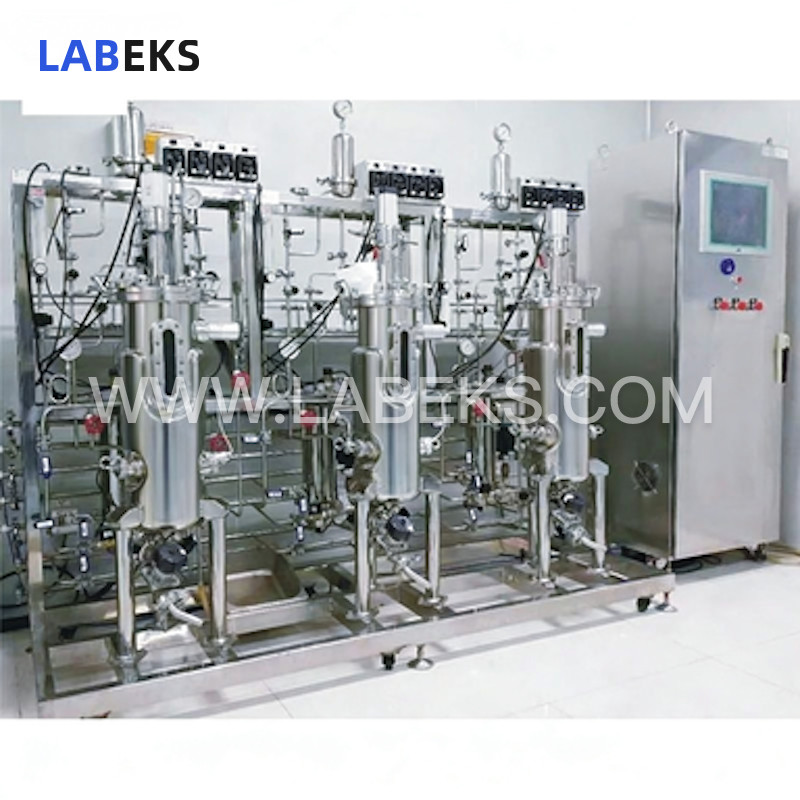

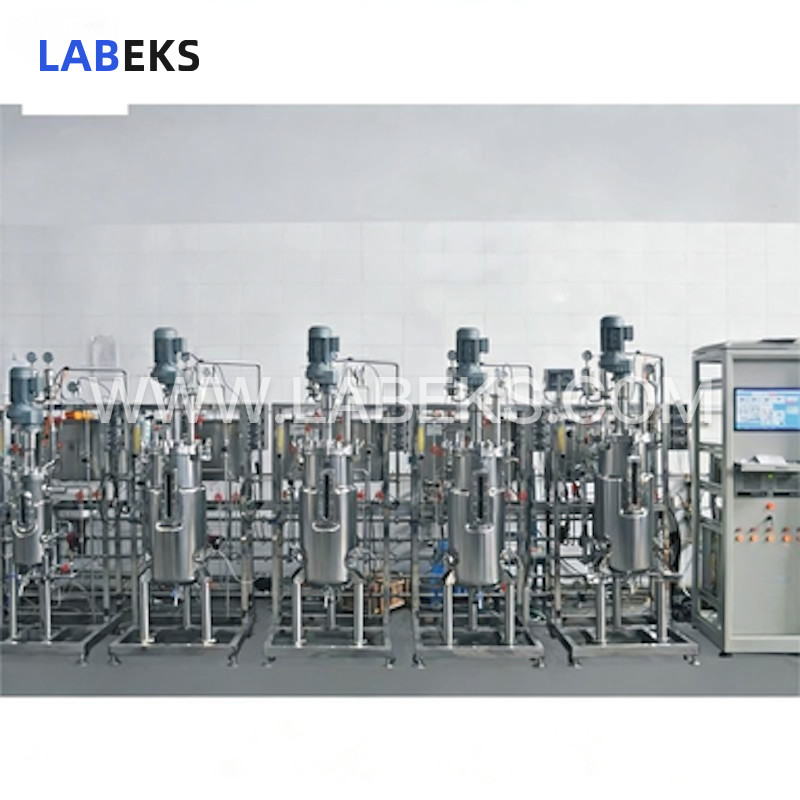

Multiple Stainless Steel Fermenter System for Strain Screening & Fast Process Validation

1. Equipped with a German Siemens S7-200 series PLC control system paired with a 10″ LCD touchscreen interface, the system delivers real-time operational display, data logging, and process analysis capabilities.

2. The reactor software system comes with adaptive and self-diagnostic capabilities to ensure stable, reliable operation.

3. The system supports multiple linked control modes, including speed-dissolved oxygen correlation, feed-dissolved oxygen correlation, and feed-pH correlation control.

4. Upper and lower limits can be set for temperature, rotational speed, pH value, and DO value; the system also includes an over-limit alarm function for enhanced process safety.

5. It integrates over-liquid level alarm and automatic refilling functions, as well as over-foam level alarm and automatic defoamer addition capabilities.

6. Historical data and curves for all parameters can be stored for multiple years, and real-time curves can be fully restored upon system restart.

7. The system features a replenishment metering function, supporting scheduled and quantitative replenishment operations.

8. The main body consists of an all-stainless steel 316L tank with no internal dead corners; it is fitted with special fermentation tank sampling and discharge valves, along with transplanting pipes.

9. A wide-angle observation mirror is provided for tank level monitoring, alongside a 12V safety light. The system includes temperature, pH, DO, defoaming, liquid level interface, inoculation, replenishment ports, plus multiple spare ports. All welds are firm, neat, and aesthetically finished.

10. Optimized diversion design enhances heat exchange efficiency and ensures uniform temperature distribution within the tank.

11. Specialized AC motors for fermentation tanks are adopted to ensure reliable operation even in harsh environments.
