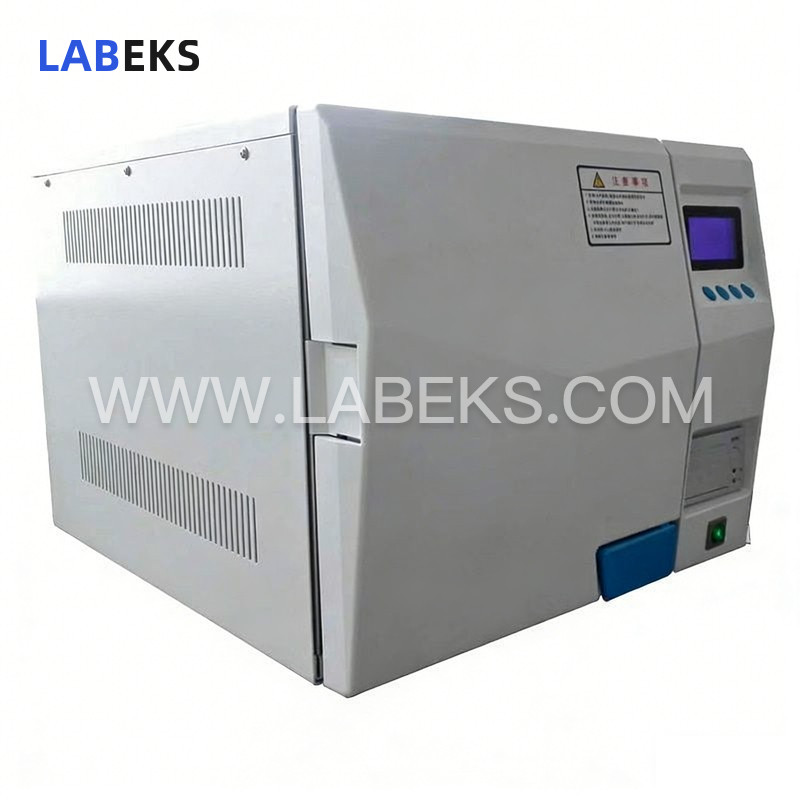

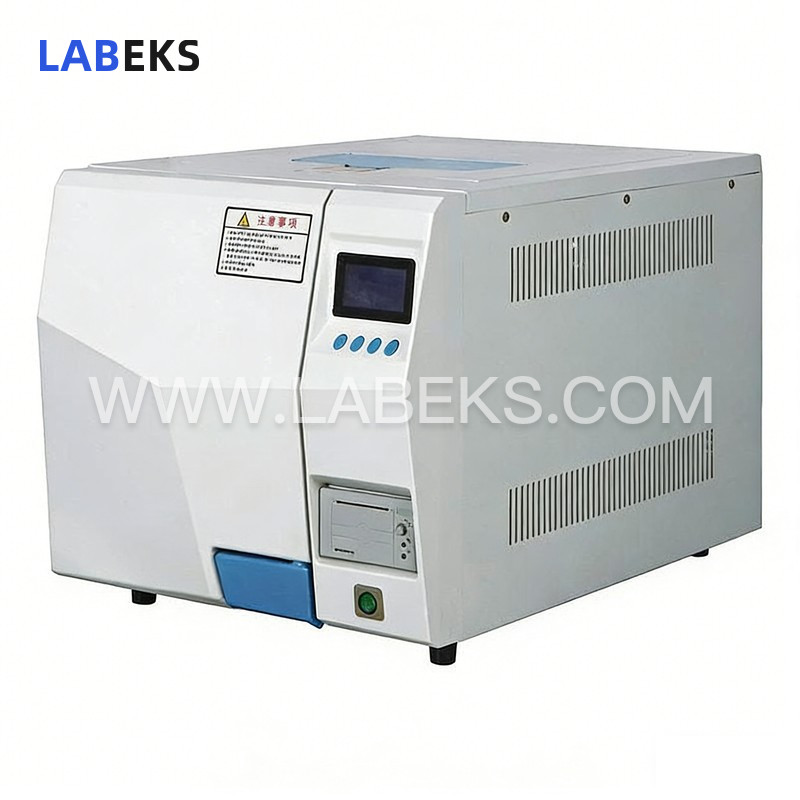

Mini Benchtop Class B Pulse Vacuum Steam Sterilizer, -0.8bar Vacuum for Medical Labs
Designed for medical and scientific research institutions, the pulse vacuum steam sterilizer delivers reliable, automated high-pressure steam sterilization for surgical instruments, dressings, utensils, and culture media with robust safety features.
- modelL-12DV/L-20DV/L-24DV
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This safe, reliable, fully automated sterilization device integrates a heating system, microcomputer control system, and overheat/overpressure protection system. Boasting dependable sterilization efficacy, intuitive operation, enhanced safety, energy efficiency, long service life, and cost-effectiveness, it serves as the ideal solution for medical and scientific research institutions to sterilize surgical instruments, dressings, utensils, and culture media.
features
1. Equipped with safety valve, manual safety door lock, pressure interlock system, self-diagnostic fault detection, and automatic over-temperature/over-pressure protection mechanisms.
2. Complies with European Class B standards, featuring three-pulse pre-vacuum and post-vacuum drying functions, resulting in residual device humidity of <0.2%.
3. Achieves a maximum vacuum level of -0.8bar, making it suitable for sterilizing packaged, unpackaged, solid, Class A hollow, porous, and internally pipelined instruments.
4. Effectively expels air from hollow instruments (e.g., high-speed dental drills), ensuring high-temperature steam penetrates every internal surface.
5. Supports BOWIE&DICK testing to verify steam penetration efficacy.
6. Includes integrated vacuum testing functionality to verify system vacuum performance on demand.
7. Features an LCD screen for real-time working status monitoring and intuitive touch-button operation.
8. Utilizes full microcomputer control with a modular, user-friendly operation interface.
9. Integrated with a high-speed independent steam generator for rapid steam production.
10. Comes with an internal micro printer to document detailed sterilization cycle data.
11. Effectively inactivates HIV, hepatitis B virus (HBV), bovine spongiform encephalopathy (BSE) agent, and Bacillus species.
12. Features an open water tank design with separate clean water and sewage reservoirs for convenient, straightforward maintenance.
specifications
Model | L-20DV | L-24DV |
|---|---|---|
Sterilizing chambervolume | 18L | 24L |
φ250×360mm | φ250×470mm | |
Maximum workingpressure | 0.22Mpa | |
Maximum working temperature | 134℃ | |
Adjustment oftemperature | 105-134℃ | |
Timer | 0-99min | |
Heat average | ≤±1℃ | |
Power | AC220V.50Hz/2KW | AC220V.50Hz/2KW |
Size | 560*470*400 | 675*470*400 |
Packing size(mm) | 655*560*495 | 765*560*495 |
Gross/ Net weight | 52/47Kg | 58/53Kg |
