Manifold Lab Freeze Dryer: GLP Compliant with ≤-56℃ Cold Trap

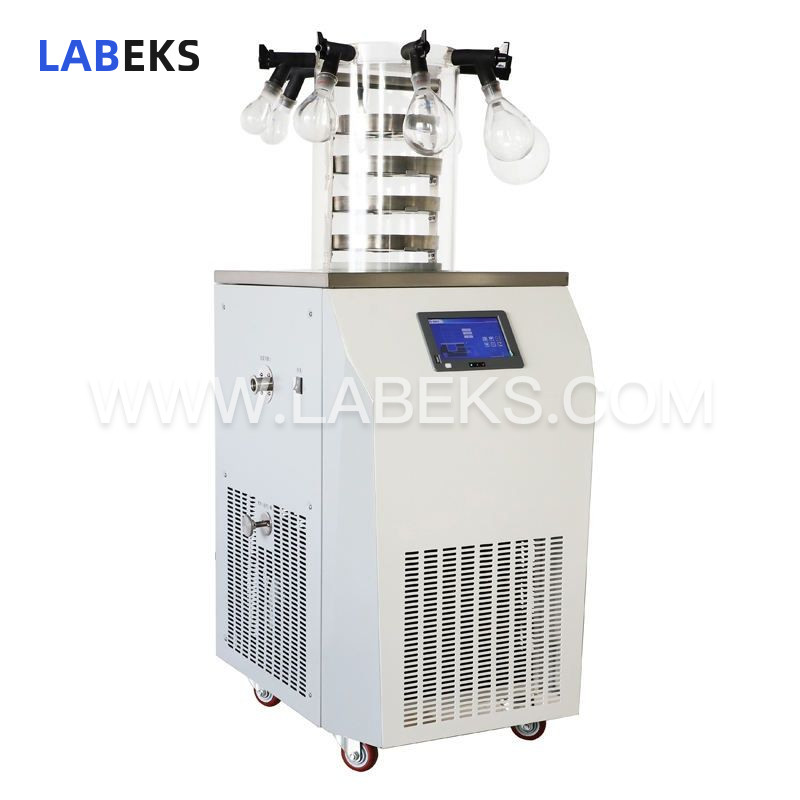

As a space-saving benchtop unit, the manifold lab freeze dryer (model LFD-18C) delivers efficient, reliable lyophilization performance tailored for laboratory freeze-drying experiments.
- modelLFD-18C
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

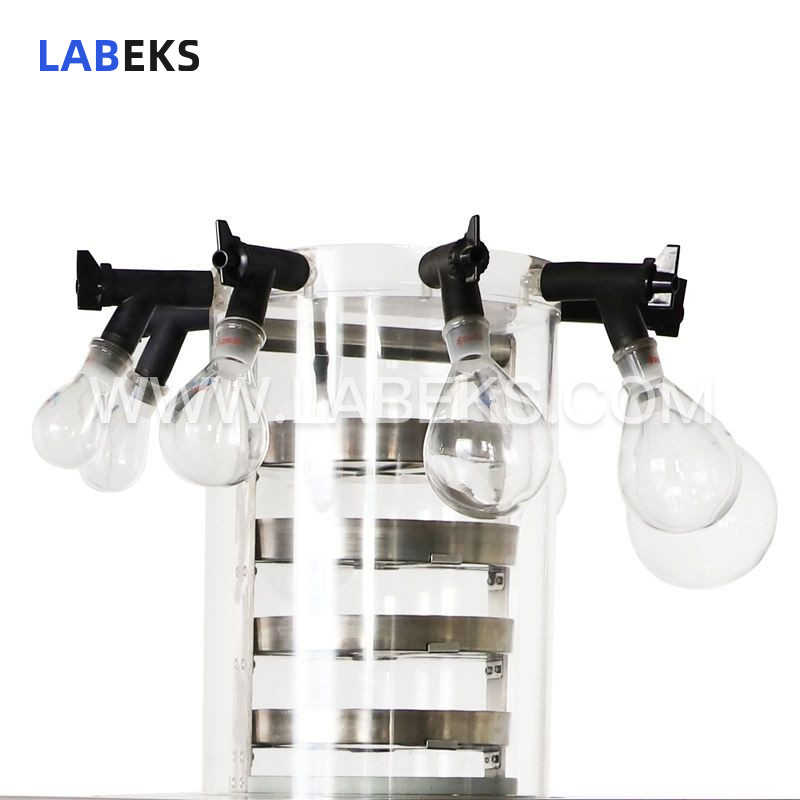

This unit is engineered for lyophilizing bulk conventional materials, including liquids, pastes, and solids. It supports external flask installation outside the drying chamber to facilitate drying of frozen substances on the bottle’s inner wall; in this configuration, the flask connects to the manifold as a holding container. Materials inside the flask rely on ambient room temperature for heating, and the multi-manifold switch enables flask removal or installation at any point without requiring system shutdown.
features
1. All product-contacting components are constructed from inert materials to meet GLP requirements.
2. Patented gas diversion technology enables exceptional ice retention capacity.
3. World-renowned brand compressors deliver high efficiency, extended service life, and low operational noise.
4. A well-known brand vacuum pump with high pumping speed achieves superior ultimate vacuum levels.

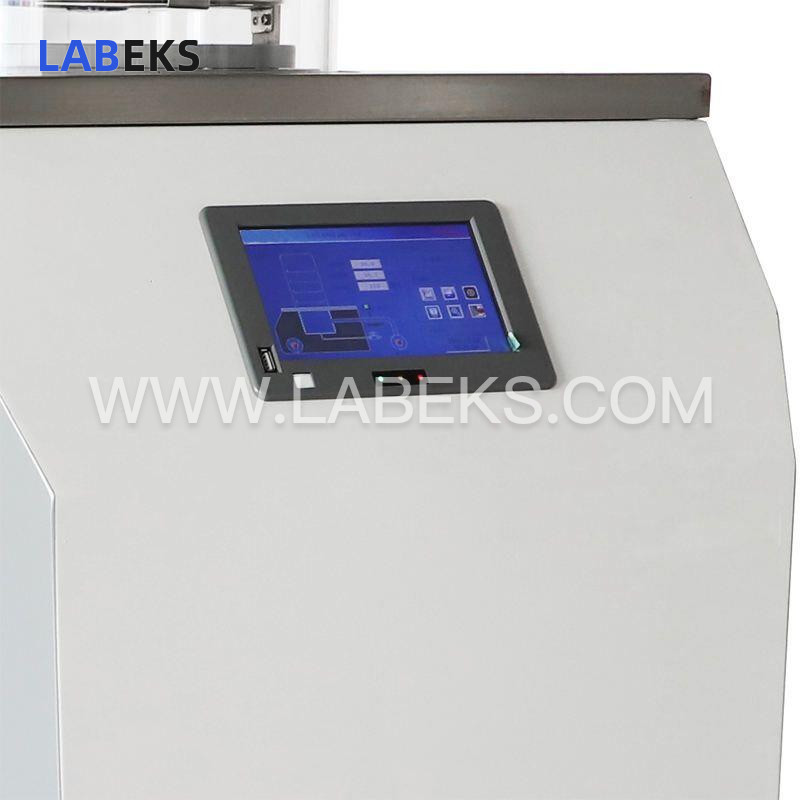

5. Professionally engineered FD-LAB freeze dryer control system paired with the SH-HPSC-I modular controller ensures high reliability and stability.
6. The intelligent data logging system records and displays real-time curves for cold trap temperature, sample temperature, and vacuum levels.
7. All-in-one compact design eliminates external flanges for leak-free operation and ease of use.
8. The cold trap and control console are crafted from stainless steel for corrosion resistance and effortless cleaning.

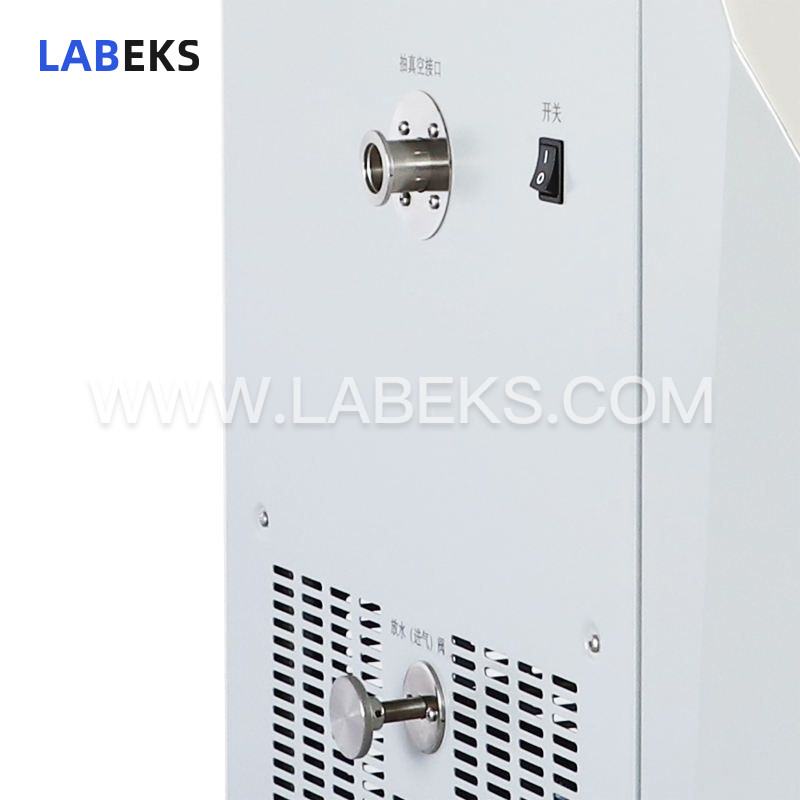

9. In-house designed and manufactured all-stainless steel inflation/drain valve offers leak-free performance, corrosion resistance, and enhanced safety.
10. Integrated sample pre-freezing functionality with a large cold trap opening and no internal coils eliminates the need for a low-temperature refrigerator.
11. Vacuum pump protection function allows users to set cold trap temperatures to extend the pump’s service life.
specifications
Model | LFD-18C |
|---|---|
freeze drying area | 0.18㎡/0.27㎡ |
tray dia. | Ф240mm |
tray numbers | 4pcs/6pcs |
tray spacing | 70mm |
flask capacity&q’ty | 100/250/500/1000ml，each 2pcs |
cold trap temp. | ≤-56℃，optional ≤-80℃ |
cold trap depth | 400mm |
cold trap dia. | Ф270mm |
ice collecting capacity | 6kg/24h |
pump speed | 4L/S |
ultimate vacuum | ≤5pa |
power | 1400w |
main unit weight | 105kg |
main unit dimensions | 630×580×970mm |
-80℃main unit dimensions | 810×580×950mm |
drying chamber dimensions | Ф300×465mm |
cooling mode | wind cooled |
defrosing mode | by air |
shipping weight | 1.8L/2.7L（thickness10mm） |
