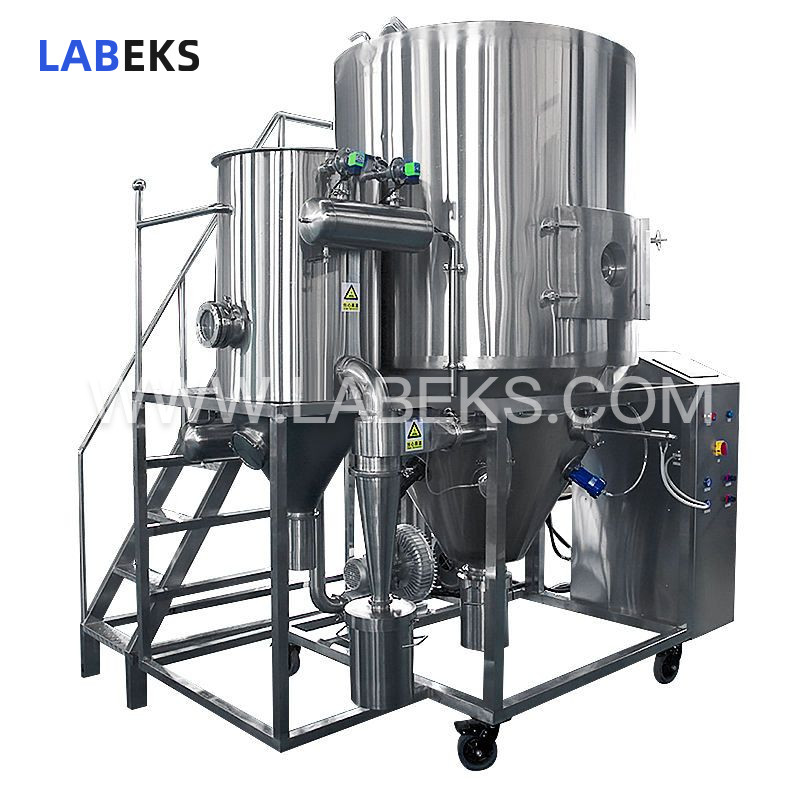

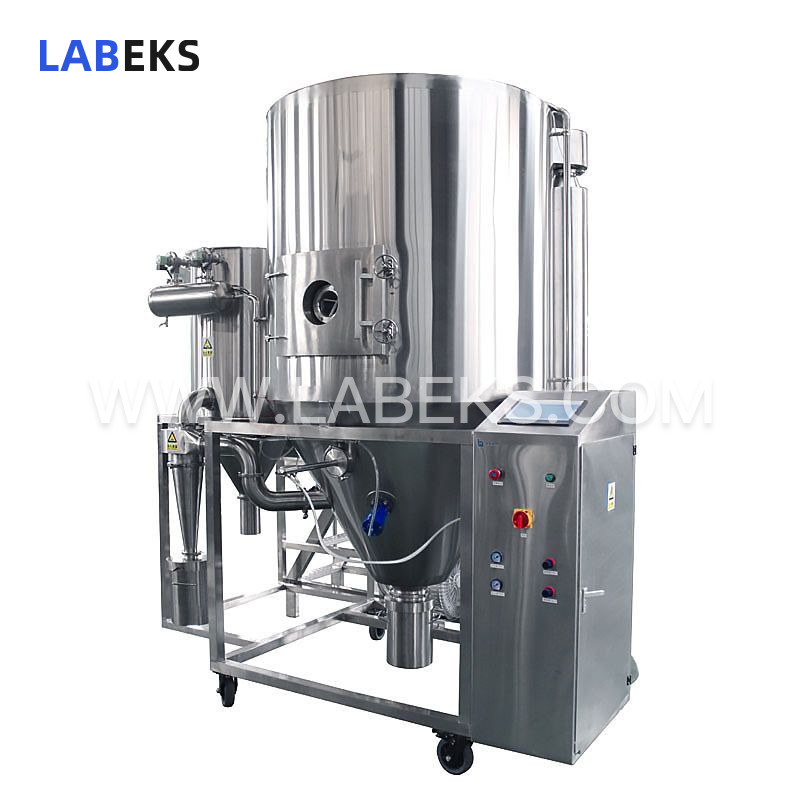

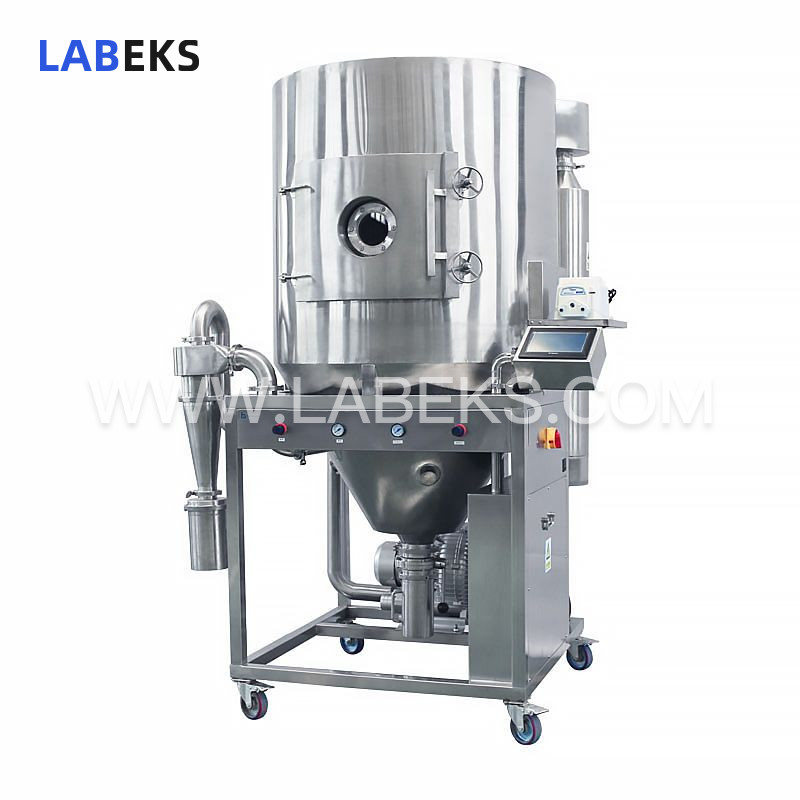

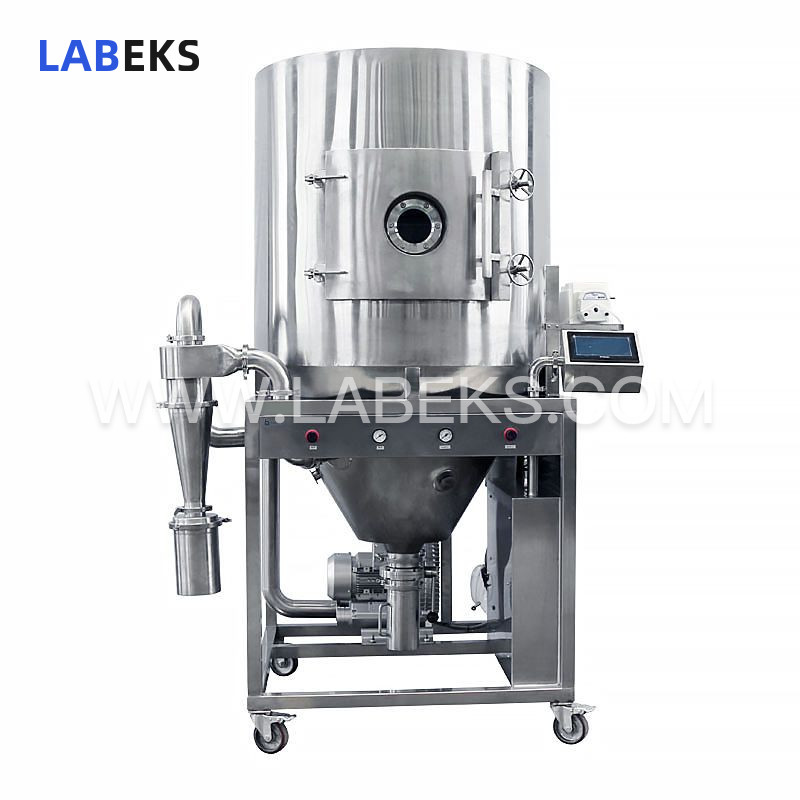

LZL-5 Granulation Spray Dryer: 5Kg/h Evaporation for Lab & Small-Scale Manufacturing
Featuring dual air-supply liquid granulation nozzles, this granulation spray dryer converts uniform spherical droplets directly into particles via consistent heat, making it ideal for laboratory trials and small-scale production while imported core components guarantee stable, safe operation.
- modelLZL-5
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LZL-5 Granulation Spray Dryer is equipped with dual air-supply liquid granulation nozzles, which directly transform uniform spherical droplets into particles through consistent thermal energy.
Ideal for laboratory experiments and small-scale production runs, this unit delivers high precision and uniformly sized particles. All core components are imported to ensure stable, reliable, and safe operation of the equipment.
features
1. Atomizing head: LABEKS dual air-supply liquid granulation nozzle
2. Granulation particle size is adjustable within the range of 5 microns to 250 microns
3. Bottom-to-top atomization method that extends the residence time of droplets in the air
4. Adjustable inner and outer ring airflow to meet desired particle size specifications
5. Internal tower cap design for more effective capture of target particles
specifications
Model | LZL-5 |
|---|---|
Evaporation | 5Kg/h |
Minimumfeed amount | 80ml |
Dryingchamber diameter (mm) | ￠800 |
Dryingtower height (mm) | ￠1000 |
Atomizationsystem | Dual gasliquid delivery |
Electroniccontrol system | Specialfor granulation atomization system |
Maximuminlet air temperature | 260℃ |
Electroniccontrol main accessories standard (including PLC, analog module, touchscreen) (optional) | Wecon control module (standard) |
Selectioncriteria for electric control auxiliary accessories (including contactors,etc.) (optional) | Chint (Standard) |
Parts incontact with the material (optional) | SUS304(Standard) |
Exhaustgas reuse, saving energy by more than 30% (optional) | Not assembled (standard) |
Atomizingnozzle (with or without diamond coating) | SUS304(Standard) |
heatercapacity | 25Kw |
Blower[power (kw), air volume (m³/min)] | / |
Inducedfan [power (kw), air volume (m³/h)] | [1.5，250] |
Compressor[power (kw), air volume (L /min)] | [0.58，108] |
Electricity(installed capacity) | 30Kw |
InsulationMaterials | 50mmglass fiber insulation cotton |
Pulse bagfilter (optional) | PTFEcoating material;4 pcs |
Dimensions(mm) (L×W×H) (reference) | 1600×1400×1800 |
Installationweight (reference) | 500Kg |
Powersupply | 380V |
