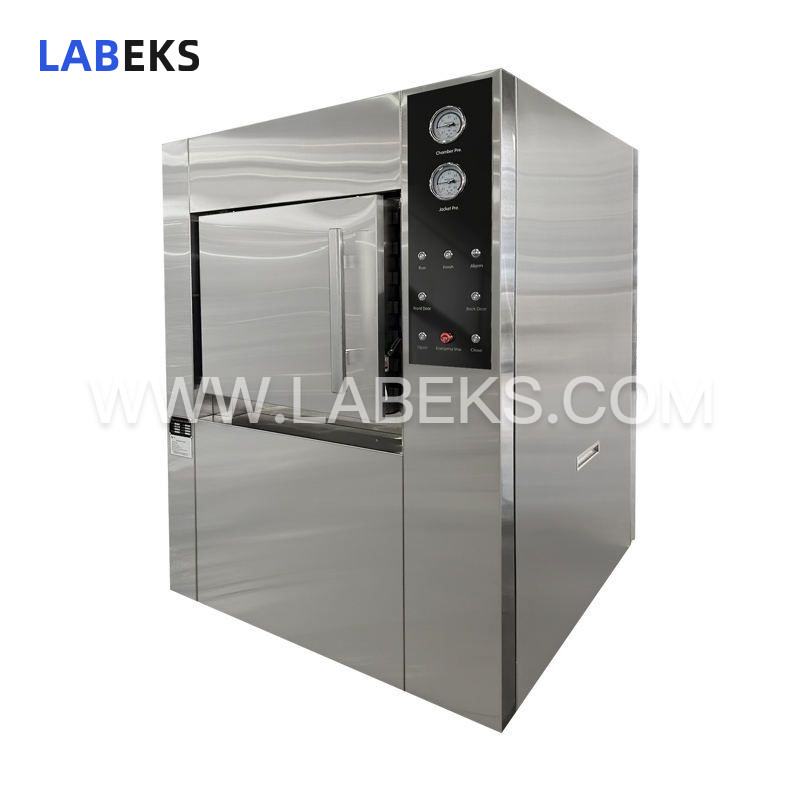

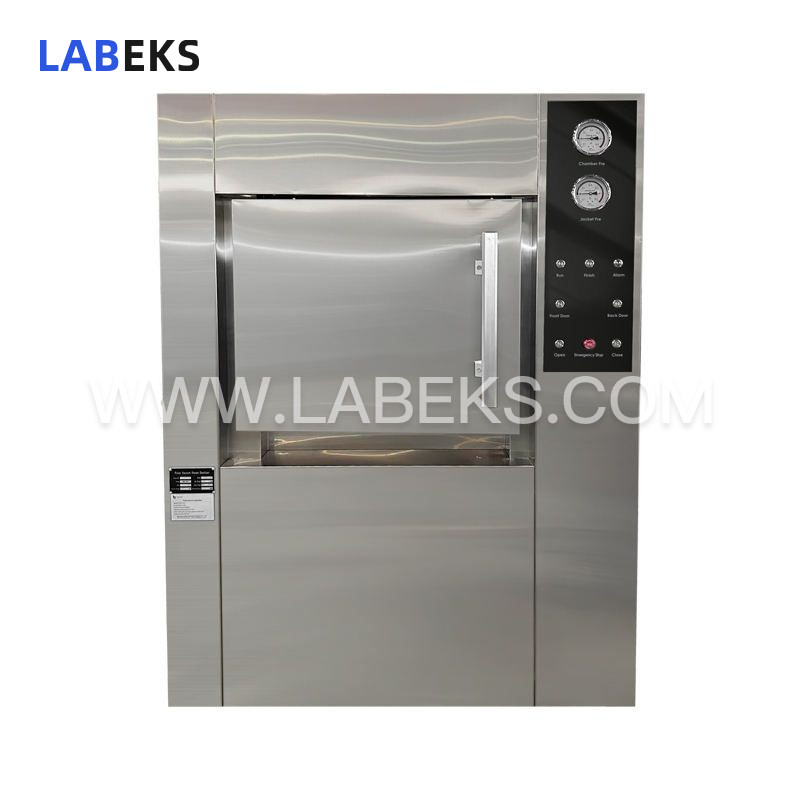

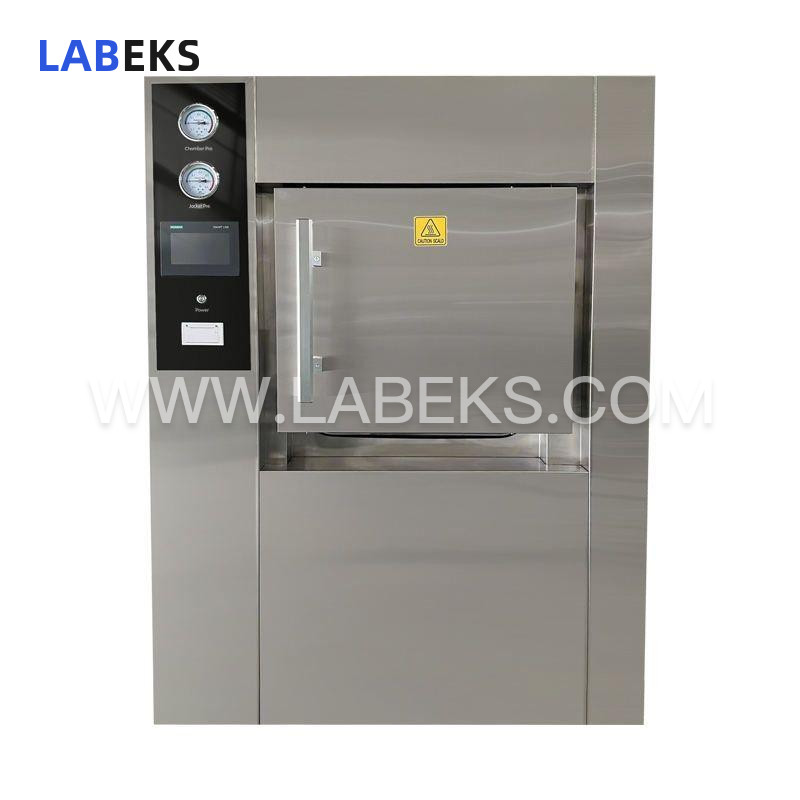

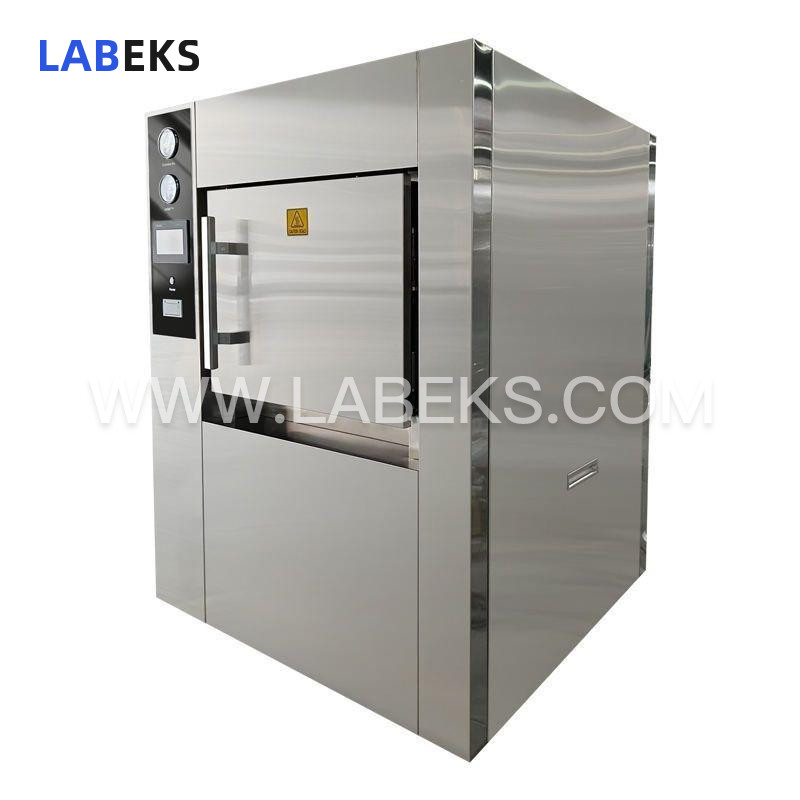

LWG Series Pulsating Vacuum Sterilizer with Siemens PLC Control & GMP Compliance
Designed for industrial processes requiring elevated temperatures and non-ambient pressure levels, the pulsating vacuum sterilizer operates as a specialized pressure chamber to deliver consistent, effective sterilization.
- modelLWG Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LWG Series pulsating vacuum sterilizer employs saturated steam as its sterilization medium. As saturated steam condenses, it releases significant latent heat, maintaining items to be sterilized in a high-temperature, high-humidity environment; complete sterilization is achieved after a specified holding period. Pulsating vacuum exhaust eliminates temperature interference caused by cold air, and a final vacuum dehumidification step ensures treated items are dried post-sterilization.
features
1. Utilizes a high-performance control system consisting of Siemens PLC and Siemens touch screen for intuitive operation and precise regulation.
2. Comes with a standard GMP-compliant interface to meet industry quality and regulatory standards.
3. Ensures reliable sterilization efficacy through F₀ value and temperature-time control; single-parameter control is also supported, with comprehensive sterilization records available for traceability.

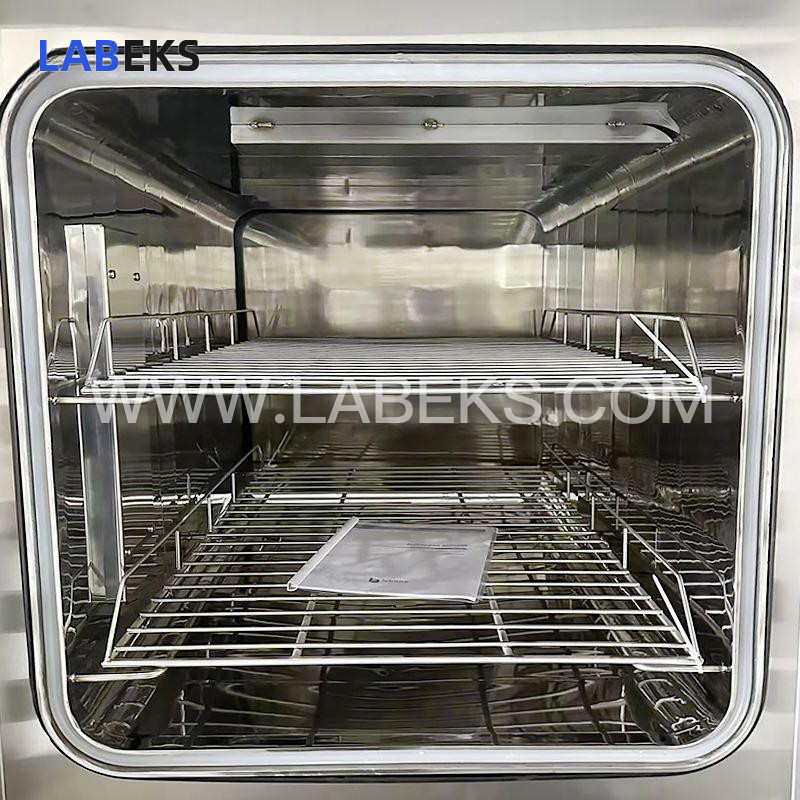

4. Boasts a horizontal rectangular double-layer structure, with the inner chamber constructed from S30408 stainless steel.
5. Equipped with a pneumatically sealed door featuring double-door interlock, fully adhering to relevant specification requirements.
6. Incorporates an optimally engineered piping system, with key components sourced from reputable domestic and imported brands.
specifications
Design pressure | 0.245MPa |
|---|---|
Work pressure | 0.225MPa |
Operating temperature | 105-134℃ |
Set temperature | 139℃ |
Temperature uniformity | ≤±1℃ |
Vacuum degree | -0.09MPa |
Water source pressure | 0.15-0.3MPa |
Compressed air pressure | 0.3-0.7MPa |
Steam pressure | 0.3-0.7Mpa |
Power supply | 3-phase 5-wires AC380V.50HZ |
Model | Dimensions L×W×H(mm) | Interiorsize L×W×H(mm) | Steamconsumption (KG) | Waterconsumption (KG) | Power supply (KW) | Net weight (KG) |
|---|---|---|---|---|---|---|
LWG-0.25 | 1100×1350×1900 | 800×600×600 | 18KG | 35KG | 2+24KW | 900KG |
LWG-0.36 | 1300×1350×1900 | 1000×600×600 | 25KG | 40KG | 2+24KW | 1000KG |
LWG-0.6 | 1500×1360×1950 | 1200×610×910 | 30KG | 45KG | 3+36KW | 1400KG |
LWG-0.8 | 1800×1360×1950 | 1500×610×910 | 40KG | 50KG | 3KW | 1600KG |
LWG-1.2 | 1750×1440×1950 | 1450×680×1180 | 48KG | 55KG | 4KW | 1800KG |
LWG-1.5 | 2150×1440×1950 | 1850×680×1180 | 55KG | 60KG | 4KW | 2000KG |
LWG-2.0 | 1950×1750×2200 | 1600×900×1400 | 65KG | 65KG | 4.5KW | 2500KG |
LWG-2.5 | 2300×1750×2200 | 1950×900×1400 | 75KG | 75KG | 6KW | 3000KG |
LWG-3.0 | 2700×1750×2200 | 2400×900×1400 | 90KG | 90KG | 8KW | 3500KG |
