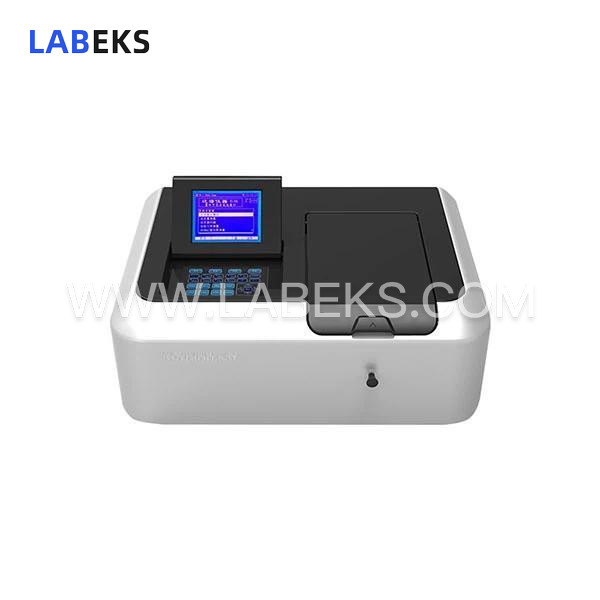

LU-T1810 UV VIS Spectrophotometer: High Precision for Scientific & Industrial Testing
Engineered to measure transmittance or reflectance of solutions, transparent/opaque solids, and gases, this UV VIS Spectrophotometer supports diverse applications in health & epidemic prevention, teaching & research, environmental monitoring, agriculture, forestry, manufacturing, municipal agencies, research institutions, water resources, and petrochemical sectors.
- modelLU-T1810/LU-T1810S
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
LABEKS is proud to present the LU-T1810 Series UV VIS Spectrophotometer, which is widely utilized for measuring enzyme activities, determining protein concentrations, calculating enzymatic kinetic constants, and analyzing ligand binding reactions. Its applications extend across multiple scientific disciplines, including physics, materials science, chemistry, biochemistry, chemical engineering, and molecular biology.
Function:
1. Photometric Measurement: Enables convenient testing of sample absorbance and transmittance at specified wavelengths, with fixed-point testing capable of analyzing up to 10 wavelengths simultaneously.
2. Quantitative Measurement: Automatically generates standard curves, supporting first-order/first-order zero-crossing, second-order, and third-order curve fitting.
3. Qualitative Measurement: Boasts a scanning speed of 3500nm/min, with map processing functions including scaling, smoothing, filtering, and peak-valley detection.
4. Kinetic Measurement: Calculates enzyme kinetic reaction rates, with built-in map processing tools such as scaling, smoothing, filtering, peak-valley detection, and derivation.
5. DNA/RNA & Protein Testing: Features dedicated functions for DNA/RNA and protein analysis, automatically computing sample ratios and concentrations.
features
1. High Precision: A micrometer-level precision lead screw drives the grating to guarantee wavelength accuracy of <±0.3nm, with transmittance accuracy of ±0.3%T, meeting Class I performance standards.
2. High Stability: Equipped with a Czerny-Turner dual-beam optical system, this spectrophotometer minimizes chromatic aberration and ensures consistent long-term data stability.
3. User-Friendly Operation: Boasting a 5.7-inch large-screen LCD display, it provides clear visualization of maps and curves. Its intuitive interface supports specialized test procedures including quantitative, qualitative, kinetic, DNA/RNA, and multi-wavelength analysis.
4. Extended Service Life: Featuring imported original xenon and tungsten lamps, it offers a lamp lifespan of 2 years, while the receiver’s service life extends up to 20 years.
5. Versatile Accessory Options: Compatible with various accessories such as automatic samplers, micro cell holders, integrated sphere diffuse reflectors, and 5° specular reflectors, to fulfill specialized testing requirements.
specifications
Model | LU-T1810 | LU-T1810S |
|---|---|---|
Optical system | Dual detector proportionaldetection optical system, 1200 strip / mm holographic grating splitting | |
Wavelength range | 190-1100nm | |
Spectralbandwidth | 1.8nm | 0.5,1,2,4,5nmadjustable |
Wavelength accuracy | ±0.3nm | |
Wavelengthrepeatability | ±0.1nm | |
Transmittanceaccuracy | ±0.3%T；±0.002Abs（0-0.5Abs）; ±0.004Abs（0.5-1.0Abs） | |
Transmittancerepeatability | ±0.1%T；±0.001Abs（0-0.5Abs）;±0.002Abs（0.5-1.0Abs） | |
Stray light | ≤0.03%T, at 220nmand 360nm | |
Noise | ±0.001Abs | |
Drift | ±0.001Abs（500nm, after pre-heating） | |
Baselineflatness | ±0.001Abs | |
Baseline darknoise | 0.08%T | |
Luminosity range | 0～200%T/-4～4A/0～9999C（0-9999F） | |
Light source | importedtungsten lamp and deuterium lamp | |
Scanning speed | high/ medium/low three speed adjustable | |
Display | 320X240nmGraphic LCD | |
Data output | USB interface,Centronics parallel port (optional HP, Epson compatible laser, inkjet printerand micro printer) | |
Power supply | 90-250V/AC,50-60HZ | |
