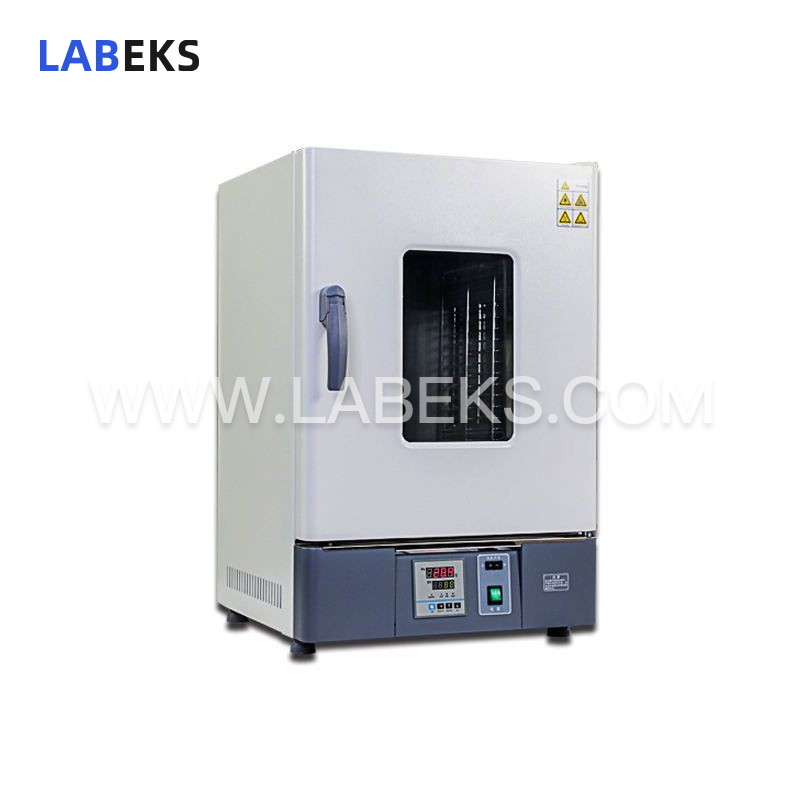

LTGX-DLT Series High Temperature Sterilization Oven with Dual Sterilization for Laboratory Glassware
For safe, effective inactivation of viruses, bacteria and other pathogens, a high temperature sterilization oven with dual sterilization systems delivers reliable dry heat treatment for a broad range of laboratory glassware and stainless steel equipment.
- modelLTGX-DLT Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LTGX-DLT series high temperature sterilization oven integrates dual sterilization capabilities: dry heat disinfection and blue light ultraviolet disinfection. It is specifically engineered to inactivate New Coronavirus, SARS virus, H7N9 virus, African swine fever virus, molluscum virus, rabies virus, hepatitis B virus, influenza virus, Escherichia coli, Yersinia pestis and other harmful pathogens.
features
Integrates dual sterilization systems: dry heat sterilization and blue light ultraviolet sterilization.
Engineered for targeted inactivation of New Coronavirus, SARS virus, H7N9 virus, African swine fever virus, molluscum virus, rabies virus, hepatitis B virus, influenza virus, Escherichia coli, Yersinia pestis and other harmful pathogens.
Self-developed vertical dual-air duct air jacket with turbine centrifugal forced air supply ensures exceptional temperature uniformity throughout the chamber.
Forced fan cooling air intake structure maintains the fan’s maximum operating temperature below 50 ℃, enabling continuous, long-life operation.
Proprietary heat-insulating door technology keeps the outer door surface cool and prevents deformation even under high-temperature operating conditions.
Auxiliary menu enables over-temperature alarm, temperature deviation correction, and menu lock functions for enhanced operational safety.
User-friendly operation with fixed-value operation, timed operation, and automatic stop modes for streamlined workflow.
Dedicated function keys allow for precise, straightforward temperature setting.
Self-developed pull-out tray partition design allows for quick, convenient sample loading and retrieval.
Offers high precision, high efficiency, reliable safety, and a wide operating range for versatile sterilization needs.
specifications
Model | Digital type(D) | LTGX-30D | LTGX-45D | LTGX-65D | LTGX-85D | LTGX-125D | LTGX-230D | LTGX-625D | |
|---|---|---|---|---|---|---|---|---|---|
Liquid crystal type(L) | LTGX-30L | LTGX-45L | LTGX-65L | LTGX-85L | LTGX-125L | LTGX-230L | LTGX-625L | ||
Touch screen type(T) | LTGX-30T | LTGX-45T | LTGX-65T | LTGX-85T | LTGX-125T | LTGX-230T | LTGX-625T | ||
Mode | Double duct forced convection | Bottom air channel swirling air supply | Upper air channel swirling air supply | ||||||
Performance | Temp. range | RT+10~150℃ | |||||||
Temp. resolution | 0.1℃ | ||||||||
Temp. fluctuation | ±1℃ | ||||||||
Temp. distribution | ±2.0% | ||||||||
Constitution | Interior | mirror stainless steel plate | |||||||
Exterior | cold-rolled steel plate, surface coating with chemical resistance | ||||||||
Thermal insulation material | aluminum silicate fiber | ||||||||
Heater | Stainless steel heating tube | Stainless steel heating tube | Stainless steel heating tube | Stainless steel heating tube | Stainless steel heating tube | Ni-Cr alloy heating wire | Stainless steel heating tube | ||
Rated power | 0.8kw | 1.2kw | 1.6kw | 1.8kw | 2.3kw | 3.0kw | 5.0kw | ||
Exhaust port | I.D. 28mm*1, top | I.D. 28mm*2, top | |||||||
Controller | Temp. control mode | D-type: digital tube dual-row PID L-type:LCD dual row PID T-type:5 inch color touch screen fuzzy PID | |||||||
Temp. setting method | D/L-type: Tap four buttons to set T-type:Touch screen setting | ||||||||
Temp. display method | D-type: Measuring temp display: 4-digit digital upper ; Set temp display: 4-digit digital lower | ||||||||
L-type: Measuring temp display: LCD upper; Set temp display: LCD lower | |||||||||
T-type: Measuring temp display: Touch screen upper; Set temp display: Touch screen lower | |||||||||
Timer | 0-9999 minutes ((with timing wait function) | ||||||||
Running function | fixed value running, timing running, automatic stop | ||||||||
Program mode | D/L-type:optional,T-type:Single-stage temp control and program tempcontrol can be interchanged; store 50 experimental programs, each program canbe set with 50 steps, each step can be set for 0-6000 minutes, adjustable | ||||||||
Additional functions | deviation correction, menu button lock, power failure compensation, powerfailure memory(L/T-type:prevent overheating) | ||||||||
L/T-type:Adjustable speed fan | Constant speed fan | ||||||||
Sensor | Pt100 | ||||||||
Safety device | over-rise prevention (D-type:optional,L/T-type:standard) | ||||||||
SPEC | Internal dimensions(W*L*Hmm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*450*450 | 500*450*550 | 600*500*750 | 660*760*1250 | |
External dimensions(W*L*Hmm) | 428*505*710 | 468*538*753 | 518*550*860 | 567*640*853 | 617*639*953 | 735*625*1220 | 900*960*1840 | ||
Outer packaging size(W*L*Hmm) | 552*578*840 | 592*618*880 | 642*628*980 | 692*718*980 | 742*718*1080 | 898*814*1347 | 1051*1060*1949 | ||
Internal volume | 30L | 45L | 65L | 85L | 125L | 230L | 625L | ||
Partition bearing capacity | 15kg | ||||||||
Partition layers | 5 | 6 | 8 | 8 | 11 | 17 | 7 | ||
Space between partitions | 40mm | 35mm | 150mm | ||||||
Power supply(50/60Hz)rated current | AC220/3.6A | AC220/5.5A | AC220/7.2A | AC220/8.2A | AC220/10.5A | AC220/13.6A | AC220/7.6A | ||
Configuration that can be added | Partition, RS485 interface, printer, recorder, external communication,remote control, program temperature controller, wireless SMS alarm, U diskdata storage | ||||||||
