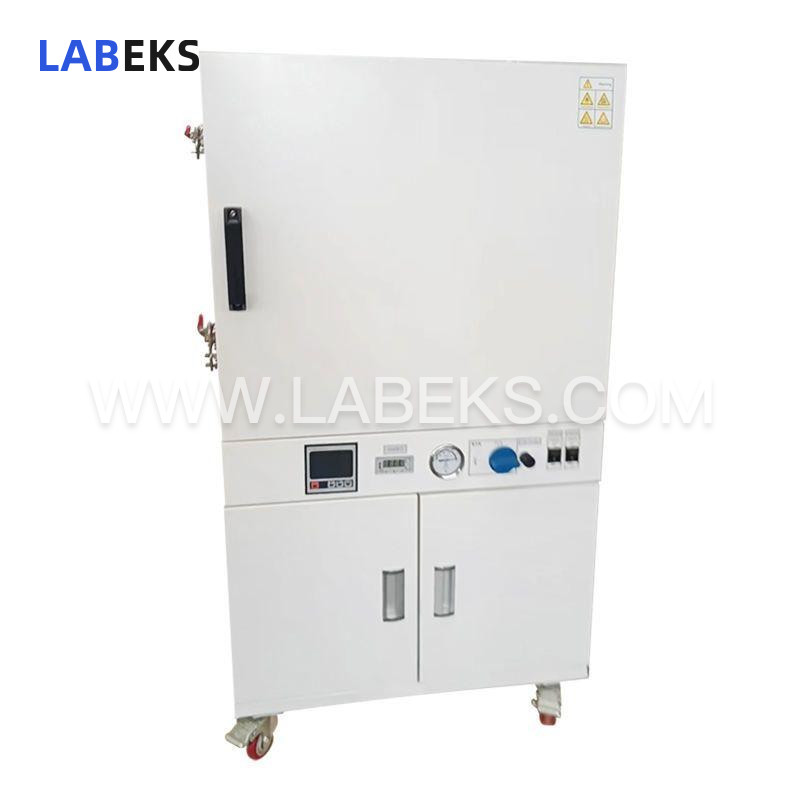

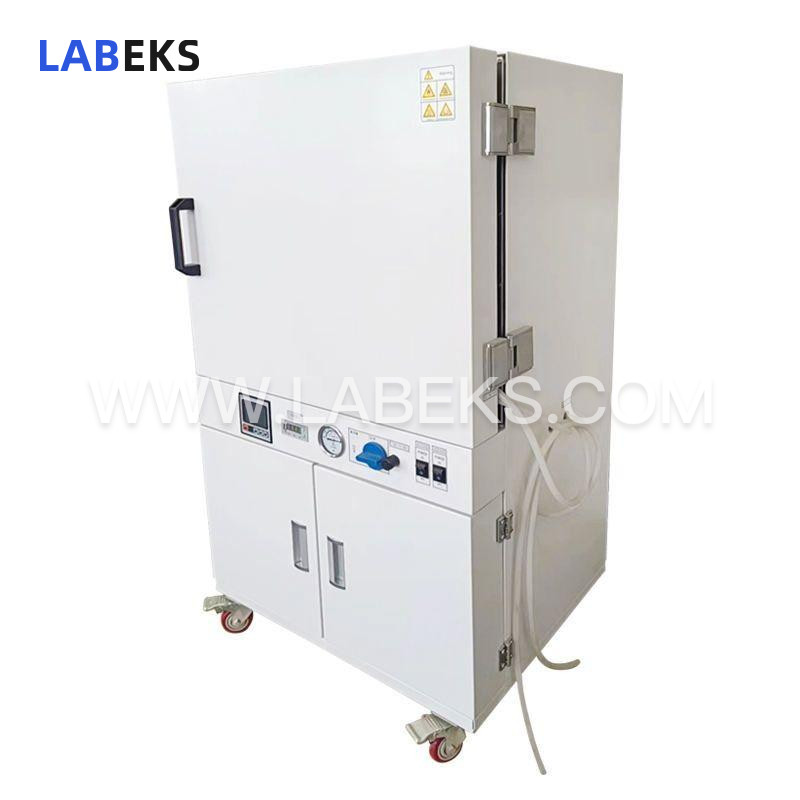

LTDZ Series High Temperature Vacuum Drying Oven for Lithium Battery Testing with PID Temperature Control
Built to perform vacuum and high-temperature process testing for the lithium battery industry, this vacuum drying oven delivers rapid drying of heat-sensitive, easily decomposed, oxidizable, and complex-component materials, along with accelerated moisture removal for powders and related substances.
- modelLTDZ Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Optimized for vacuum and high-temperature process validation in the lithium battery sector, this high-performance unit supports quick dehydration of heat-sensitive, decomposable, oxidizable, and complex-composition materials, as well as accelerated drying of powders and other similar materials.
features
1. Automatic emergency parameter storage, power-on recovery functionality, plus sensor self-diagnosis, over-temperature, and fault alarm systems ensure operational safety and continuity;
2. Microcomputer-based intelligent temperature control with PID logic operation guarantees reliable and accurate temperature regulation;
3. Exclusive jacketed heating technology provides full-enveloping, uniform heating for consistent processing results;
4. Modular control system design allows independent operation of temperature and vacuum modules, ensuring stable and efficient performance;
5. Large-screen LCD display simultaneously presents set temperature, operating temperature, and run time for clear, real-time process monitoring;
6. Pointer-type vacuum gauge offers an accuracy class of 2.5 for precise vacuum level measurement;
7. Inner tank constructed from 304 stainless steel with a 3MM thickness; outer shell made of high-quality cold-rolled steel plate with an electrostatically sprayed, durable paint finish;
8. One-piece molded silicone sealing ring provides exceptional high-temperature resistance, anti-aging properties, and superior airtight sealing;
specifications
Model | LTDZ-4025L | LTDZ-4030L | LTDZ-4052L | LTDZ-4091L | LTDZ-4215L | LTDZ-4252L | LTDZ-4430L | ||
|---|---|---|---|---|---|---|---|---|---|
LTDZ-5025L | LTDZ-5030L | LTDZ-5052L | LTDZ-5091L | LTDZ-5215L | LTDZ-5252L | LTDZ-5430L | |||
Performance | Operatingtemperature range | RT+10-400/RT+20-500℃（Normal workingmaximum temperature 350℃/450℃） | |||||||
Ultimate vacuum | <133PA | ||||||||
Temperatureresolution | 0.1℃ | ||||||||
Temperature fluctuation | ±1℃ | ||||||||
Composition | Interior | 304 stainlesssteel | |||||||
Exterior | cold platespraying | ||||||||
Thermalinsulation material | aluminumsilicate fiber | ||||||||
Heater | Partition heater | ||||||||
Vacuum gauge | pointer type | ||||||||
Controller | Temperaturecontrol mode | Color LCDintelligent control PID | |||||||
Temperaturesetting method | Tap the buttonto set | ||||||||
Temperaturedisplay method | Measuringtemperature display: 4-digit digital upper display; Set temperaturedisplay: 3-4 digital lower display | ||||||||
Operationfunction | Constant valueoperation, timing operation, automatic stop, power-off memory, sensordeviation correction | ||||||||
Program mode | Optional | ||||||||
Sensor | Pt100 | ||||||||
Safety device | Over temperaturealarm, over current and overload protection, fast fuse, grounding protection | ||||||||
Specifications | Internaldimensions (W * D * H)(MM) | 300*300*275 | 320*320*300 | 410*370*345 | 450*450*450 | 560*640*600 | 600*600*700 | 630*810*845 | |
External dimensions(W * D * H)(MM) | 400℃ | 480*500*1150 | 500*540*1160 | 580*550*1285 | 640*690*1470 | 750*870*1650 | 800*840*1750 | 830*1050*1750 | |
500℃ | 640*500*1020 | 580*550*1220 | 670*600*1270 | 710*680*1380 | 755*870*1680 | 860*830*1630 | 890*940*1780 | ||
Inner volume | 25 L | 30L | 52L | 91L | 215L | 252L | 430L | ||
Shelf load-bearingcapacity | 15 kg | ||||||||
Number ofclapboard layers | 2 layers | ||||||||
Power supply | 220V | 380V | |||||||
Power | 1.2/2.1KW | 1.35/2.3KM | 1.85/2.5KM | 3.35/3.5KM | 4.55/5.15KM | 5.55/6.5KM | 10/11KM | ||
Net weight/grossweight KG | 98/115 | 110/127 | 131/149 | 164/183 | 252/275 | 268/292 | 452/495 | ||
