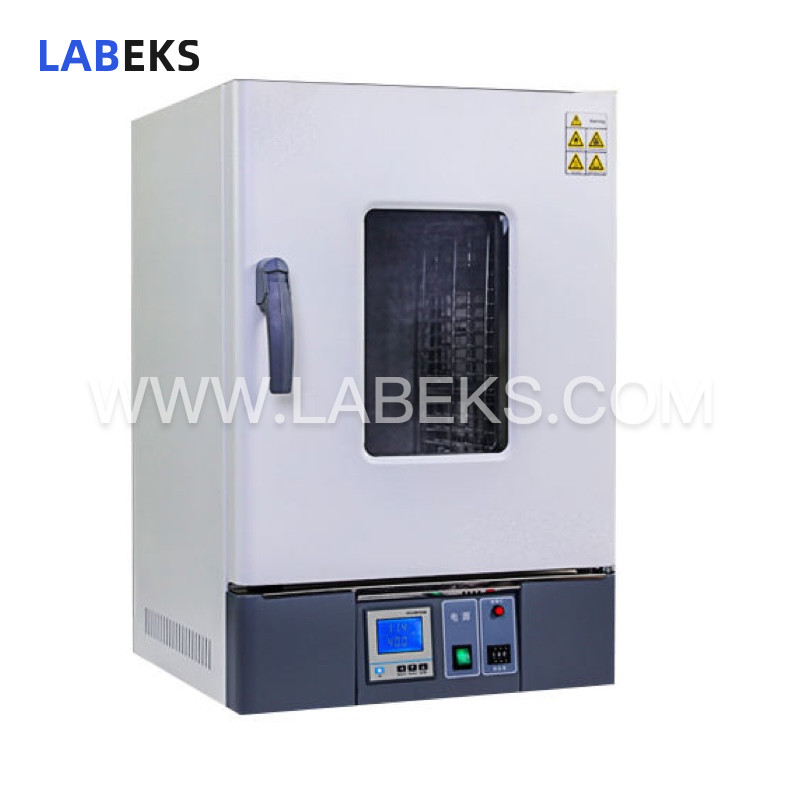

LPL-DLT Series Heating Incubator: High Precision for Strain Storage & Biological Culture

Designed for universities, biology, agriculture and research institutions, this heating incubator delivers precise constant temperature environments to support strain preservation, biological cultivation and scientific research projects.

  • model
    LPL-DLT Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

An essential piece of equipment for universities, biology laboratories, agricultural facilities and research institutions, this unit enables strain preservation, biological cultivation and scientific research activities.

features

1.Centrifugal turbine-driven forced air circulation ensures superior temperature uniformity within the chamber

2.Vertical dual-duct air jacket structure optimizes internal air flow distribution

3.Delivers high temperature control precision, efficient operation, reliable safety protection and a broad operating range

4.Intuitive operation with fixed-value, timed and automatic stop working modes

5.Dedicated function keys enable straightforward temperature parameter configuration

6.Auxiliary menu supports over-temperature alarm, temperature deviation correction and menu lock functions

7.Forced fan cooling intake structure keeps the fan’s maximum operating temperature <50 ℃, ensuring long-term, durable service

8.Variable-speed fan accommodates lightweight, small-sized and powdery sample types

9.Insulated door technology maintains low external door temperatures and prevents deformation during high-temperature operation

10.Pull-out tray partition design allows for quick and convenient sample access and organization

specifications

Model

Digital Liquid

LPL-30D

LPL-45D

LPL-65D

LPL-85D

LPL-125D

LPL-230D

Standard type

LPL-30L

LPL-45L

LPL-65L

LPL-85L

LPL-125L

LPL-230L

High matching

LPL-30T

LPL-45T

LPL-65T

LPL-85T

LPL-125T

LPL-230T

Internalcirculation method

Double ductforced convection

Performance

Temperaturecontrol range

RT+10-80℃

Temperatureresolution

0.1℃

Constanttemperature fluctuation

±1℃

Temperatureuniformity

±1%

Constitute

InteriorMaterial

stainless steel

ExteriorMaterial

Cold rolledsteel sheet, surface coating

Thermalinsulation material

Aluminumsilicate fiber

Heater

Stainless steelheating pipe

Nickel-chromiumalloy heating wire

Rated power

0.15kw

0.25kw

0.50kw

0.55kw

0.6kw

0.7kw

Exhaust vent

Inner diameter28mm*1, located at the top

Controller

Temperaturecontrol mode

D: Digital tubedual-row PID; L: LCD dual-row PID; T: 5-inch color touch screen fuzzy PID

Temperaturesetting mode

D/L: Touchfour-button setting and touch screen input setting; T: touch screen setting

Temperaturerepresentation

T:Measurementtemperature display:Upper display on touch screen, set temperaturedisplay:lower display on touch screen

D: Measurementtemperature display: 4-digit upper display; set temperature display: 4-digitlower display

L: Measurementtemperature display: LCD upper display; set temperature display: LCD lowerdisplay

Timer

0~9999min (withtiming waiting function)

Operationfunction

fixed value operation,timing operation, automatic stop

Program mode

D/L is optional,T single-stage temperature control and program temperature control can beinterchanged, 50 experimental programs can be stored, each program can be setwith 50 steps, and each step can be set for 0-6000 minutes, adjustable

Additionalfunctions

Deviationcorrection, menu key locking, power failure compensation, power failurememory

Sensor

PT100

Safety device

Over rise alarm,type D optional,L、T standard

Specifications

Internaldimensions (mm)

310*310*310

350*350*350

400*360*450

450*450*450

500*450*550

600*500*750

ExternalDimensions (mm)

428*505*710

468*538*753

518*550*860

567*640*853

617*639*953

735*625*1220

Package size

552*578*840

592*618*880

642*628*980

692*718*980

742*718*1080

898*814*1347

Internal volume

30L

45L

65L

85L

125L

230L

Diaphragmbearing

15kg

Number ofshelves

5

6

8

8

11

17

Shelf spacing

40mm

Rated current

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/8.2A

AC220V/10.5A

AC220V/13.6A

Configurationcan be increased

Shelf, RS485interface, printer, recorder, external communication, remote control, Programtemperature controller, wireless SMS alarm, U disk data storage
