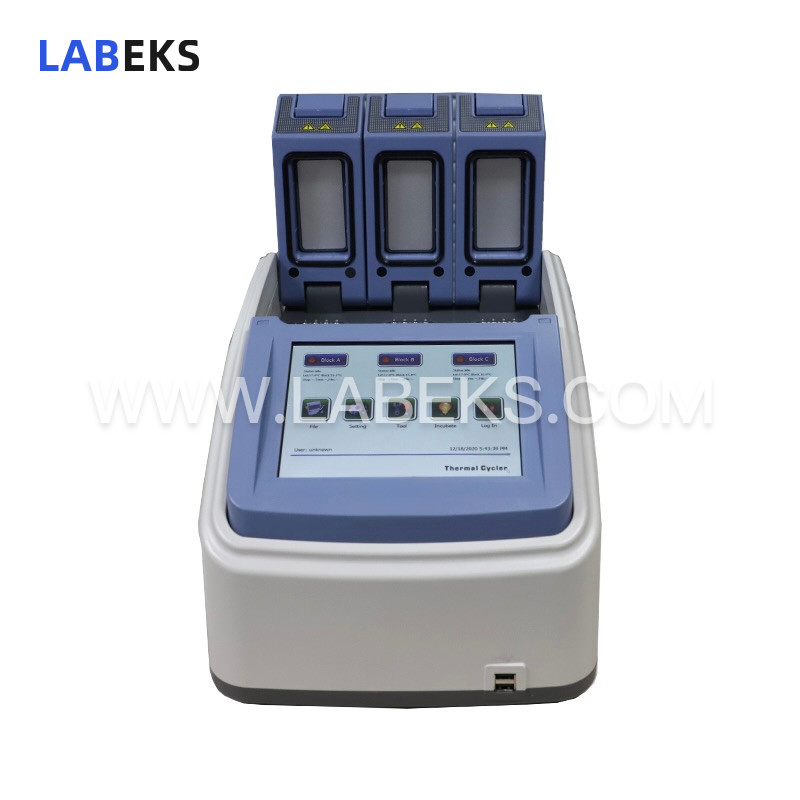

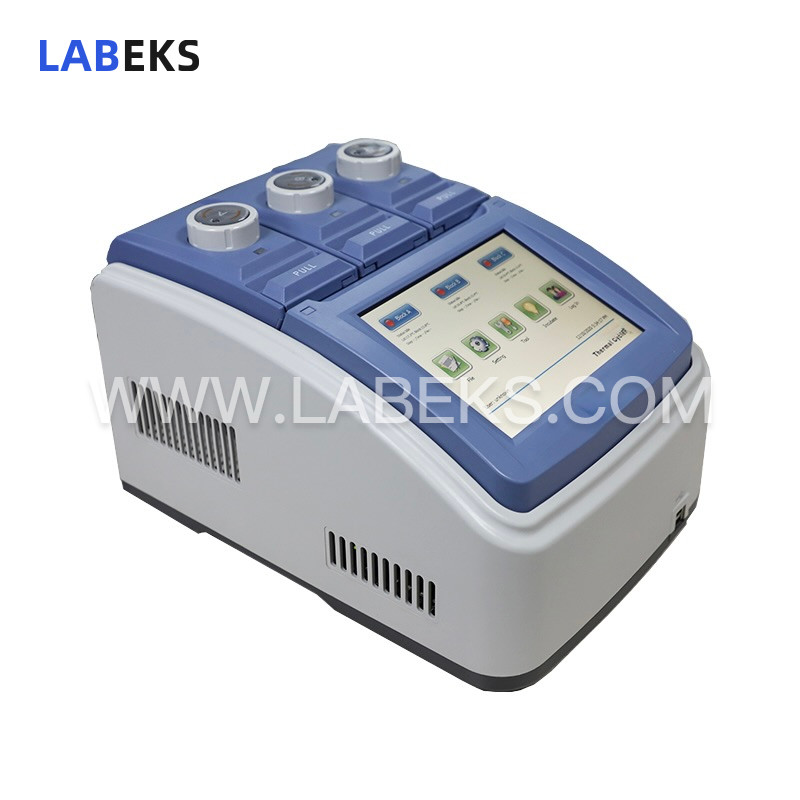

LPCR-3X Three Slot Thermal Cycler: 5℃/s Heating Rate & GLP-Compliant Reporting
Integrating cutting-edge technologies including a Windows operating system, full-color touchscreen, computer connectivity, and simultaneous three-module operation, this thermal cycler enhances qualitative PCR performance to meet the rigorous demands of research and clinical labs.
- modelLPCR-3X
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Utilizing American Marlow semiconductor cooling plates, this system achieves a maximum temperature ramping rate of over 5 degrees per second and supports more than 200,000 cycles. It integrates a comprehensive suite of advanced technologies: a Windows operating system, full-color touchscreen, independent three-module operation, computer online connectivity, printing functionality, large-capacity data storage, and expandability. These features optimize the performance of qualitative PCR products to their full potential, with robust capabilities that fulfill the requirements of high-demand experiments.
features

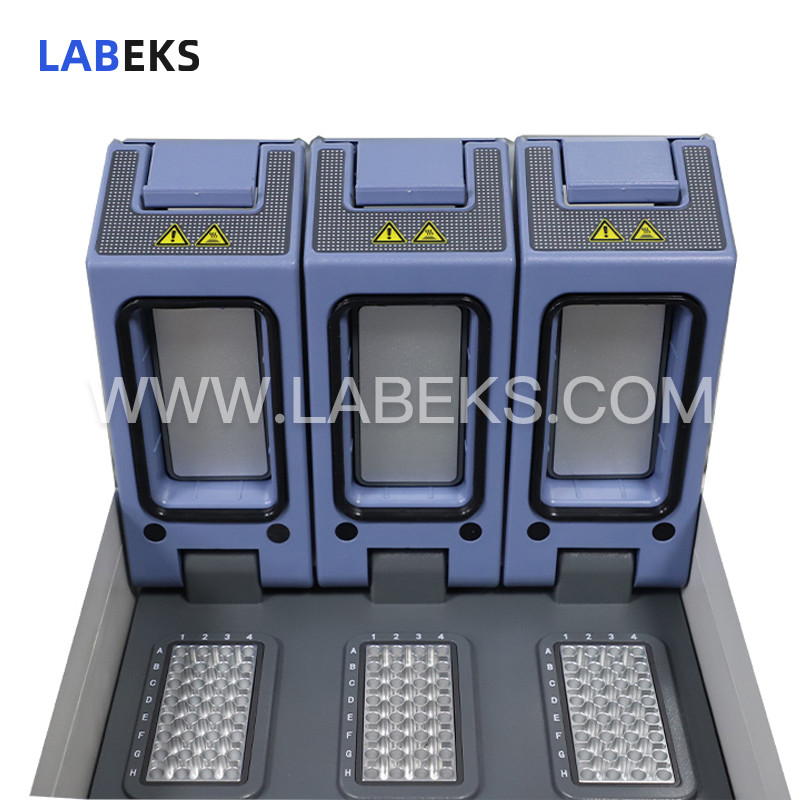

1. Independent three-slot module control enables simultaneous execution of three distinct PCR programs, maximizing experimental throughput;
2. Fast heating and cooling rates (up to 4.5 ℃/s) reduce experimental turnaround time, conserving valuable lab resources;
3. Six dedicated long-life Peltier modules form three independent temperature control loops, ensuring precise zone-specific temperature regulation;
4. Anodized engineering-grade aluminum blocks retain excellent thermal conductivity while offering superior corrosion resistance;

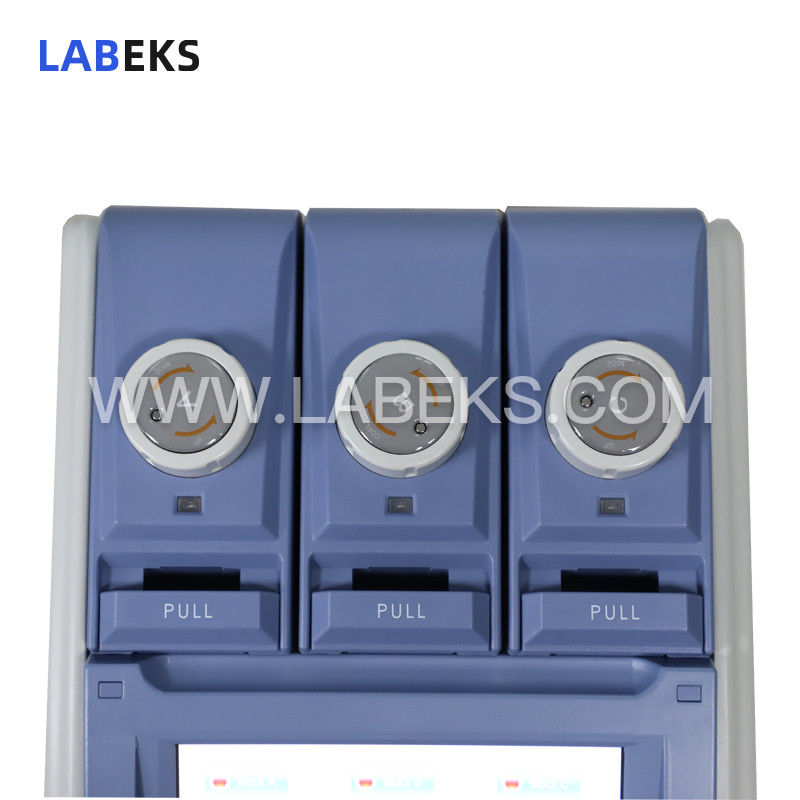

5. Steplessly adjustable hot lid with pressure protection accommodates test tubes of varying heights, preventing sample thawing and evaporation;
6. Intuitive Windows-based interface with an 8-inch high-definition TFT color touchscreen (800×600 pixels, 16 true colors) and graphical menu navigation ensures effortless operation;
7. One-touch rapid incubation mode supports denaturation, enzymatic digestion/ligation, ELISA, and other common laboratory procedures;
8. 11 preloaded standard program templates allow for quick customization of required experimental protocols;
9. Folder-based program management supports custom directory creation for organized protocol storage;
10. Real-time display of program progress and remaining time, with support for mid-program adjustments;
11. Large data storage capacity can save up to 10,000 experimental program files;
12. Customizable hot lid temperature and working modes cater to diverse experimental requirements;
13. Automatic power-off protection resumes unfinished cycles once power is restored, ensuring uninterrupted amplification processes;
14. GLP-compliant experimental reports record step-by-step program operation information, providing precise data support for result analysis;
15. Three-tier user login management with password protection safeguards data security;
16. USB interface enables data backup/retrieval and support for USB mouse control;
17. Software updates can be completed via USB flash drive or LAN connection;
18. Network connectivity allows a single device to control multiple PCR instruments simultaneously;
19. Optional mini wireless Bluetooth printer enables easy, accurate recording of experimental program information;
20. Email notification functionality alerts users upon completion of experimental programs.
specifications
Model | LPCR-3X |
|---|---|
Capacity | 3×(32×0.2ml ) |
Temperature Range | 0~100℃ |
Heating Rate | 5℃/s |
Cooling Rate | 4℃/s |
Uniformity | ≤±0.3℃ |
Accuracy | ≤±0.2℃ |
Display Resolution | 0.1℃ |
Temperature Control | Block\Tube |
Ramping Rate Adjustable | 0.1~5℃ |
Gradient Mode | Three slot can be set independently |
Hot Lid Temperature | 30~110℃ |
Hot Lid Height Adjustable | Stepless Adjustable |
Number of Programs | 10000 +(USB FLASH) |
Max. No. of Step | 30 |
Max. No. of Cycle | 100 |
Time Increment/Decrement | 1 Sec ~ 600 Sec(support long PCR test) |
Temp. Increment/Decrement | 0.1~10.0℃(support Touchdown test) |
Pause Function | Yes |
Auto Data Protection | Yes |
Hold at 4℃ | Forever |
Language | Chinese/English |
Yes | |
LAN to computer | Yes |
LCD | 8 inch,800×600 pels, TFT |
Communication | USB2.0 , LAN |
Dimensions | 390mm×270mm×255mm (L×W×H) |
Weight | 9kg |
Power Supply | 85~264VAC , 47~63Hz , 600 W |
