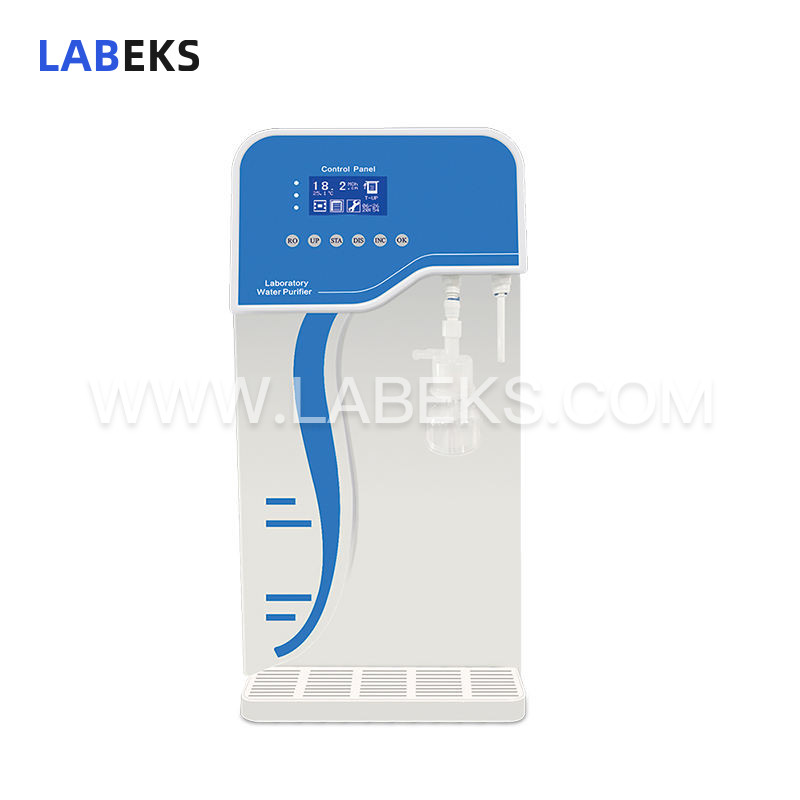

LMN-T Series Laboratory Ultrapure Water Purifier: 18.25 MΩ·cm Water for HPLC & Microbiological Testing
Delivering ASTM Type I ultrapure water at 18.25 MΩ·cm @25℃, the LMN-T Series ultrapure water purifier supports biochemical analyzers, routine chemical testing, biological histology, microbiological testing, HPLC, photographic film processing, and microbiological culture media preparation.
- modelLMN-T Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
LMN-T Series Laboratory Ultrapure Water Purifier is a high-efficiency water purification system designed to generate ultrapure water, ideal for a broad spectrum of applications across multiple laboratory and industrial sectors. Leveraging state-of-the-art filtration and purification technologies, this system guarantees exceptional water purity, effectively reducing contaminants, ions, and organic compounds to ultra-low concentrations.
features
1. Backlit LCD screen with dual real-time water quality monitoring provides simultaneous display of RO conductivity, UP resistivity, and equipment operating status indicators.
Intuitive menu-based operation allows modification and configuration of multiple measurement parameters; comprehensive operating status displays and alerts deliver real-time notifications for high-pressure shutdown, low-pressure alarm, and full-tank shutdown events.
2. Integrated management capabilities cover deionized water and ultrapure water production, system water intake, and system circulation processes.
3. Automatic alarms activate for RO and ultrapure water quality deviations, with proactive filter replacement reminders; configurable water dispensing timers and one-touch dispensing are supported, with RO and UP water intake status indicators offering clear guidance.
4. Dual-wavelength UV germicidal lamps effectively sterilize water and reduce TOC levels; an optional original imported 5000D ultrafiltration module enables efficient removal of endotoxins and pyrogens.
5. Comprehensive protective features include water shortage protection, high-pressure full-tank protection, and fault alarm mechanisms.
6. Complete historical alarm logging, water consumption tracking, and consumable lifespan management are available, with a USB port for exporting historical alarm and water intake data.
7. Dual password protection system includes user-level password access and factory-mode initial password safeguards.
8. Scheduled standby and automatic shutdown functions are provided; when the preset shutdown time is reached, all outputs cease automatically and the system enters shutdown mode.

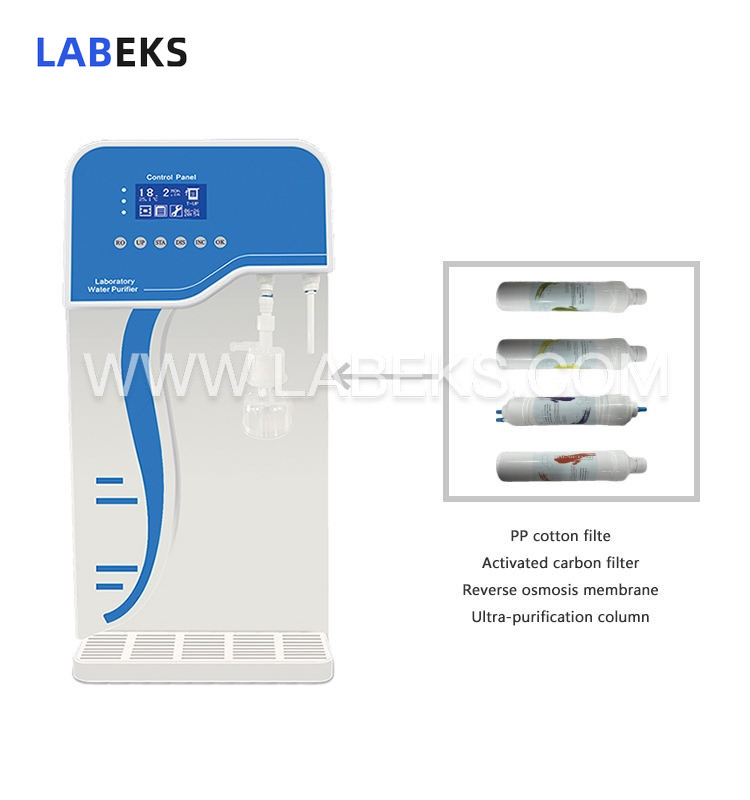

9. The chassis features a spray-coated finish and side-door access design; the filtration system uses 11″ U-type Korean quick-connect filter columns for effortless replacement and maintenance, with support for water quality and output capacity upgrades.
10. Ultra-low radiation emission is ensured through advanced electromagnetic compatibility engineering.
11. A portable test pen is included, enabling on-demand testing of TDS content, conductivity, and water temperature.
specifications
Model | LMN-T | LMN-TF | LMN-TV | LMN-TVF |
|---|---|---|---|---|
Type | Standard | Low Endotoxin | Low TOC | Comprehensive |
Water making speed | 10L/H,20L/H,30L/H | |||
Water requirements | Urbantap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
RO waterParameter | ||||
Ion rejection rate | 97%-99% | |||
Organic matter rejection rate | >99% whenMW>200 Dalton | |||
Particle and bacterial rejection | >99% | |||
Application | Front system of ultra-pure water machine, bufferconfiguration, photosensitive film washing, water supply for stabilityexperiment box, meteorological experiment equipment, hydrogen generator,battery adding liquid, electroplating and other instruments | |||
UP waterParameter(ASTM TYPE I grade water) | ||||
Resistivity | 18.25 M Ω. cm @ 25 ℃ | |||
Heavy metal ion | <0.01 ppb | |||
Total organic carbon (TOC) * | <10ppb | <3ppb | ||
Bacteria | <1 cfu/ml *(with terminal filter) | |||
Particulate matter | <1/ml | |||
Pyrogen | N/A | <0.001 Eu/ml | N/A | <0.001 Eu/ml |
Ribonuclease | N/A | <1pg/ml | N/A | <1pg/ml |
Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
Application | Allkinds of physical and chemical testing, biochemical analysis, bloodexamination, microanalysis, flushing special, HPLC, IC, GC, analysisexperiment | PCR,PPT level analysis, isotope analysis, molecular biology, life science, CDC,drug control institute, quality inspection institute | Atomicabsorption/emission spectrometry, mass spectrometry, TOC detection, Highsensitivity ICP/MS， environmental monitoring, biochip development, traceorganic matter analysis | Molecularbiology, Life sciences, gene research, cell culture, amino acid analysis,protein purification, toxicology, drug development, medical testing |

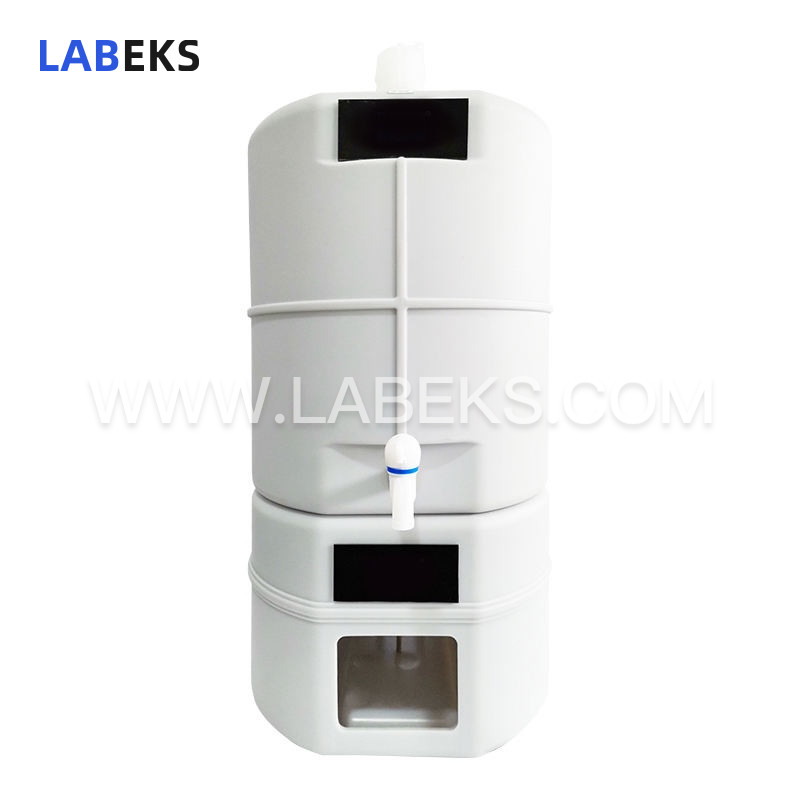

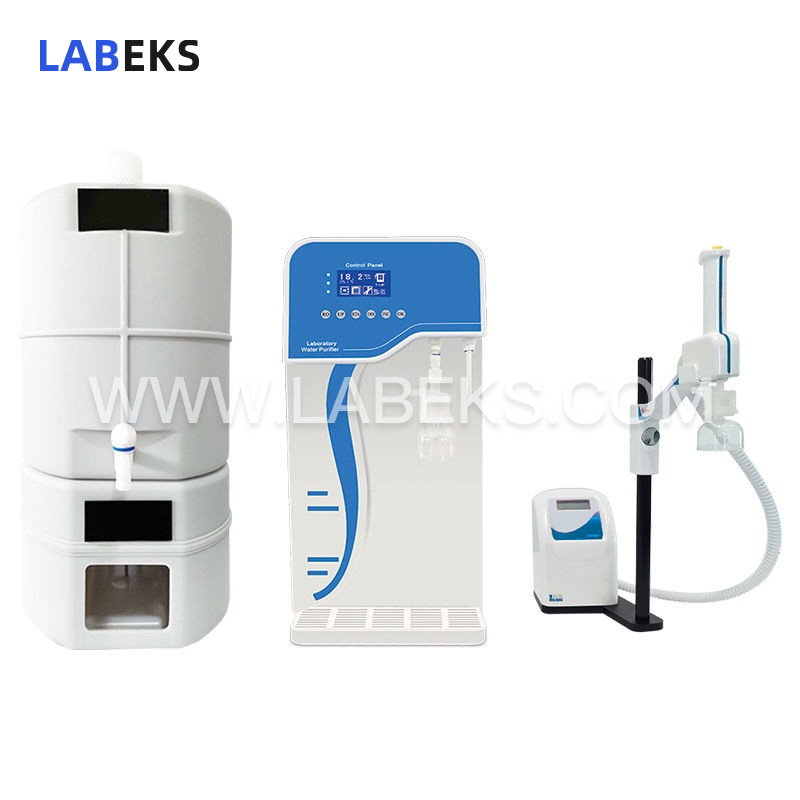

System configuration | Mainmachine (including 1 set of purification column)+12 L external pressure waterstorage tank +TDS pen + accessory kit | |||
Electrical requirements | 100-240V,50/60Hz, 48-72W | |||
Dimensions | 312×475×475mm | |||
Weight | 30Kg | |||
