LMN-M Series Ultrapure Water System with 18.25 MΩ.cm Resistivity for HPLC & Molecular Biology
Designed to deliver ASTM Type I-grade water with ultra-low contaminants, the Ultrapure Water System is ideal for biochemical analyzers, general chemistry testing, biological histology studies, microbiological analyses, high-performance liquid chromatography, photographic film processing, and preparing microbiological culture media.
- modelLMN-M Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As a high-performance water purification system, the LMN-M Series Ultrapure Water Machine is purpose-built to generate ultra-pure water for diverse industrial and laboratory applications. Leveraging advanced filtration and purification technologies, it guarantees exceptional water purity by reducing contaminants, ions, and organic substances to extremely low concentrations.
features
11. Dual-wavelength UV germicidal lamp for effective sterilization and TOC reduction; optional original imported 5000D ultrafilter module for efficient endotoxin and pyrogen removal
8. Backlit LCD screen with real-time dual-water monitoring, capable of simultaneously displaying RO conductivity, UP resistivity values, and equipment operational status
Intuitive menu-based operation allows modification and setting of multiple measurement parameters; real-time operational status displays and indicator alerts provide timely updates on high-pressure shutdown, low-pressure alarms, and tank-full shutdown events
9. Water quality alarm for RO and ultra-pure water deviations, automatic filter replacement reminders, programmable water dispensing timers; one-touch water dispensing with RO/UP water intake indicator alerts
4. Full suite of protective features: low-water protection, high-pressure overflow protection, and fault alarm system
2. Programmable standby and auto-shutdown functionality: the system automatically ceases all output and enters shutdown mode once the preset time elapses
3. Comprehensive management capabilities for deionized water and ultra-pure water production, system water intake, and internal circulation
6. Comprehensive tracking for alarm history, water consumption, and consumable lifespan; includes a USB port for exporting alarm and water intake logs
1. Dual password security system, including user-specific password protection and factory-mode initial password safeguards
5. Ultra-low radiation emissions enabled by advanced electromagnetic compatibility engineering
7. Chassis features spray-coated finish and side-door access for easy maintenance; filtration system uses 11″ U-type Korean quick-connect filter columns for hassle-free replacement, with support for water quality and output capacity upgrades
10. Included portable test pen enables on-demand measurement of TDS levels, conductivity, and water temperature
specifications
Model | LMN-M | LMN-MF | LMN-MV | LMN-MVF |
|---|---|---|---|---|
Type | Standard | Low Endotoxin | Low TOC | Comprehensive |
Water making speed | 10L/H,20L/H,30L/H | |||
Water requirements | Urbantap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
RO waterParameter | ||||
Ion rejection rate | 97%-99% | |||
Organic matter rejection rate | >99% whenMW>200 Dalton | |||
Particle and bacterial rejection | >99% | |||
Application | Front system of ultra-pure water machine, bufferconfiguration, photosensitive film washing, water supply for stabilityexperiment box, meteorological experiment equipment, hydrogen generator,battery adding liquid, electroplating and other instruments | |||
UP waterParameter(ASTM TYPE I grade water) | ||||
Resistivity | 18.25 M Ω. cm @ 25 ℃ | |||
Heavy metal ion | <0.01 ppb | |||
Total organic carbon (TOC) * | <10ppb | <3ppb | ||
Bacteria | <1 cfu/ml *(with terminal filter) | |||
Particulate matter | <1/ml | |||
Pyrogen | N/A | <0.001 Eu/ml | N/A | <0.001 Eu/ml |
Ribonuclease | N/A | <1pg/ml | N/A | <1pg/ml |
Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
Application | Allkinds of physical and chemical testing, biochemical analysis, bloodexamination, microanalysis, flushing special, HPLC, IC, GC, analysisexperiment | PCR,PPT level analysis, isotope analysis, molecular biology, life science, CDC,drug control institute, quality inspection institute | Atomicabsorption/emission spectrometry, mass spectrometry, TOC detection, Highsensitivity ICP/MS， environmental monitoring, biochip development, traceorganic matter analysis | Molecularbiology, Life sciences, gene research, cell culture, amino acid analysis,protein purification, toxicology, drug development, medical testing |

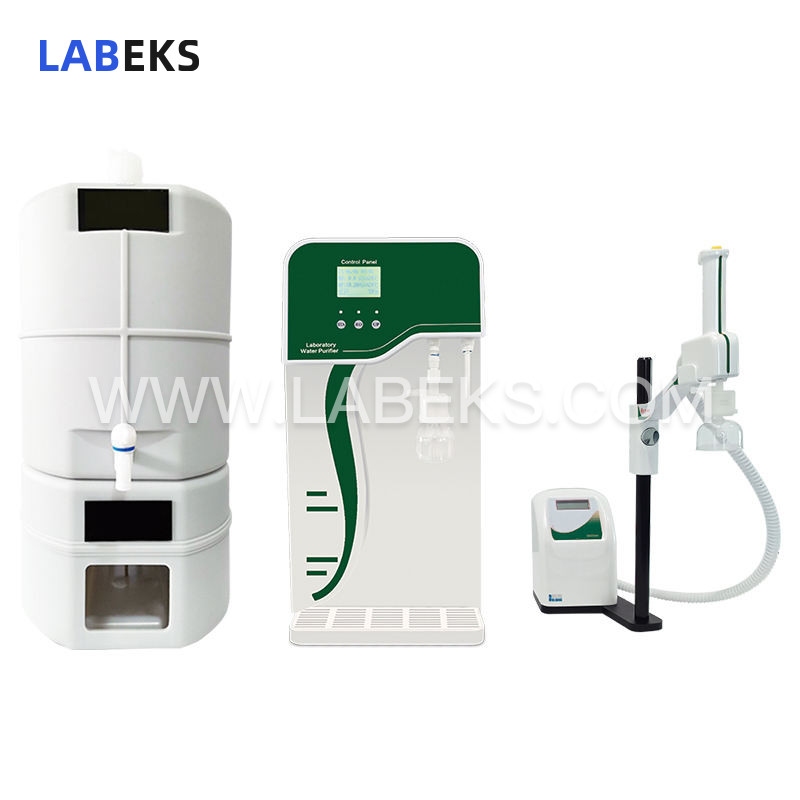

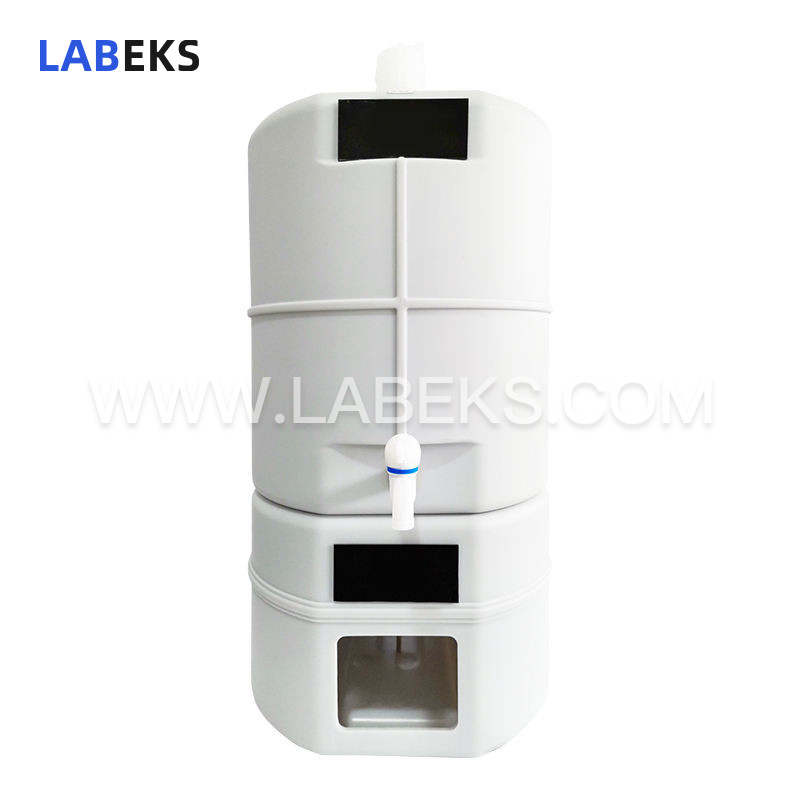

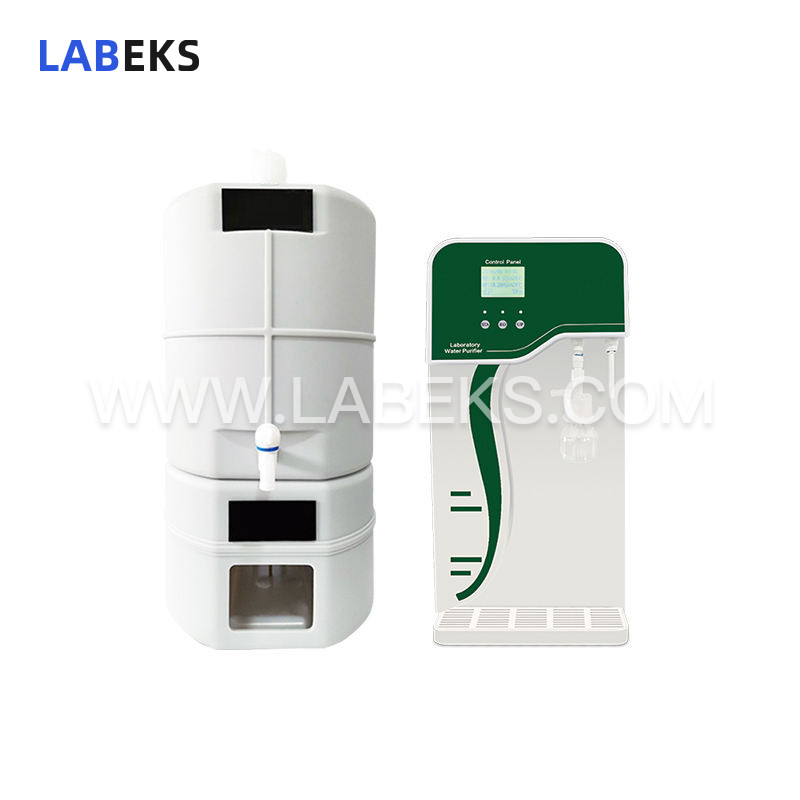

System configuration | Mainmachine (including 1 set of purification column)+12 L external pressure waterstorage tank +TDS pen + accessory kit | |||
Electrical requirements | 100-240V,50/60Hz, 48-72W | |||
Dimensions | 312×475×475mm | |||
Weight | 30Kg | |||
