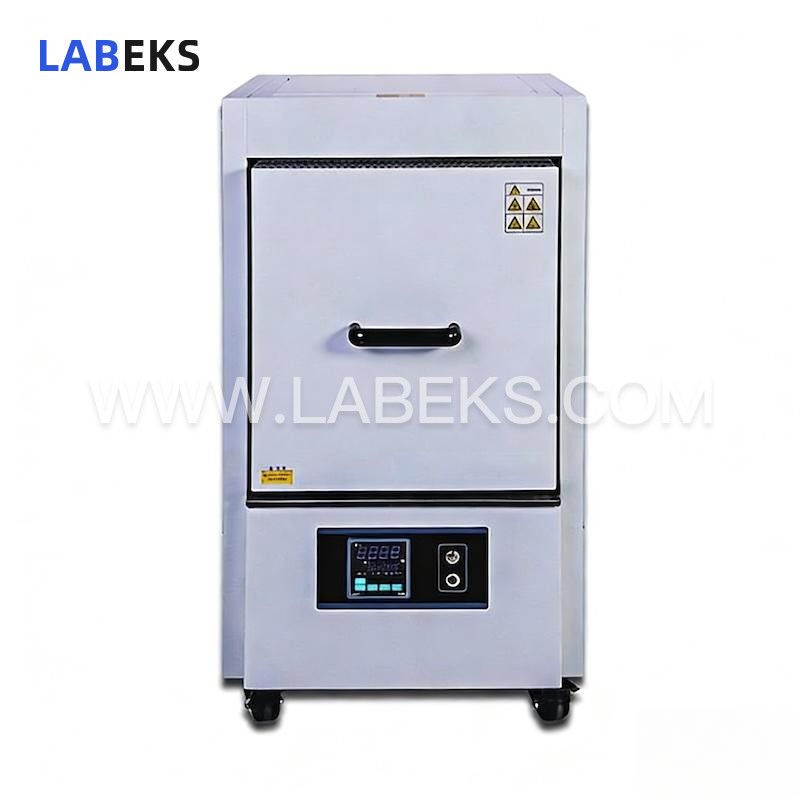

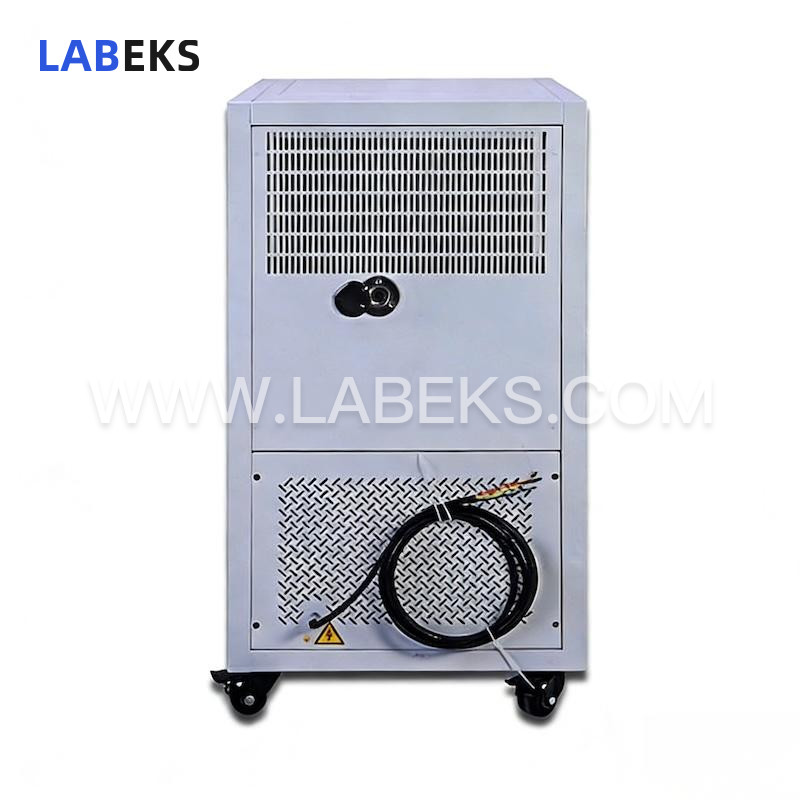

LMFC-18 1800°C Ceramic Fiber Muffle Furnace with ±1°C Temp Uniformity
Designed for precise sintering, melting, elemental analysis and physical determination within 300～1800°C, the Ceramic Fiber Muffle Furnace (LMFC-18 Series) delivers ±1°C temperature distribution accuracy, with inner volumes available from 2L to 20L.
- modelLMFC-18 Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Box-type resistance furnaces, commonly referred to as muffle furnaces, are essential basic heating instruments for laboratories. They are widely utilized in industrial and mining enterprises, aerospace systems, research institutes, universities and other laboratory settings, and are indispensable for processes such as sintering, melting, heat treatment, and volatile substance handling.
features
1. Safety safeguards including overheating alarm, menu lock, overheating prevention, door-activated power shutoff and delayed power restart ensure reliable operational protection
2. Precise temperature regulation is enabled by the optimal integration of a high-accuracy microcomputer temperature controller and precision sensor
3. Vacuum-formed polycrystalline mullite fiber chamber ensures highly efficient thermal insulation, with three-sided heating via specialized alloy heating wires delivering outstanding temperature uniformity
4. Double-shell air insulation design keeps external surface temperatures low for added safety
5. Parallel side-sliding furnace door keeps hot internal components isolated from operators during access
6. Integrated, lightweight and compact structure saves valuable laboratory space
7. A dedicated protection system automatically cuts power when the door is opened and restores power with a delay to enhance safety
8. Equipped with an exhaust device to facilitate smooth ashing processes
9. Dedicated function keys provide straightforward, intuitive temperature setting
10. Auxiliary menu functions support overheating alarm, deviation correction, menu lock and overheating prevention mechanisms
specifications
Model | Singlesegment type(D) | LMFC-2-18D | LMFC-4-18D | LMFC-8-18D | LMFC-12-18D | LMFC-16-18D | LMFC-20-18D | |
|---|---|---|---|---|---|---|---|---|
Programtype(P) | LMFC-2-18P | LMFC-4-18P | LMFC-8-18P | LMFC-12-18P | LMFC-16-18P | LMFC-20-18P | ||
Touchtype(T) | LMFC-2-18T | LMFC-4-18T | LMFC-8-18T | LMFC-12-18T | LMFC-16-18T | LMFC-20-18T | ||
Performance | TemperatureRange | Long-termuse: 1780℃; maximumuse of 1800℃for twohours; auto-tuning maximum setting temperature is 1700℃ | ||||||
TemperatureResolution | 1℃ | |||||||
TemperatureUniformity | ±1℃ | |||||||
Heating-upTime | ≤60min | |||||||
Structure | Shell | Sprayingcold rolled steel | ||||||
Chamber | polycrystalline mullite fiber | |||||||
Exhaust vent | Outerdiameter: 22Inside diameter: 18 | |||||||
Heater | Siliconmolybdenum rods | |||||||
ThermalInsulation | Doubleforced air diversion | |||||||
Open Mode | Sliding | |||||||
HeatingPower | 3kw | 6kw | 9kw | 12kw | 15kw | 18kw | ||
Controller | Controller | D:Single-stage temperature control, digital display P:Imported program temperature control, digital display T:7-inch color touch screen program temperature control | ||||||
Control Mode | MicrocomputerPID control heating output | |||||||
Setting Mode | D/P:Slightly touch the five buttons, digital setting mode T:Finger touch settings | |||||||
Display Mode | D/P:Double row LED digital display T:LCD display | |||||||
Timer | 0~999.9hours | |||||||
OperationFunction | D: Fixedvalue operation P/T: Fixedvalue operation, program operation | |||||||
Program Mode | D: Single-stageoperation P: Program running,4 curves, total of 40 segments T: Max. 50segments | |||||||
Sensor | B-typethermocouple | |||||||
AuxiliaryFunction | D/P: Correctfunctioning, door control functioning T: Correctfunctioning, door control functioning, real-time curve recording, USB data export | |||||||
SafetyDevice | Over currentleakage protection switch | |||||||
Specification | InteriorSize(mm) | 150*90*150 | 150*150*150 | 300*150*150 | 300*200*200 | 300*260*210 | 300*260*260 | |
ExteriorSize(mm) | 600*762*1102 | 600*762*1102 | 600*871*1102 | 680*865*1182 | 740*860*1182 | 740*870*1232 | ||
PackingSize(mm) | 760*885*1310 | 760*885*1310 | 760*985*1310 | 840*985*1390 | 900*985*1390 | 900*985*1440 | ||
Volume | 2L | 4L | 8L | 12L | 16L | 20L | ||
NW/GW(KG) | 70/90 | 80/100 | 110/130 | 150*170 | 175/195 | 210/230 | ||
Power Supply | AC220V 50HZ | AC380V 50HZ | ||||||
StandardConfiguration | Equipment*1set,Instruction*1pc, Certificate*1pc | |||||||
