LMFC-12 1200°C Ceramic Fiber Muffle Furnace with ±1°C Uniformity for Sintering Applications
Designed for precisely controlled sintering, melting, elemental analysis, and physical determination within 300～1200°C, this ceramic fiber muffle furnace (LMFC-12 series) delivers ±1°C temperature distribution accuracy, with available inner volumes of 2L, 7L, 16L, 24L, and 36L.
- modelLMFC-12 Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
A box-type resistance furnace, commonly referred to as a muffle furnace, is a fundamental heating apparatus for laboratories. It is widely utilized in mining and manufacturing facilities, aviation and aerospace systems, research institutions, universities, and other experimental settings. This unit serves as an indispensable tool for processes including sintering, melting, heat treatment, and volatile substance analysis.
features
1. Precise temperature control achieved through the optimal combination of a high-precision microcomputer temperature controller and precision sensor
2. Vacuum-formed polycrystalline mullite fiber chamber ensures efficient heat preservation, while three-sided heating with nickel-chromium-aluminum alloy wires delivers exceptional temperature uniformity
3. Comprehensive safety protection system: automatic power cut-off when the furnace door is opened, with delayed power resumption to safeguard operators
4. Multi-layer safety features: overheating alarm, menu lock, overheating prevention mechanism, door-activated power cut-off, and delayed power restoration
5. Double-shell air insulation design maintains a low external surface temperature for enhanced safety
6. Integrated, lightweight, and compact structural design for space-efficient installation

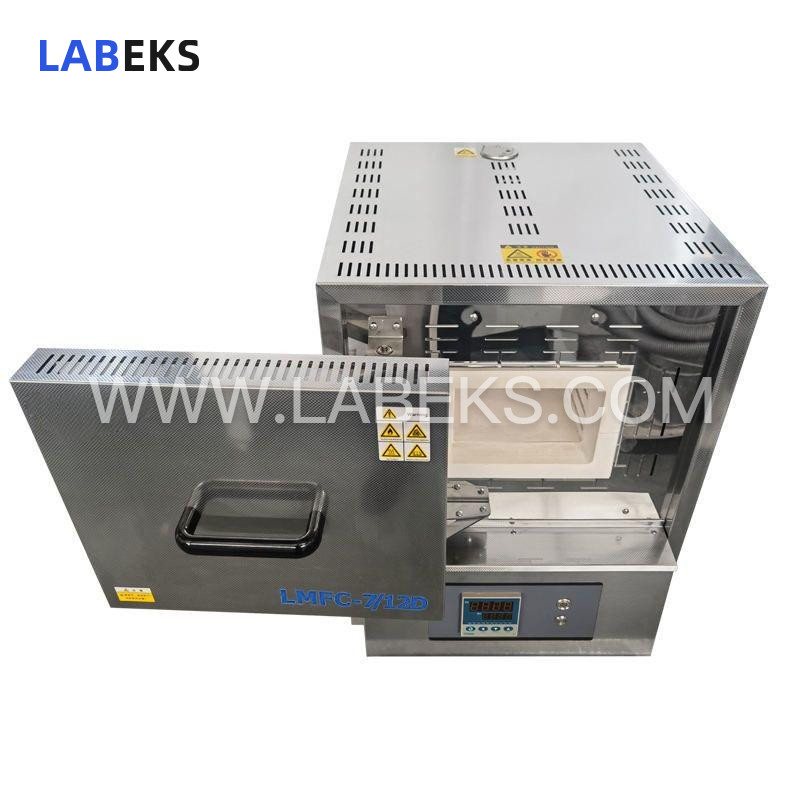

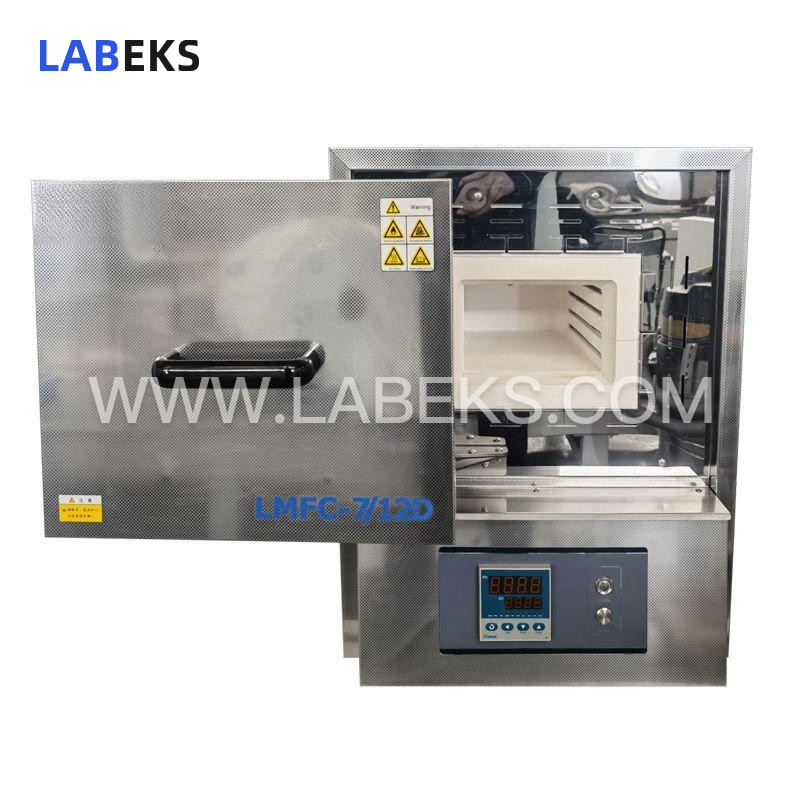

7. Side-sliding parallel furnace door keeps the high-temperature chamber isolated from operators during use
8. Dedicated function keys for intuitive, quick temperature setting operations
9. Auxiliary menu enables overheating alarm, temperature deviation correction, menu locking, and overheating prevention functions
10. Equipped with an exhaust device to streamline ashing processes
specifications

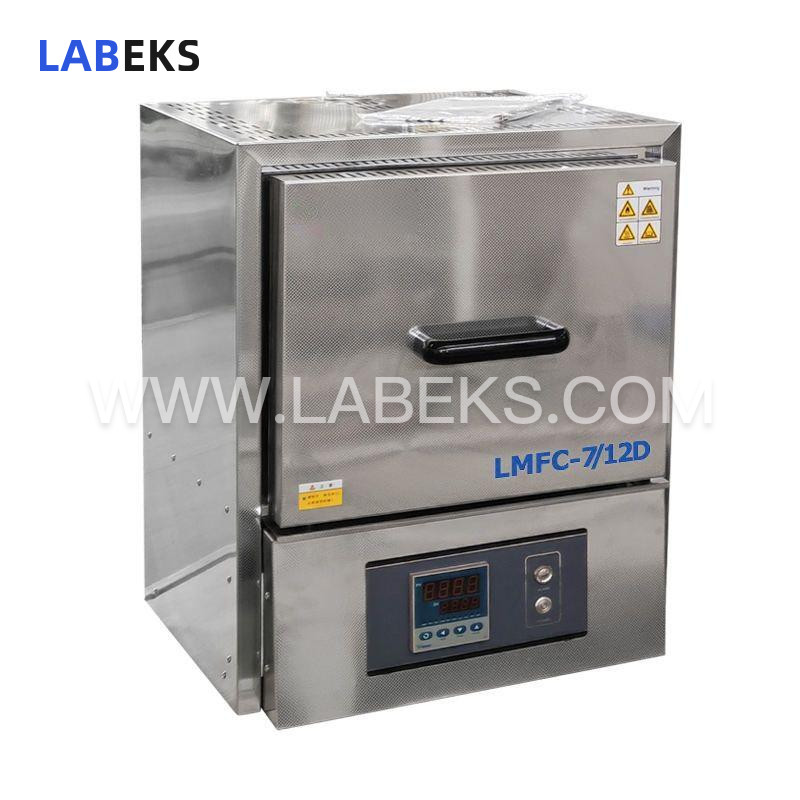

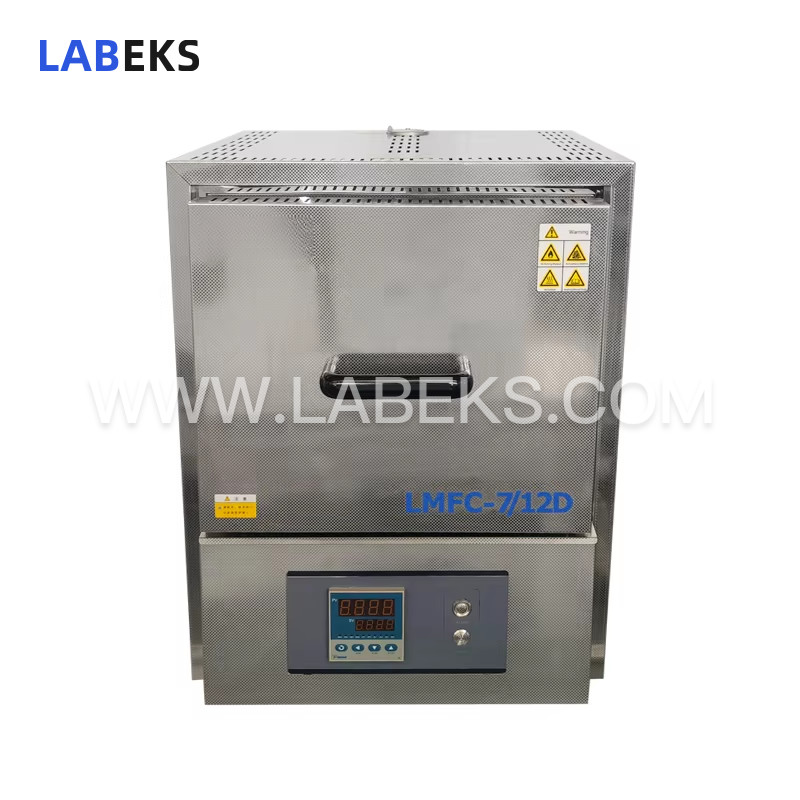

Model | Singlesegment type(D) | LMFC-2-12D | LMFC-7-12D | LMFC-16-12D | LMFC-24-12D | LMFC-36-12D | |
|---|---|---|---|---|---|---|---|

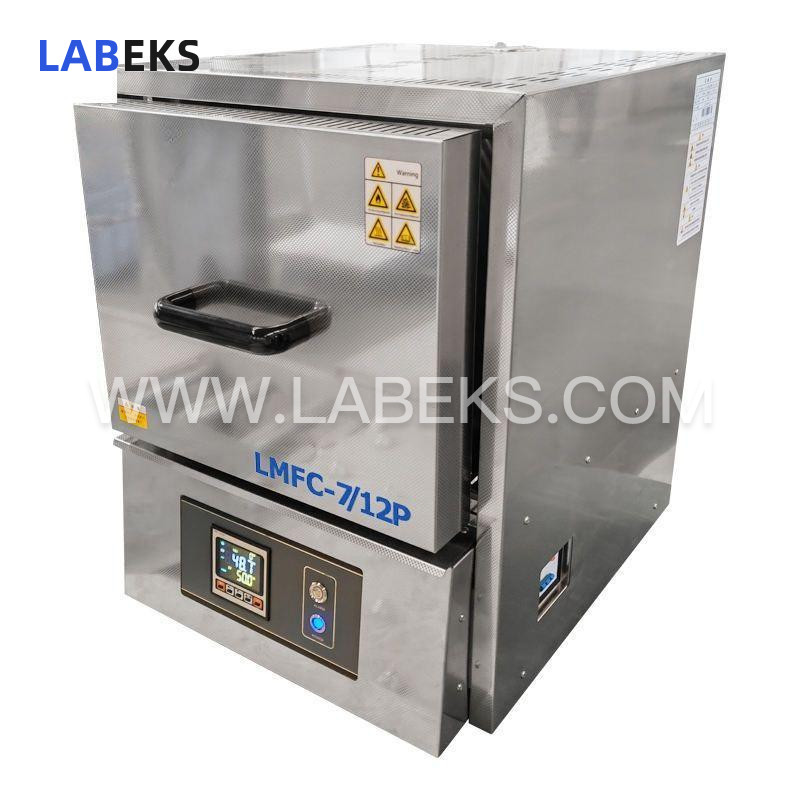

Programtype(P) | LMFC-2-12P | LMFC-7-12P | LMFC-16-12P | LMFC-24-12P | LMFC-36-12P | ||

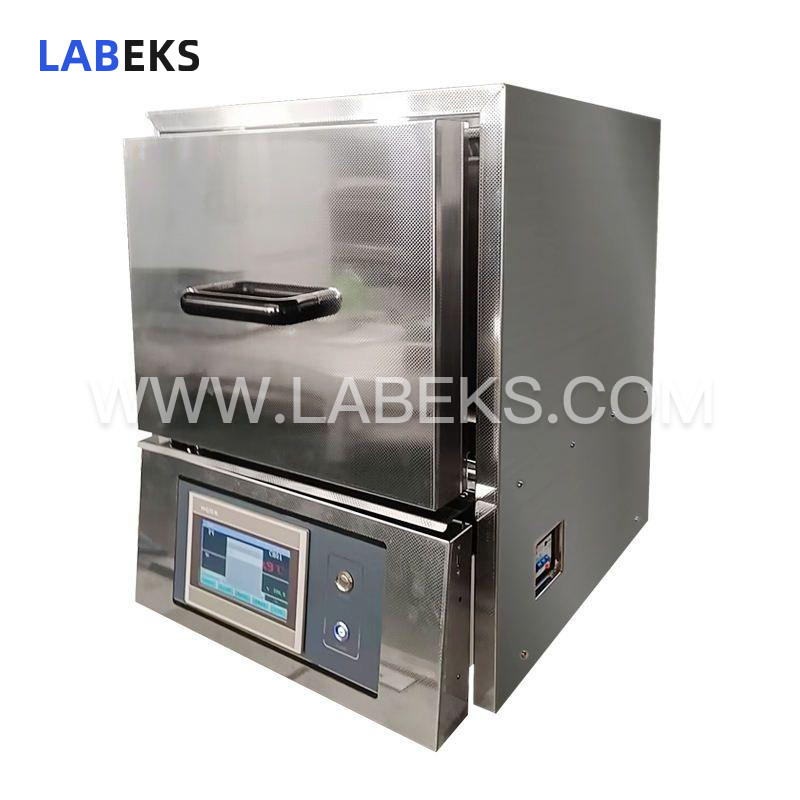

Touchtype(T) | LMFC-2-12T | LMFC-7-12T | LMFC-16-12T | LMFC-24-12T | LMFC-36-12T | ||
Performance | TemperatureRange | 300-1200℃ | |||||
Temperature Resolution | 1℃ | ||||||
Temperature.Uniformity | ±1℃ | ||||||
Heating-upTime | ≤30min | ||||||
Structure | Shell | Embossed stainless steel | |||||
Chamber | polycrystalline mullite fiber | ||||||
Exhaust vent | Outerdiameter: 22Inside diameter: 18 | ||||||
Heater | Nickelchromium aluminum alloy, heated on three sides | ||||||
ThermalInsulation | Double forcedair diversion | ||||||
Open Mode | Sliding | ||||||
HeatingPower | 1.5kw | 3kw | 6kw | 6.6kw | 10kw | ||
Controller | Controller | D:Single-stage temperature control, digital display P:Imported program temperature control, digital display T:7-inch color touch screen program temperature control | |||||
Control Mode | MicrocomputerPID control heating output | ||||||
Setting Mode | D/P:Slightly touch the five buttons, digital setting mode T:Finger touch settings | ||||||
Display Mode | D/P:Double row LED digital display T:LCD display | ||||||
Timer | 0~999.9hours | ||||||
OperationFunction | D: Fixedvalue operation P/T: Fixedvalue operation, program operation | ||||||
Program Mode | D: Single-stageoperation P: Programrunning, 4 curves, total of 40 segments T: Max. 50segments | ||||||
Sensor | K-type thermocouple | ||||||
AuxiliaryFunction | D/P: Correctfunctioning, door control functioning T: Correctfunctioning, door control functioning, real-time curve recording, USB dataexport | ||||||
SafetyDevice | Over currentleakage protection switch | ||||||
Specification | InteriorSize(mm) | 200*120*80 | 300*200*120 | 400*250*160 | 400*300*200 | 400*300*300 | |
ExteriorSize(mm) | 480*617*683 | 560*709*723 | 630*808*783 | 650*813*818 | 650*818*918 | ||
PackingSize(mm) | 650*760*790 | 720*860*840 | 790*960*900 | 810*960*930 | 810*950*1030 | ||
Volume | 2L | 7L | 16L | 24L | 36L | ||
NW/GW(KG) | 40/45 | 60/65 | 80/86 | 90/98 | 100/110 | ||
Power Supply | AC220V/7A | AC220V/13.6A | AC220V/27.3A | AC380V/10A | AC380V/15.2A | ||
StandardConfiguration | Equipment*1set,Instruction*1pc, Certificate*1pc | ||||||
