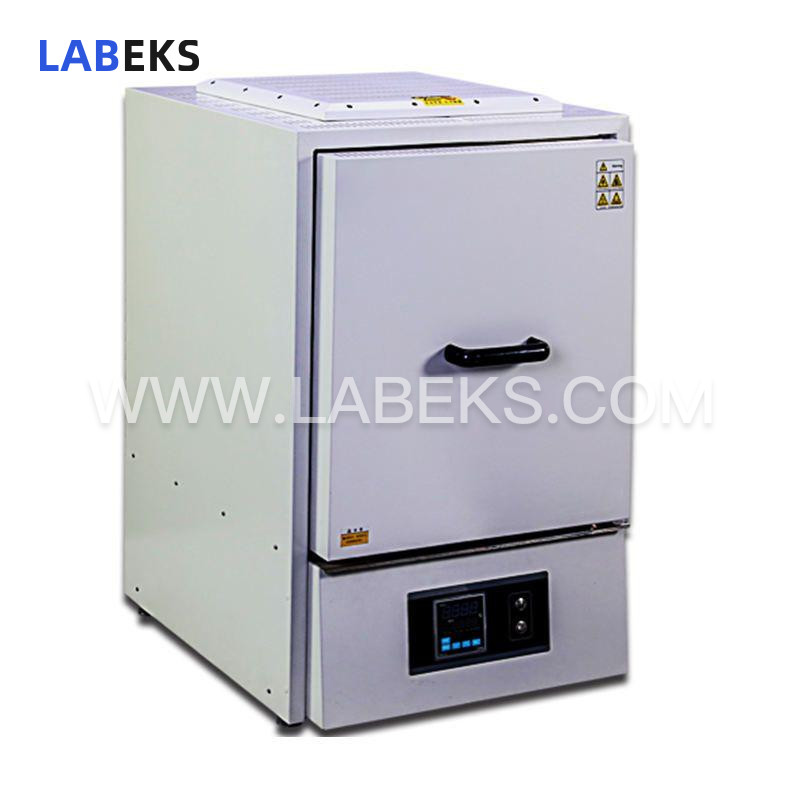

LMFC-10 1000°C Ceramic Fiber Muffle Furnace for Lab Sintering with ±1°C Temperature Uniformity
Designed for precise sintering, melting, elemental analysis, and physical determination processes up to 1000°C, the Ceramic Fiber Muffle Furnace (LMFC Series) offers a 300～1000°C temperature range with ±1°C distribution accuracy, and is available in 2L, 7L, 16L, 24L, 36L inner volumes.
- modelLMFC-10 Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Box-type resistance furnace, also referred to as a muffle furnace, is a fundamental heating device for laboratory applications. It is extensively utilized in industrial and mining facilities, aerospace systems, research institutions, universities, and other experimental laboratories, serving as an indispensable instrument for sintering, melting, heat treatment, and volatile substance-related procedures.
features
1. High-precision temperature control is achieved through an optimal combination of a microcomputer-based temperature controller and precision K-type thermocouple sensor
2. Vacuum-formed polycrystalline mullite fiber chamber delivers exceptional thermal insulation, while three-sided heating via nickel-chromium-aluminum alloy heating elements ensures optimal temperature uniformity
3. Door-interlocked safety protection system automatically cuts power upon door opening and resumes power with a delay to safeguard personnel
4. Comprehensive safety features include overheat alarm, menu lock, overheat prevention, door-interlocked power cut-off, and delayed power resumption
5. Dual-shell air insulation construction maintains low external surface temperatures, reducing burn risks
6. Integrated, lightweight and compact structural design for convenient placement and handling

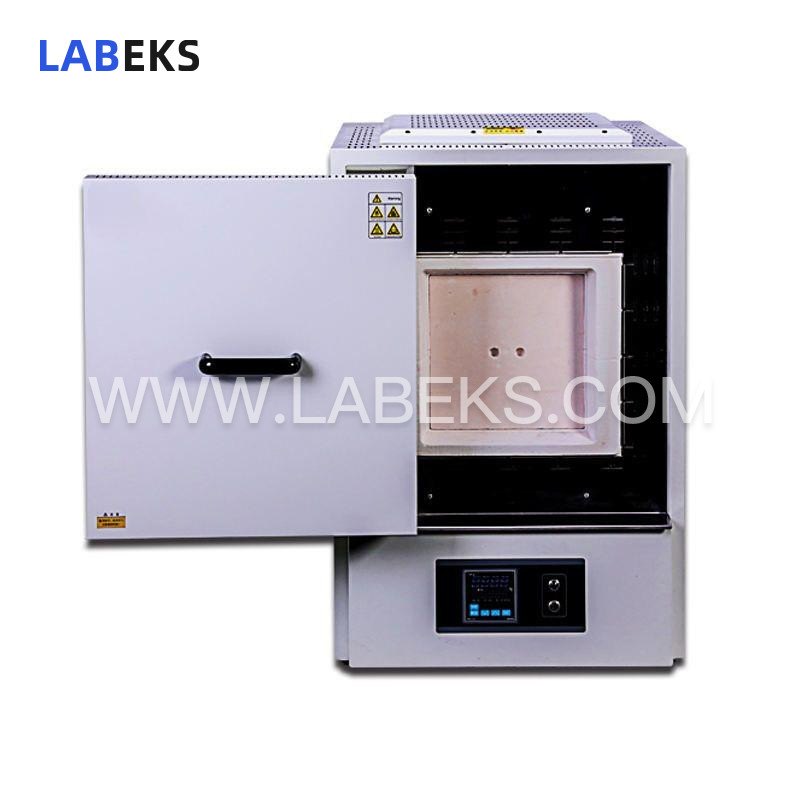

7. Side-sliding furnace door design keeps the hot chamber surface away from operators, enhancing operational safety
8. Auxiliary menu offers advanced functions including overheat alarm, temperature deviation correction, menu lock, and overheat prevention
9. Dedicated function buttons enable quick and intuitive temperature parameter settings
10. Integrated exhaust vent simplifies ashing procedures by removing fumes and volatile substances effectively
specifications
Model | Singlesegment type(D) | LMFC-2-10D | LMFC-7-10D | LMFC-16-10D | LMFC-24-10D | LMFC-36-10D |
|---|---|---|---|---|---|---|
Programtype(P) | LMFC-2-10P | LMFC-7-10P | LMFC-16-10P | LMFC-24-10P | LMFC-36-10P | |
Touchtype(T) | LMFC-2-10T | LMFC-7-10T | LMFC-16-10T | LMFC-24-10T | LMFC-36-10T | |
Performance | TemperatureRange | 300-1000℃ | ||||
Temperature Resolution | 1℃ | |||||
TemperatureUniformity | ±1℃ | |||||
Heating-upTime | ≤30min | |||||
Structure | Shell | Sprayingcold rolled steel | ||||
Chamber | polycrystalline mullite fiber | |||||
Exhaust vent | Outerdiameter: 22Inside diameter: 18 | |||||
Heater | Nickelchromium aluminum alloy, heated on three sides | |||||
ThermalInsulation | Doubleforced air diversion | |||||
Open Mode | Sliding | |||||
HeatingPower | 1.5kw | 3kw | 6kw | 6.6kw | 10kw | |
Controller | Controller | D:Single-stage temperature control, digital display P:Imported program temperature control, digital display T:7-inch color touch screen program temperature control | ||||
Control Mode | MicrocomputerPID control heating output | |||||
Setting Mode | D/P:Slightly touch the five buttons, digital setting mode T:Finger touch settings | |||||
Display Mode | D/P:Double row LED digital display T:LCD display | |||||
Timer | 0~999.9hours | |||||
Operation Function | D: Fixedvalue operation P/T: Fixedvalue operation, program operation | |||||
Program Mode | D: Single-stageoperation P: Programrunning, 4 curves, total of 40 segments T: Max. 50segments | |||||
Sensor | K-typethermocouple | |||||
AuxiliaryFunction | D/P: Correctfunctioning, door control functioning T: Correctfunctioning, door control functioning, real-time curve recording, USB dataexport | |||||
SafetyDevice | Over currentleakage protection switch | |||||
Specification | InteriorSize(mm) | 200*120*80 | 300*200*120 | 400*250*160 | 400*300*200 | 400*300*300 |
ExteriorSize(mm) | 480*617*683 | 560*709*723 | 630*808*783 | 650*813*818 | 650*818*918 | |
PackingSize(mm) | 650*760*790 | 720*860*840 | 790*960*900 | 810*960*930 | 810*950*1030 | |
Volume | 2L | 7L | 16L | 24L | 36L | |
NW/GW(KG) | 40/45 | 60/65 | 80/86 | 90/98 | 100/110 | |
Power Supply | AC220V/7A | AC220V/13.6A | AC220V/27.3A | AC380V/10A | AC380V/15.2A | |
StandardConfiguration | Equipment*1set,Instruction*1pc, Certificate*1pc | |||||
