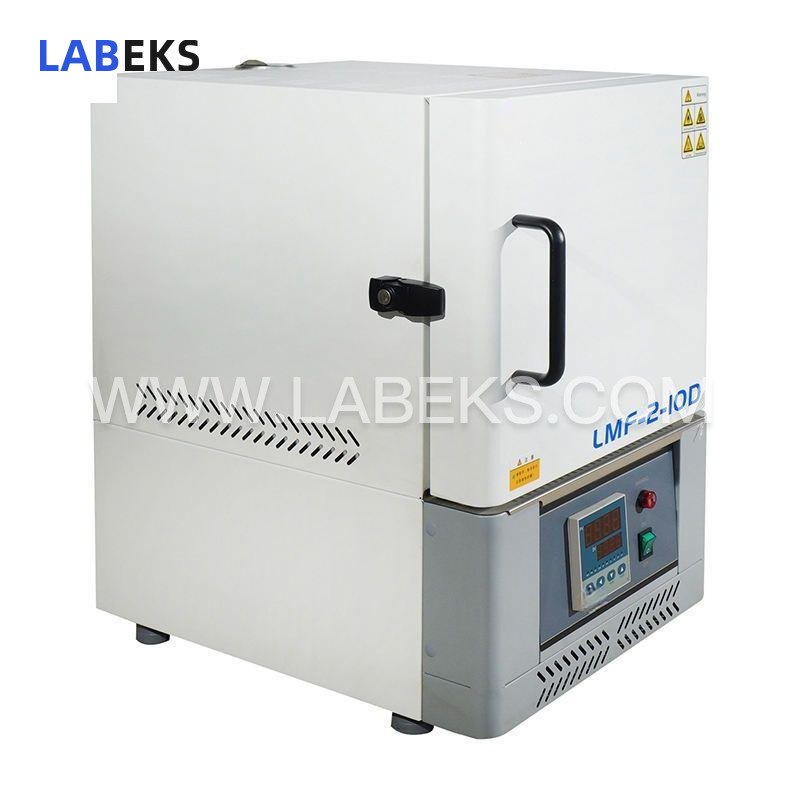

LMF-10D 1000°C Ceramic Fiber Muffle Furnace: ±1℃ Precision for Sintering & Material Analysis
Designed for precise sintering, melting, elemental analysis, and physical property testing within 300～1000°C, this ceramic fiber muffle furnace boasts ±1℃ temperature distribution accuracy and offers inner volume options of 2L, 7L, 16L, 24L, 36L.
- modelLMF-10D
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Also referred to as a box-type resistance furnace, the muffle furnace is a fundamental heating apparatus for laboratories. It finds extensive application in industrial and mining operations, aviation and aerospace sectors, research institutions, universities, and other experimental facilities, serving as an indispensable tool for sintering, melting, heat treatment, volatile substance analysis, and more.
features
High-precision temperature control is achieved through an optimal pairing of a microcomputer-based temperature controller and precision sensor

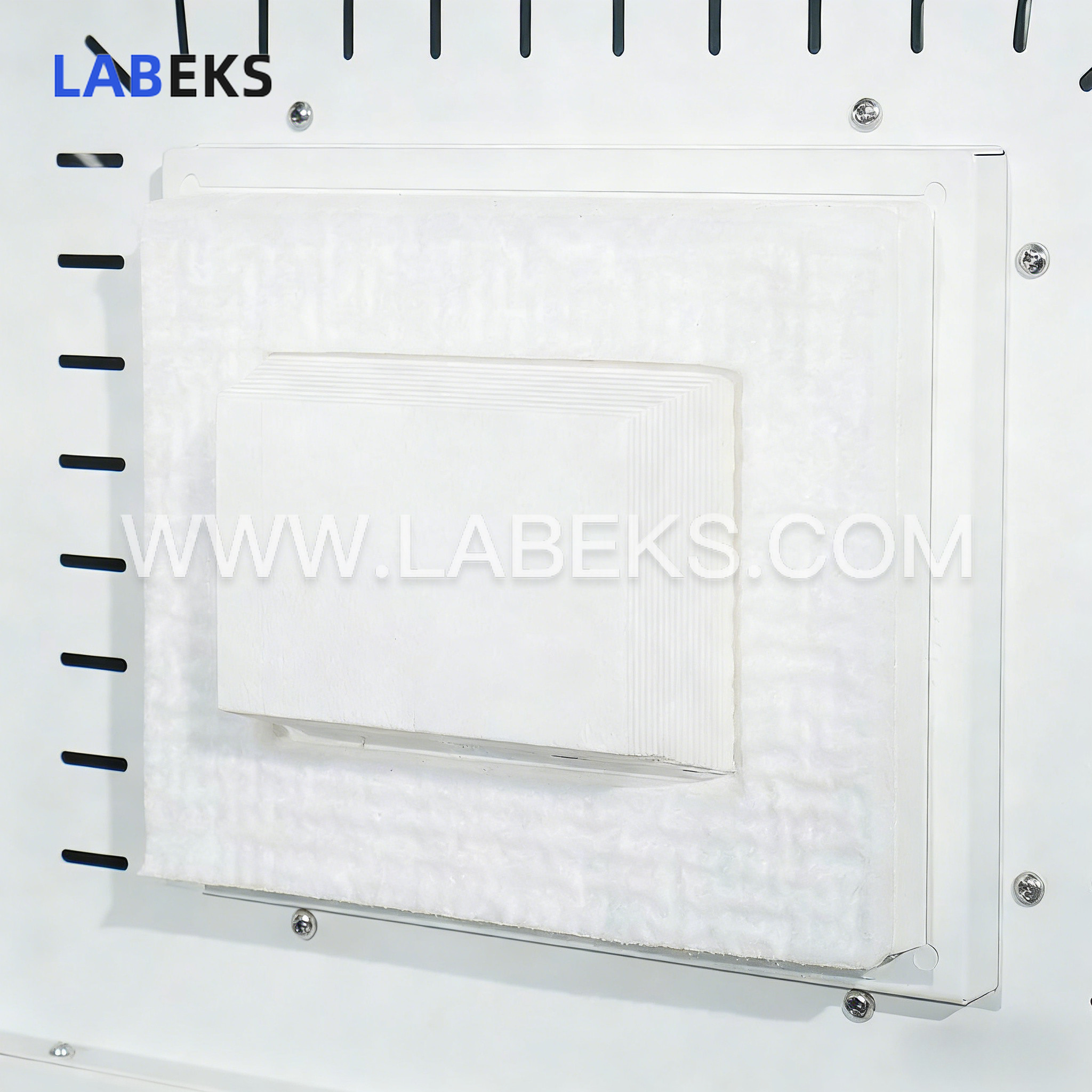

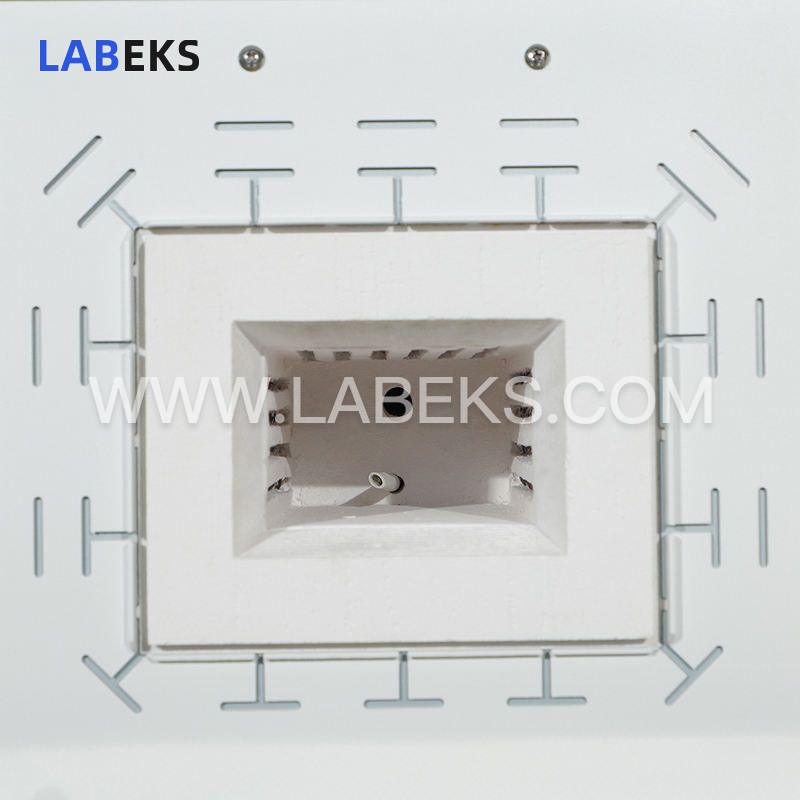

Featuring a vacuum-formed polycrystalline mullite fiber furnace chamber for superior thermal insulation, along with three-sided heating via special alloy wires to ensure exceptional temperature uniformity
Built-in safety protection: power cuts off automatically when the door is opened, with delayed power resumption to guarantee operational safety
Double-shell air insulation structure keeps the exterior surface temperature low for user safety

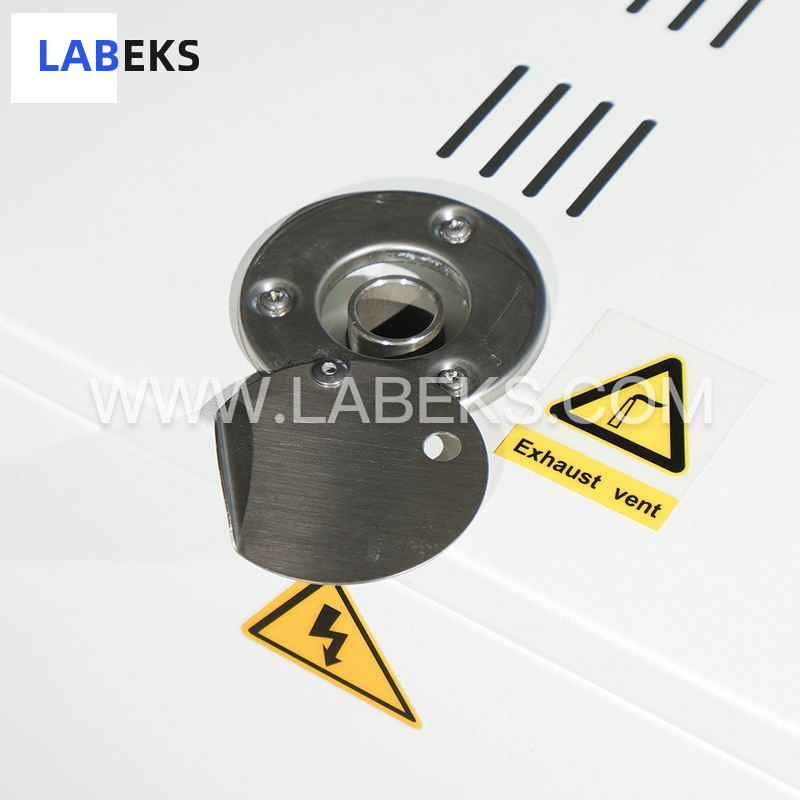

Equipped with an exhaust device to facilitate efficient ashing procedures
Dedicated function keys enable straightforward, quick temperature setting operations
An auxiliary menu supports overheating alarm, temperature deviation correction, menu lock, and overheating prevention functionalities
Comprehensive safety safeguards include overheating alarm, menu lock, overheating prevention, automatic power-off on door opening, and delayed power restoration
Integrated design delivers a lightweight, compact structure for flexible installation and ease of use
specifications
Model | LMF-2-10D | LMF-7-10D | LMF-16-10D | LMF-24-10D | LMF-36-10D | |
|---|---|---|---|---|---|---|
Performance | TemperatureRange | 1000℃ | ||||
TemperatureResolution | 1℃ | |||||
TemperatureUniformity | ±1℃ | |||||
Heating-upTime | ≤30min | |||||
Structure | Shell | Sprayingcold rolled steel | ||||
Chamber | polycrystalline mullite fiber | |||||
Heater | Nickelchromium aluminum alloy wire | |||||
ThermalInsulation | Doubleforced air diversion | |||||
Open Mode | OutwardOpening | |||||
HeatingPower | 1.5kw | 3kw | 6kw | 6.6kw | 10kw | |
Controller | Controller | Single-stagetemperature control, digital display | ||||
Control Mode | MicrocomputerPID control heating output | |||||
Setting Mode | Slightlytouch the five buttons, digital setting mode | |||||
Display Mode | Doublerow LED digital display | |||||
Timer | 0~999.9hours | |||||
OperationFunction | Fixed value operation,program operation | |||||
Program Mode | Single-stageoperation | |||||
Sensor | K-typethermocouple | |||||
AuxiliaryFunction | Correctfunctioning, door control functioning | |||||

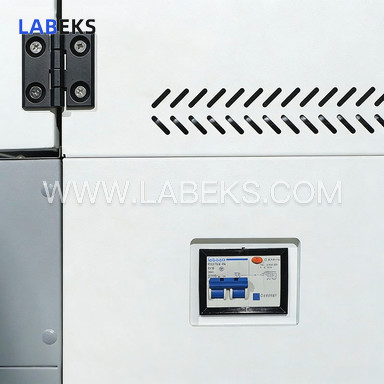

SafetyDevice | Over currentleakage protection switch | Over currentprotection switch | ||||
Specification | InteriorSize(mm) | 120*200*80 | 200*300*120 | 250*400*160 | 300*400*200 | 300*400*300 |
ExteriorSize(mm) | 440*520*650 | 520*620*690 | 590*730*750 | 610*730*760 | 610*760*860 | |
PackingSize(mm) | 600*677*766 | 680*777*806 | 750*887*866 | 770*887*876 | 770*887*976 | |
Volume | 2L | 7L | 16L | 24L | 36L | |
Power Supply | AC220V 50Hz | AC380V 50Hz | ||||
StandardConfiguration | Equipment*1set,Instruction*1pc, Certificate | |||||
