LGY-20 High Temperature Circulator with ±0.2°C Stability for Jacketed Reactors
Designed for reliable internal and external temperature control, the high temperature circulator delivers consistent thermal regulation for diverse lab and industrial processes.
- modelLGY-20
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Engineered as a specialized high-temperature heat source, this circulator addresses limitations of comparable domestic products while offering a cost-effective alternative to imported models. It is ideal for jacketed reactors, chemical reactions, high-temperature distillation, and semiconductor industry applications.
features
Temperature fluctuation is maintained within ±0.2°C for exceptional thermal stability.
Digital display provides a resolution of 0.1°C for precise temperature monitoring.
Integrates state-of-the-art control technology, boasting intuitive operation, superior stability, and high measurement precision.
User-adjustable PID parameters enable customized temperature control tuning.
Microcomputer intelligent system automatically corrects measured value errors to ensure operational accuracy.
External circulation functionality raises jacket temperatures, facilitating controlled reactions of contained materials.
External circulation flow rate ranges from 5~10L/min to support efficient heat transfer.
Compatible with fermenters, jacketed glass reactors, and other similar lab equipment.
specifications
Model | LGY-20 |
|---|---|
Voltage | 220V 50Hz |
Total power | 3180W |
Pump motor power | 180W |
Heating power | 3000W |
Flow | 8L/min |
Lifting height | 4M |
Temperaturerange | RT~250°C |
Temperatureaccuracy | ± 1°C |

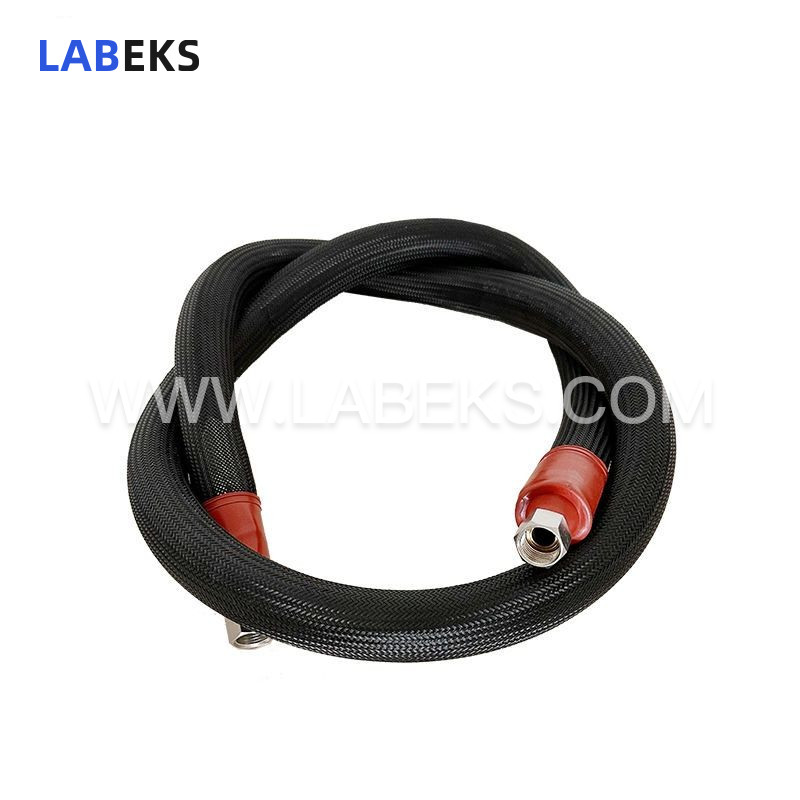

Joint port andtube | screw joint, 2m metal pipe |
Tank size | 385x270x260mm about 27L |
Tank oil volume | more than 17L |
Dimension | 405x530x600mm |
Net. Weight | 30kg |
Package size | 650x560x470mm |
Package weight | 35kg |
