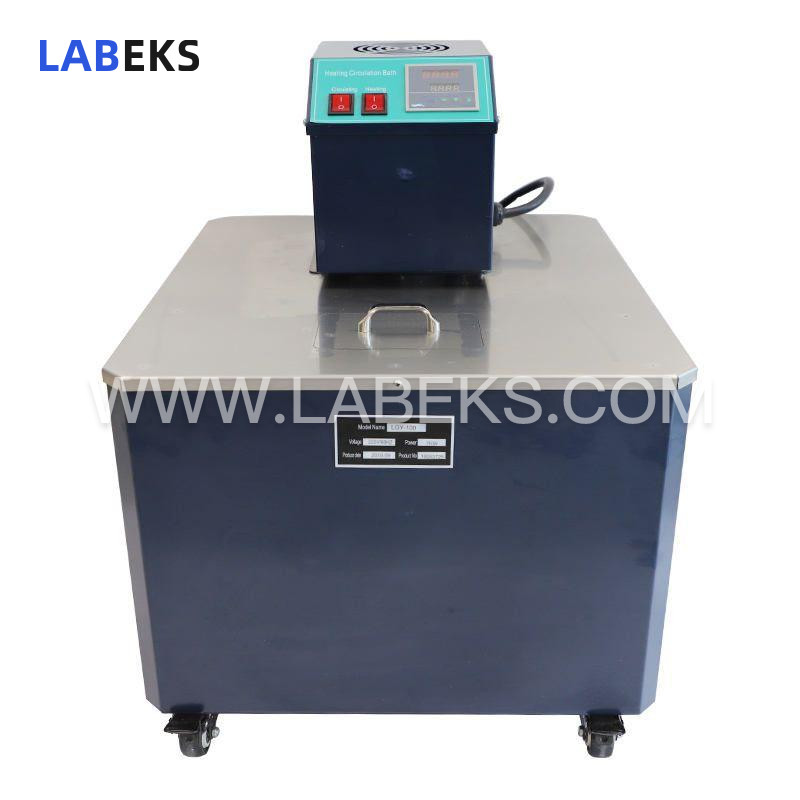

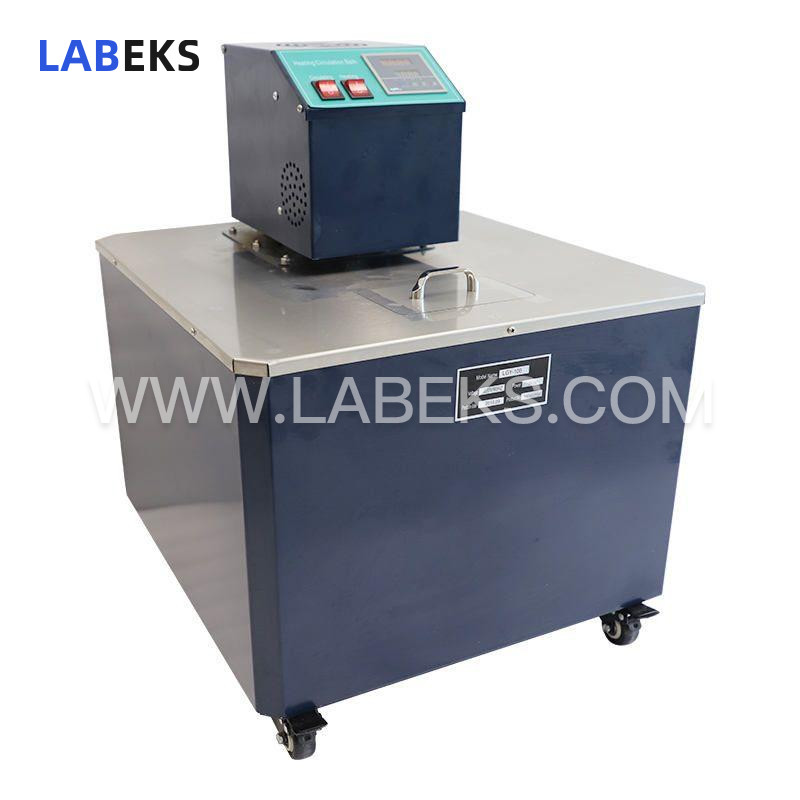

LGY-100 High Temperature Circulator with ±0.2°C Fluctuation for Jacketed Reactors

Offering reliable internal and external temperature control, the high temperature circulator delivers precise thermal management for jacketed reactors, chemical reactions and semiconductor manufacturing processes.

  • model
    LGY-100
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

As a self-developed high-temperature heat source, the LGY-100 High Temperature Circulator is engineered for use in jacketed reactors, chemical reactions, high-temperature distillation and the semiconductor industry. This system addresses key limitations of competing domestic products, while being significantly more cost-effective than imported alternatives.

features

1. Temperature fluctuation is controlled within ±0.2°C, ensuring exceptional thermal stability.

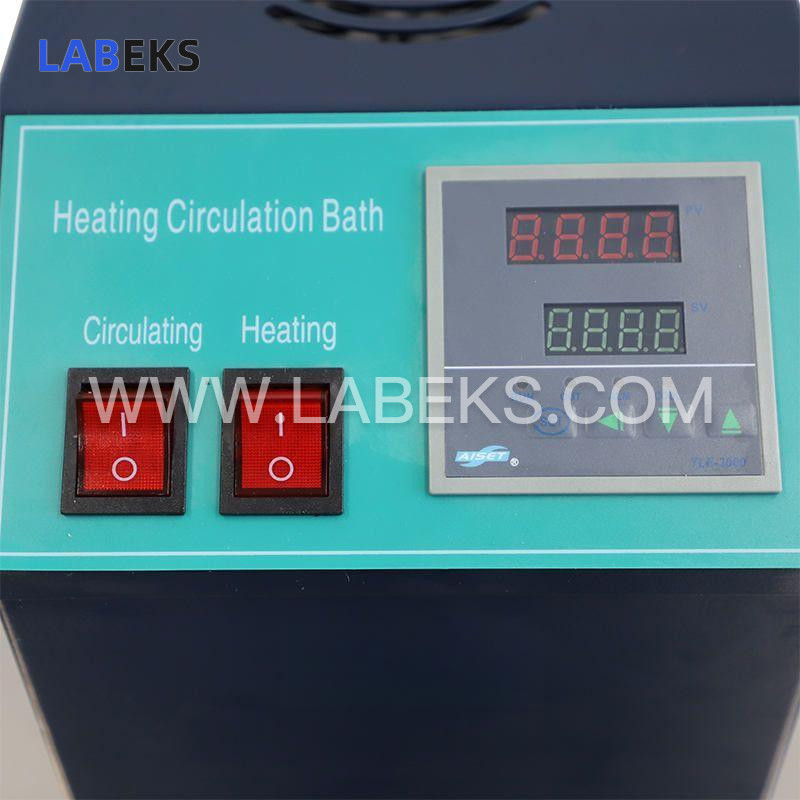

2. Digital display offers a resolution of 0.1°C for precise temperature monitoring.

3. Microcomputer intelligent control automatically corrects measurement value errors to enhance operational accuracy.

4. Users can independently set PID parameters for customized temperature regulation.

5. Integrated with the latest control technology, the circulator features intuitive operation, outstanding stability and high precision.

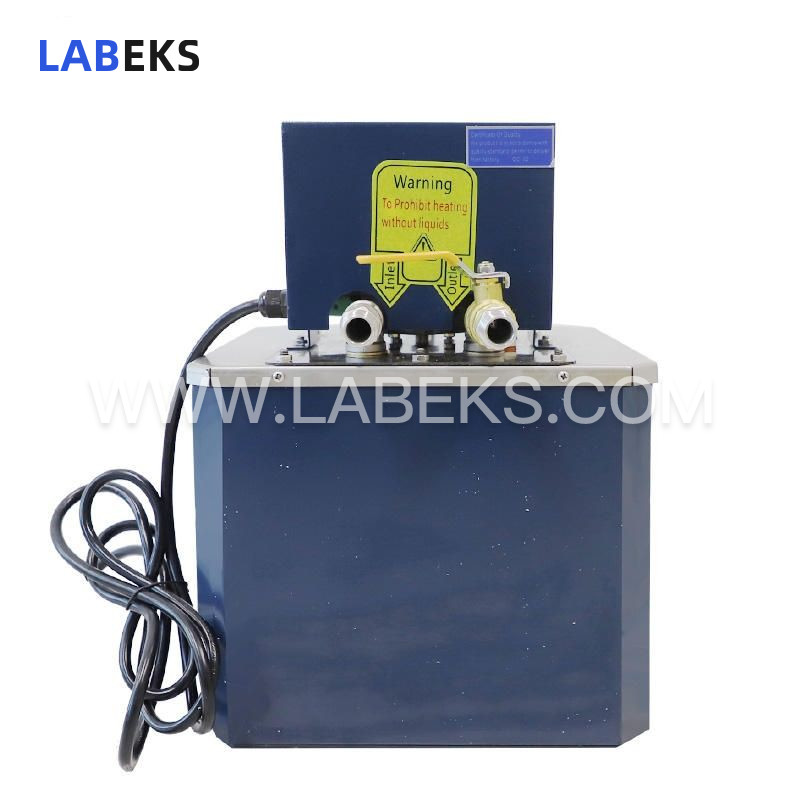

6. External circulation functionality raises the temperature within the jacket, facilitating targeted material reactions.

7. Ideal for integration with fermenters, jacketed glass reactors and comparable equipment.

8. External circulation flow rate ranges from 5~10L/min to support diverse thermal transfer requirements.

specifications

Model

LGY-100

Voltage

380V 50Hz

Total power

8250W

Pump motor power

250W

Heating power

8000W

Flow

12L/min

Lifting height

7M

Temperaturerange

RT~250°C

Temperatureaccuracy

± 1°C

Joint port andtube

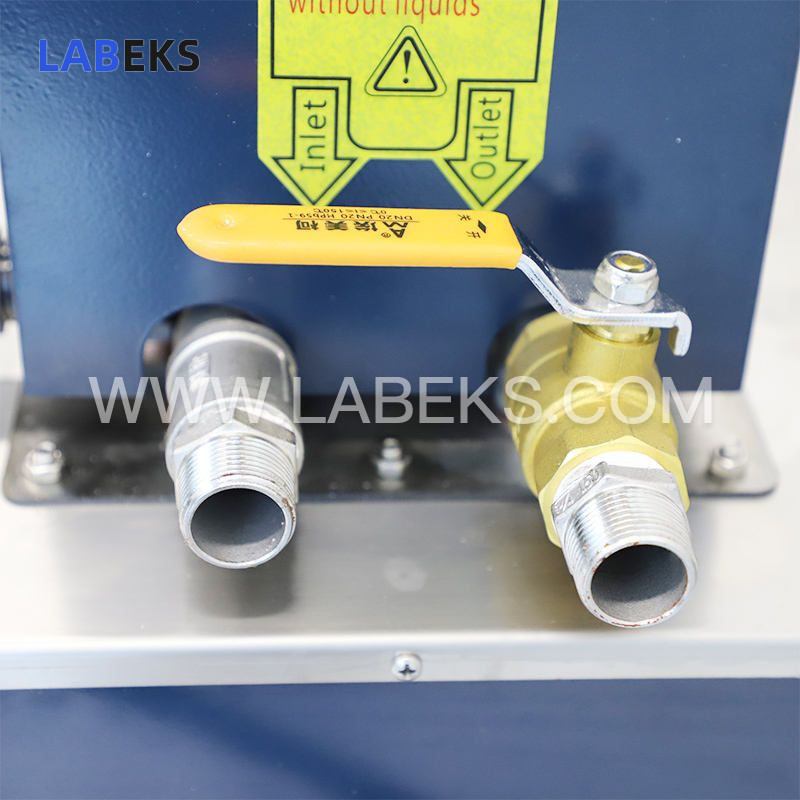

screw joint, 2m metal pipe

Tank size

480x410x330mm about 65L

Tank oil volume

More than 45L

Dimension

500x580x660mm

Net. Weight

40kg

Package size

700x635x580mm

Package weight

45kg
