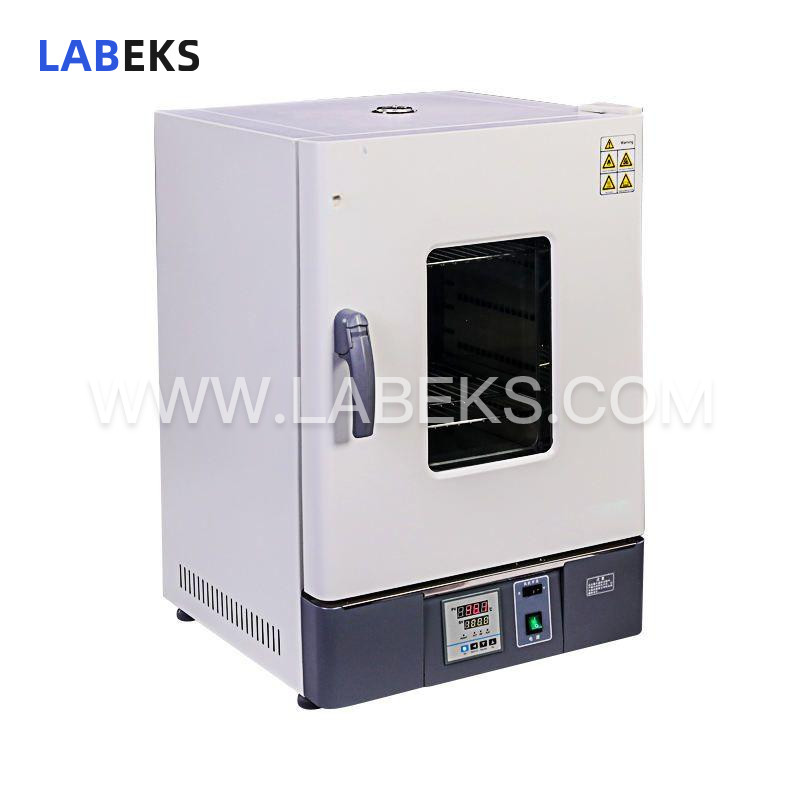

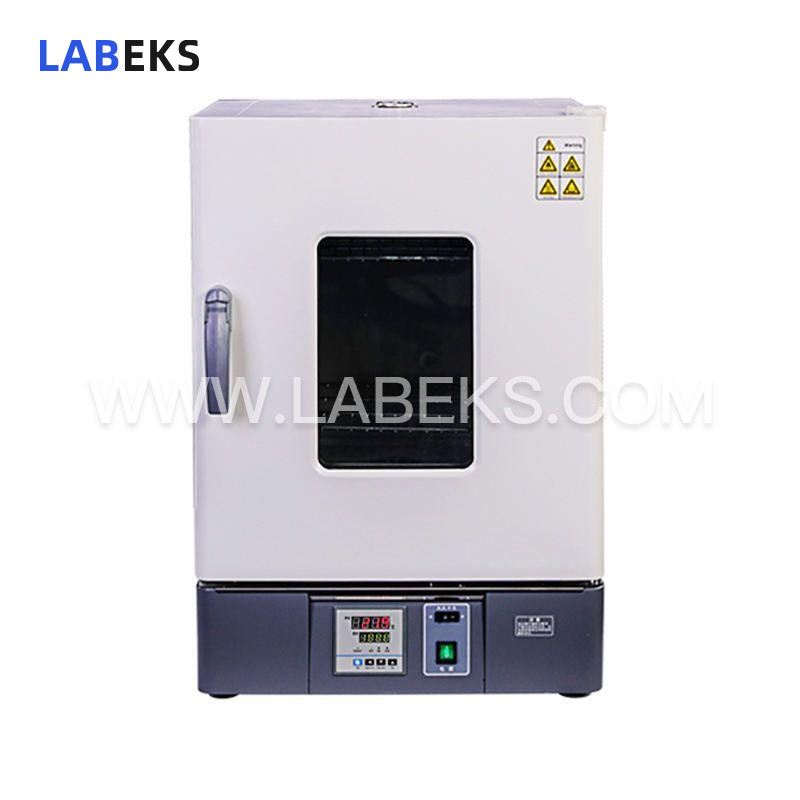

LGL Series Vertical Forced Air Drying Oven with Uniform Heating for Pharmaceutical & Chemical Industries

LCD type

LGL-30L

LGL-45L

LGL-65L

LGL-85L

LGL-125L

LGL-230L

LGL-625L

Touch screen Type

LGL-30T

LGL-45T

LGL-65T

LGL-85T

LGL-125T

LGL-230T

LGL-625T

Cycle Mode

Double duct forcedconvection

Bottom ductwhirlwind

upper ductwhirlwind

Function

Temp. Range

RT+10-300℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±2.0%

Structure

Inner Chamber

Mirror stainlesssteel;

Outer Shell

Cold rollingsteel electrostaticspraying exterior

Thermal insulation material

Aluminum silicatefiber

Heater

Stainless steelheating tube

Nickel-chromiumalloy heatingwire

Stainless steelheating tube

Power rating

0.8kW

1.2kW

1.6kW

1.8KW

2.3kW

3.0KW

5.0KW

Exhaust hole

φ28mm*1 at thetop

φ28mm*2 at thetop

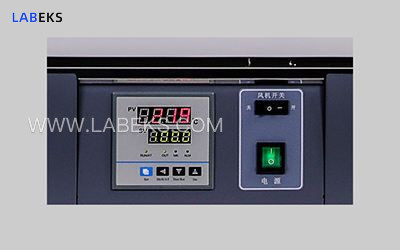

Controller

Temp. control mode

D type: Two linesLED display,PID;

L type: Two linesLCD display,PID;

L type: 5 inchcolor touch screenfuzzy PID

Temp. setting mode

Touch buttonsetting

Temp. display mode

D type: Two lines4 digits LEDDigital display:

measuring temp.on the top andsetting temp. on the bottom

L type: Two linesLCD display:

measuring temp.on the top andsetting temp. on the bottom

T type: Two linestouch screendisplay:

measuring temp.on the top andsetting temp. on the bottom

Timer

0-9999min(withtiming waitfunction)

Operation function

Fixed temperatureoperation,timing function, auto stop.

Program mode

D/L type isoptional, T typesingle-stage temperature control and program temperaturecontrol canbe interchanged, 50 experimental programs can be stored, eachprogramcan be set with 50 steps, and each step can be set for 0-6000minutes,adjustable

Additional function

Deviationcorrection, menu buttonlock, power failure compensation, power-off parametermemory; L&Ttype in addition: Over-rise preventer, adjustable speed fan

Sensor

Pt100

Specification

Inner Chamber size(W*L*H)(mm)

310*310*310

350*350*350

400*360*450

450*450*450

500*450*550

600*500*750

660*760*1250

Exterior size(W*L*H)(mm)

428*505*710

468*538*753

518*550*860

567*640*853

617*639*953

735*625*1220

900*960*1840

Packing size(W*L*H)(mm)

552*578*840

592*618*880

642*628*980

692*718*980

742*718*1080

898*814*1347

1051*1060*1949

Volume

30L

45L

65L

85L

125L

230L

625L

shelfnumber

2

2

2

2

2

2

2

Max.optionalshelfnumber

5

6

8

8

11

17

7

Load per rack

15kg

Shelf space

40mm

35mm

150MM

(50/60HZ)Currentrating

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/8.2A

AC220V/10.5A

AC220V/13.6A

AC380V/7.6A

optionalaccessories

Shelf, RS485interface, printer,recorder, external communication, remote control, programtemperaturecontroller, wireless SMS alarm, U disk data storage
