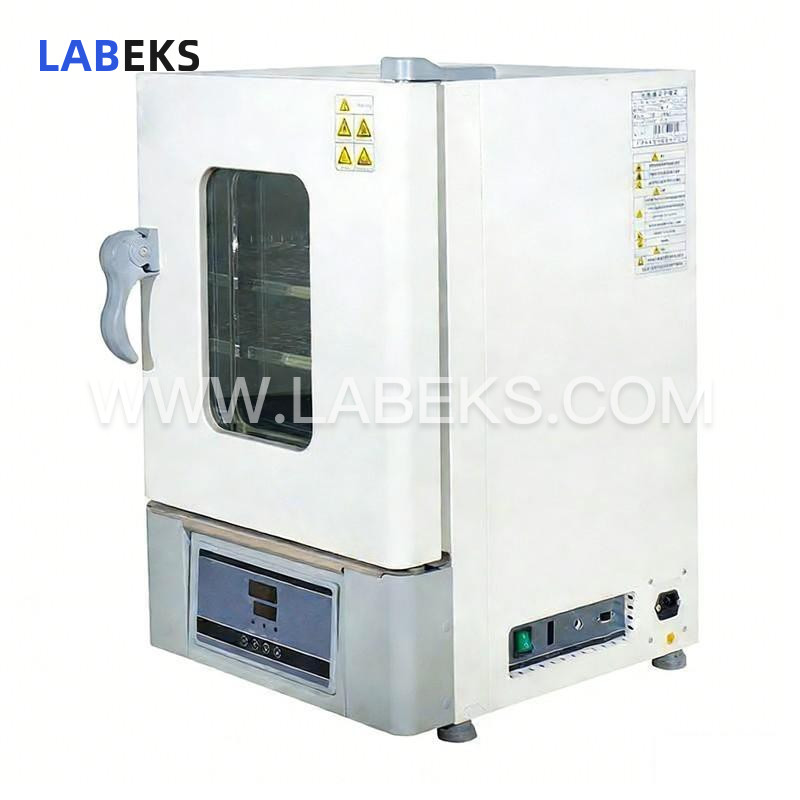

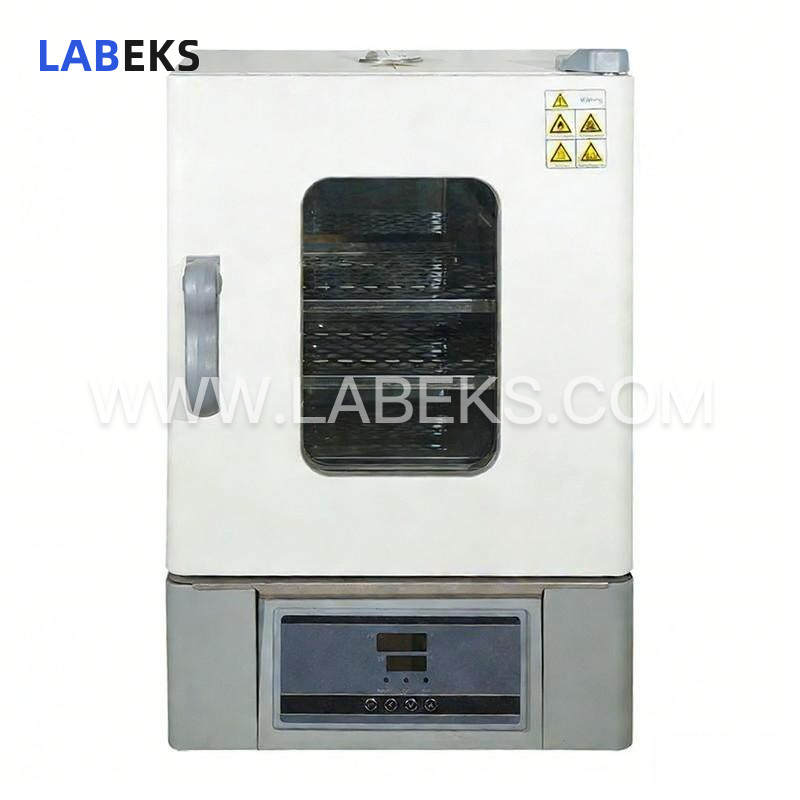

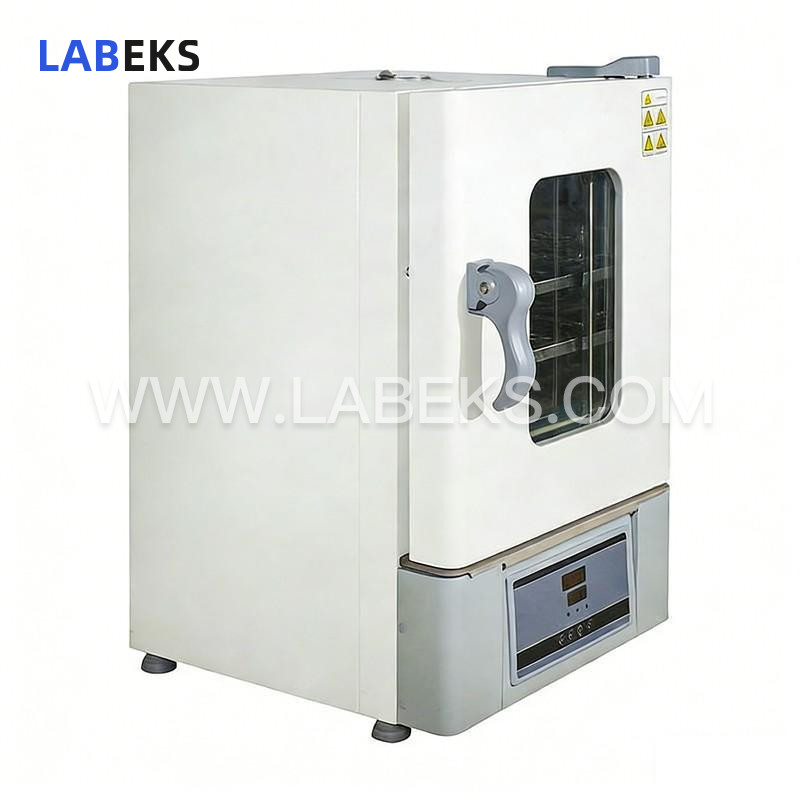

LGL-B Series Vertical Forced Air Drying Oven for Pharma & Chemical Labs with Uniform Heating
Designed to maintain consistent internal temperature equilibrium via forced hot air circulation, the vertical forced air drying oven uses electric heating for sample drying and controlled experimental environments, serving chemical, pharmaceutical, foundry, automotive, food, and machinery sectors.
- modelLGL-B Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This equipment integrates a chamber body, heating system, electrical control system, air supply system, and protection system. Its outer shell is fabricated from high-quality cold-rolled steel with an electrostatic powder coating, featuring a hard, corrosion-resistant finish. The working chamber has rounded corners and is made of premium stainless steel, ensuring a smooth, easy-to-clean surface. Insulation material filled between the outer shell and working chamber provides excellent thermal retention, effectively maintaining temperature stability and accuracy inside the chamber while minimizing impact on the surrounding operating environment.
features
1. Vertical dual air duct jacket with turbo centrifugal forced air supply for superior temperature uniformity;
2. Forced fan cooling air intake structure limits maximum fan operating temperature to below 50℃, enabling long-term continuous operation and extended service life;
3. User-friendly operation with fixed-temperature control, timing function, and automatic shutoff;
4. Boasts high precision, efficient performance, reliable safety features, and a wide operational range;
5. Dedicated function keys for intuitive temperature setting;
6. Auxiliary menu enabling over-temperature alarm, deviation correction, and menu lock functions;
7. Adjustable-speed fan accommodates light, small, and powdery sample types;
specifications
Model | LGL-30B | LGL-45B | LGL-65B | LGL-125B | |||
|---|---|---|---|---|---|---|---|
LGL-30BE | LGL-45BE | LGL-65BE | LGL-125BE | ||||
Cycle Mode | Forced convection | ||||||
Function | Temp. Range | RT+10-300℃ | |||||
Temp. ResolutionRatio | 0.1℃ | ||||||
Temp. Motion | ±1℃ | ||||||
Temp. Uniformity | ±2.5% | ||||||
Structure | Inner Chamber | Stainless steel; | |||||
Outer Shell | Cold rollingsteel electrostatic spraying exterior | ||||||
Thermalinsulation material | Aluminum silicatefiber | ||||||
Heater | Stainless steel heatingtube | ||||||
Power rating | 0.8kW | 1.2kW | 1.6kW | 2.3kW | |||
Exhaust hole | φ28mm*1 at theback | ||||||
Controller | Temp. controlmode | B model: Two linesLED display, PID; BE model: Two linesLCD display, PID | |||||
Temp. settingmode | Touch buttonsetting | ||||||
Temp. display mode | B model: Twolines 4 digits LED Digital display: measuring temp.on the top and setting temp. on the bottom | ||||||
BE model: Twolines LCD Digital display: measuring temp.on the top and setting temp. on the bottom | |||||||
Timer | 0-9999min(withtiming wait function) | ||||||
Operationfunction | Fixed temperatureoperation, timing function, auto stop. | ||||||
Program mode | Optional | ||||||
Additionalfunction | Deviationcorrection, menu button lock, power failure compensation, power-off parametermemory; BE model in addition: Over-rise preventer, adjustable speed fan | ||||||
Sensor | Pt100 | ||||||
Safety device | Over temperaturesound-light alarm | ||||||
Specification | Inner Chambersize(W*L*H)(mm) | 310*310*310 | 350*350*350 | 400*360*450 | 500*450*550 | ||
Exterior size(W*L*H)(mm) | 445*487*671 | 485*527*722 | 534*538*822 | 634*628*922 | |||
Packing size(W*L*H)(mm) | 570*570*820 | 600*600*857 | 670*620*960 | 760*700*1060 | |||
Volume | 30L | 45L | 65L | 125L | |||
Shelf number | 6 | 7 | 9 | 13 | |||
Load per rack | 15kg | ||||||
Shelf space | 35mm | ||||||
(50/60HZ)Currentrating | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/10.5A | |||
NW/GW (kg） | 27/32 | 37/43 | 43/49 | 60/66 | |||
Accessory | Shelf | 2 | |||||
Shelf frame | 4 | ||||||
optionalaccessories | Shelf, RS485interface, printer, recorder, external communication, remote control, programtemperature controller, wireless SMS alarm, U disk data storage | ||||||
