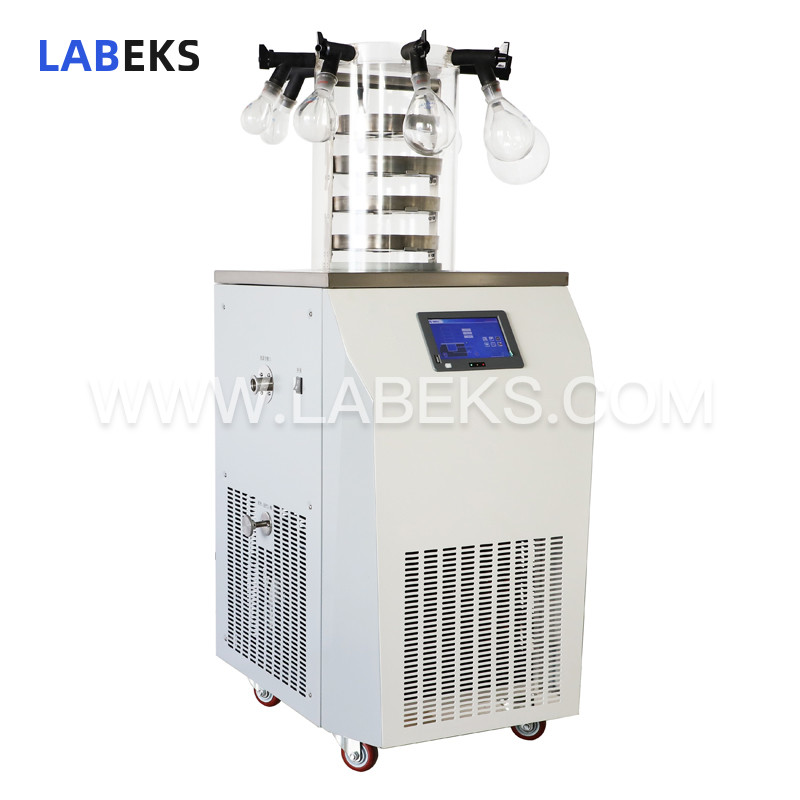

LFD-12SC Manifold Freeze Dryer with Programmable Controls for Lab & Small Production

Equipped with globally renowned brand compressors for high efficiency, energy conservation, extended service life, and low operational noise.

Integrated with a top-tier brand vacuum pump, delivering fast pumping speeds to attain superior ultimate vacuum levels.

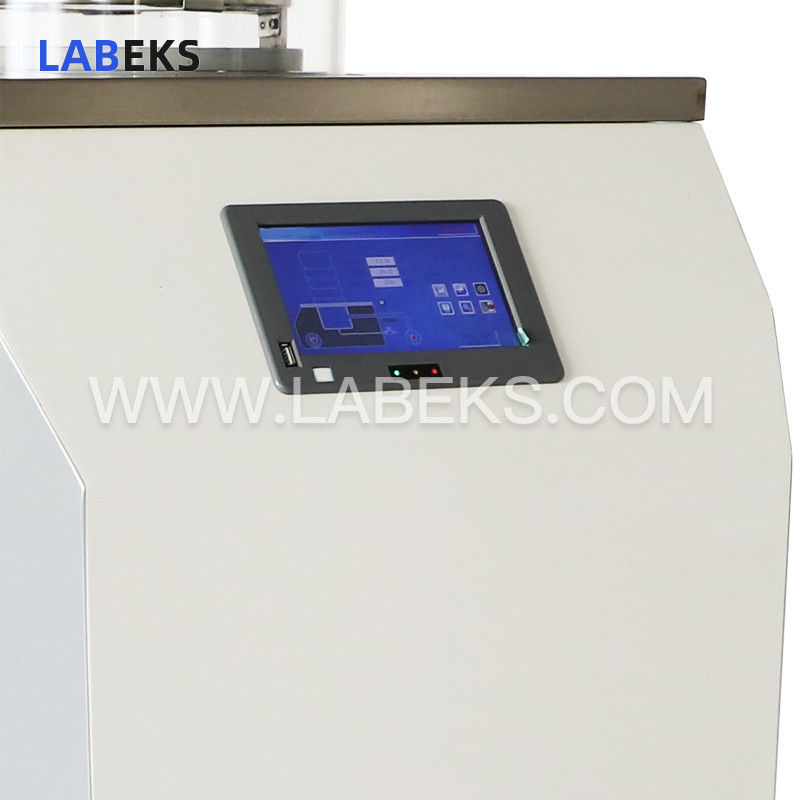

7-inch true-color industrial embedded touchscreen paired with the SH-HPSC-II modular controller ensures high control precision and stable, reliable performance.

The professionally engineered FD-EMB control system stores up to hundreds of process recipes, with each recipe featuring 50 temperature control segments to enhance process optimization efficiency.

Large-aperture cold trap without internal coils offers integrated sample pre-freezing capability, eliminating the need for a separate low-temperature refrigerator.

Advanced gas guidance technology enables the cold trap to achieve uniform and highly efficient ice capture.

Intelligent AI electric defrost system (SH-10KCQ) operates at safe voltage and employs multi-dimensional fuzzy control technology to drastically boost defrosting efficiency.

36V safe-voltage shelf heating system with adjustable heating rate control for enhanced operational safety.

Intelligent data logging system records and displays real-time curves for cold trap temperature, sample temperature, and vacuum level; exported data is computer-compatible and printable.

Versatile manual and automatic control modes support process development via manual operation and consistent batch production via automated control.

Real-time alarm alerts and historical alarm query functionality simplify fault diagnosis and equipment maintenance procedures.

Configurable user access levels and password protection enable decentralized, secure operation management.

Robust sensor calibration capability guarantees precise, long-term measurement accuracy.

All product-contact components are constructed from inert materials, fully complying with GLP standards.

Cold trap and worktable are fabricated from corrosion-resistant stainless steel, facilitating easy cleaning and maintenance.

Custom-designed, in-house manufactured all-stainless steel inflation (vent) valves ensure safety, corrosion resistance, and zero leakage.

Integrated one-piece structure with a compact footprint, no external flanges, ensures ease of operation and leak-free performance.

Vacuum pump protection function allows users to set the cold trap temperature threshold for pump activation, extending the vacuum pump’s service life.
