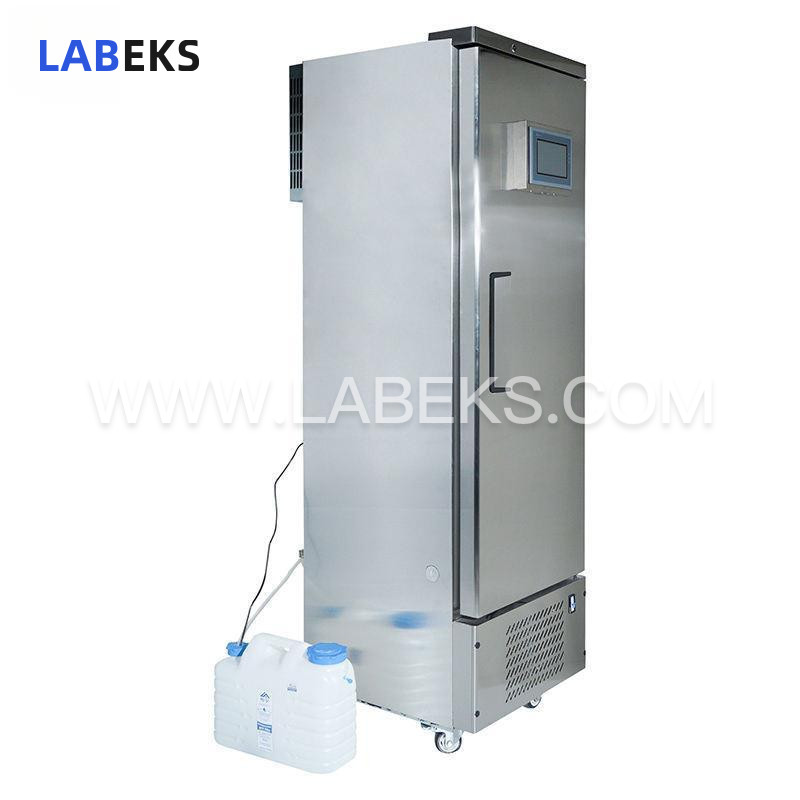

LED Top Stainless Steel Light Incubator with Programmable Control for Life Science Research
Designed to deliver accurate constant temperature, humidity, and simulated light conditions, this Light Incubator supports research in life sciences, cell microbiology, molecular genetics, and experimental studies across bioengineering, medicine, agronomy, aquaculture, and animal husbandry.
- modelLZX-T SERIES
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Optimized for applications in life sciences, cell microbiology, molecular genetics research, as well as experimental studies within bioengineering, medicine, agronomy, aquaculture, and animal husbandry, this LED Top stainless steel light incubator provides precise constant temperature, humidity, and simulated light environments to ensure reliable experimental outcomes.
features
1. Three-level authority password protection, integrated audit trail function, and unmodifiable PDF data output facilitate secure experimental data safeguarding and traceable querying.

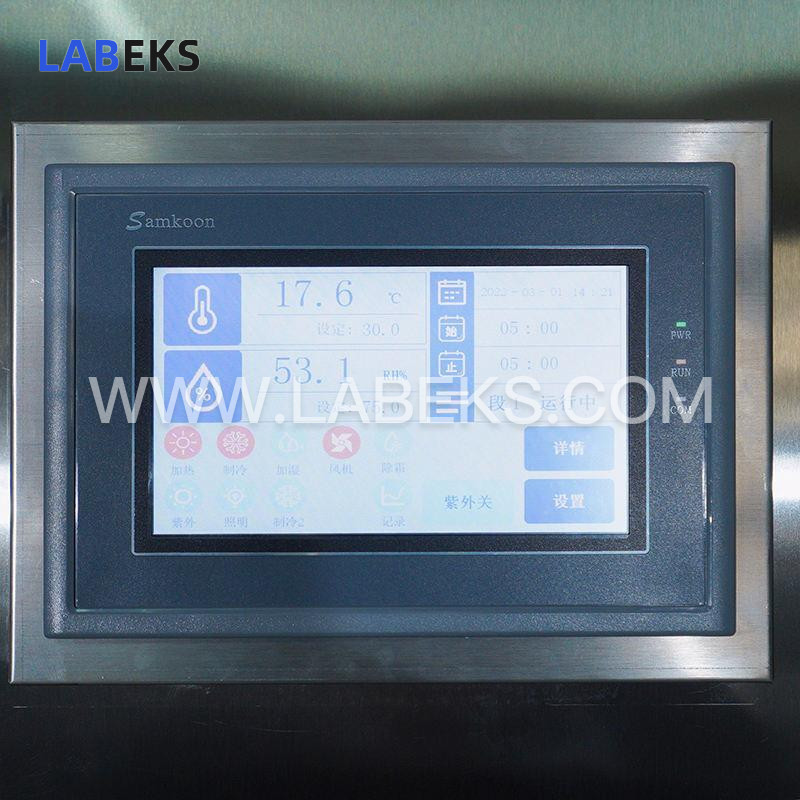

2. Microcomputer-controlled operation with a 7-inch color LCD touchscreen enables real-time data reading and curve analysis.
3. Programmable control: Synchronize settings with Beijing time (day/night cycles), and divide operations into 1-12 groups of working hours to regulate temperature and light intensity parameters.
4. Equipped with a hot start function and power failure memory feature; upon power restoration, the unit resumes operation from the point of interruption using the original preset values.
5. Intelligent long-term low-temperature cooling and anti-icing technology ensures no defrosting or freezing occurs at temperatures above 0°C.
6. Fully foamed cabinet with an insulation layer thickness exceeding 5CM, featuring low thermal conductivity for enhanced temperature retention, stability, and a 30% reduction in energy consumption.
7. LED modules operate at 36V low voltage; each single-board LED module has a power of ≤100W, a light board size of ≤47*38cm, and consists of 540 LED bulbs per board.
8. High-speed USB interface allows for quick data export and backup.
9. 485 communication capability enables remote data collection, monitoring, and parameter setting.
specifications
Model | LZX-260T | LZX-300T | LZX-380T | LZX-450T | LZX-530T | LZX-820T | LZX-1000T | LZX-1260T | LZX-1500T |
|---|---|---|---|---|---|---|---|---|---|
Workingpower supply | 220V/50hz | ||||||||
Rated power | 800w | 800w | 800w | 1000w | 1000w | 1200w | 1200w | 1500w | 1800w |
Operatingpower | 550w | 550w | 550w | 800w | 800w | 1000w | 1000w | 1300w | 1500w |
Volume | 260L | 300L | 380L | 450L | 530L | 820L | 1000L | 1260L | 1500L |
Openingstructure | Single door | Single door | Single door | Single door | Single door | Single door | Single door | Three doors | Three doors |
Temperaturecontrol range | 0-70℃(nolight ),10-70℃(Illuminated ) | ||||||||
Temperaturefluctuation | ≤±0.5℃(Resultat temperature 20°C to 37°C ) | ||||||||
Temperaturedistribution accuracy | ±0.3℃(whenthe lights are off ) ±0.5℃when thelights are off)（Temperature20° to 37°) | ||||||||
Temperatureresolution | 0.1℃ | ||||||||
Heating time | 0 °C to 40°C≤50 minutes | ||||||||
Cooling time | 40 ° to 10 °less than or equal to 50 minutes | ||||||||
Llightingmethod | Top verticallight (optional side light ) | ||||||||
Light usagerange | 0-10000LX(0-20000 LX is optional) | ||||||||
Light color | Red, yellowand white three-color light (four-color light is optional, and 8 spectralratios are adjustable) | ||||||||
Dimmingmethod | Steplessadjustable, three layers of light intensity, layered control | ||||||||
Number oflight layers | 3 layers.All-optical submerged LED light pane | ||||||||
Controllers | 7-inch colorLCD touch screen 32-bit microcontroller control7-inch color LCD touch screen | ||||||||
Operationallabell | Screendisplay function and fault indication | ||||||||
Timingfunction | 1 – 9999hour | ||||||||
Temperaturesensors | PT100 | ||||||||
Antibacterialfunctions | UVultraviolet germicidal lamp | ||||||||
Refrigerant | 134a | ||||||||
Interior | 304 mirrorstainless steel | ||||||||
Outerwear | Strandedstainless steel (anti-fingerprint | ||||||||
Heat breakmethod | Polyurethanefoaming integral molding | ||||||||
Number ofshelf | 3 layers,height can be adjusted freely | ||||||||
Shelfmaterial | 304 mirrorstainless steel hollow forming (non-wire welding) | ||||||||
Max. load of shelf | 30Kg | ||||||||
Data storage | USB faststorage. Data can be exported. Can record 100,000 data (temperature data ofmore than 6 months) | ||||||||
Communicationfunction | 485 port forremote monitoring and equipment | ||||||||
Studiodimensions (W*D*H) | 510x480x1050 | 500x455x1300 | 500x575x1300 | 600x575x1300 | 600x685x1300 | 1100x575x1300 | 1100x690x1300 | 1700x570x1300 | 1350x800x1400 |
Dimensions(W*D*H) | 600x700x1590 | 600x700x1940 | 600x800x1940 | 720x820x1940 | 700x900x1940 | 1210x820x1940 | 1210x920x1940 | 1800x720x1940 | 1500x1000x1940 |
Optional | Mobile phoneAPP remote control, embedded printer, add layer, PC analysis and monitoringsoftware, electronic door lock and door opening magnetic card. Can becustomized according to a variety of functions, sizes, materials of theexperimental box. | ||||||||
