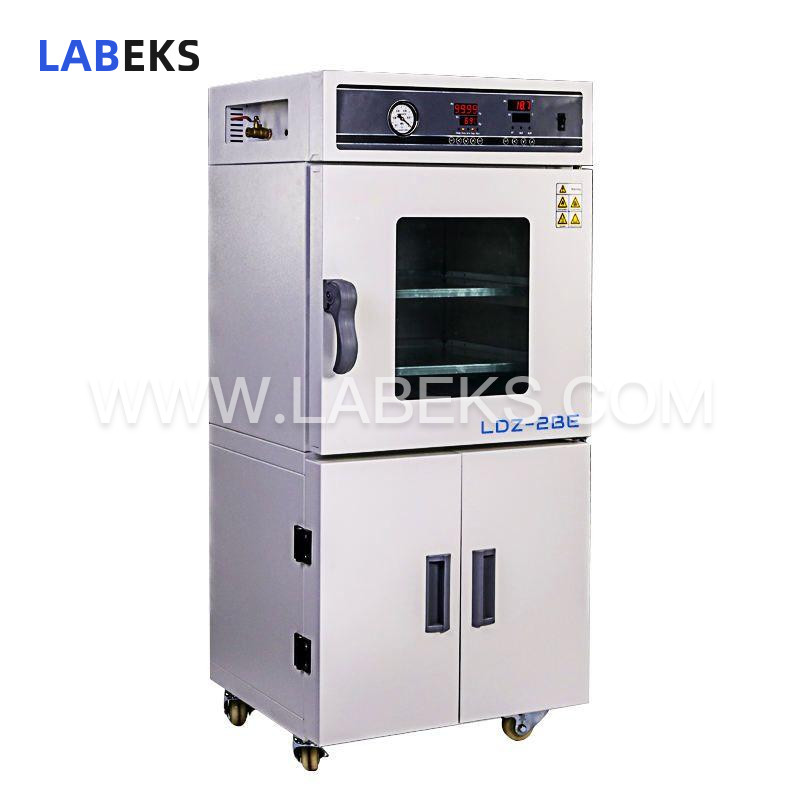

LDZ-BE Series Vertical Vacuum Drying Oven for Heat-Sensitive Materials with Integrated Vacuum Pump
Enabling fast, efficient drying of heat-sensitive, decomposable and oxidizable substances, this vacuum drying oven maintains stable vacuum levels in its working chamber (with inert gas fill support for complex-composition items) and uses an intelligent digital temperature regulator for precise setting, display and control.
- modelLDZ-2BE/LDZ-3BE
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Widely utilized in research fields including biochemistry, chemical pharmaceutics, healthcare, agricultural science, and environmental protection, vacuum drying ovens support powder drying, baking, and disinfection/sterilization of diverse glass containers. They are particularly ideal for rapid, high-efficiency drying of heat-sensitive, decomposable, oxidizable, and complex-composition substances.
features
1. Automatically evacuates the chamber and maintains pre-set vacuum levels consistently.
2. Integrated vacuum pump included as standard.
3. Equipped with a PID temperature controller for steady, reliable operation.
4. Integrated electronic vacuum sensor provides precise vacuum level readings.
5. Adjustable door lock, self-adaptive observation window frame, and one-piece molded silicone sealing strip ensure long-term, stable airtightness.
6. Suspended air-jacketed insulated glass door fits tightly against the rubber gasket, remaining cool to the touch during operation.
7. High-thermal-conductivity aluminum tray ensures uniform surface temperature for consistent drying results.
8. Dedicated function keys enable intuitive, precise temperature adjustment.
9. Auxiliary menu offers over-temperature alarm, temperature deviation correction, and menu locking functions.
10. Integrated filter removes fine particles and oil vapors to extend the vacuum pump’s operational lifespan.
specifications
Model | LDZ-2BE | LDZ-3BE | |
|---|---|---|---|
Method | Decompression, heating onfour walls | ||
Performance | Operatingtemperature range | RT+10-250℃ | |
Ultimatevacuum | <133PA | ||
Temperatureresolution | 0.1℃ | ||
Temperaturefluctuation | ±1℃ | ||
Heatingtime | 100minutes | 120minutes | |
Constitute | Interior | stainless steel | |
Exterior | Coldrolled steel sheet, surface chemical resistantcoating | ||
Thermalinsulation material | aluminumsilicate fiber | ||
Heater | Stainlesssteel heating tube heating on all sides | ||
Observationwindow | bulletproof tempered glass | ||
Vacuumgauge | pointertype | ||
Ratedpower | 1.4kw | 2.0kw | |
Controller | Temperaturecontrol mode | Digitaltube dual-row PID | |
Temperaturesetting method | touchtype | ||
Temperaturedisplay method | Measurementtemperature display: 4-digitdigital upper display; set temperature display: 3-4 digital lowerdisplay | ||
Timer | 0-9999minutes (with timing waiting function) | ||
Operationfunction | fixedvalue operation, timing operation, automatic stop, program operation | ||
Programmode | Optional | ||
Additionalfunctions | Deviationcorrection, menu button lock, power failure compensation, power failurememory | ||
Sensor | Pt100 | ||
Safetydevice | Over-risealarm | ||
Specifications | Internaldimensions (W* D * H)(MM) | 415*370*340 | 450*450*450 |
Externaldimensions (W * D * H)(MM) | 574*562*1266 | 609*642*1471 | |
Outerpackaging size (W * D * H)(MM) | 740*710*1380 | 770*755*1597 | |
Innervolume | 52L | 91L | |
Shelfload-bearing capacity | 15kg | ||
Numberof clapboard layers | 2 layers | ||
Spacebetween partitions | 140mm | 185mm | |
Suctionport | φ10 mm | ||
Exhaustport | φ10 mm | ||
Powersupply (50/60Hz) rated current | AV220V/6.3 | AV220V/9.1 | |
Configurationscan be added | Partition | 2 pieces of all-aluminumpartitions | |
